AutoParameter 64 bit
Win64, EnglishGeneral Usage Instructions
Links the AutoCAD table cells or Excel worksheet cells to AutoCAD constraint parameters.
- Click Link Parameters on the AutoParameter ribbon.
- Select a parameter from the app dialog box.
- Pick a table cell in the drawing.
- Add the link to the list.
- Click Update Parameters.
Other features:
Exports AutoCAD constraint parameters to AutoCAD tables or Excel spreadsheet.
Imports the constraint parameters from the Excel worksheet by using AutoParameter.
Commands
Ribbon/Toolbar Icon | Command | Command Description |
---|---|---|
|

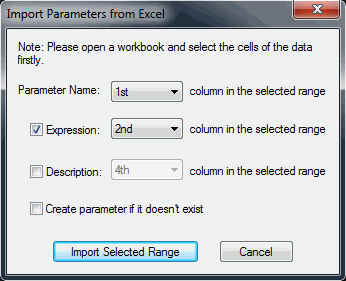

Import Parameters |
Import the constraint parameters from Excel active worksheet. |
|
Update Parameters |
Update the constraint parameters from AutoCAD table or Excel worksheet. |
|

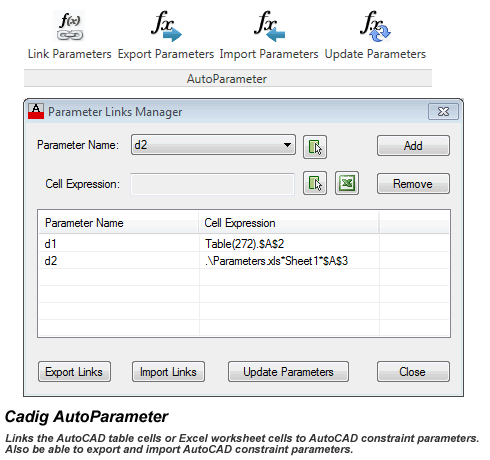

Link Parameters |
Link the cells of AutoCAD table or Excel Worksheet to the constraint parameters. |
|

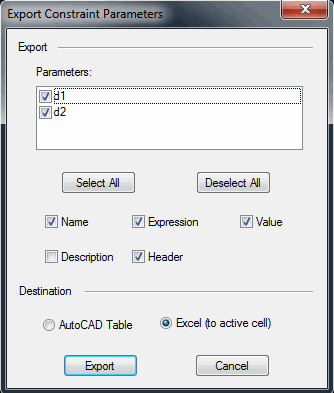

Export Parameters |
Export the constraint parameters to AutoCAD table or Excel worksheet. |
Installation/Uninstallation
The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin.
You may need to restart the Autodesk product to activate the app/plug-in.
To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 7/8.1/10/11) and uninstall as you would any other application from your system.
Additional Information
Known Issues
Contact
Author/Company Information
Support Information
Version History
Version Number | Version Description |
---|---|
2.79 |
Supports AutoCAD 2024 and 2025. Fixes several bugs. |
2.76 |
Supports AutoCAD 2023. Fixes several bugs. |
2.75 |
Supports Autodesk® AutoCAD® 2022. Fixes several bugs. |
2.71 |
Supports Autodesk® AutoCAD® 2021 |
2.7 |
Supports Autodesk® AutoCAD® 2020 |
