Slope Hatching Drawer

Win32 and 64, English

infrasolutions

Draw hatches on different slopes. Drawing objects as Line, Polyline, Spline and Arc are considered.

Version History

General Usage Instructions

*** Slope Hatching Drawer ***

Written by D.Lasy 2014/10

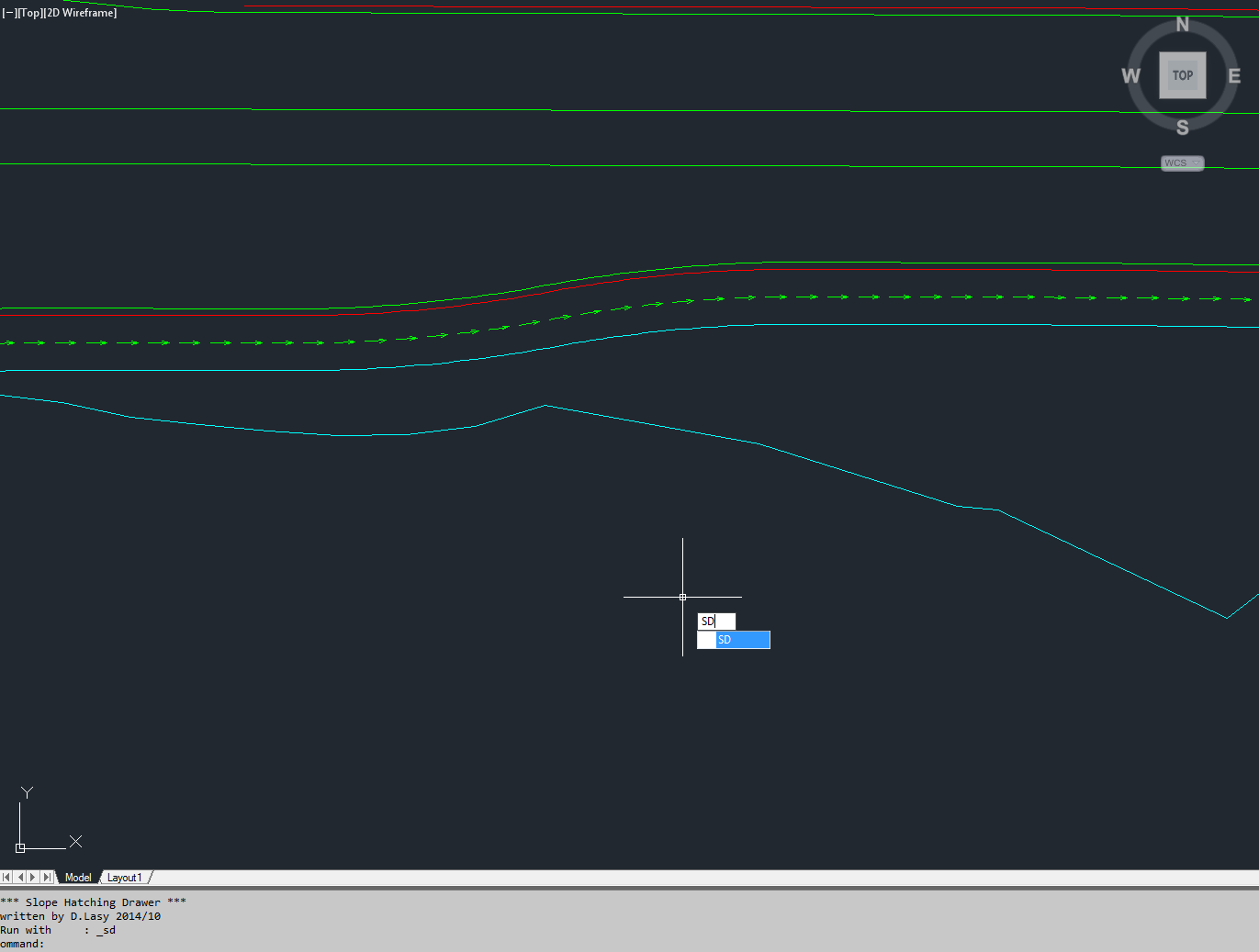

Command: SD

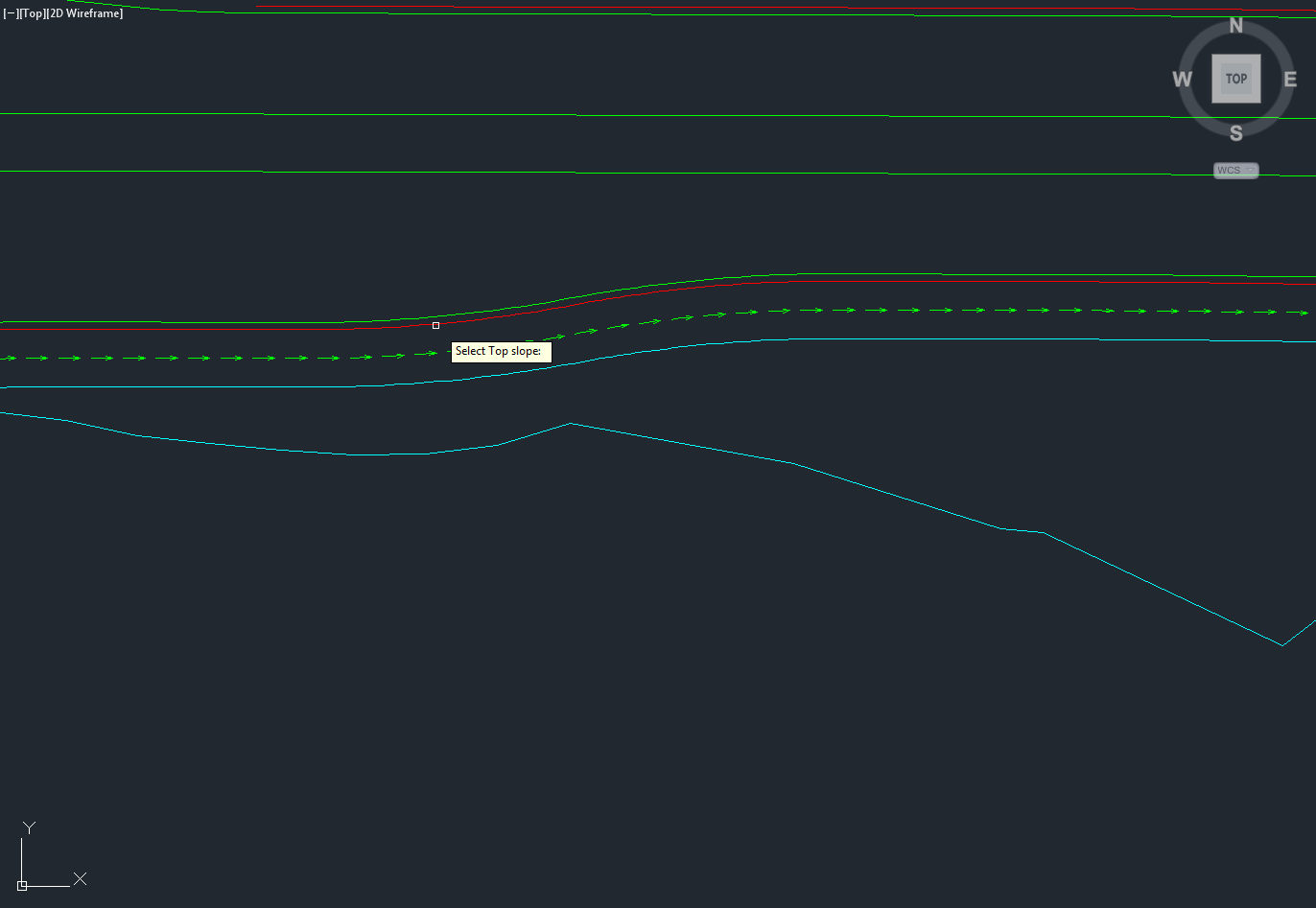

Select a top slope (Arc, Line, Polyline, Spline)
Select a bottom slope (Arc, Line, Polyline, Spline)

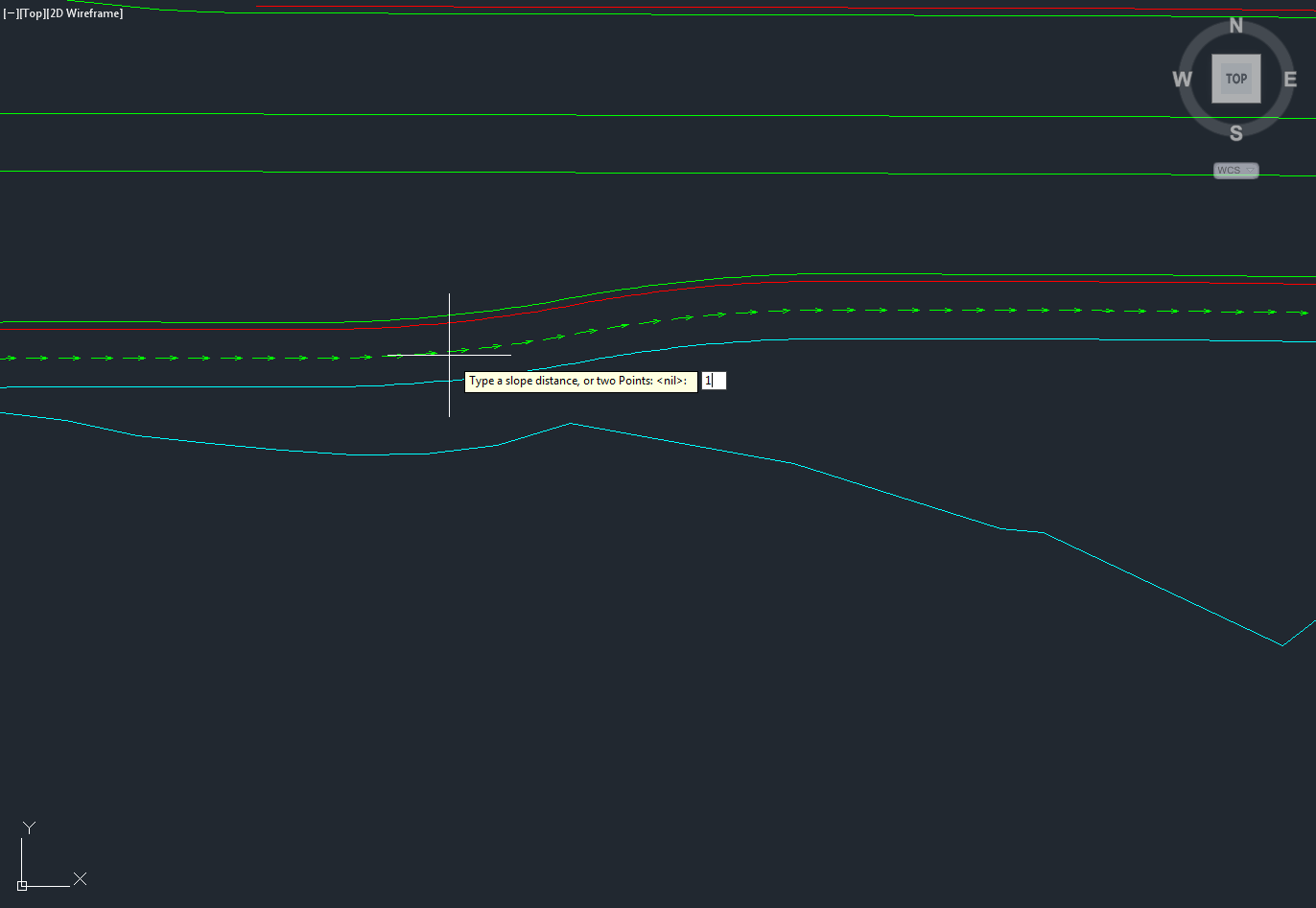

Enter a slope distance (value or 2Pickpoints)

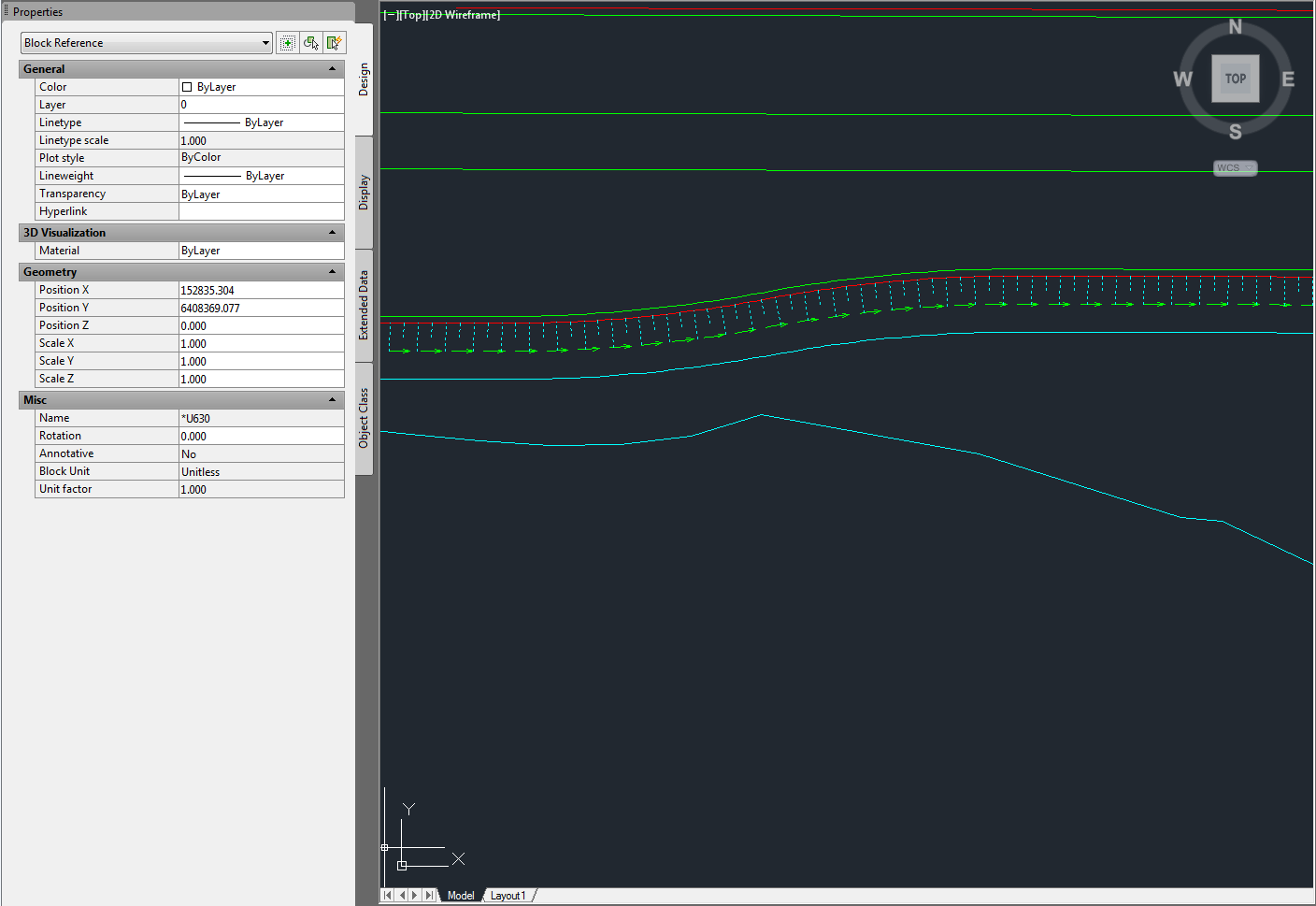

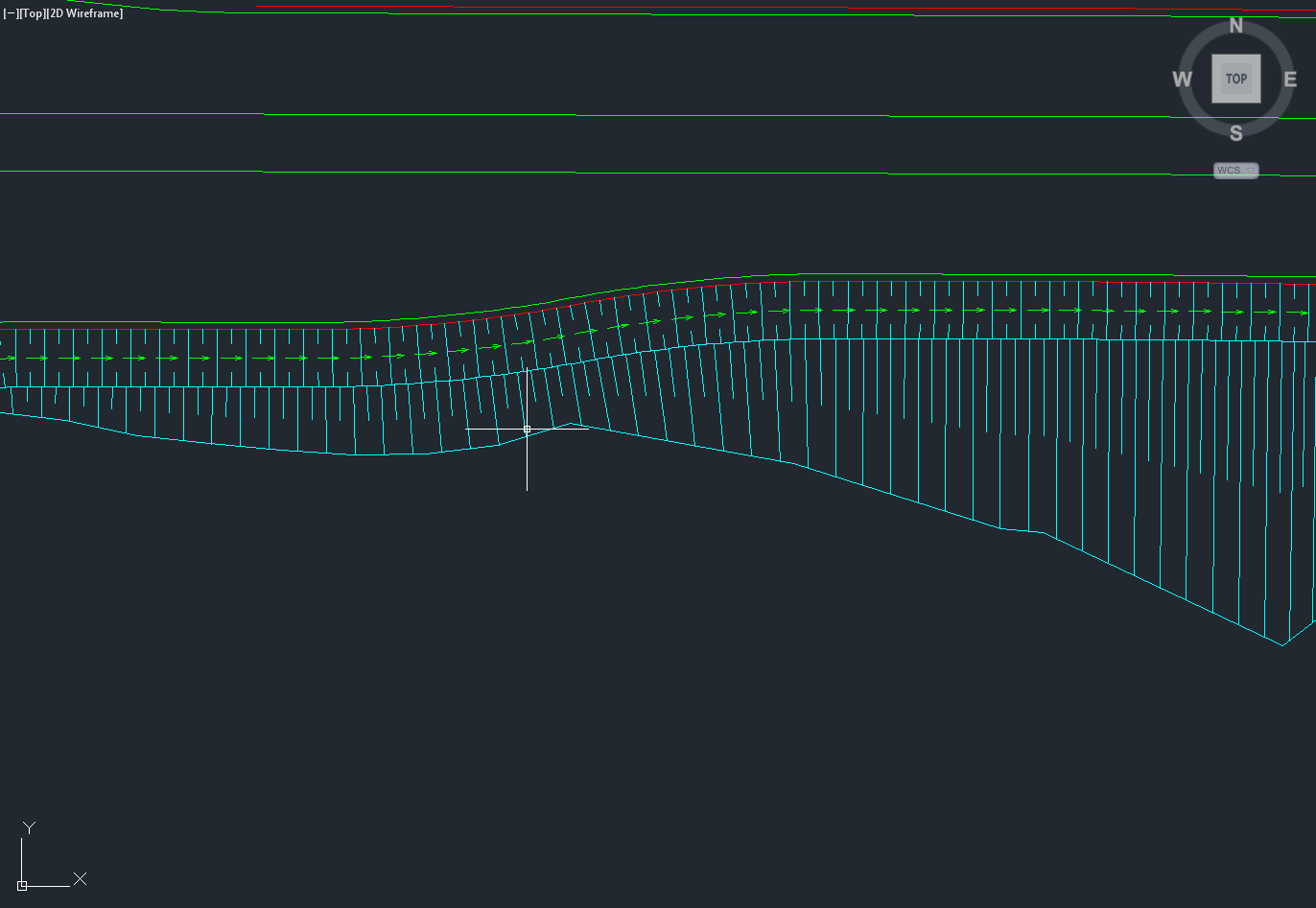

Slope hatch creates a block.
