Brazil Structural Steel Sections Content Pack

Brazil Structural Steel Sections Content Pack

Win64, English

Autodesk, Inc.
A Steel Structure catalog for use in Autodesk® AutoCAD® Plant 3D. It includes NBR Standard used in the Brazilian market.

General Usage Instructions

Steel sections per the following Brazil Structural Steel Sections Standards have been added in this Structural catalog file.

  • NBR 15980   Rolled Steel Shapes for Structural Use - Dimensions and Tolerances
  • NBR 6355     Profiles of Structural Cold - formed Steel – Standardization
  • NBR 14762   Design Cold - formed Steel Structure (Steel Structure Dimensioning Consist of Cold Formed Sections)
  • NBR 5884     Structural Profile Type I Steel Welded Joint by Electric arc - Requirements
  • NBR 15279   Structural Profiles Types I, H and T Steel Welded Joint by High Frequency - Requirements

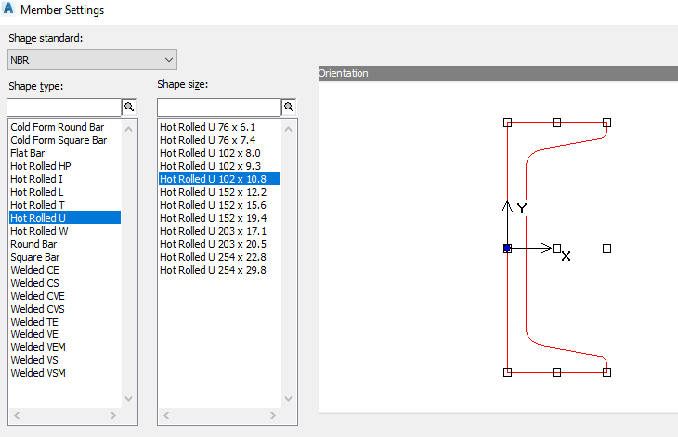

Screenshots

Commands

Installation/Uninstallation

  • Installation notes:

 This catalog is compatible with AutoCAD Plant3D 2018 & higher release. This installer will replace your existing “Structural Catalog.acat”. So before running this installer package, please backup the existing file from the below location:

 C:\AutoCAD Plant 3D Content\ CPak Common\

  • Uninstallation notes:

   To uninstall this content pack, please go to Control Panel => Programs and Features => select the "CPak Brazil Steel 2021” => Uninstall

Additional Information

None

Known Issues

None

Contact

Company Name: Autodesk, Inc.

Author/Company Information

Autodesk, Inc.

Support Information

For questions about this content pack, please contact: plant.content@autodesk.com

Version History

Version Number Version Description

12.0.47.10

Upgrade to 2018 & higher release

11.0.47.02

Upgrade to 2017 & higher release

1.0.2

Upgrade to 2016 & higher release

1.0.1

Upgrade to 2014 & higher release

1.0.0

Initial Release
