PyGasket with StudBolts | Adjustable Dimensions

PyGasket with StudBolts | Adjustable Dimensions

Win64, English
3DeeH
Enhance your Autodesk® AutoCAD® Plant 3D™ with Python Bolts! Seamlessly integrate gaskets and bolts into your piping designs, saving time and improving accuracy. Say goodbye to manual adjustments.

General Usage Instructions

Download and Install: Begin by downloading the app from the store. Install the application on your system.

Open AutoCAD Plant 3D.

Type in the command line PLANTREGISTERCUSTOMSCRIPTS.

Then restart your AutoCAD and SPEC editor. This step registers the script with AutoCAD Plant 3D for one user.

Catalog Integration: Access AutoCAD Spec Editor and navigate to your catalog.

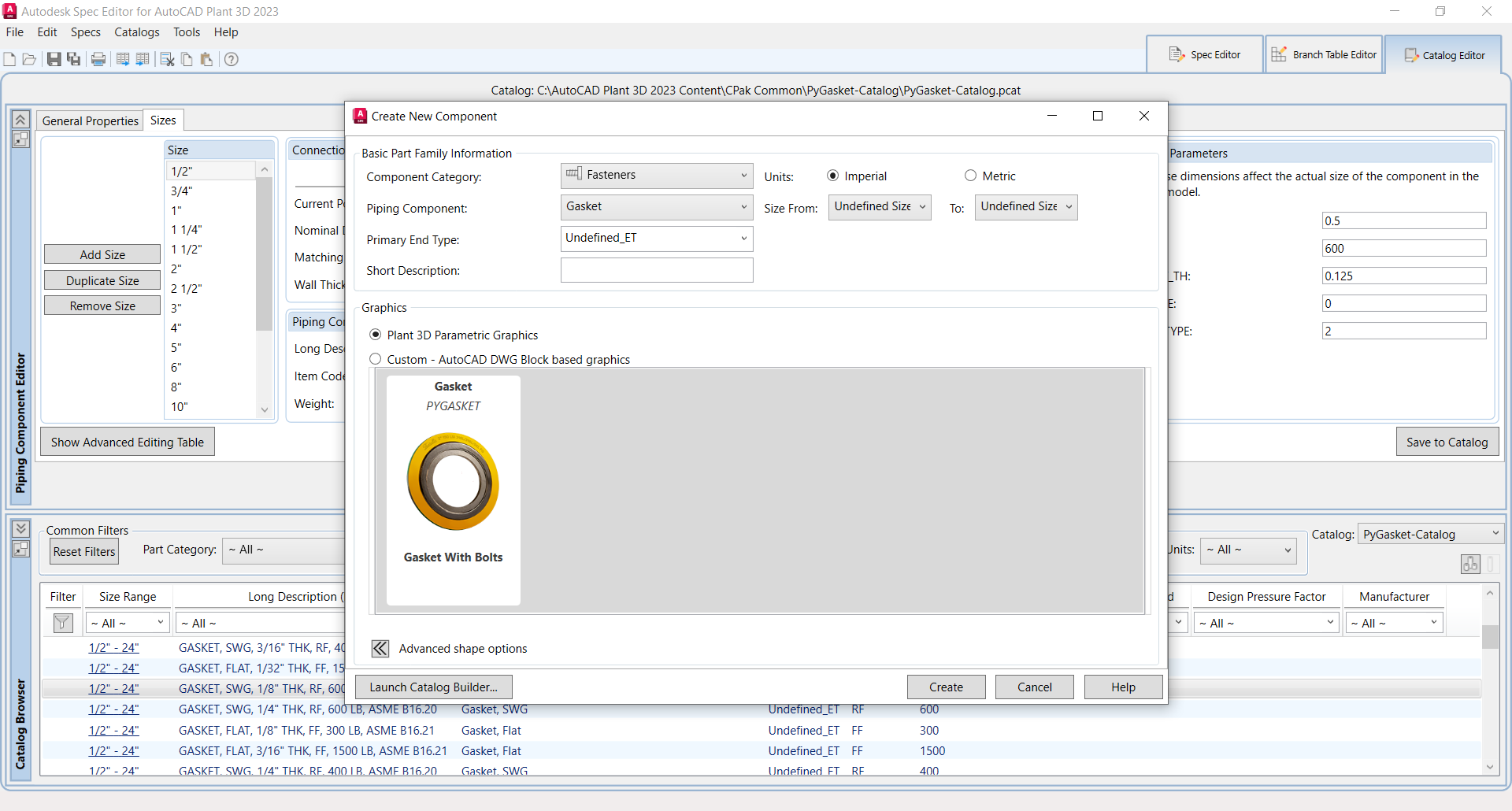

Add new components, and you'll discover our gasket under "Fasteners > Gasket."

Unique Visuals: Our gasket comes with a unique and visually appealing representation, making it stand out in your designs.

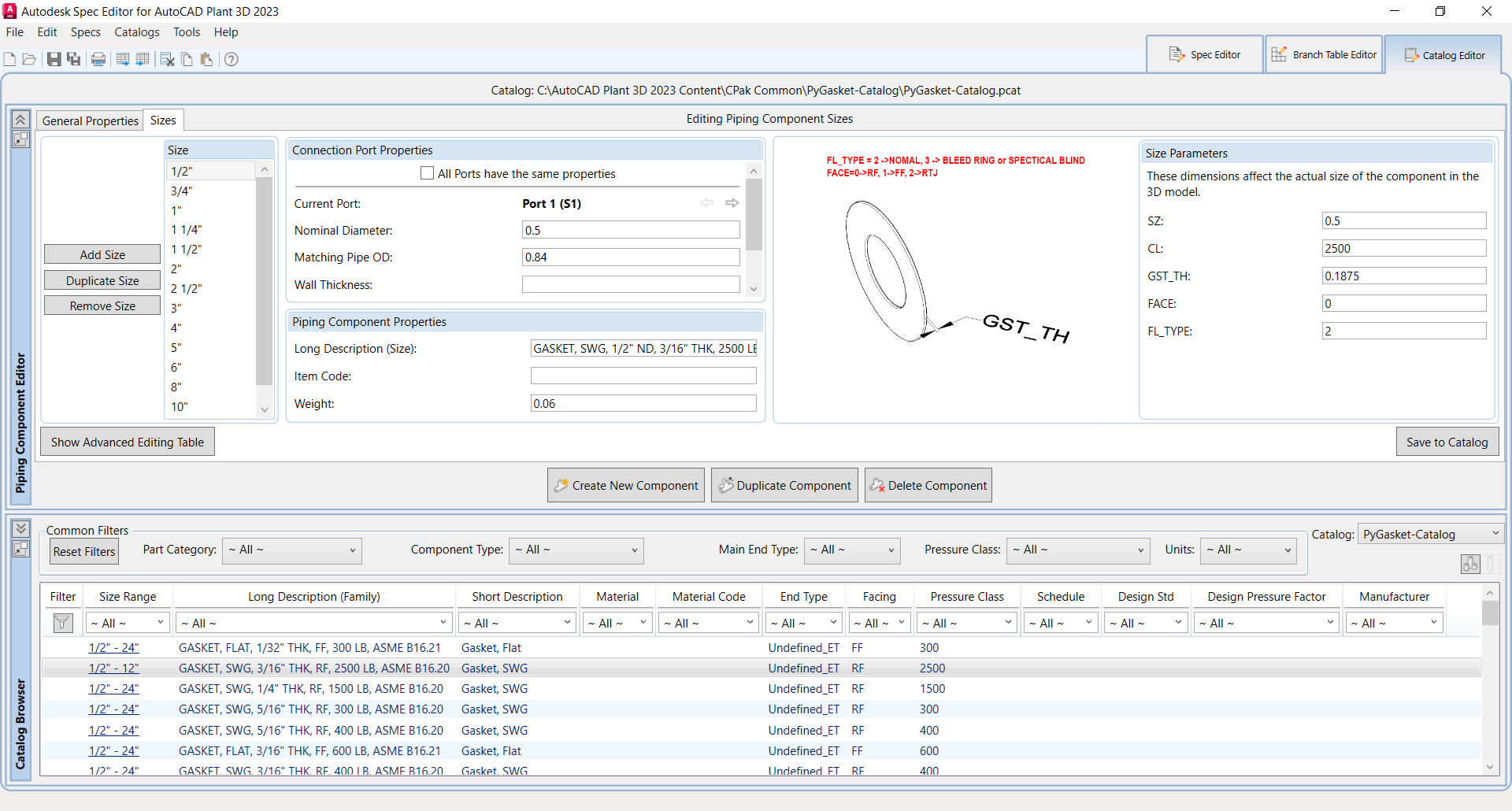

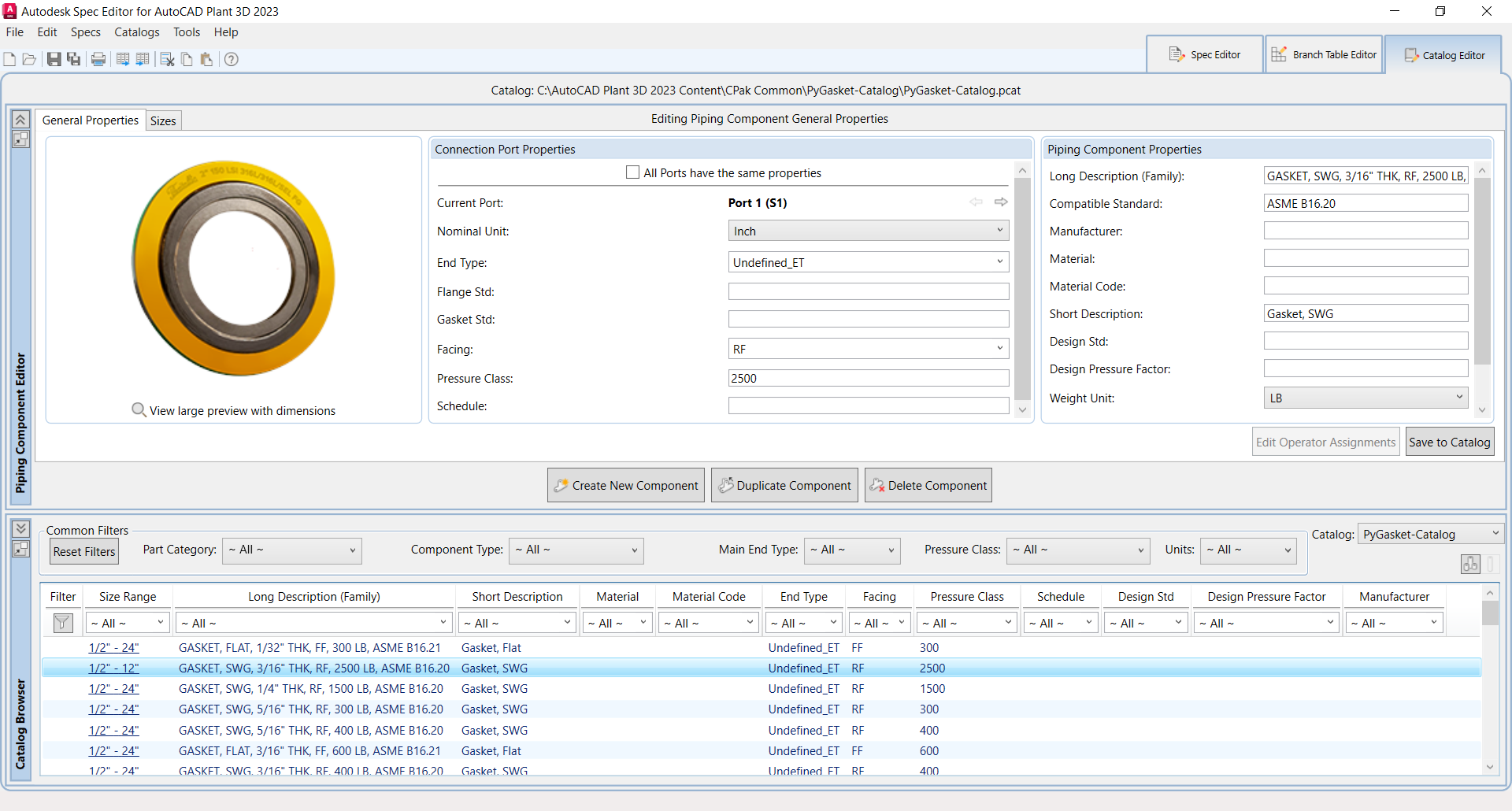

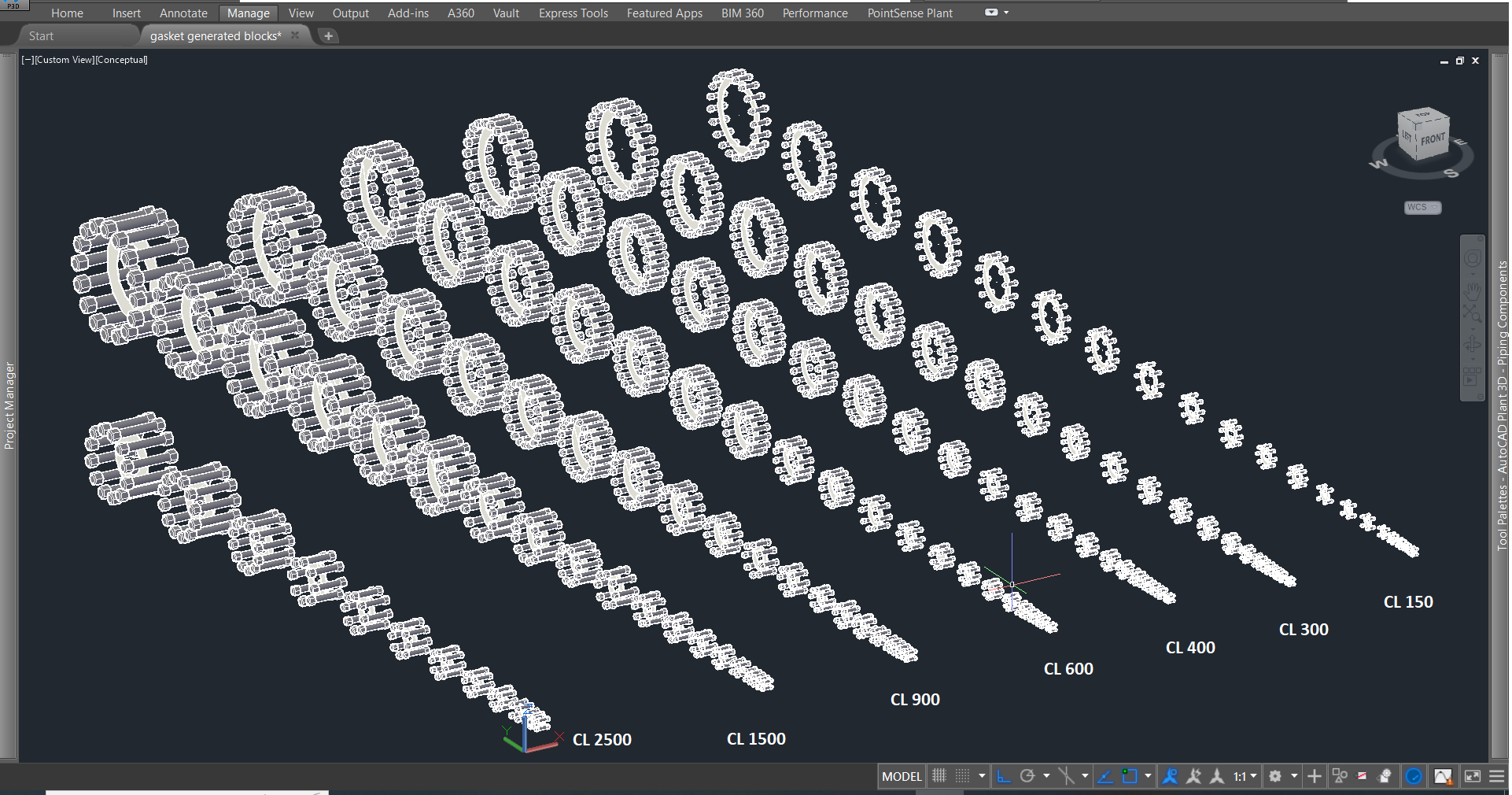

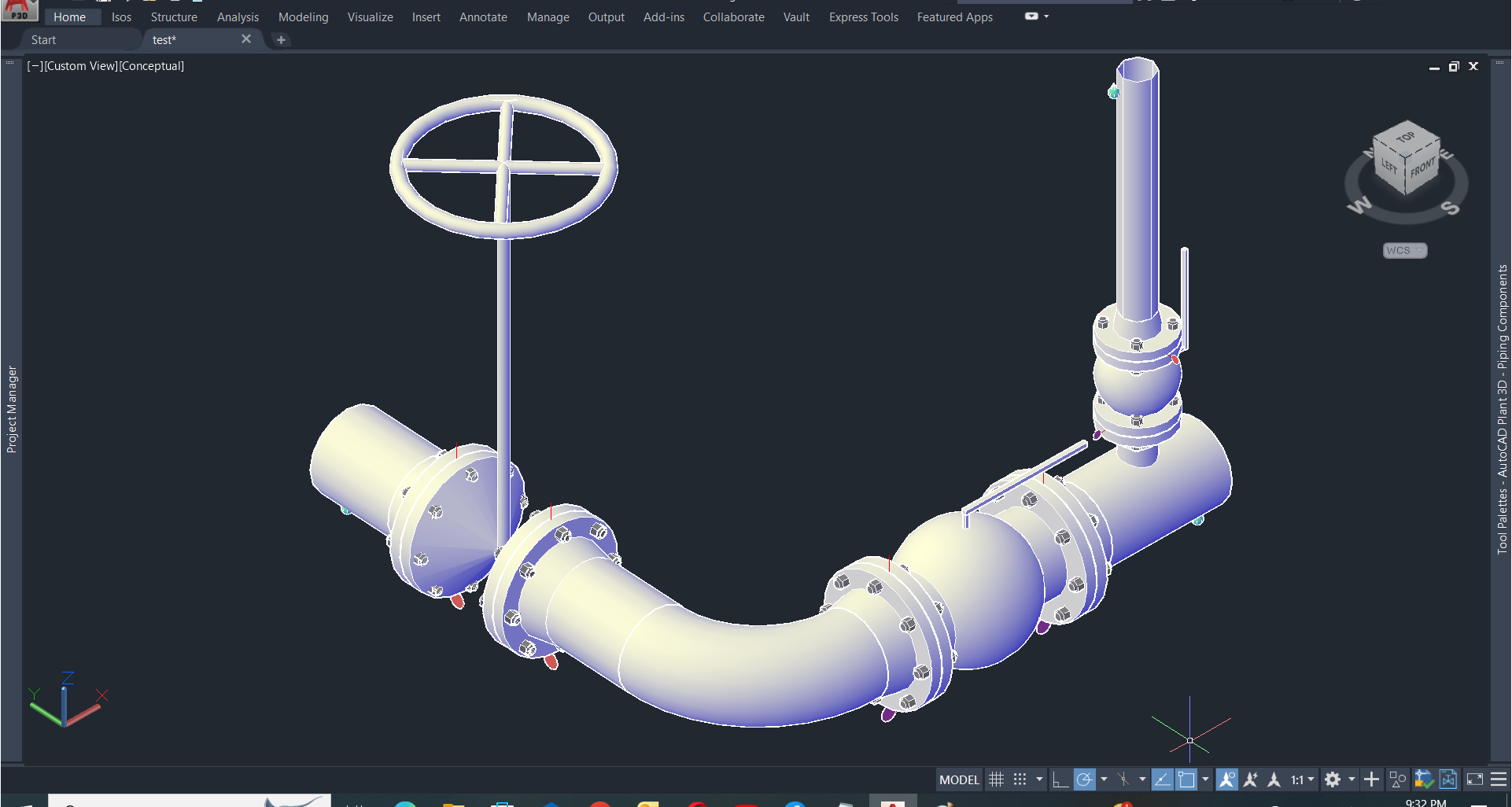

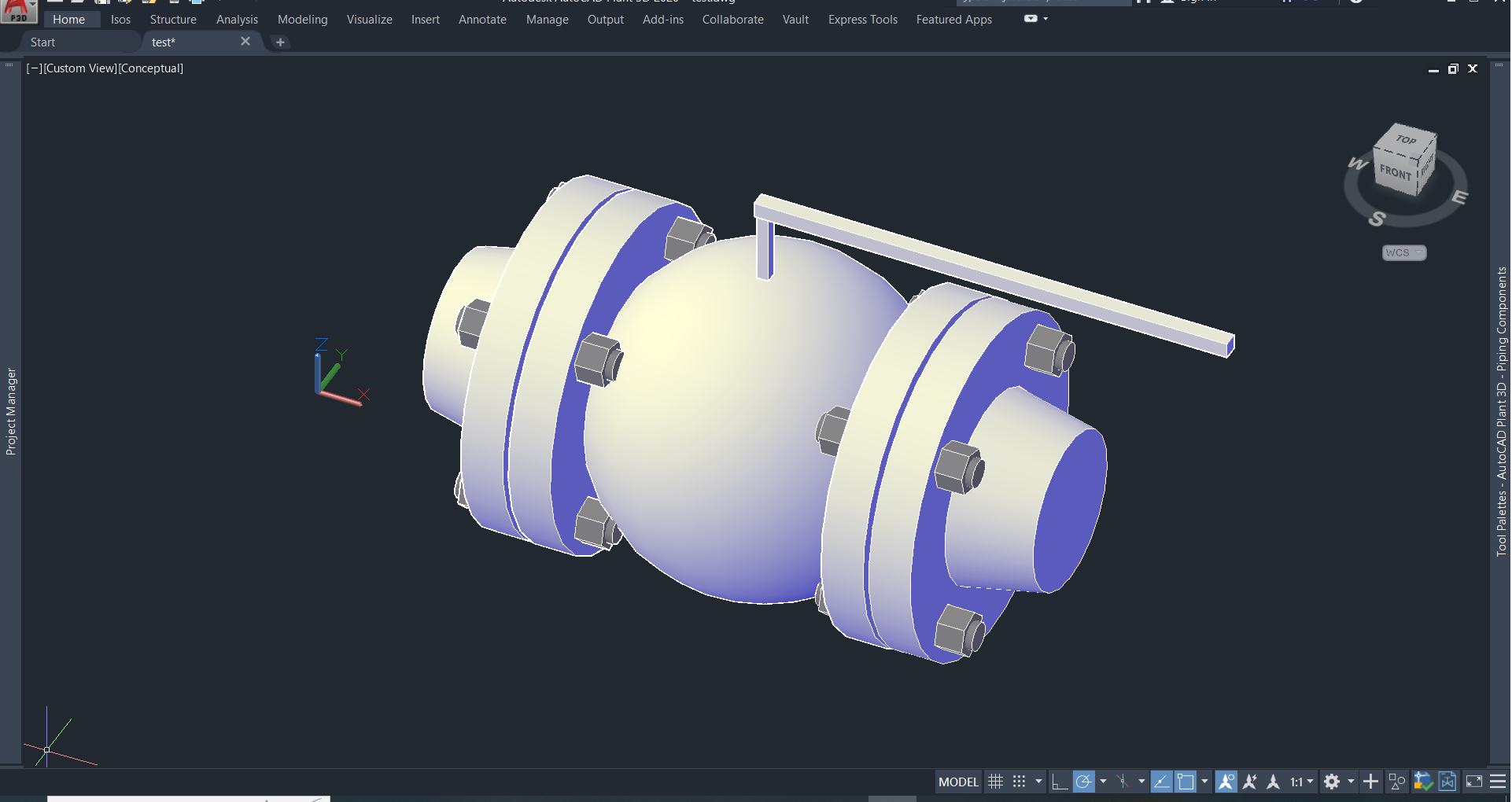

Screenshots

Commands

Installation/Uninstallation

Installation Steps:

  1. Download and Install: Begin by downloading the app from the store.
  2. Select the version of your AutoCAD and install the application on your system.
  3. Open AutoCAD Plant 3D.
  4. Type in the command line PLANTREGISTERCUSTOMSCRIPTS.
  5. Then restart your AutoCAD and SPEC editor. This step registers the script with AutoCAD Plant 3D.

Uninstallation

Directly delete "PyGasket" from "C:\AutoCAD Plant 3D 2027 Content\CPak Common\CustomScripts." Change your AutoCAD version year.

Additional Information

Known Issues

Contact

Author/Company Information

3DeeH

Support Information

PyGasket with StudBolts | 2025 to 2022 | Adjustable Dimensions is the brainchild of 3DeeH, an experienced programmer and piping designer. 3DeeH understands the challenges faced by professionals in the industry and has developed this solution to streamline your workflow.

For inquiries, assistance, or feedback, please contact 3DeeH at service@3deeh.com. Your input is valuable to us as we continuously strive to enhance this tool for the piping design community.

Elevate your AutoCAD Plant 3D experience with PyGasket with StudBolts | 2025 to 2022 | Adjustable Dimensions and take the hassle out of gasket and stud bolt design.

Version History

Version Number Version Description

1.1.0

Updated Release.

1.0.0

Initial Release.

1.0

Python Gasket with Bolts | Adjustable Dimensions
