Smart Tray

Smart Tray

Win64, English

Tamas Halasz
Route pipes and turn them into cable trays!!! Change the length of the trays in the model. Smart Tray will provide additional flexibility to my Python Cable Tray app users.

General Usage Instructions

The app has the following main functions and a setting.

1. Tray Length

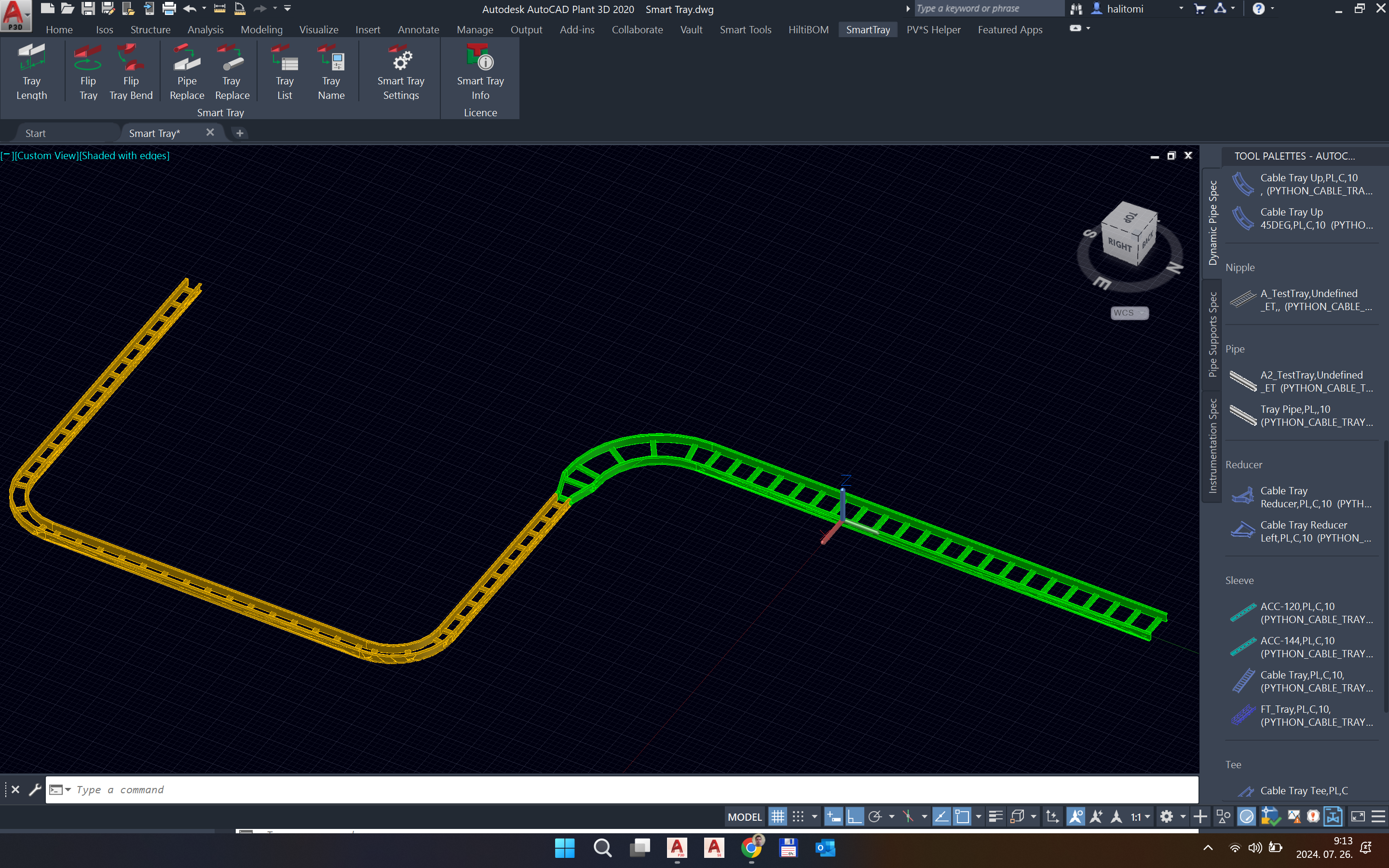

You can change the length of any cable tray in the 3D space if it was created with my Python Cable Tray app without going into the properties window.

2. Flip Tray

It is possible to rotate a straight cable tray by 180 degrees, so you can change its length from the "other" end.

3. Flip Tray Bend

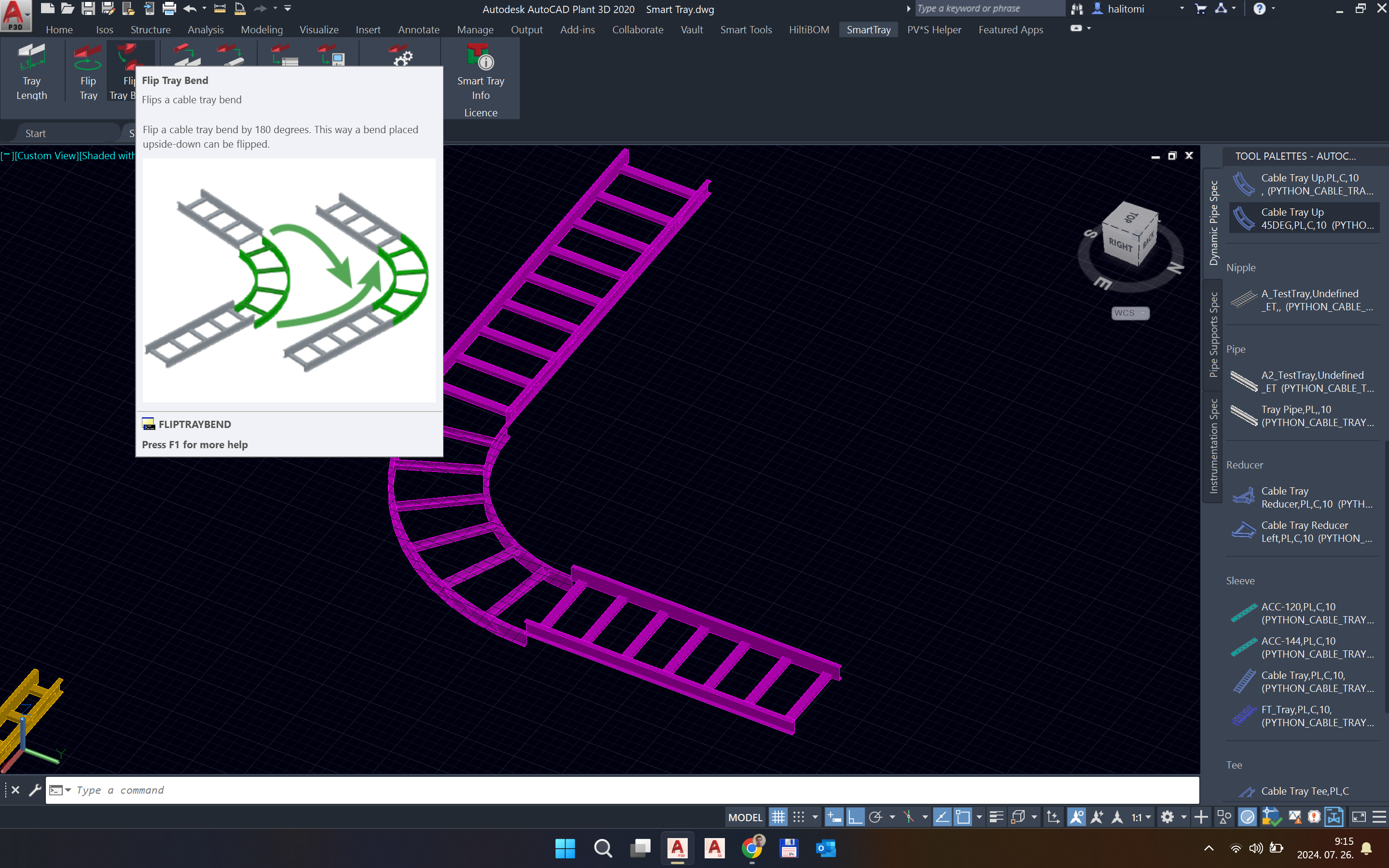

From now on it is possible to flip a bend if it is upside-down.

4. Pipe Replace

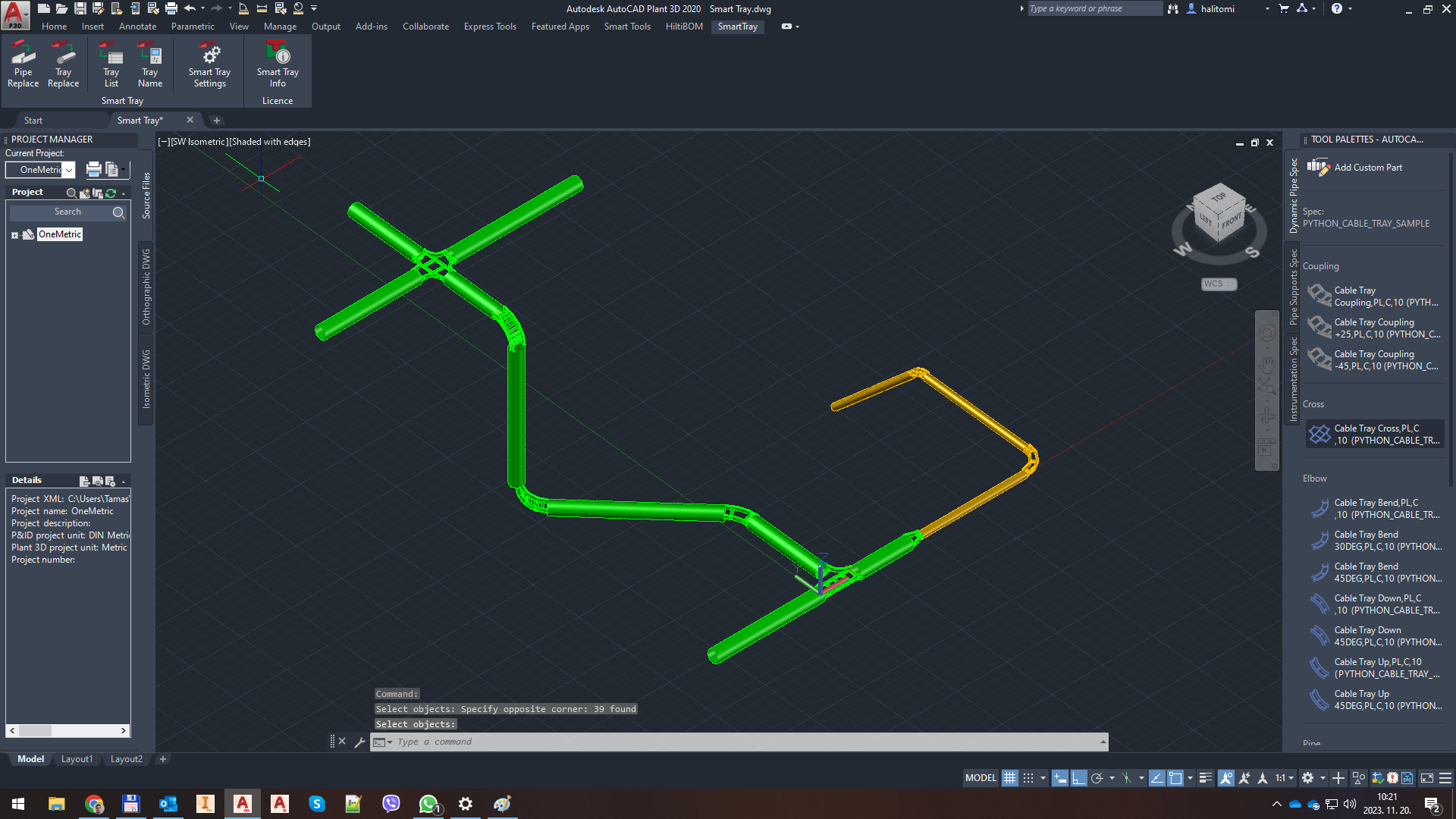

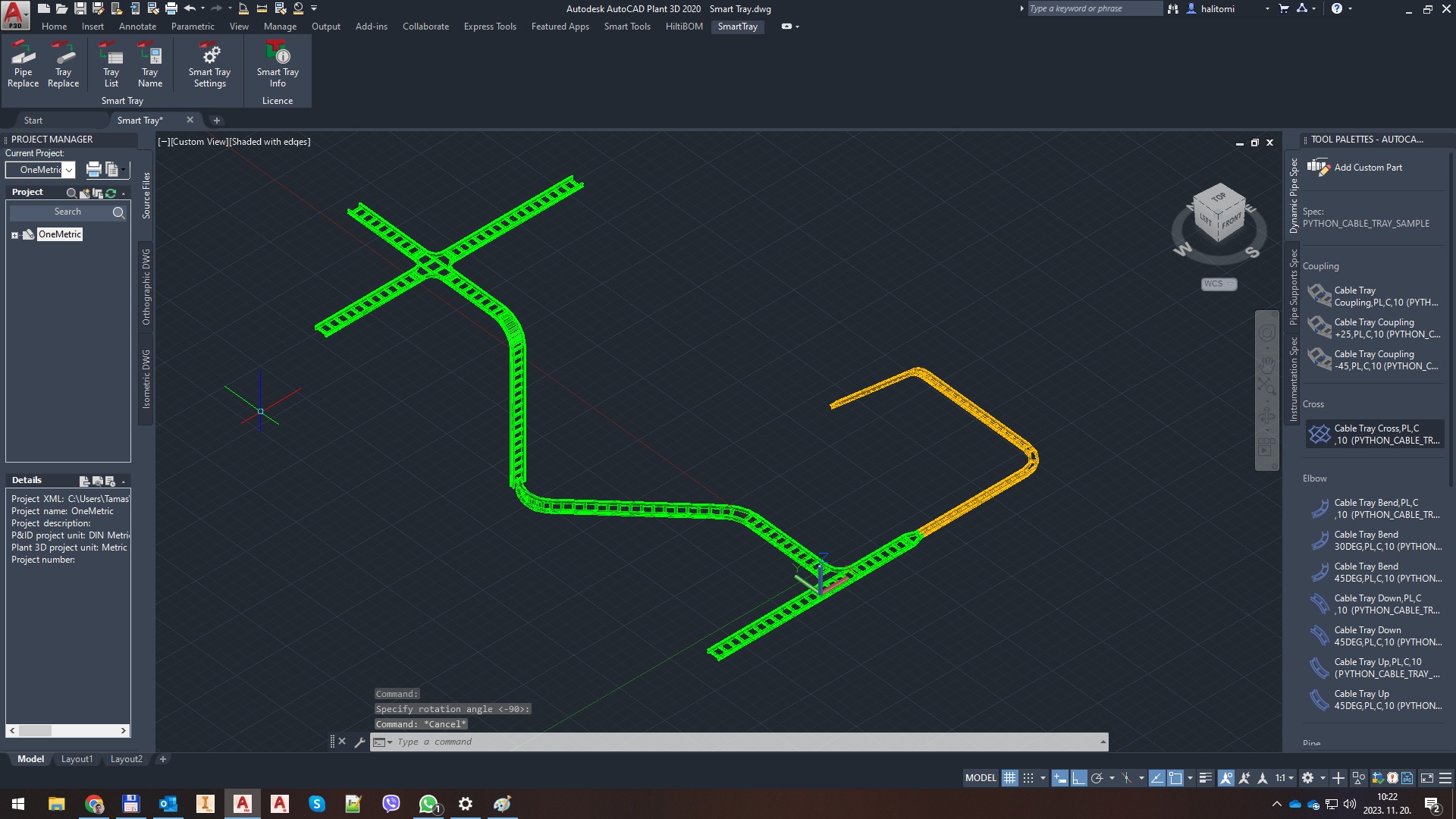

With this function, you can draw your cable trays like pipes. Draw the pipes, insert the bends, tees and reducers as you would while routing pipelines.

5. Tray Replace

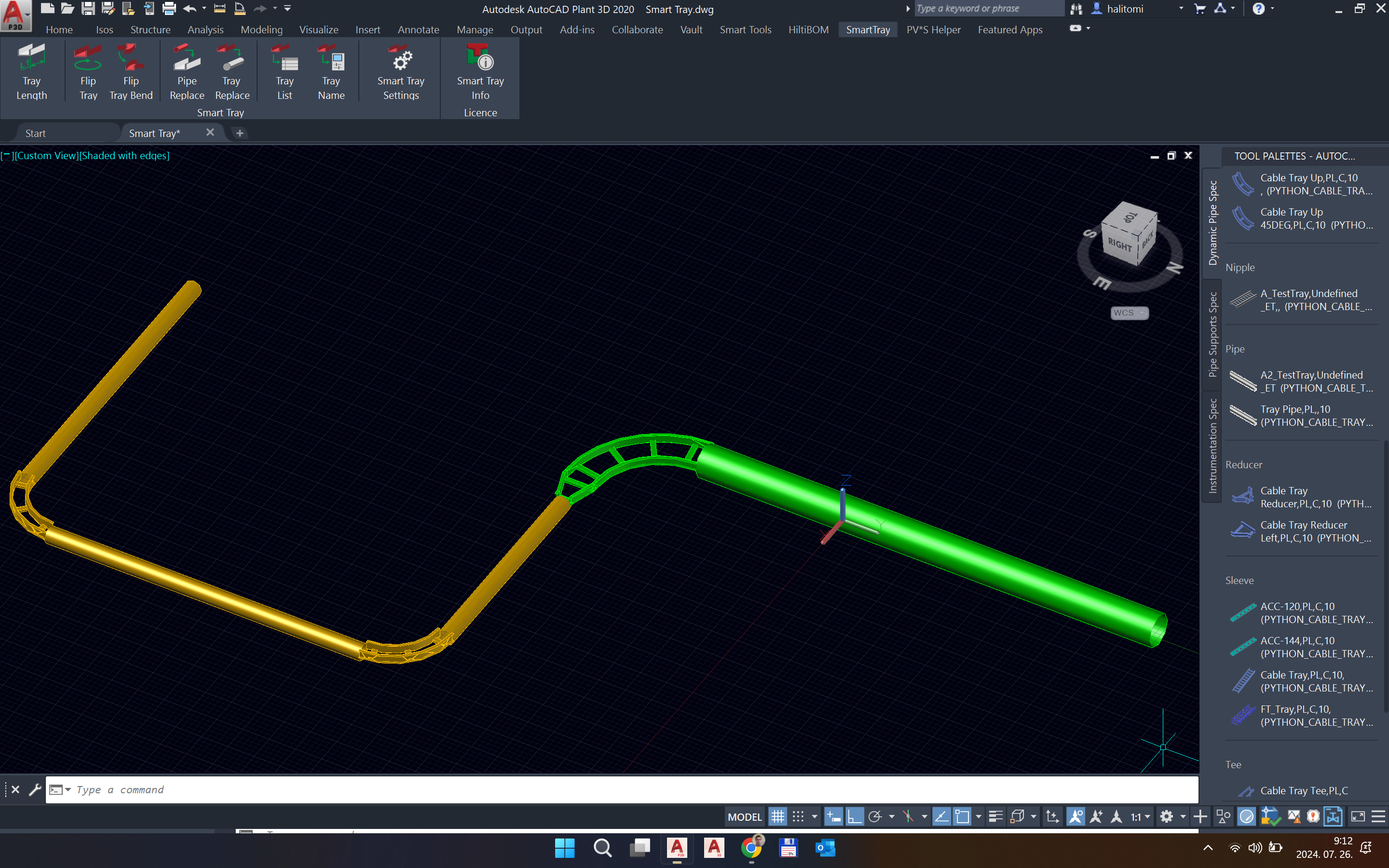

This command will turn all cable trays back to pipes.

6. Tray Name

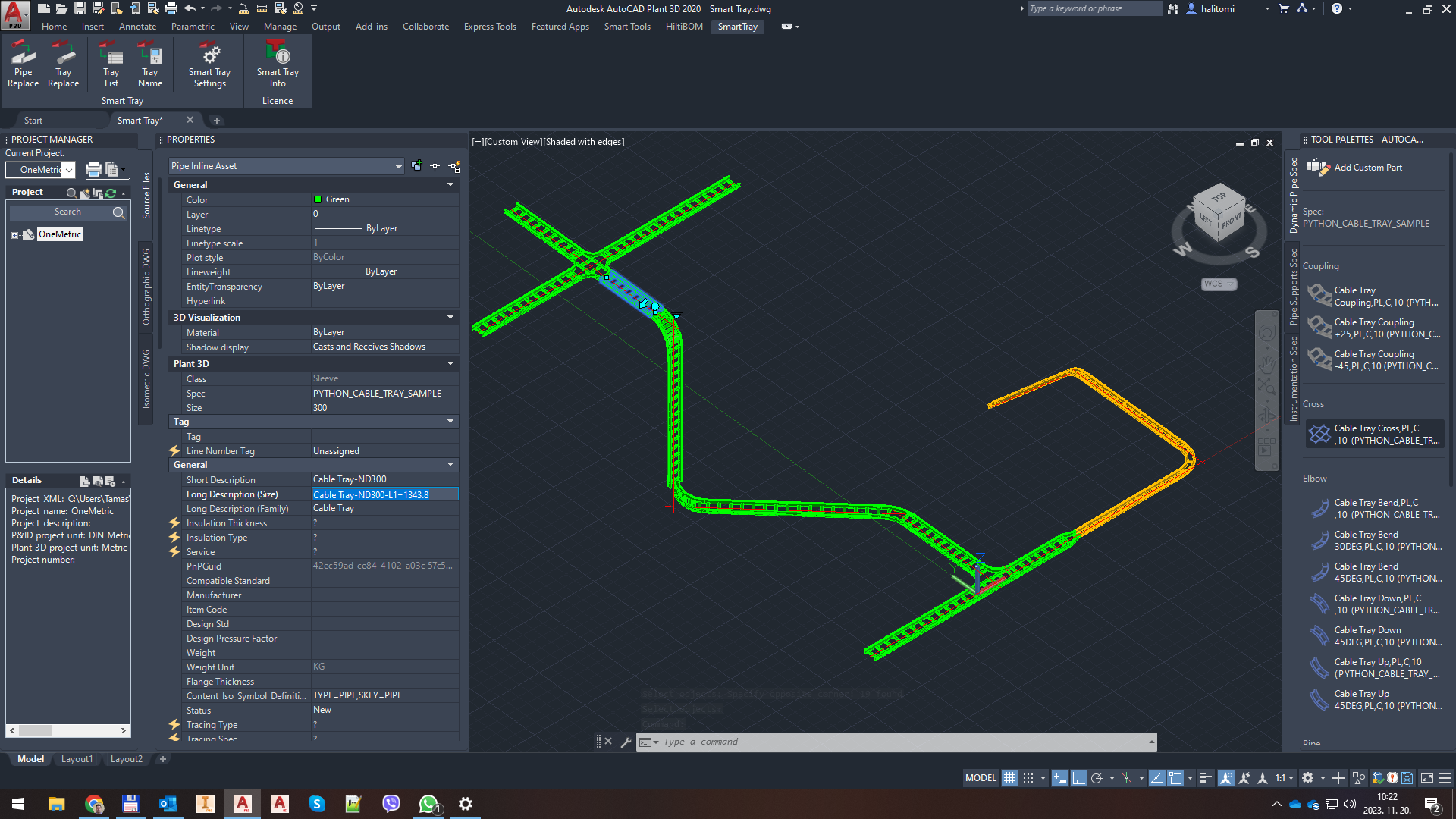

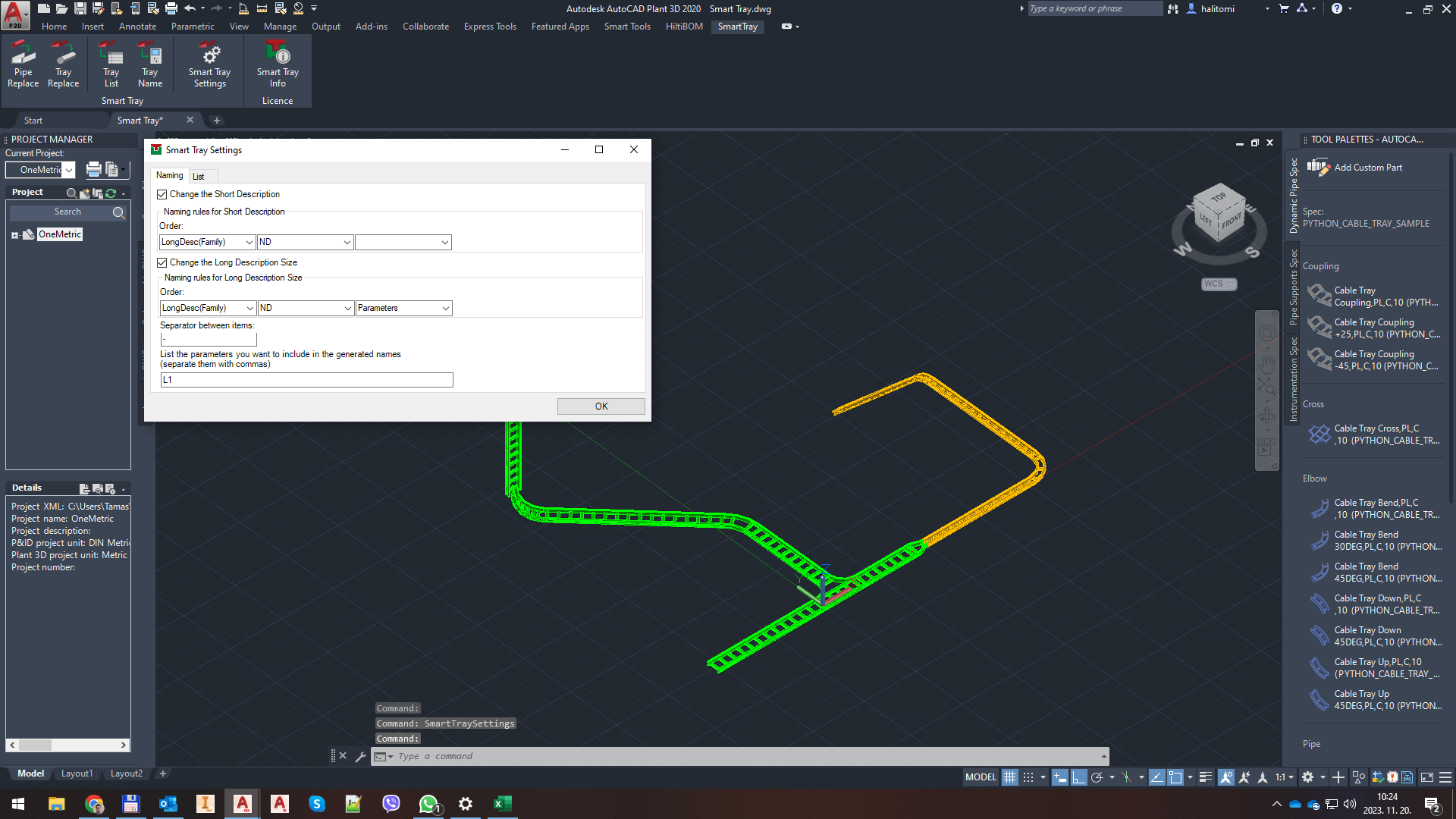

It can auto-generate the Short Description and the Long Description (Size) for any cable tray.

7. Tray List

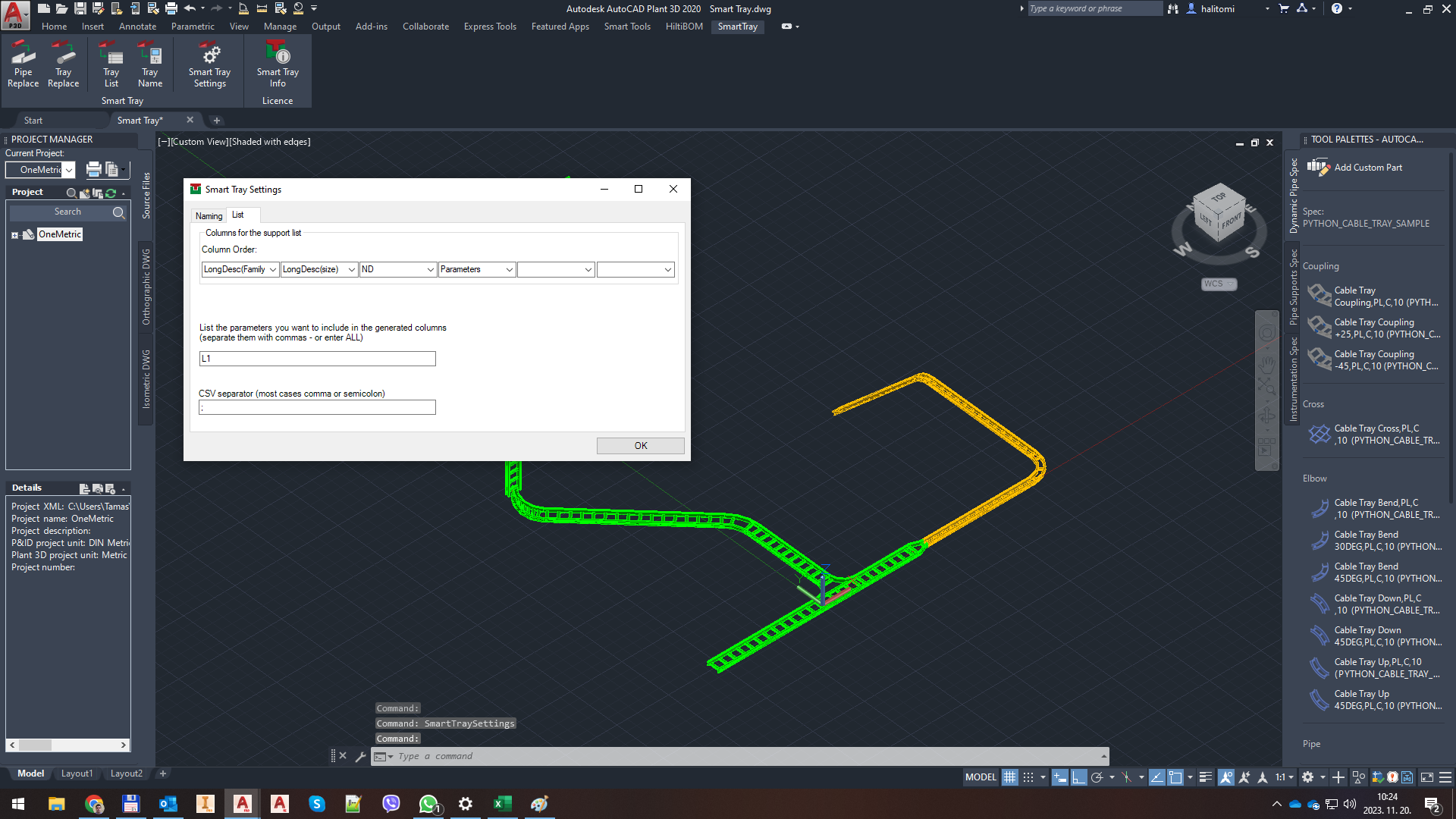

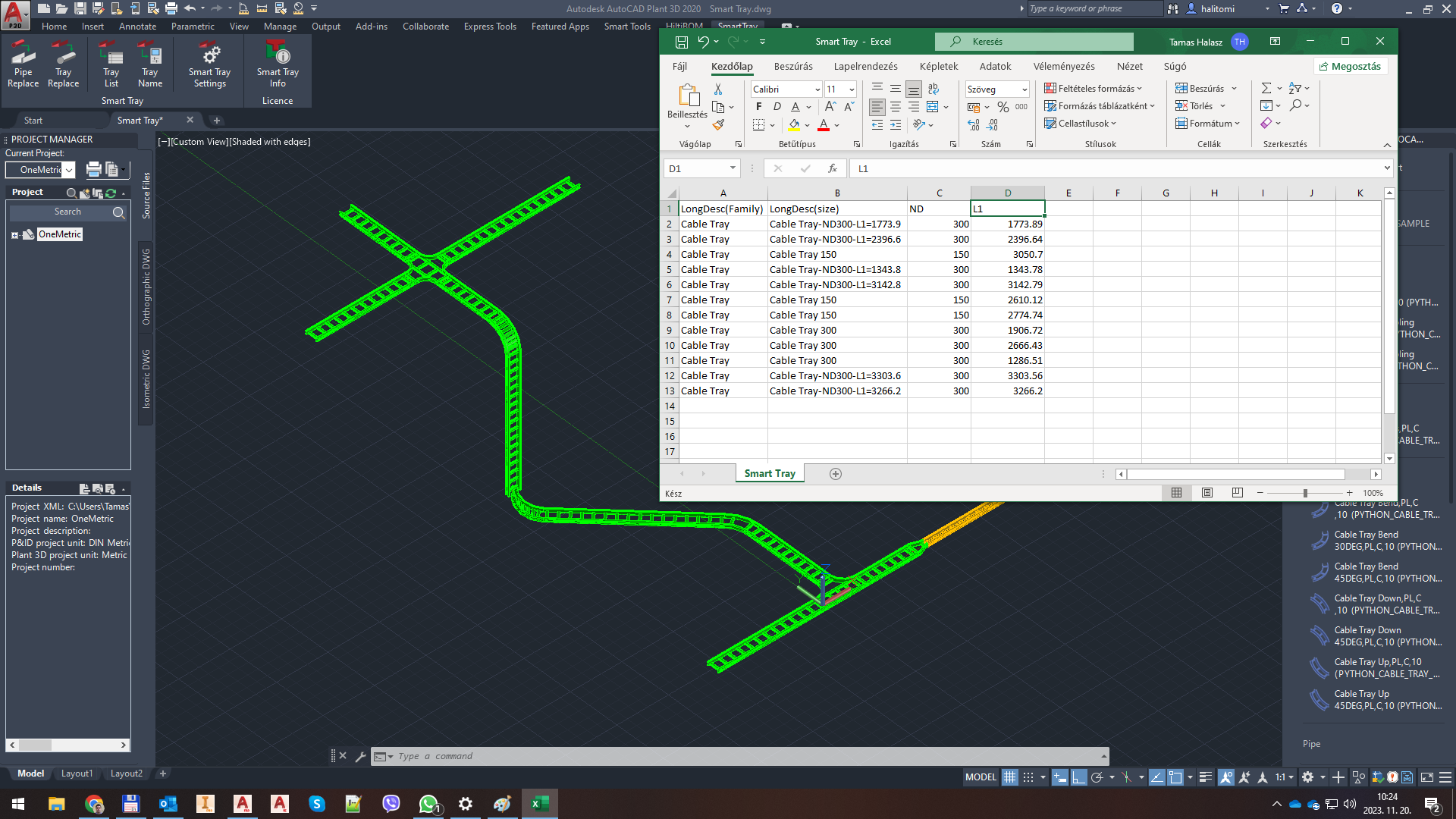

This command can also generate CSV files

For more usage instructions please check the below link:

Smart Tray - Manual

Commands

Installation/Uninstallation

After downloading the app from the store. Just double-click on the installer 'Smart Tray for Plant 3D.exe' to install the app.

Uninstallation:

Open Programs and Features by clicking the Start button, clicking Control Panel, clicking Programs, and then clicking Programs and Features. Select Smart Tools, and then click Uninstall.

Additional Information

Known Issues

Please note that these functions will only work if you are using my Python Cable Tray application for drawing the cable trays.

Contact

Company Name: Tamas Halasz
Support Contact: info@tamashalasz.com

Author/Company Information

Tamas Halasz

Support Information

Providing support via email at: info@tamashalasz.com

Manual: Smart Tray - Manual

Version History

Version Number Version Description

1.0.5

2024-07-18: TRAYLENGTHFLIPPED removed, as it is superseded: added fucntion: FLIPTRAY > from now on it is possible to rotate a straight cable tray by 180 degrees, so you can change its length from the "other" end added fucntion: FLIPTRAYBEND > from now on it is possible to flip a bend if it is upside-down

1.0.4

2024-06-12: Line number will be preserved if the tray is changed to a pipe and back to trays. TRAYLENGTHFLIPPED was also added to the commands, so L1 can be changed from the other end as well (it is kind of beta right now, as the connections will mostly break).

1.0.3

2024-05-03: Small bugfixing for the pipe to tray conversation in case of using older scripts

1.0.2

2024-04-05: Updated for Plant 3D 2025

1.0.1

Small bugfix for imperial projects.

1.0.0

Initial release.
