CPak ASME BPE Catalog and Python Scripts

CPak ASME BPE Catalog and Python Scripts

Win64, English

MTG Group
Automate with Python provides a quick and easy solution for creating Auto Ferrule Joints that aren't available in Autodesk® AutoCAD® Plant 3D by default.

General Usage Instructions

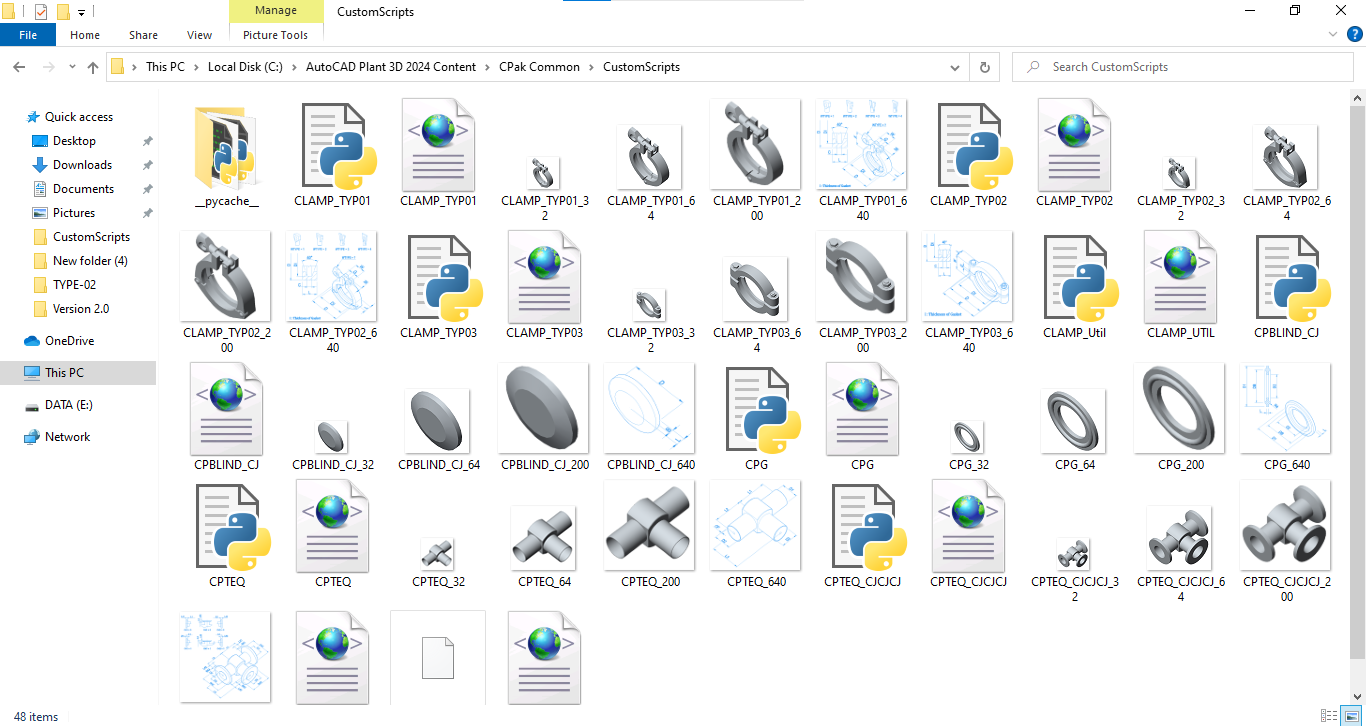

The app will install the content to CPak Common. "C:\AutoCAD Plant 3D 2024 Content\CPak Common\CustomScripts".

Run AutoCAD Plant 3D and run the command "PLANTREGISTERCUSTOMSCRIPTS" to compile the scripts and restart the program.

Create a new spec and add all components from the catalog to the spec.

For more information, please check the help document in the installation folder.

For more details visit the YouTube link here.



The installer that ran when you downloaded this app/plug-in from the Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin. You may need to restart the Autodesk product to activate the app/plug-in. To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 7/8.1/10/11) and uninstall as you would any other application from your system.

Additional Information

Known Issues


Author/Company Information

MTG Group

Support Information

Providing support via email at

Version History

Version Number Version Description


Plant 3D 2017 to 2024 supported.


Plant 3D 2017 to 2024 supported.


First release - Plant 3D 2017 to 2023
