CPak ISO 2037 FOOD INDUSTRY CONTENT PACK 2025
Paid
OS:
Language:
Description

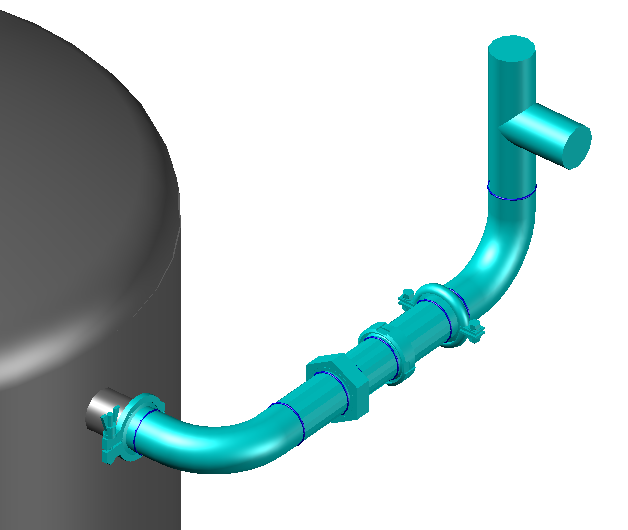

This catalog includes Fittings like Pipe, Elbow, Tee, Clamps, union along with bolt, Round & Hexagon Nut and gaskets for the food and chemical industries.
Below mentioned fittings are added based on the various standard. These are Highly customization components with custom Python scripts.
| Minimum Size | To | Maximum Size | Long Description |
| -------------------------------------------------- Clamp -------------------------------------------- | |||
| 10 | to | 200 | Clamp, Series 1, ISO 2852 |
| 10 | to | 100 | Clamp, Series 2, ISO 2852 |
| 10 | to | 80 | Hexagon Nut, Series 1, ISO 2853 |
| 10 | to | 100 | Hexagon Nut, Series 2, ISO 2853 |
| 10 | to | 80 | Round Nut, Series 1, ISO 2853 |
| 10 | to | 100 | Round Nut, Series 2, ISO 2853 |
| -------------------------------------------------- Coupling ----------------------------------------- | |||
| 10 | to | 65 | Ferrule Expanded, Series 1, ISO 2852 |
| 10 | to | 65 | Ferrule Expanded, Series 2, ISO 2852 |
| 25 | to | 200 | Ferrule Welded, Series 1, ISO 2852 |
| 25 | to | 100 | Ferrule Welded, Series 2, ISO 2852 |
| 10 | to | 65 | Liner Expanded, Series 1, ISO 2853 |
| 10 | to | 65 | Liner Expanded, Series 2, ISO 2853 |
| 25 | to | 80 | Liner Welded, Series 1, ISO 2853 |
| 25 | to | 100 | Liner Welded, Series 2, ISO 2853 |
| 10 | to | 65 | Male Expanded, Series 1, ISO 2853 |
| 10 | to | 65 | Male Expanded, Series 2, ISO 2853 |
| 25 | to | 65 | Male Welded, Series 1, ISO 2853 |
| 25 | to | 65 | Male Welded, Series 2, ISO 2853 |
| -------------------------------------------------- Elbow -------------------------------------------- | |||
| 10 | to | 200 | Bend 90°, Series 1, ISO 2851 |
| 10 | to | 100 | Bend 90°, Series 2, ISO 2851 |
| -------------------------------------------------- Gasket ------------------------------------------- | |||
| 10 | to | 200 | Gasket Type A, Series 1, ISO 2852 |
| 10 | to | 100 | Gasket Type A, Series 2, ISO 2852 |
| 10 | to | 200 | Gasket Type B, Series 1, ISO 2852 |
| 10 | to | 100 | Gasket Type B, Series 2, ISO 2852 |
| 10 | to | 80 | Gasket, Series 1, ISO 2853 |
| 10 | to | 100 | Gasket, Series 2, ISO 2853 |
| -------------------------------------------------- Pipe --------------------------------------------- | |||
| 10 | to | 400 | Tube, Series 1, ISO 2037 |
| 10 | to | 100 | Tube, Series 2, ISO 2037 |
| -------------------------------------------------- Tee ---------------------------------------------- | |||
| 10 | to | 200 | Tee Equal, Series 1, ISO 2851 |
| 10 | to | 100 | Tee Equal, Series 2, ISO 2851 |
good catalog for food projects 3d modelling as per ISO standard
