Python Lined Pipe

Python Lined Pipe

Tamas Halasz
4 reviews

Digitally signed app

Paid
OS:
Language:

Description

Lined loose flanged pipe segment scripts and catalogues.



The scripts are Python so you can use all these scripts to create your own parts based on your used standards. Some standard sizes are provided, which I personally use on a daily basis.



Note: This application uses a custom installer (and not the standard App Store installer).

Read Help Document

About This Version

Version 1.13.0, 3/27/2024
Version 1.13 - 2024. 03 08.: - App and installer updated for Plant 3D 2025

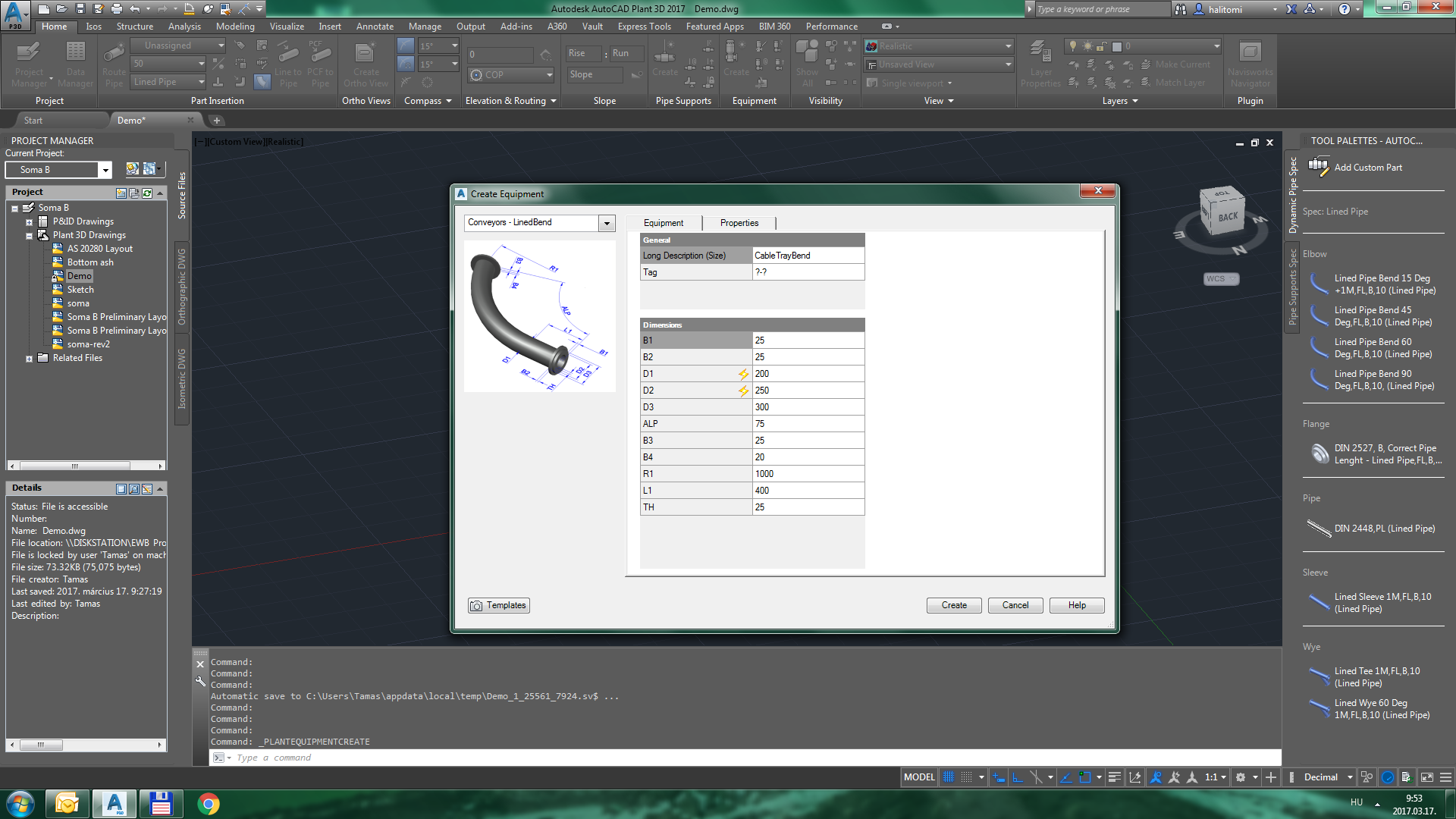

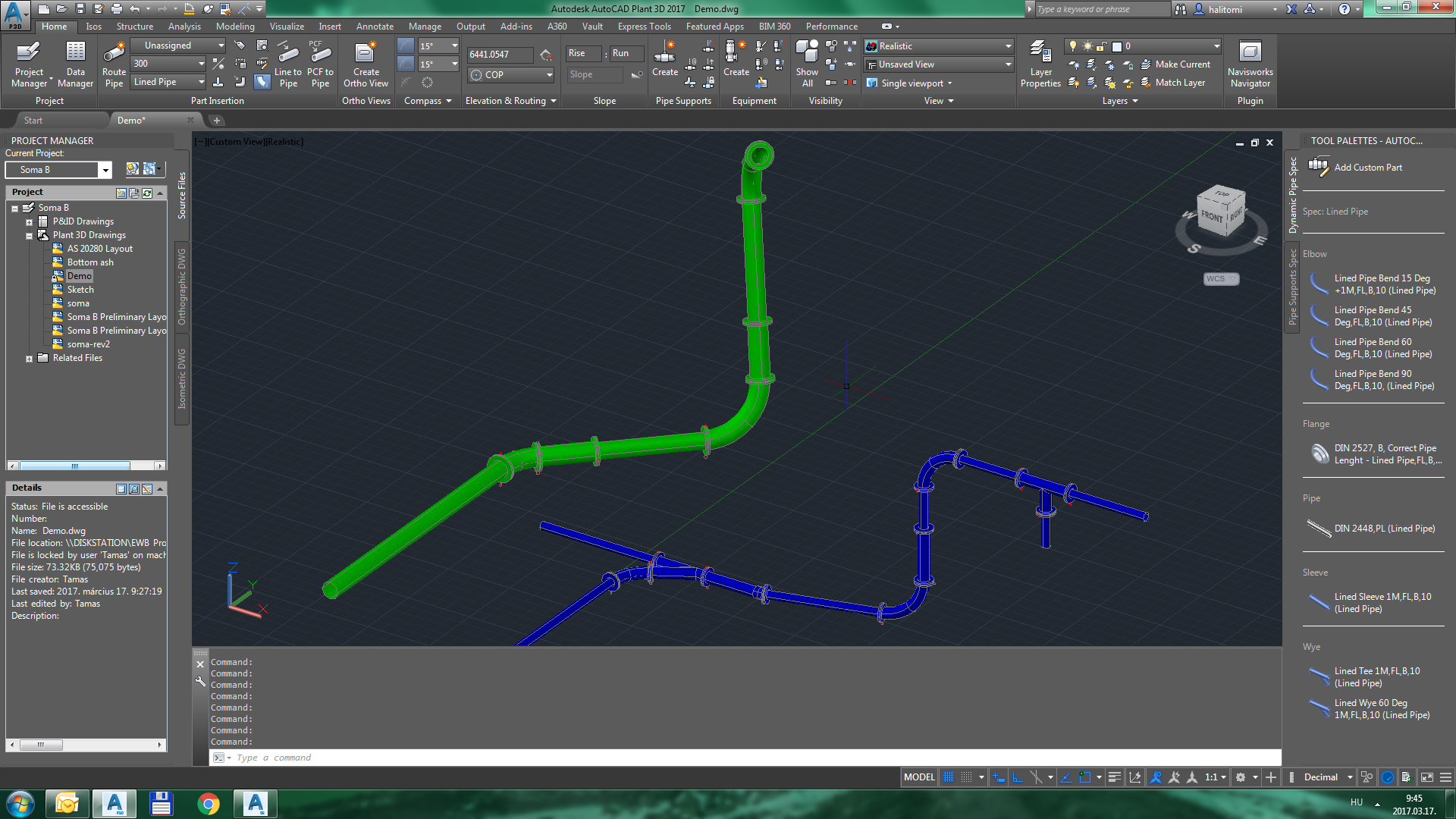

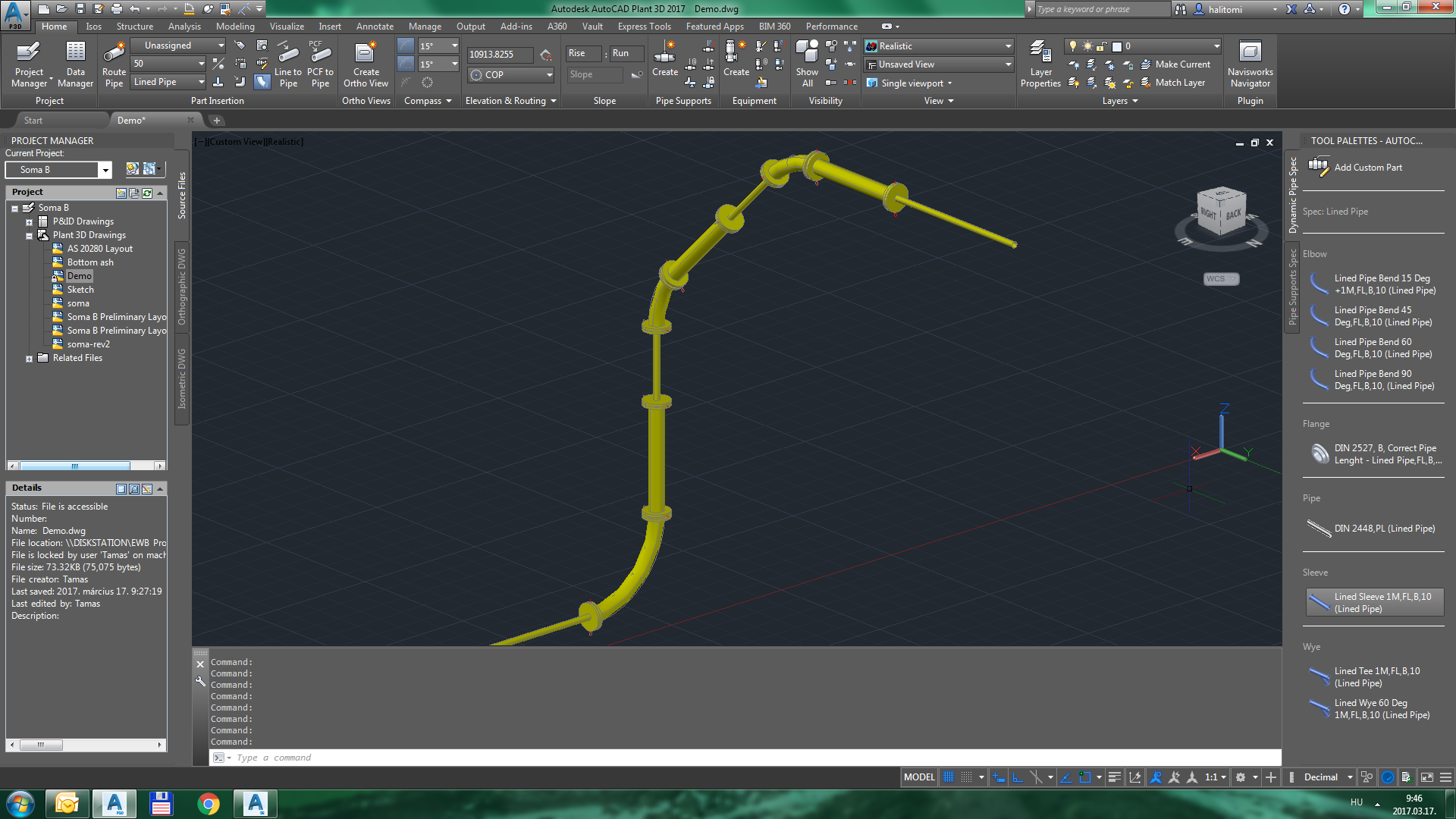

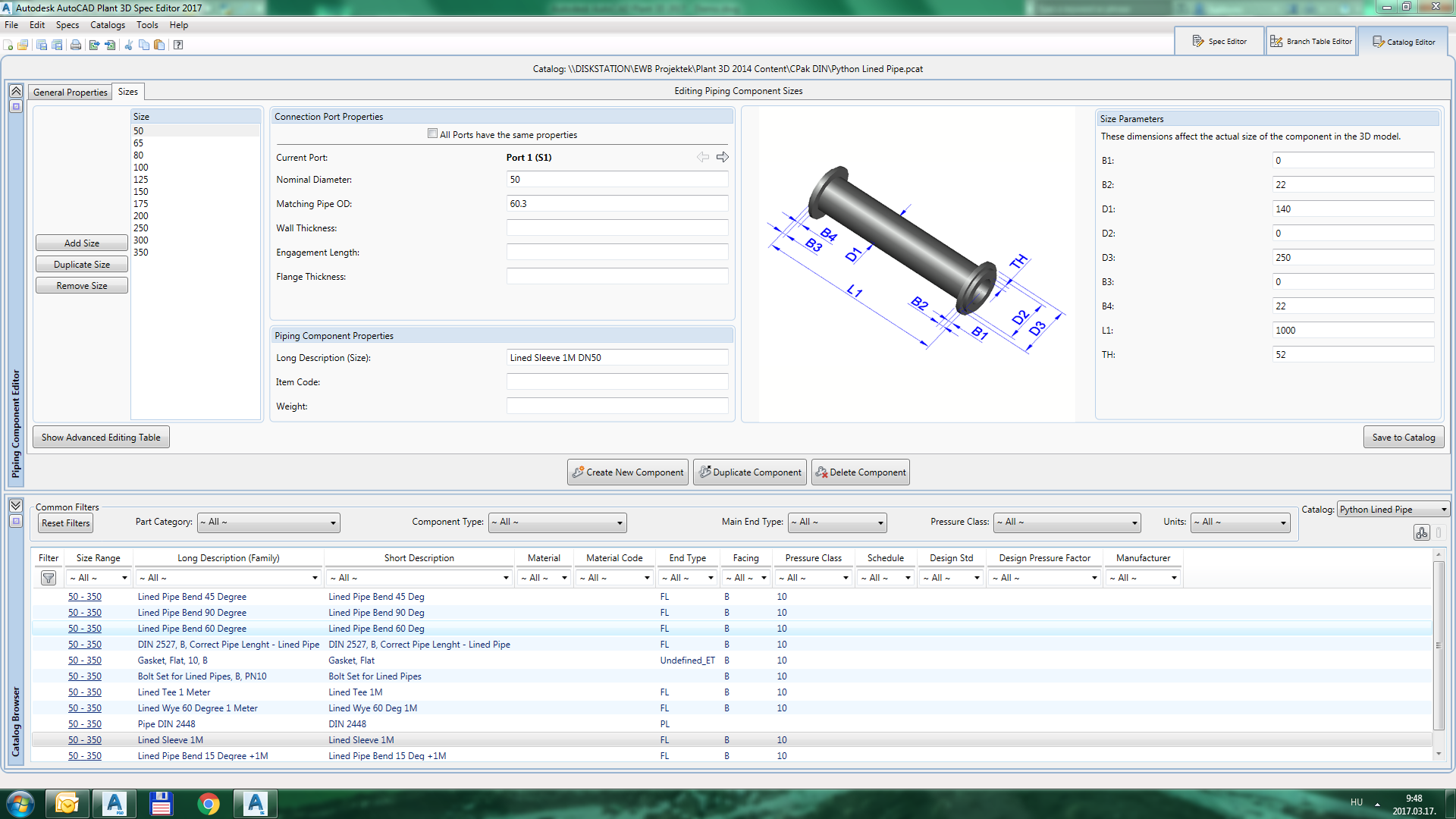

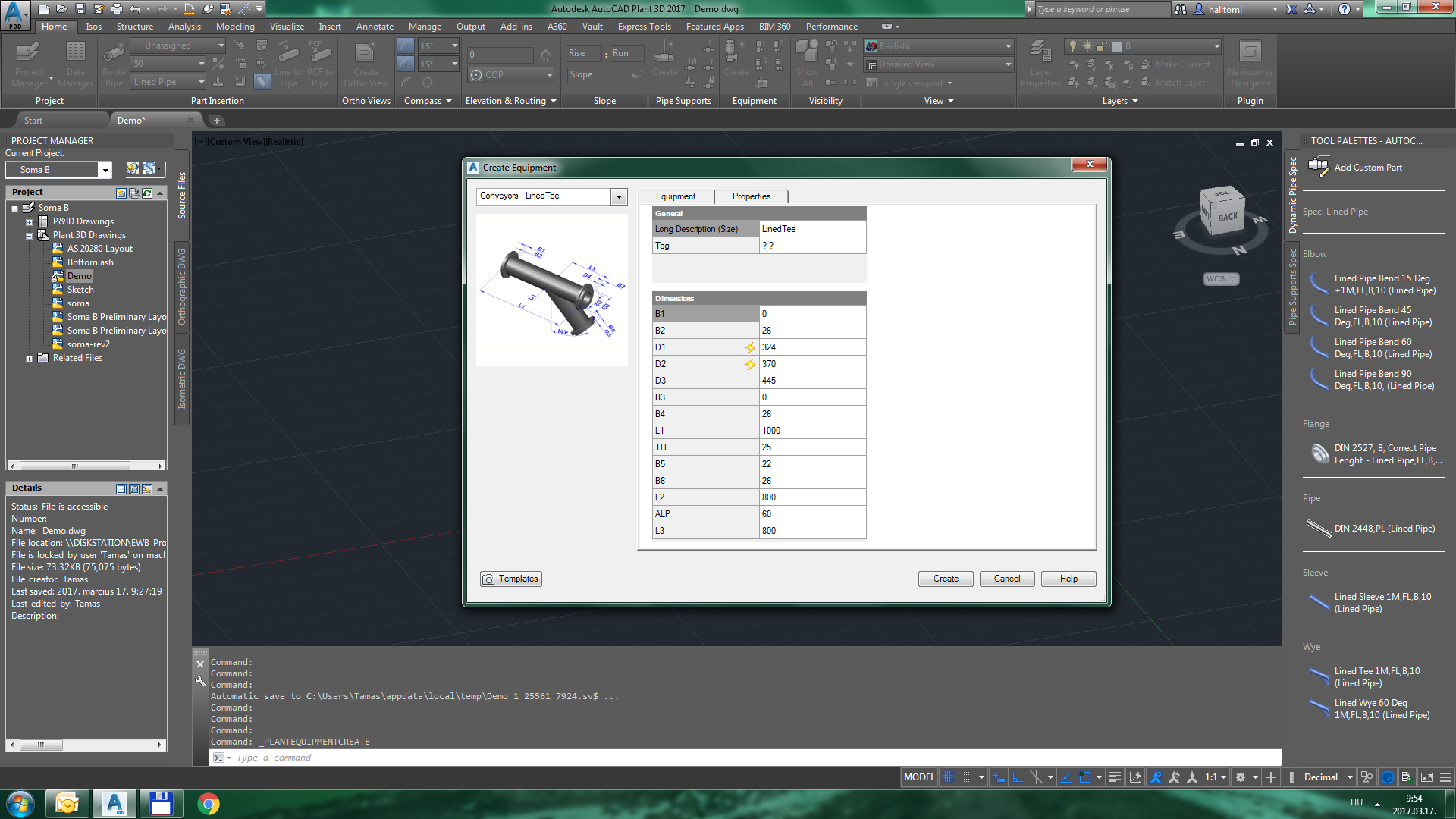

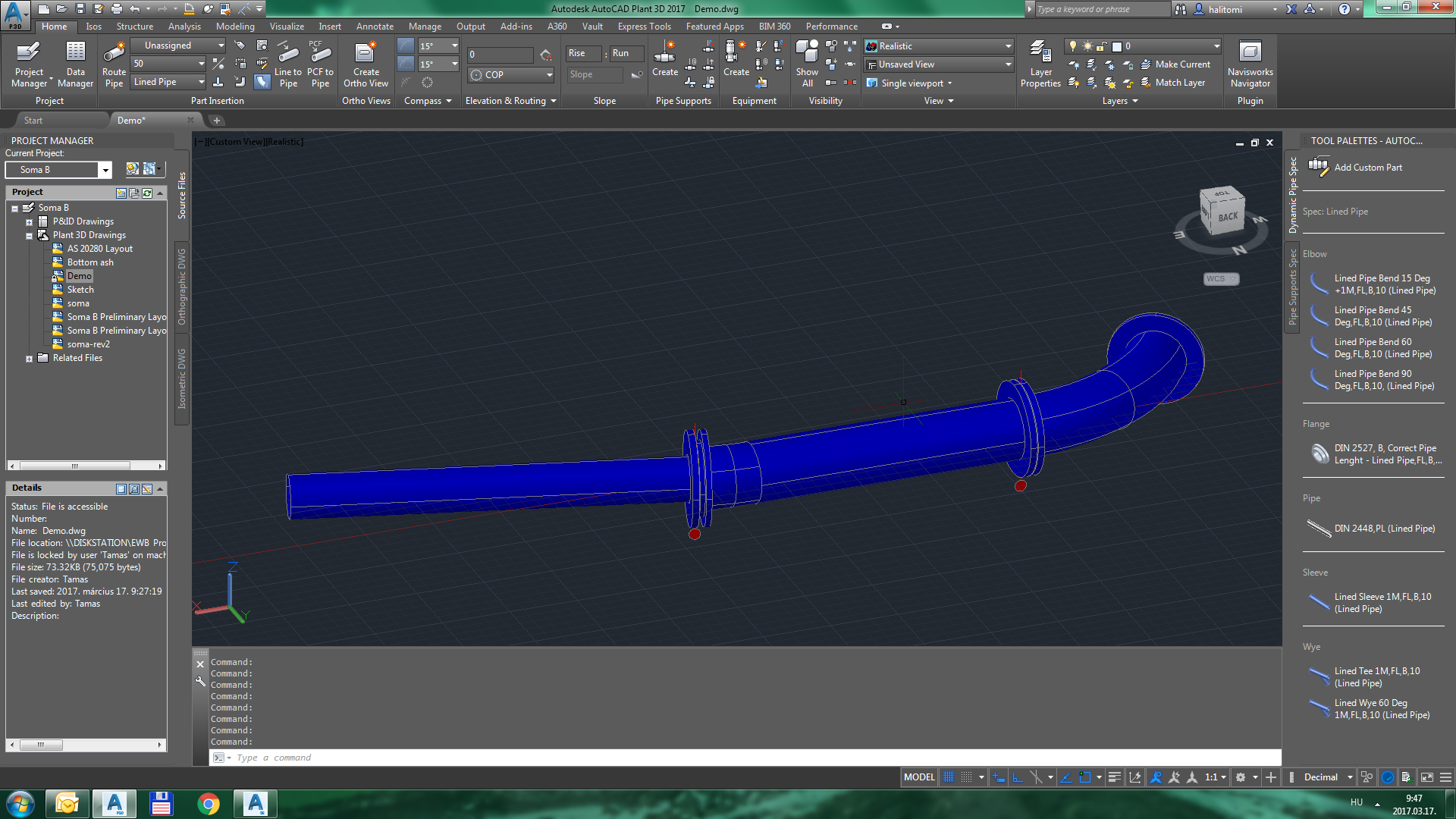

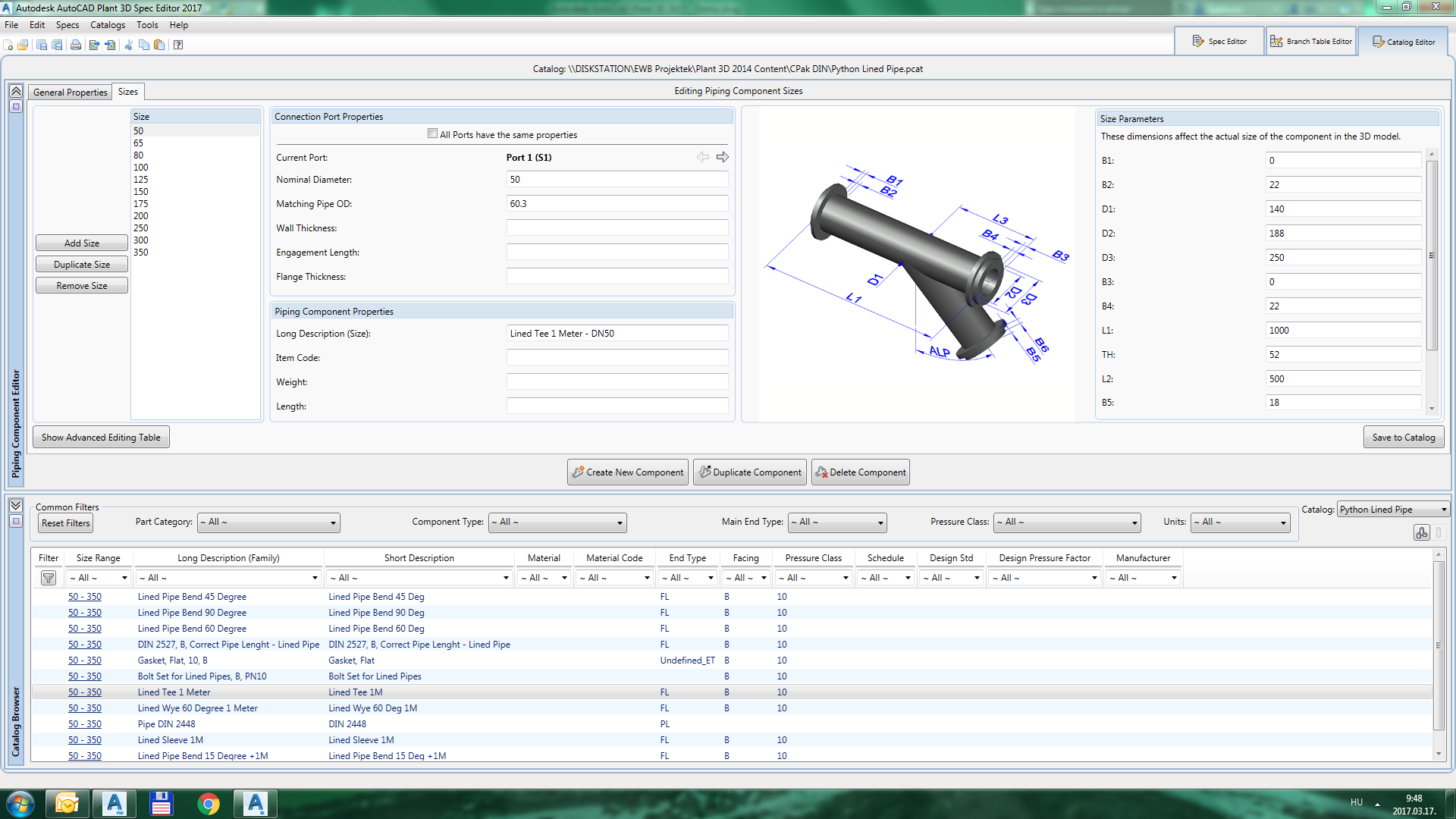

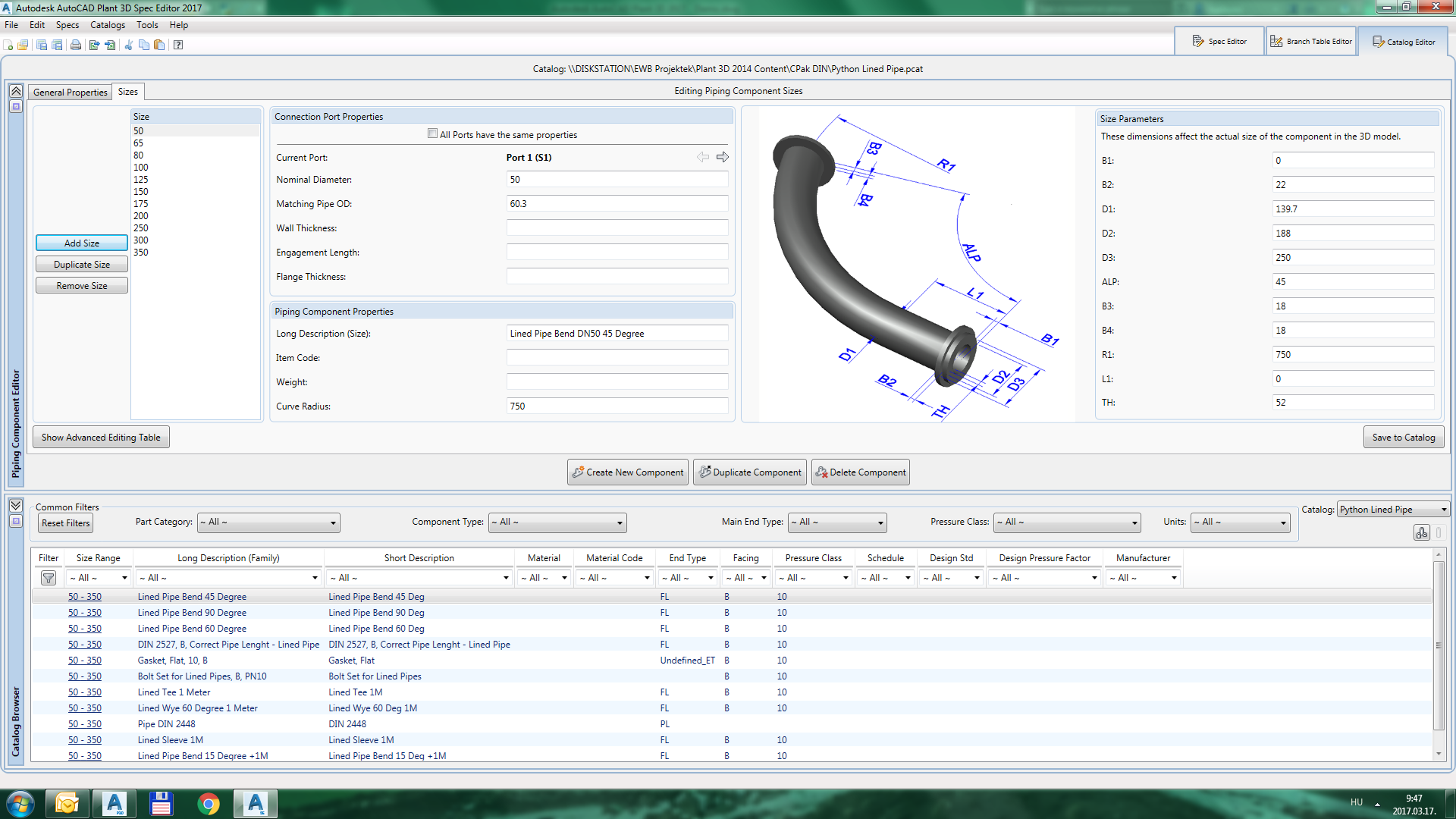

Screenshots and Videos


Customer Reviews

4 reviews
Get Technical Help
  • Must-have Parts
    Andrew Bert | May 17, 2022

    Without having the time, budget or knowledge to do our own Plant3D Python customizations, Tamás provides an exemplary service with his product line (we have them all!). The Lined Pipe object classes are something we have been missing for some time and now expand the quality of our model outputs and the satisfaction of our customers. Well worth the price!

  • Offset when attached on small size
    Dima Khotckevich | January 13, 2021 Verified Download (What's this?)

    I cannot understand - how the parameter E (Eccentrity) is calculated for Eccentric reducer...

    I know E = (D2-D1)/2   (BigSize - SmallSize) / 2

    But it still gets an offset when attached

    I've tried (D2-D1)/2, tried (D5-D3)/2, tried (D6-D4)/2 - nothing works. I've tried, with minus - for example -(D2-D1)/2 - nothing...


    Tamas Halasz (Publisher) | January 13, 2021

    Thank you for the feedback. The eccentric reducers are working fine now with a small update as discussed through emails. The app itself is also updated. So all future downloads shall be okay as well.

  • top app for plant3D
    Pascal David | May 14, 2018 Verified Download (What's this?)

    Great app that works great, looking for more :)

  • Very useful!!
    Jose Gimenez | March 19, 2018 Verified Download (What's this?)

    It is a very useful and well-developed specification that allows customization. Well-generated isometrics and take-off too. The 3d model very well worked. I hope you update the fittings regularly. Very happy with the software!

    Tamas Halasz (Publisher) | March 19, 2018

    Many thanks! Will update regularly for sure!
