This catalog includes all common fittings, instruments, and valves with DIN 11866 Series A standards. Pipe OD is also compatible with DIN 11850 Series 2, EN-10357 Series A Standard.

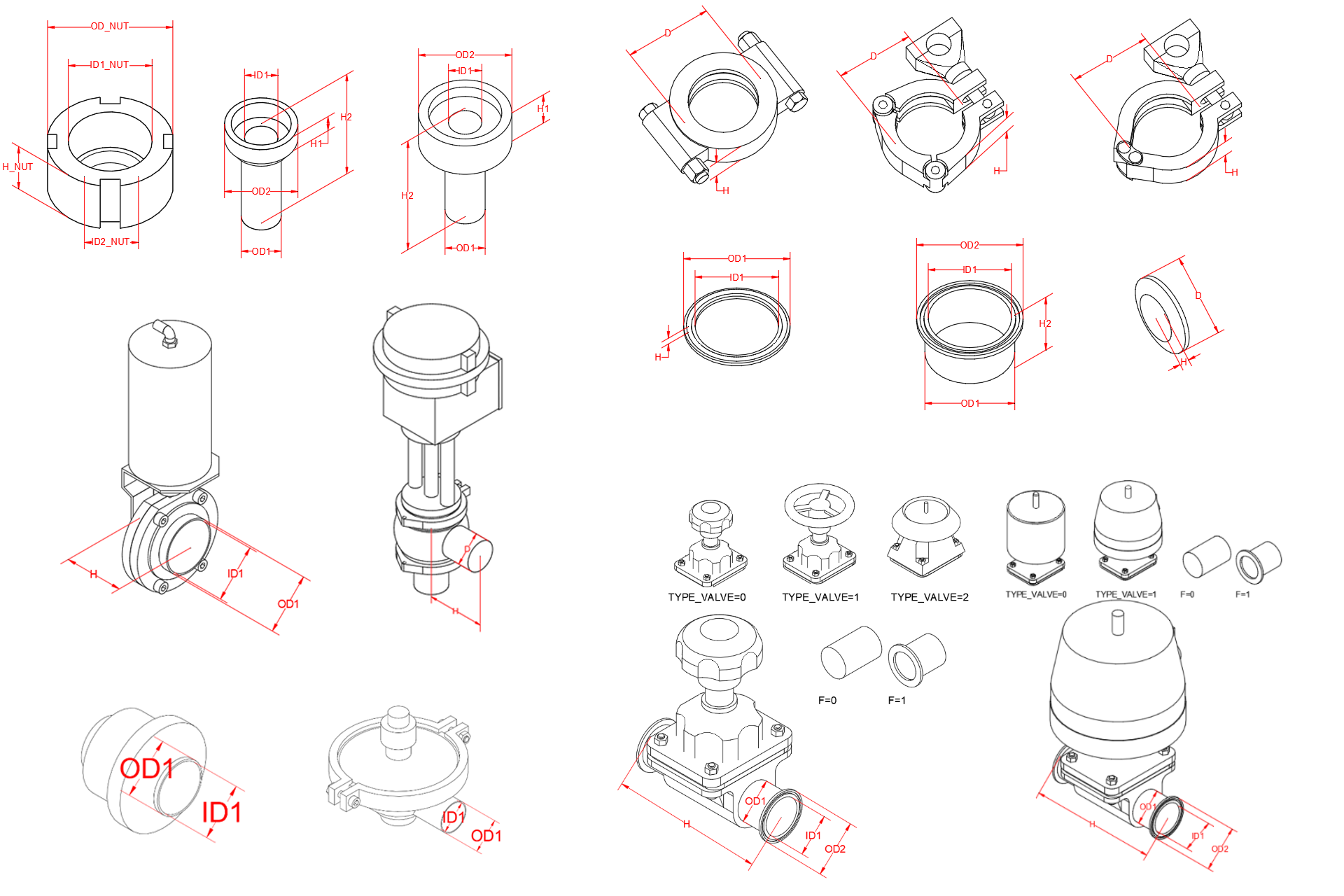

Highly customizable components include Clamps, Coupling, Fittings, and Valves which are Python custom script components. They are suitable for the Pharmaceutical, Food and Beverage, and Dairy industry projects in Europe and Worldwide.

Pipe size range: 13 - 19 - 23 - 29 - 41 - 53 - 70 - 85 - 104 - 129 - 154 - 204mm. Long Description (Size) is DN10 - DN200.

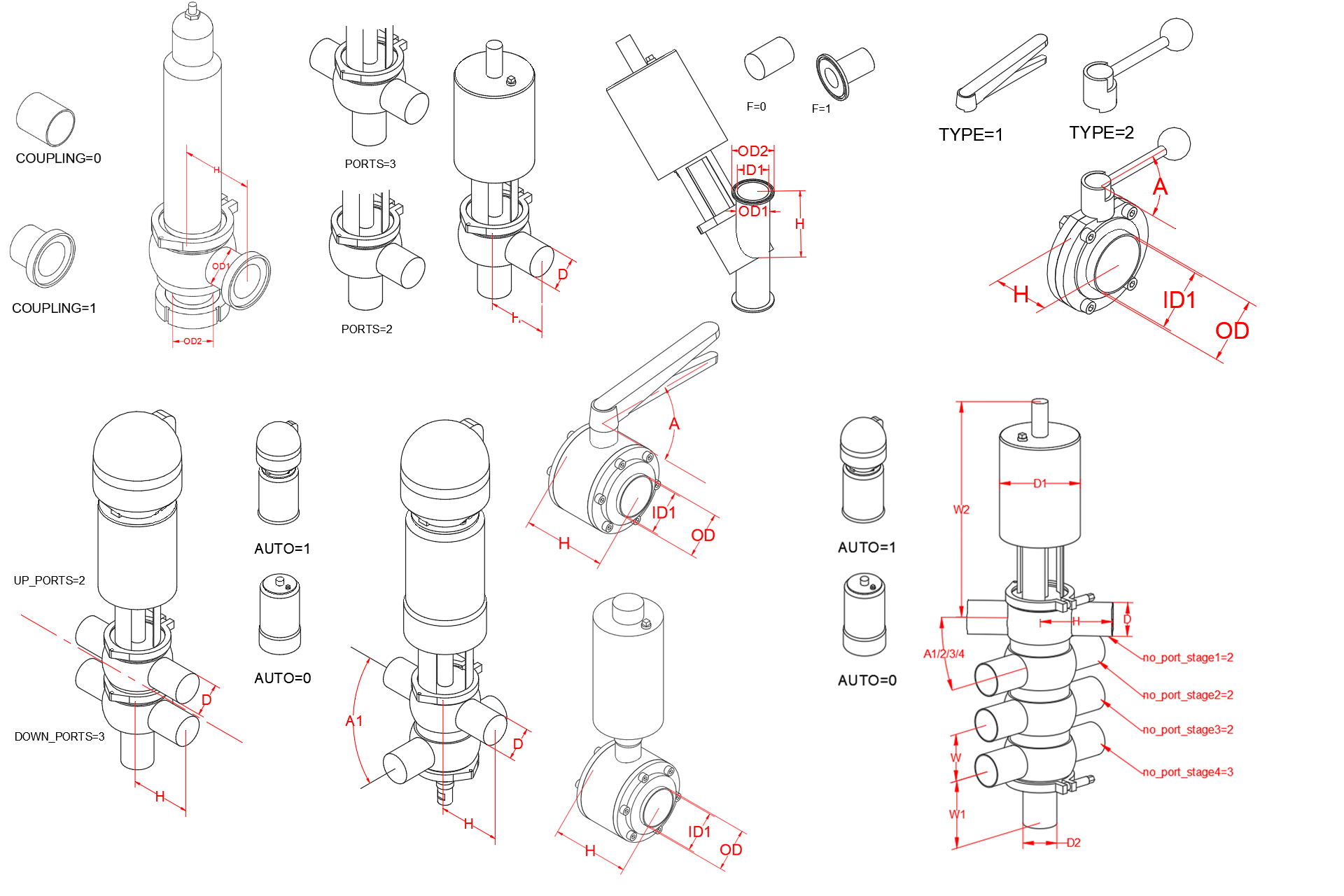

All components are custom Python scripts, so you can change the length pipe, number of ports, head automation, type of connection (plain, ferrule or coupling), etc. DIRECTLY IN THE DRAWING

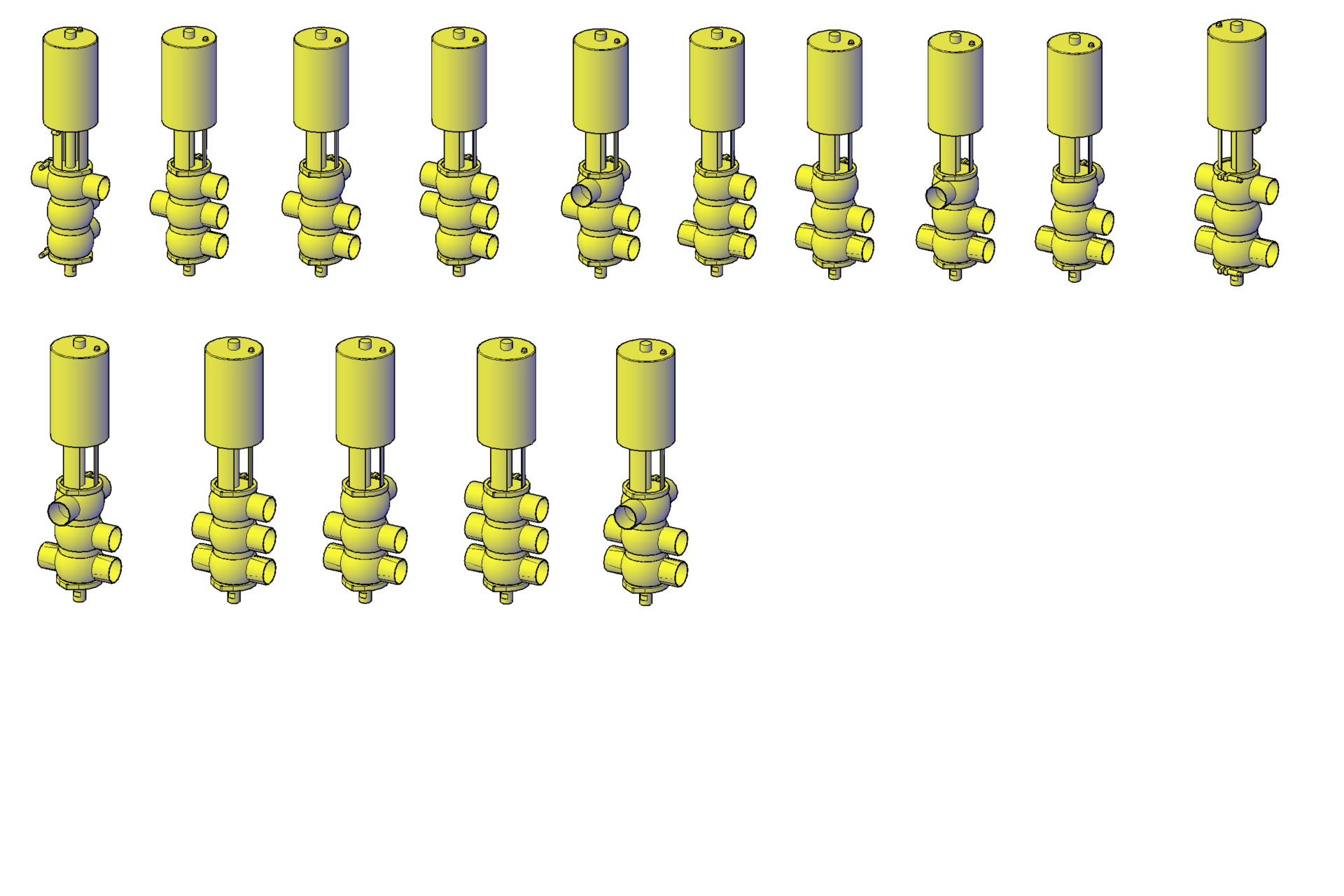

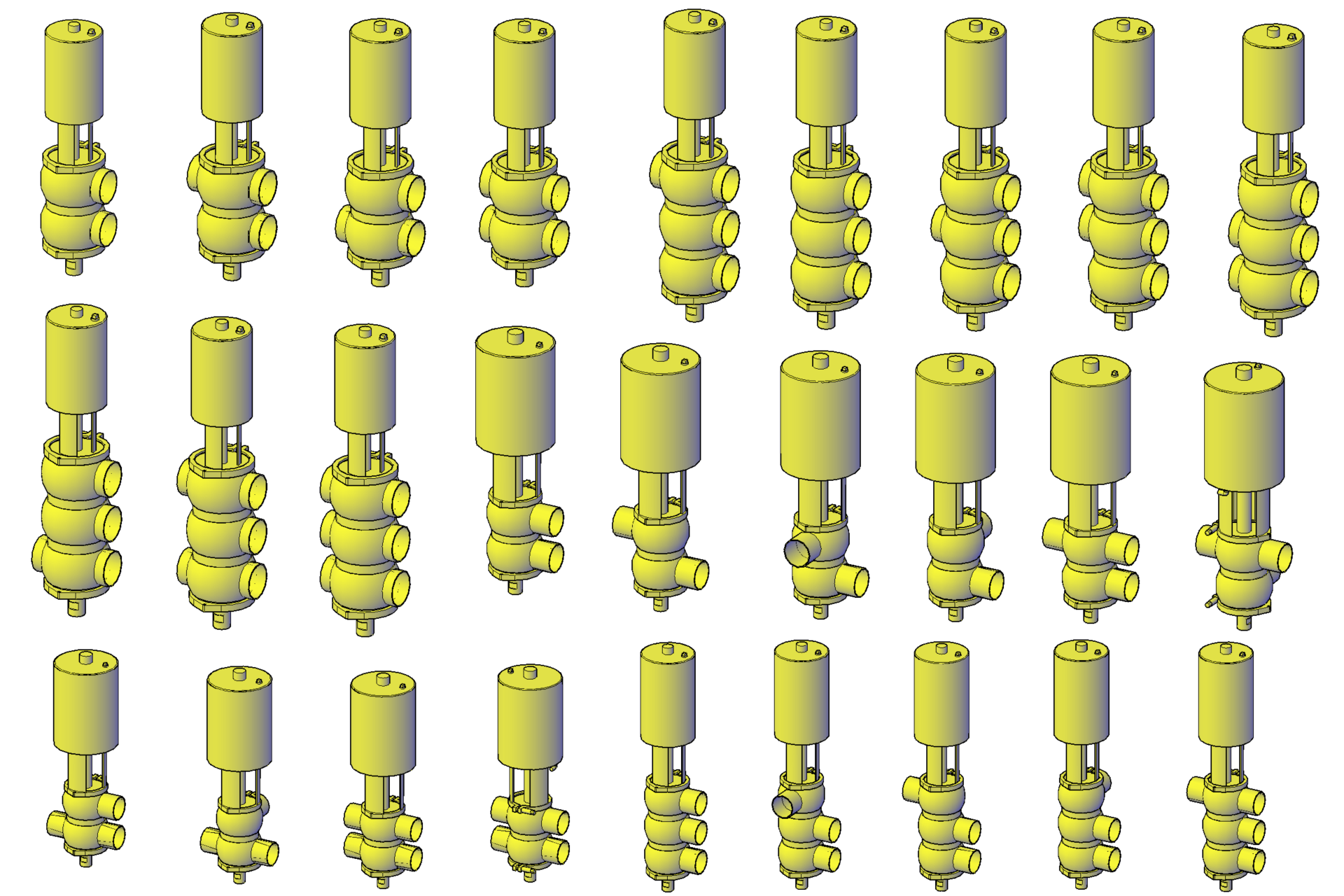

Isometric symbols for Multiport valves. Mixproof valves in this catalog are available, making it easy to export Isometric drawings.

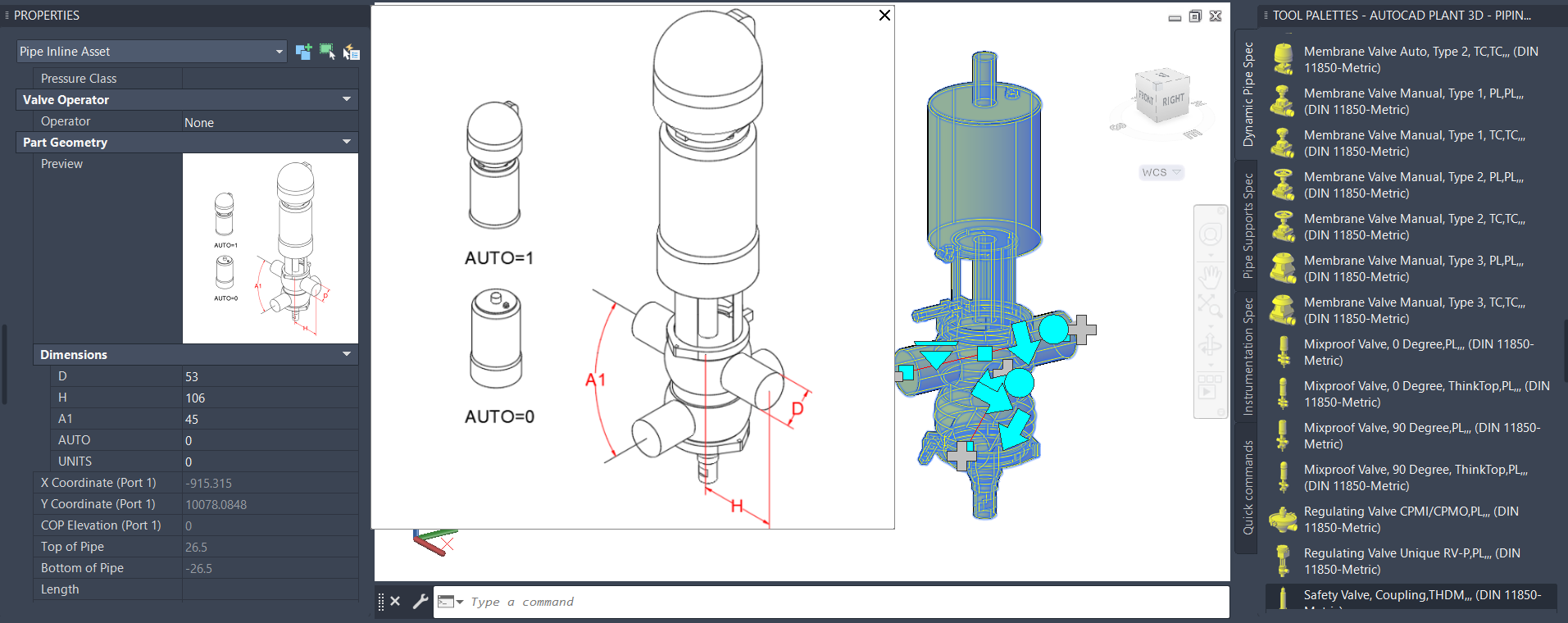

Check out the Screenshot for available components.

Note: This app uses a custom installer (and not the standard App Store installer).
