Bimmatch
Match products and materials to your project, and apply any data to create and manage a detailed schedule and Bill Of Materials.

General Usage Instructions

  • Open the Bimmatch add-in to gain direct access to a large database of products and materials;
  • Click on any element of your model and the matching engine will suggest you the right products and materials;
  • Click on the 'View Details' action on a product card to open the product page in a web browser;

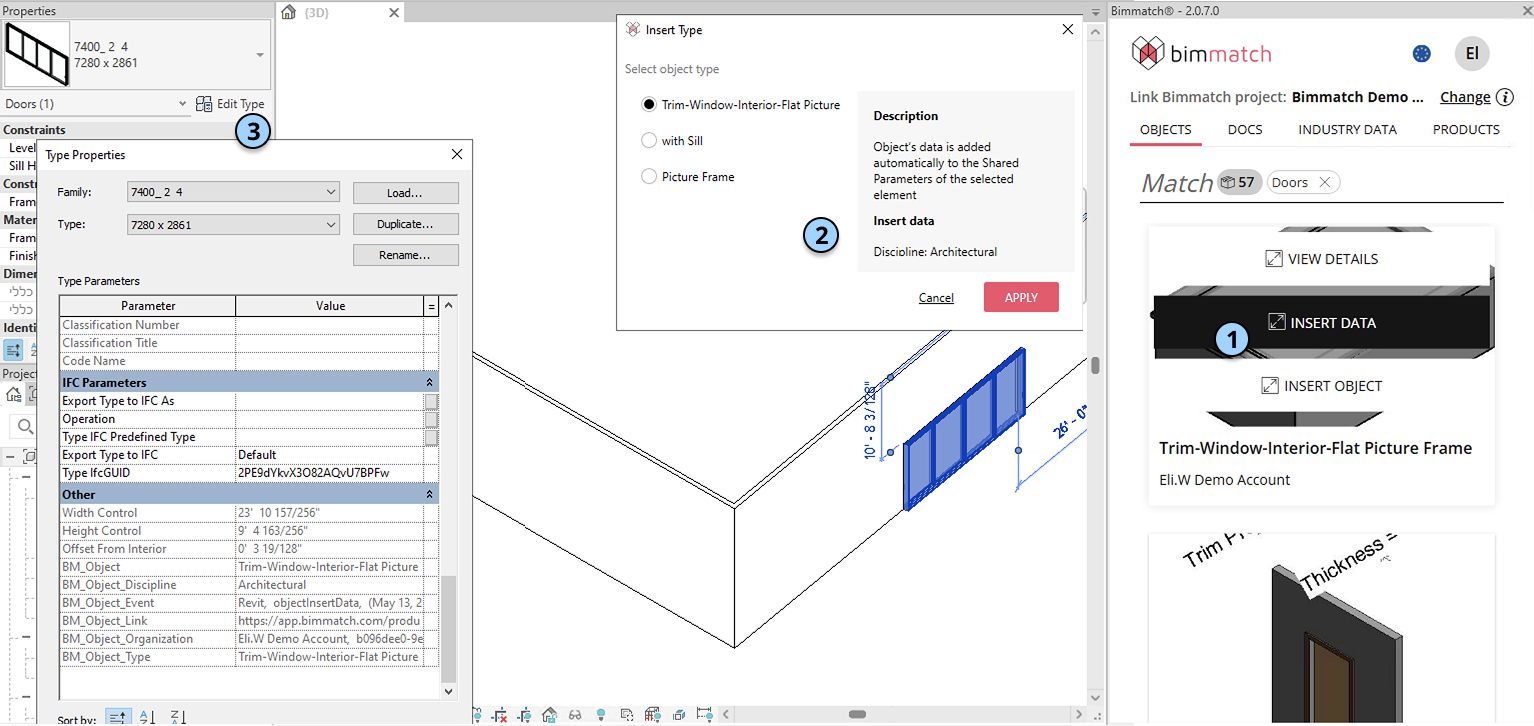

  • In Autodesk® Revit®, you can now specify your model with the product data, and any parameter that fits your current phase of the design; Use the action 'Insert Data' to apply data only without the geometry file of the product;

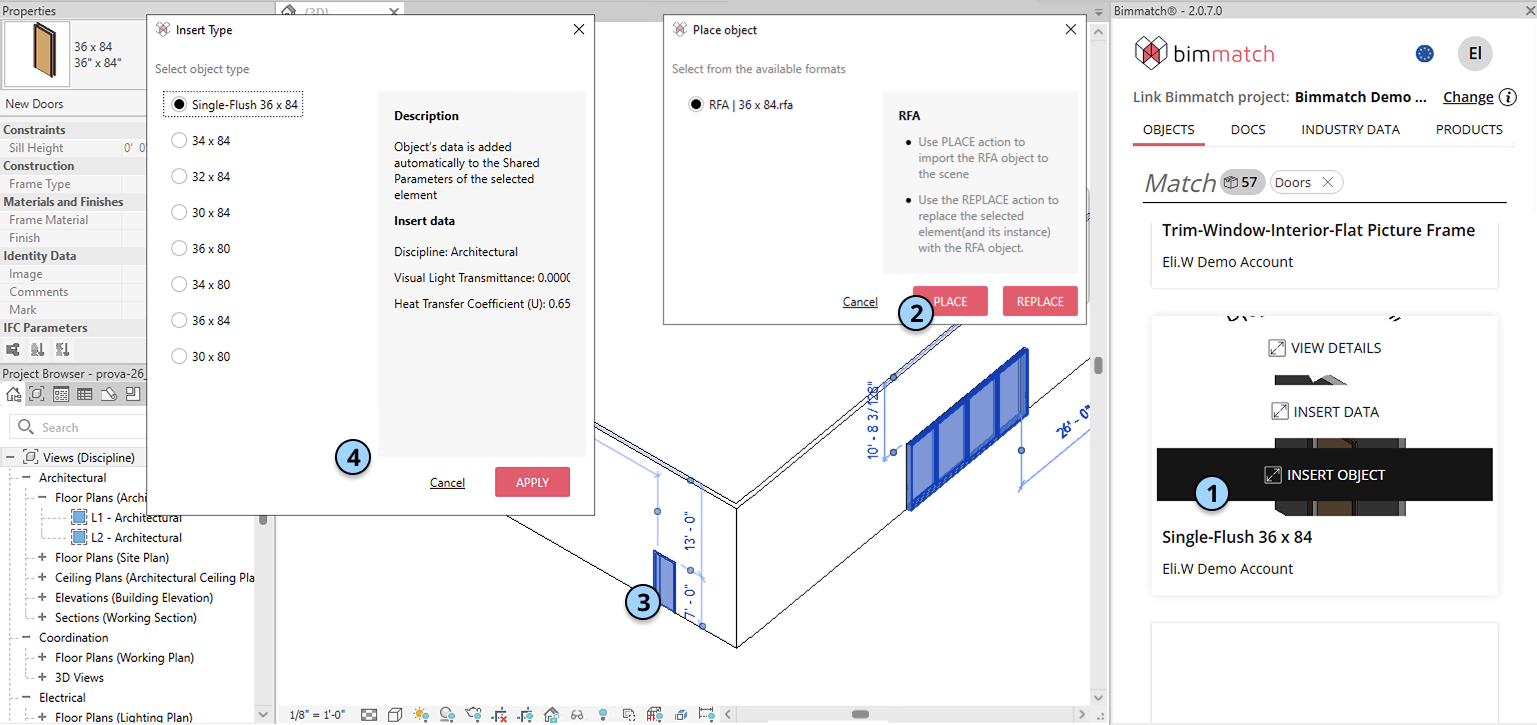

  • You can also apply the .rfa or the .rvt files of the product (if available with the product data set) directly to your model; Use the action 'Place Object' to add a new file to the model, or use the action 'Replace Object' to replace any selected element with a .rfa file of the product.



As a SaaS customer, you can manage a large-scale organization in all aspects of construction products and materials in your organization's projects:

  • Create an Organization Library to share standardization across your organization's projects with professionals, in-house or out-source.
  • All add-in activities by the professionals working on your organization's project are monitored and delivered in your BI tools;
  • You can automatically generate a dynamic Bill Of Materials for each one of your projects.

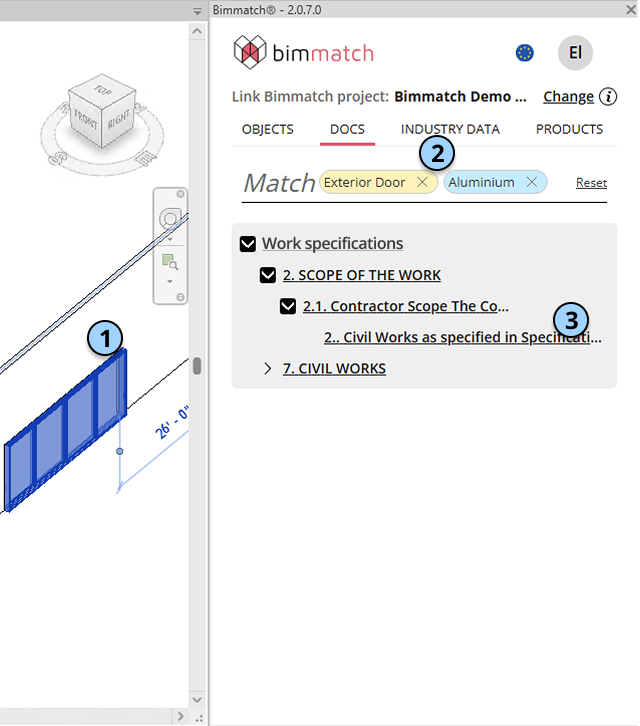

Screenshots

Commands

Installation/Uninstallation

The installer that ran when you downloaded this app/plug-in from the Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/add-in. You may need to restart the Autodesk product to activate the app/plug-in.

To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 7/8.1/10/11) and uninstall as you would any other application from your system

Additional Information

  • The actions 'Place Object' and 'Replace Object' are available on products with a BIM file only.
  • Organization Libraries are available for Bimmatch customers and invited users by customers - contact us to release this efficient ability.

Check our plug-in to ACC/BIM 360, to integrate easily your Autodesk Cloud project into the Bimmatch platform:

https://apps.autodesk.com/BIM360/en/Detail/Index?id=2857030897038507768&appLang=en&os=Web

Known Issues

Contact

Company Name: Bimmatch
Support Contact: support-team@bimmatch.com

Author/Company Information

Bimmatch

Support Information

The Bimmatch team is available to support you with any inquiry.

Don't hesitate to contact us at support-team@bimmatch.com and we'll be back to you in 2 working days.

Version History

Version Number Version Description

2.0.6.4

New in version 2.0.6.4 1. Within the Organization Library list - Two steps of 'Insert Data' - First, select the property to be added and then select the value of the property to be added. 2. Within the Organization Library list - Materials are shown with carbon emissions! 3. Selection of product Type - If a product has types, then the selected data in 'Insert Data' can be by specific type only Feel free to reach out to us for further information at contact@bimmatch.com

2.0.6.3

New in version 2.0.6.3 1. Advance search by specific parameters and values 2. Automatically translated product measurement units to your current Revit file units 3. Apply standards and requirements directly from Organization Library (Data Center), also from several Organization Libraries 4. Added to the 'Insert Data' functionality the LOD value and Instructions form the Organization Library 5. Bugs fixed Feel free to reach out to us for further information at contact@bimmatch.com

2.0.6.2

New in 2.0.6.2. 1. Source and apply data of products with GHG values 2. Supporting types of products 3. Supporting multiple Organization Data Centers 4. Apply organization standards and requirements directly from Organization Library (Data Center) 5. Place Object, Replace Object, and Insert Data provide you with an accurate quality Control report on the Bimmatch online project. 6. Supporting Revit 2024 7. Faster Feel free to reach out to us for further information at contact@bimmatch.com

2.0.6.1

New in 2.0.6.1: 1. Adding Autodesk registration 2. Enabling catalog functionalities within the .rfa format 3. Fixing a log-in bug More features, such as Link to Project, and Organization Library, are available for registered users on the Bimmatch platform. Feel free to reach out to us for further information at contact@bimmatch.com

2.0.6.0

New in 2.0.6.0: 1. Adding Autodesk registration 2. Enabling catalog functionalities within the .rfa format 3. Fixing a log-in bug More features, such as Link to Project, and Organization Library, are available for registered users on the Bimmatch platform. Feel free to reach out to us for further information at contact@bimmatch.com

2.0.5.9

New in 2.0.5.9: 1. Adding Autodesk registration 2. Enabling catalog functionalities within the .rfa format 3. Fixing a log-in bug More features, such as Link to Project, and Organization Library, are available for registered users on the Bimmatch platform. Feel free to reach out to us for further information at contact@bimmatch.com

2.0.5.8

New in 2.0.5.8: 1. Adding Autodesk registration 2. Enabling catalog functionalities within the .rfa format 3. Fixing a log-in bug More features, such as Link to Project, and Organization Library, are available for registered users on the Bimmatch platform. Feel free to reach out to us for further information at contact@bimmatch.com

2.0.5.6

Initial release Existing main features: Browse Products, Insert Data, Place an Object, and Replace Object (switching families). Note, the catalog does not support products for all countries and locations. More features, such as Link to Project, and the use of an Organization Library, are available for registered users on the Bimmatch platform. Feel free to reach out to us for further information at contact@bimmatch.com
