WebGL Exporter For Autodesk® Revit®

WebGL Exporter For Autodesk® Revit®

Win64, English

ProtoTech Solutions
WebGL Exporter For Autodesk® Revit® exports your model to an HTML file. You can then view your model in the browser without any external application/plugin installation, manipulate the view and share.

General Usage Instructions

1. Download and install WebGL Exporter plugin for Revit.

2. Run Revit and Load a model (part or assembly).

3. There’s a new menu called 'ProtoTech WebGL Exporter'.

It contains following three menu items as shown in the image below.

A) Export

After clicking here, a 'Save As' dialog will display on our screen. You can enter the file name. Click Save button to export the current model to HTML document.



B) Preferences

It contains following options as shown in the image.

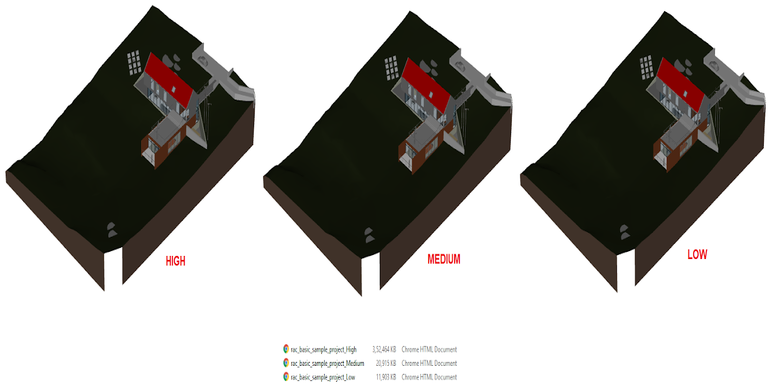

  • Precision : You can control how accurately your model needs to be exported. If you need fine representation of the model, just check the “use Precision” check box and the slider will be enabled. You can slide and select the values from 0 to 15. Higher is the value, finer is the representation you will get and larger is the file size.
    Default is full precision.

  • Export Normals : You can select whether you want to export normals or not. Default is set to export normals.

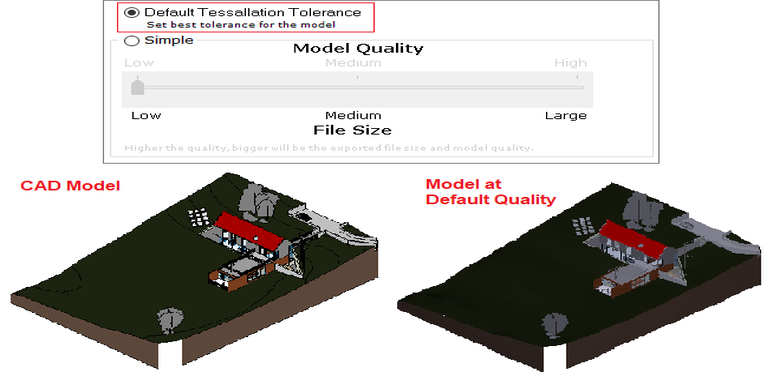

  • Tessellation : You can choose from Body level and face level. Default is face level.



C) About

It displays the information about product. It provides facility to activate your product license at any time from this control.

Screenshots

Commands

Installation/Uninstallation

The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin. You may need to restart the Autodesk product to activate the app/plug-in. To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 7/8/8.1/10) and uninstall as you would any other application from your system.

Additional Information

Known Issues

Contact

Company Name: ProtoTech Solutions

Author/Company Information

ProtoTech Solutions

Support Information

Version History

Version Number Version Description

4.2.19134.3040.

1.Enhancement:Upgraded licensing system.

4.1.0.0

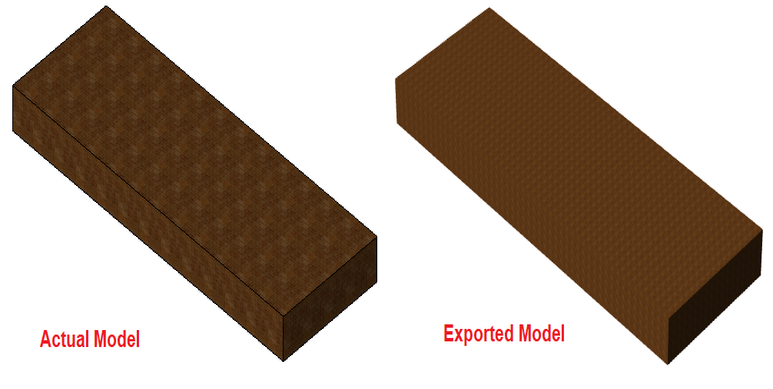

1.New Feature : Added texture support. 2.New Feature : Added RPC entity support. 3.Enhancement : Added support for Autodesk Revit 2020. 4.Fixed : Fixes to license system

4.0.0.0

1. Update : Added support for Revit 2019. 2. Fixed : Colors were not getting exported for specific models.

3.0.0.0

1. Update : Added support for Revit 2018. 2. Update : Updated technical support contact details.
