Electrical Panel To Excel

Electrical Panel To Excel

Win64, English

Ehab M.A Bkheit
Export Electrical Panel View to Excel

General Usage Instructions

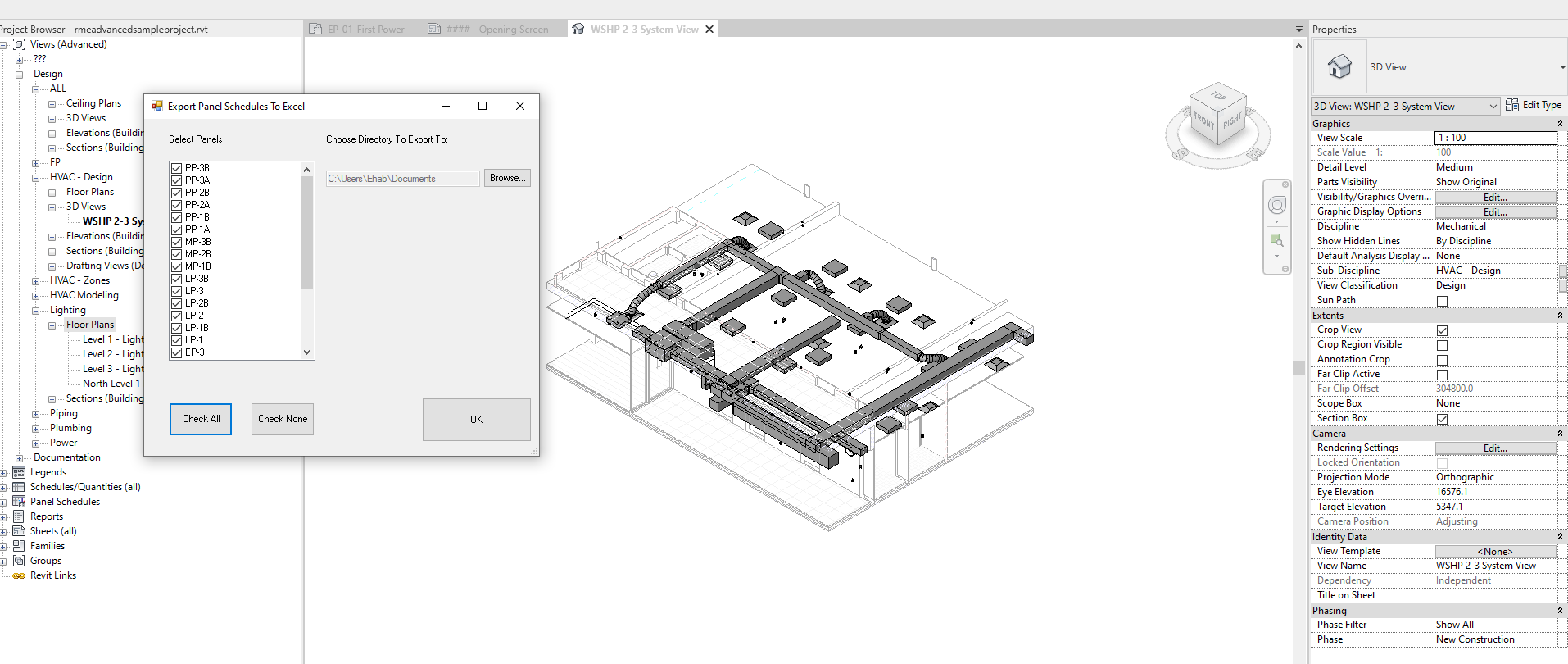

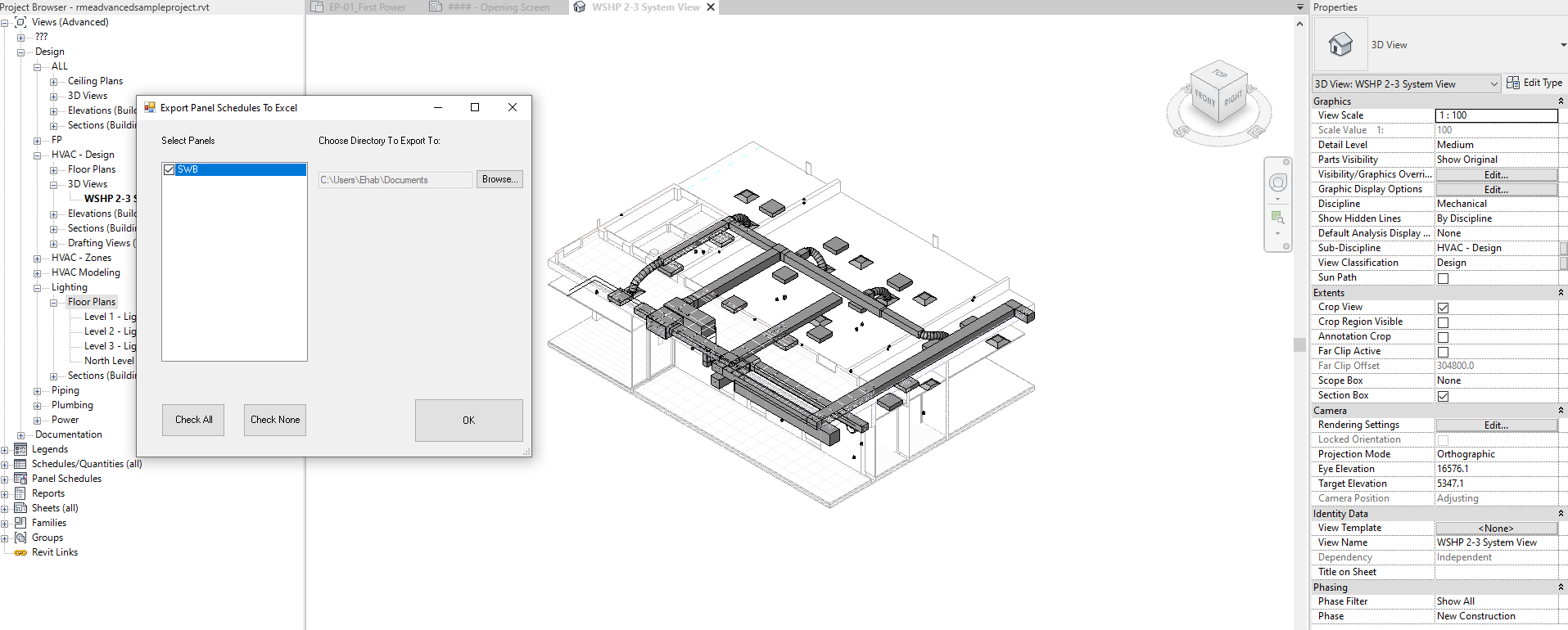

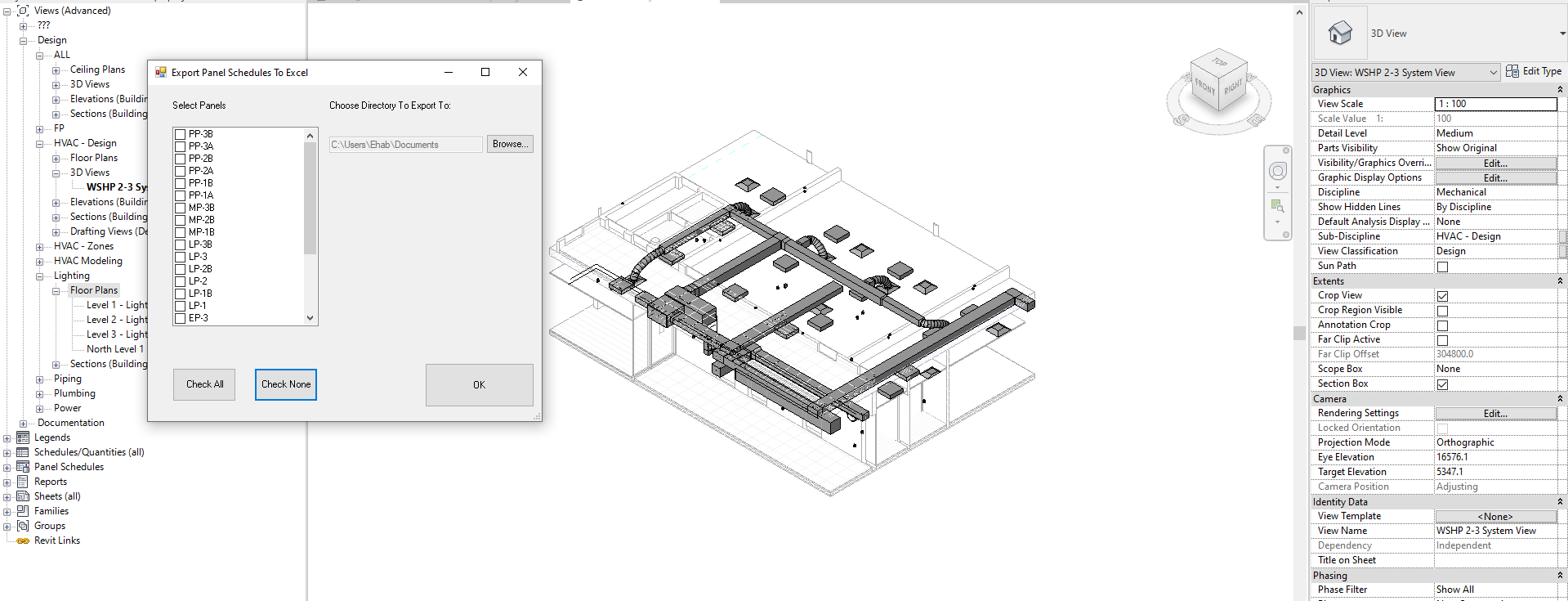

To run the application, select the button "FDB To Excel” to export branch Panel or "SMDB To Excel”  to Export Switchgear Panel

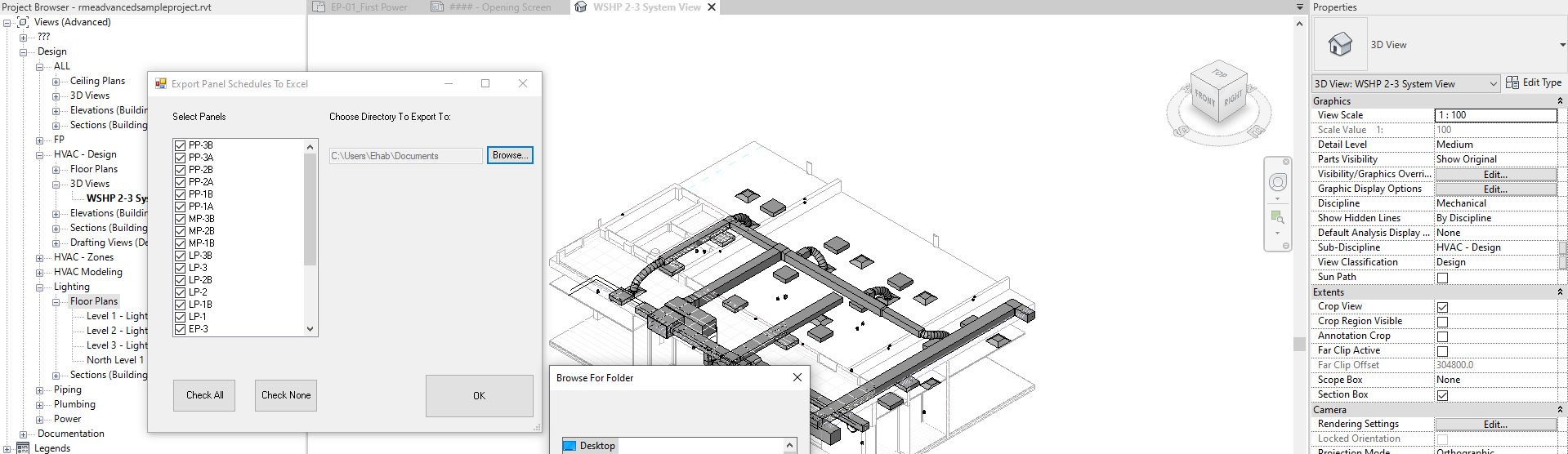

  • Step1- Browse to choose the directory to export Autodesk® Revit® panel schedules to it
  • Step2- press OK button to export all panel schedules view to the selected folder

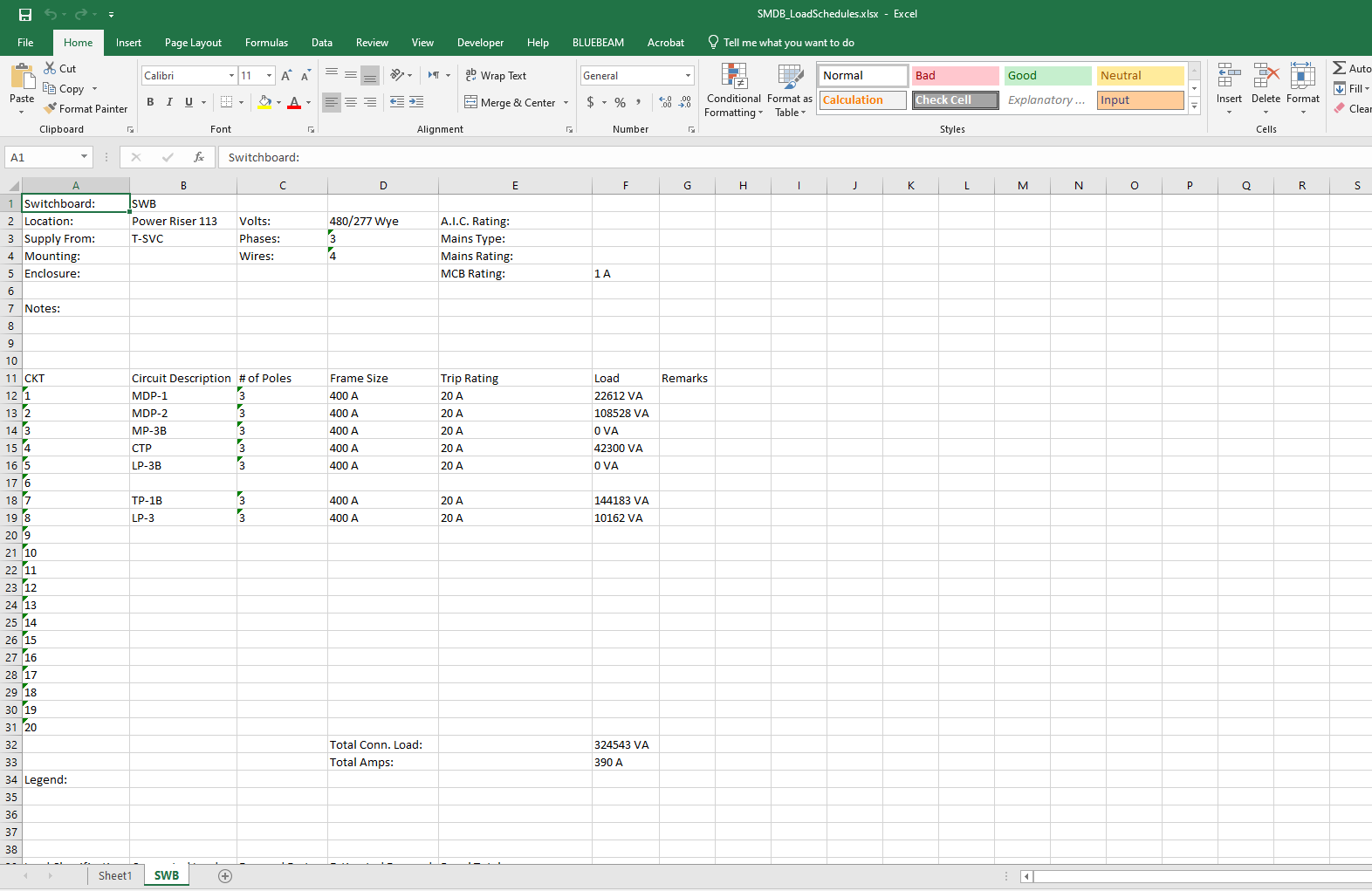

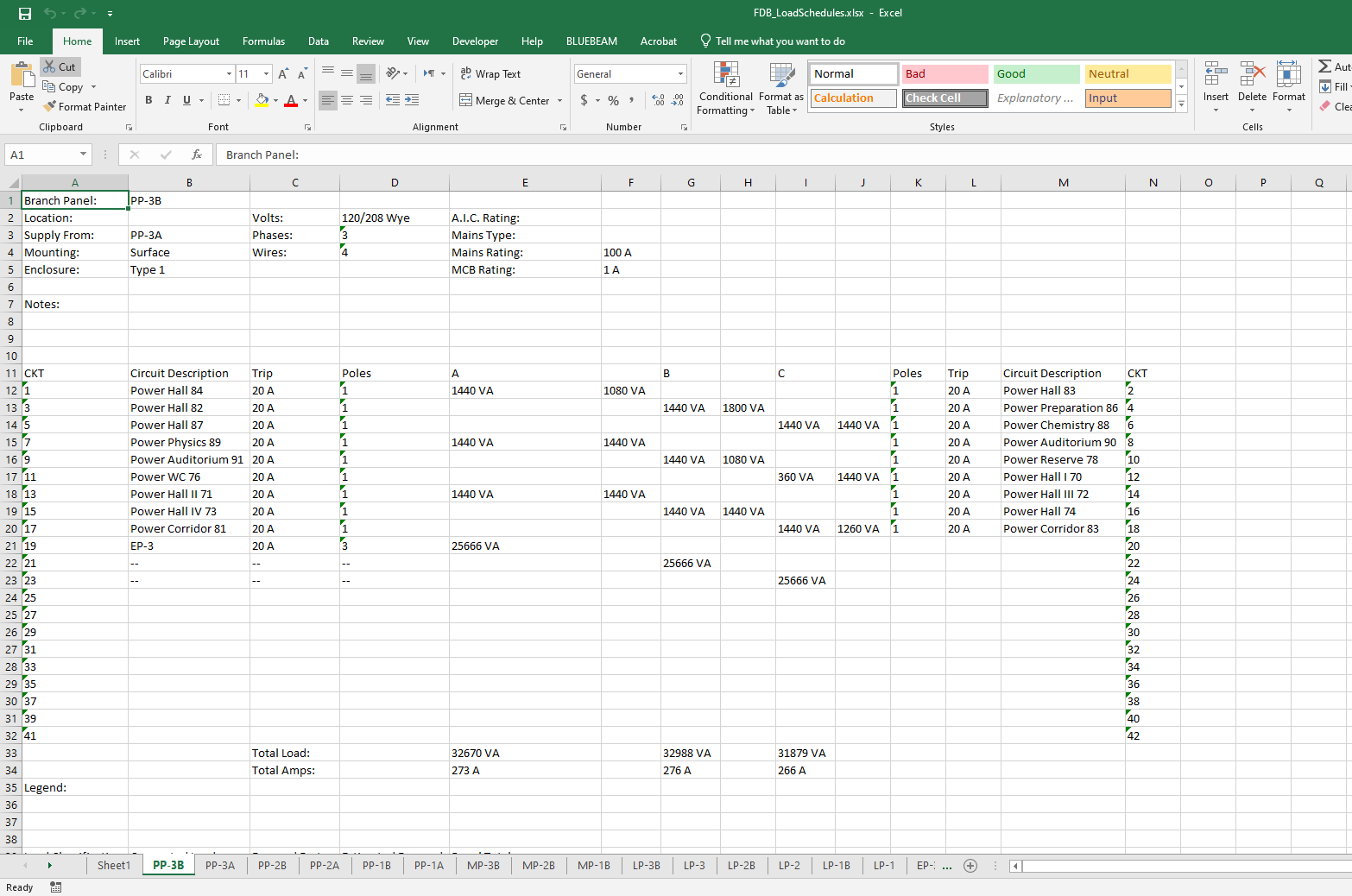

  • An Excel .xlsx file will be exported to your local computer containing all exported panel




The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin.

To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 7/8.1/10/11) and uninstall as you would any other application from your system.

Additional Information

Known Issues


Company Name: Ehab M.A Bkheit
Company URL: http://alburj.net
Support Contact: elec.eng.ehab@gmail.com

Author/Company Information

Ehab M.A Bkheit

Support Information

Support email: elec.eng.ehab@gmail.com

Version History

Version Number Version Description


Initial version
