PurgeSharedParam2024

PurgeSharedParam2024

Win64, English

Harrison-Dean
Remove shared parameters from the Active Document.

General Usage Instructions

To open the application, select the button "Delete Shared Parameters".

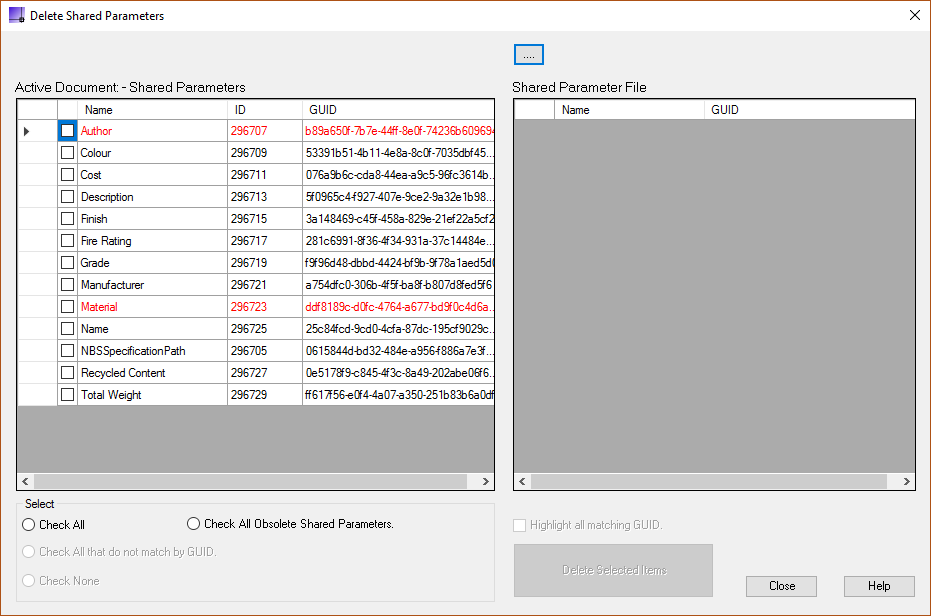

 This will open the dialog "Delete Shared Parameters" and show all the shared parameters within the active document.

 Note the number of displayed parameters may be higher than those shown in the dialog "Project Parameters", found in the Manage tab.

 These additional parameters (highlighted in red text) are obsolete and should be deleted.

 These parameters highlighted in blue text are Family Shared Parameters.

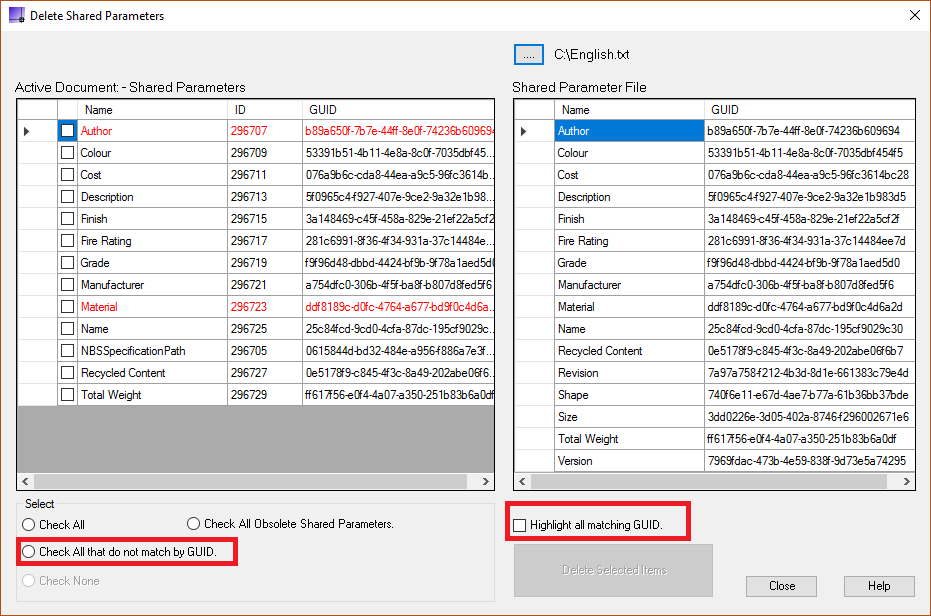

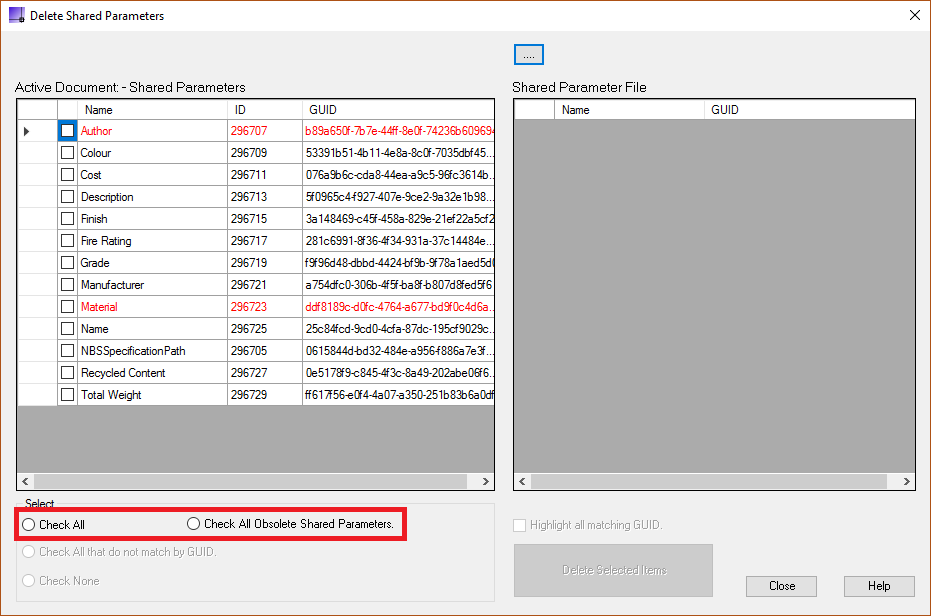

 You can check individual items or use the "Check All" radio button.

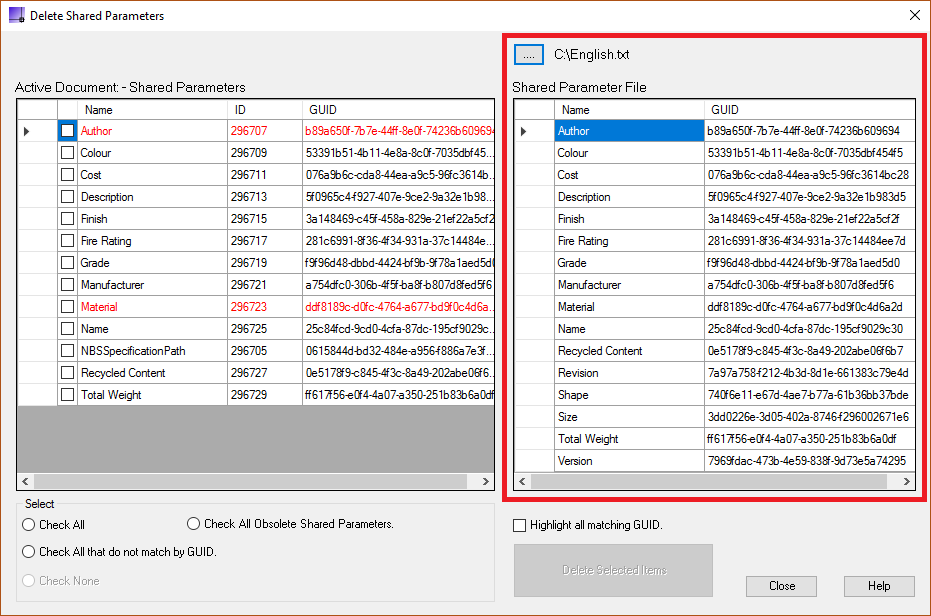

 Use the navigation button (....) to open your shared parameters file.

 This can be used to compare your shared parameters file with those contained in the active document

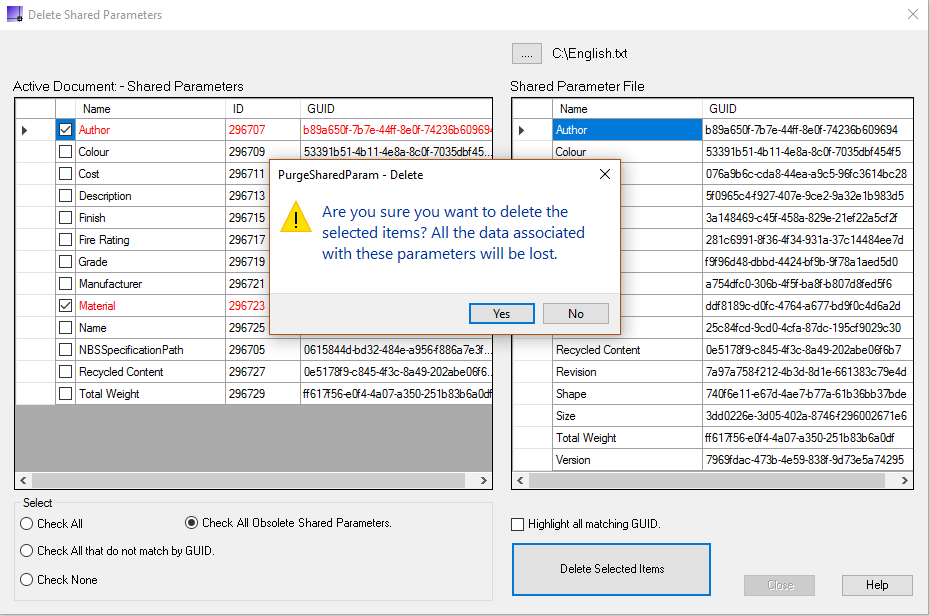

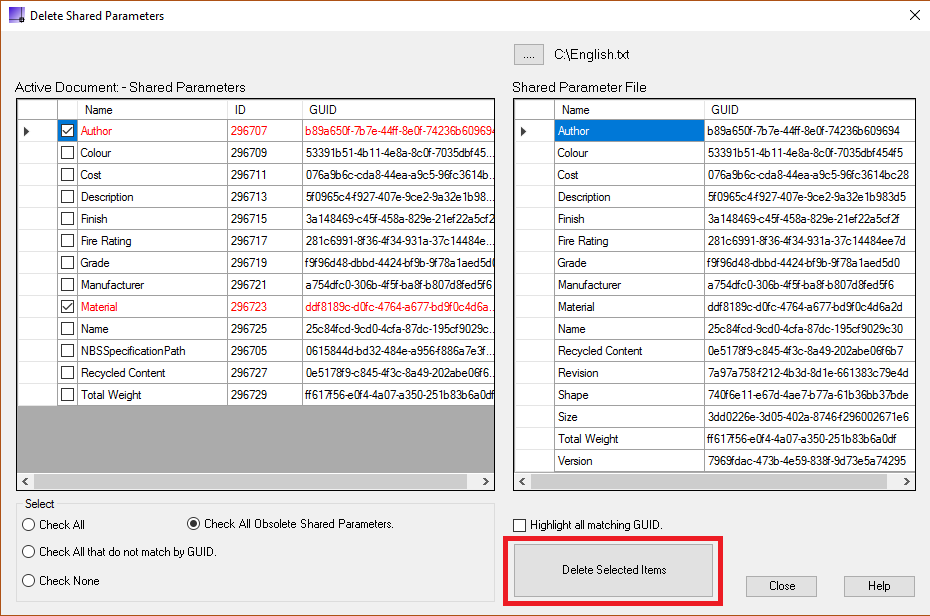

 Selecting the "Delete Selected Items" button displays a warning dialog that provides the possibility to interrupt the action if necessary.

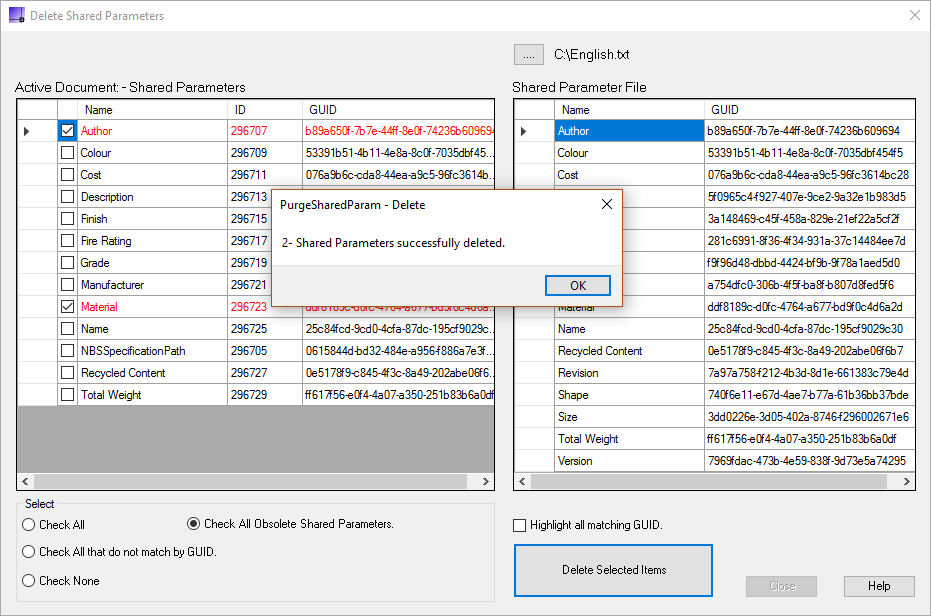

 Selecting "Yes" deletes all the selected items and associated data. A dialog appears, confirming the number of deleted parameters.

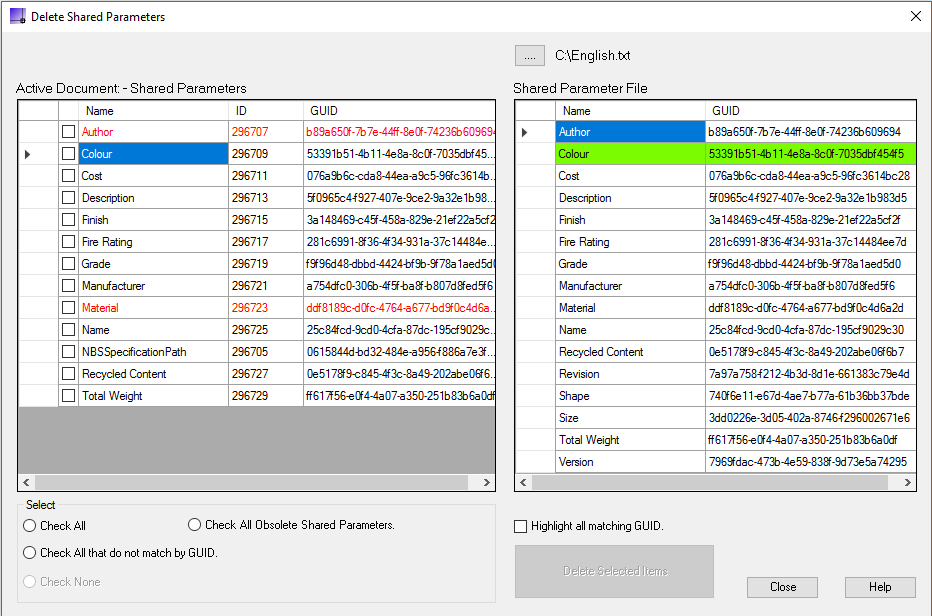

 By selecting the name of the Shared Parameter with the active document will highlight in light green it is equivalent Shared Parameter from the loaded file.

 The views will AutoScroll to the parameter if it exists. This can be extremely valuable when working with non-office standard files where parameter GUID’s match but the names do not.

 Selecting anywhere but the name of the Shared Parameter will clear the highlight.

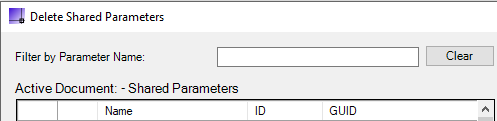

 Facility to filter (case sensitive) the shared parameters.

Commands

Installation/Uninstallation

The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin.

To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 10/11) and uninstall as you would any other application from your system.

Note: Please uninstall the previous version before installing this version.

Additional Information

Known Issues

Contact

Author/Company Information

Harrison-Dean

Support Information

Version History

Version Number Version Description

2.1.0

Autodesk® Revit® 2024 Update
