• To open the application, select the button "Upgrader" within the “Upgrader” panel of the Add-ins Ribbon Tab. This is available with our document being open in Revit.

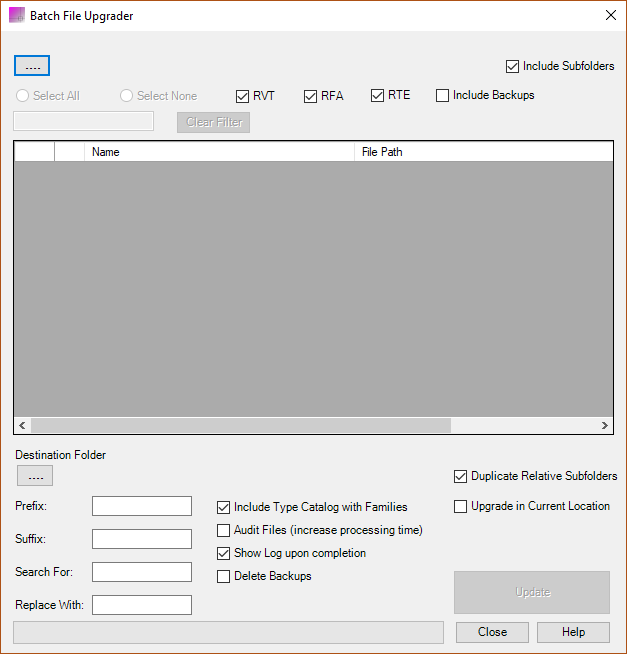

• The Upgrader dialog will open.

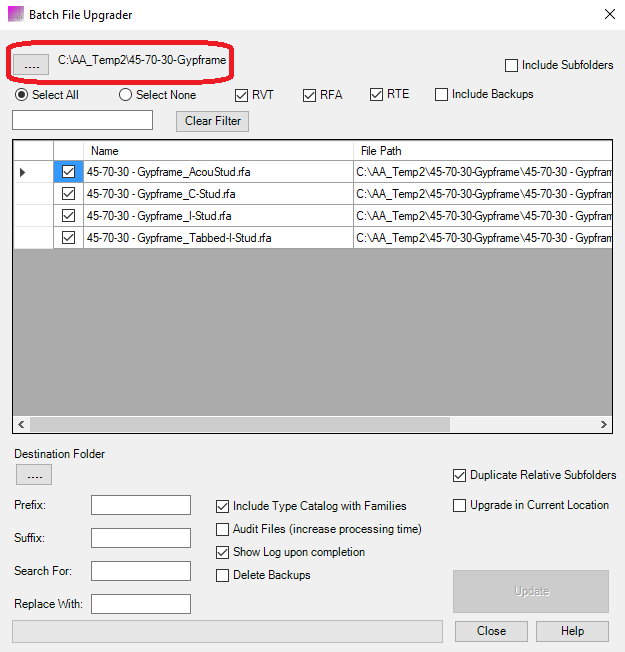

• Use the Browse button to open the folder containing the Revit documents to be Upgraded.

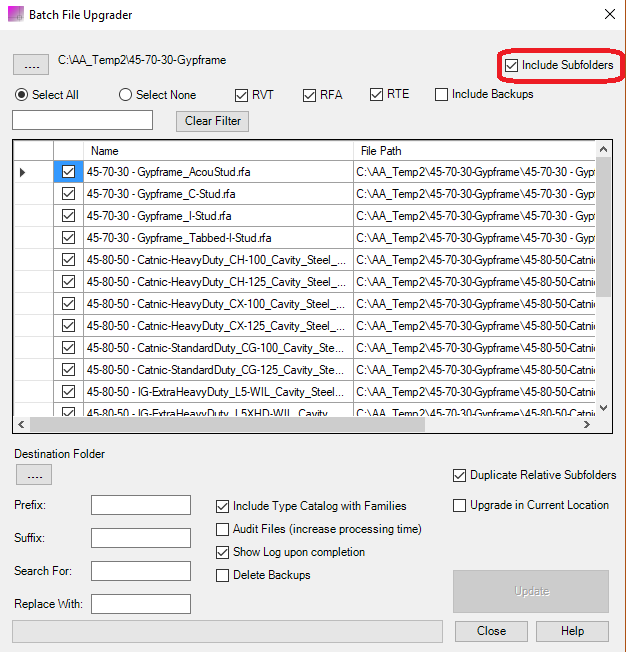

• To include all documents in subfolders select the “Include Subfolders” checkbox.

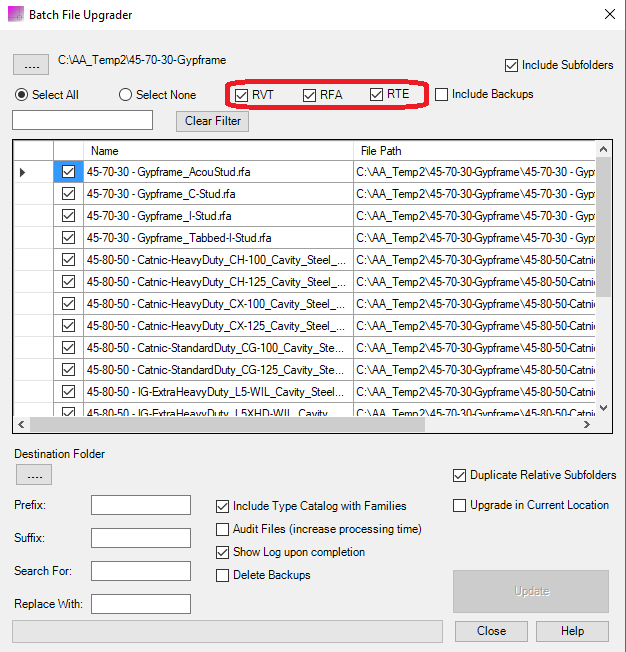

• To exclude Revit file types deselect the relevant file types
• Any item can be excluded from an upgrade by deselecting it.
• Use the filter to filter document names by the text string.

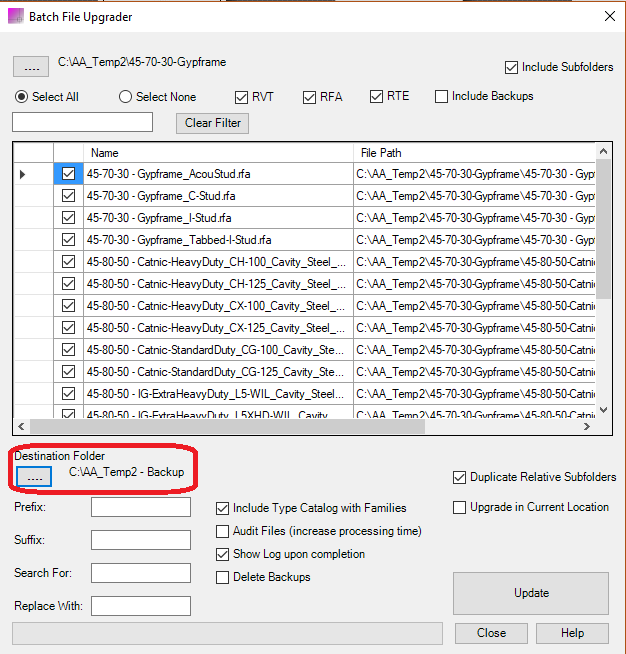

• Use the Browse button to select the destination folder for the upgraded documents.

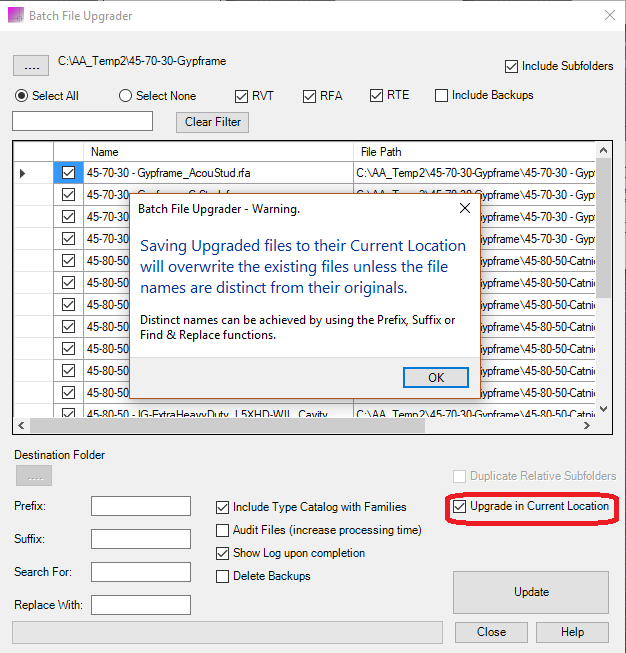

• You can also upgrade in the Current Location by selecting the “Upgrade in Current Location” Checkbox. NOTE. A warning dialog will be displayed advising that this will overwrite the existing file names unless they are distinct from their originals.

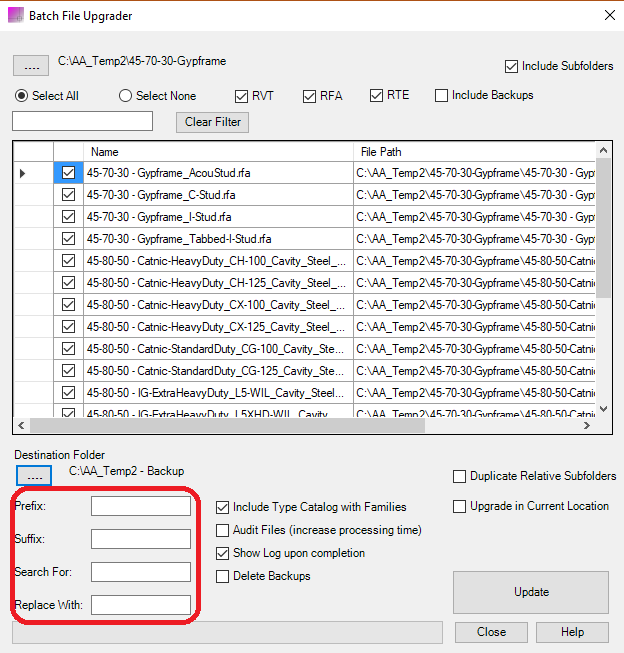

• Distinct names can be achieved by using the Prefix, Suffix or Find & Replace functions.

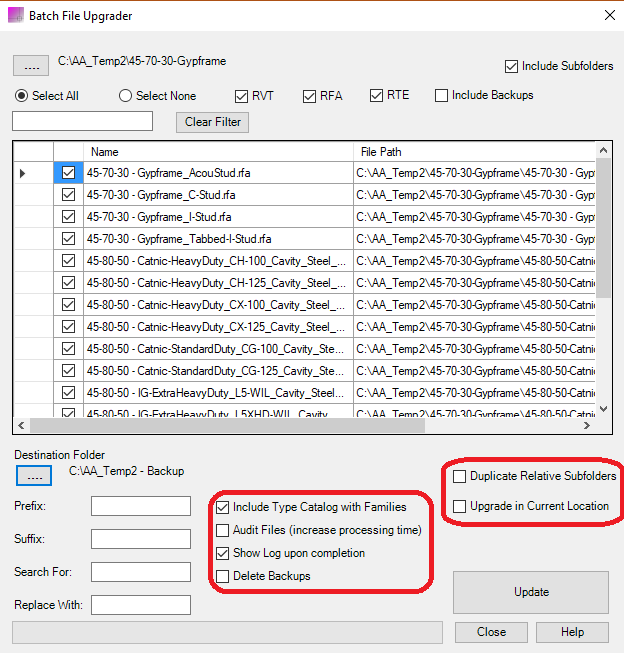

• Further options are also available during the upgrade process. NOTE Audit will increase processing time)
• Audit - If any errors are, found Revit will let you know. A window will pop up informing you of the number of errors found and the number of errors fixed. If you get no such window informing you then no errors were found.
• Upon completion, a dialog identifying the number of files Upgraded is shown.

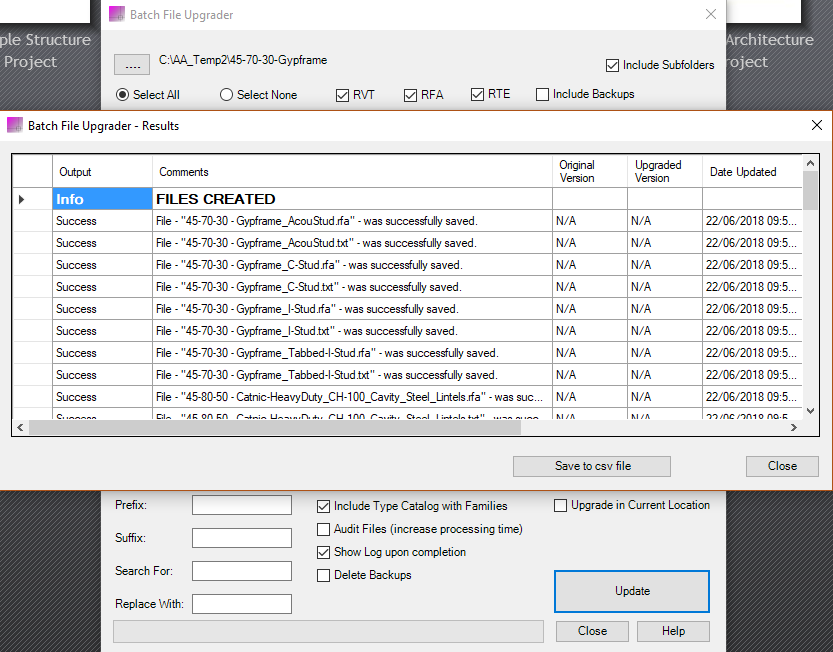

• A more detailed log of the files upgraded is shown if the “Show Log upon completion” checkbox is selected. This can be exported to a CSV file if required.
• Operate with caution! Because the process of upgrading Revit files is irreversible, ensure that recent backups have been done.

The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin.

To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 7/8.1/10/11) and uninstall as you would any other application from your system.

Please note the files cannot be upgraded if Administrator rights are required.

Does not work with Workhared Revit projects or Revit Server or with Revit files older than Revit 2013.
