Archireport-Transfer plans from your BIM projects

Archireport-Transfer plans from your BIM projects

Win64, English

The Archireport Transfer plugin lets you transfer all your BIM/3D model plans straight into the Archireport project of your choice, in just a few clicks.

General Usage Instructions

  1. You must have an Archireport account or create a free trial account to use the plugin.
  2. “Project” must be created in the site or iOS Archireport App before running the plugin so that the user can select the destination project while running the app.
  3. Select an Autodesk® Revit® project
  4. Create Sheets, if you haven’t already (views to be exported to PDF)

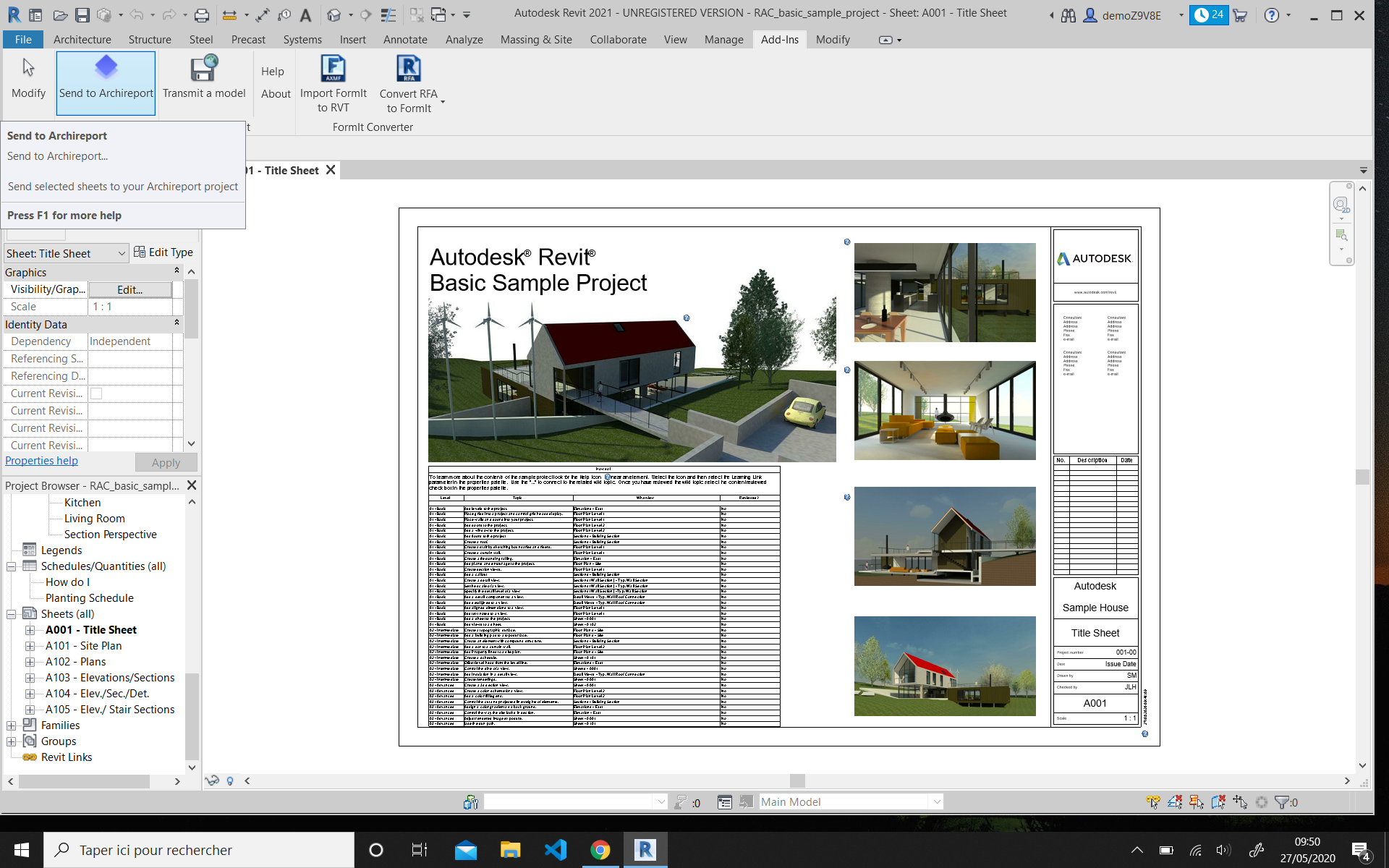

  5. Select the Add-ons menu in the toolbar.
  6. Click on Export to Archireport
  7. Click on login and enter your Archireport login details
  8. When the authorization window pops up, click on Allow this application

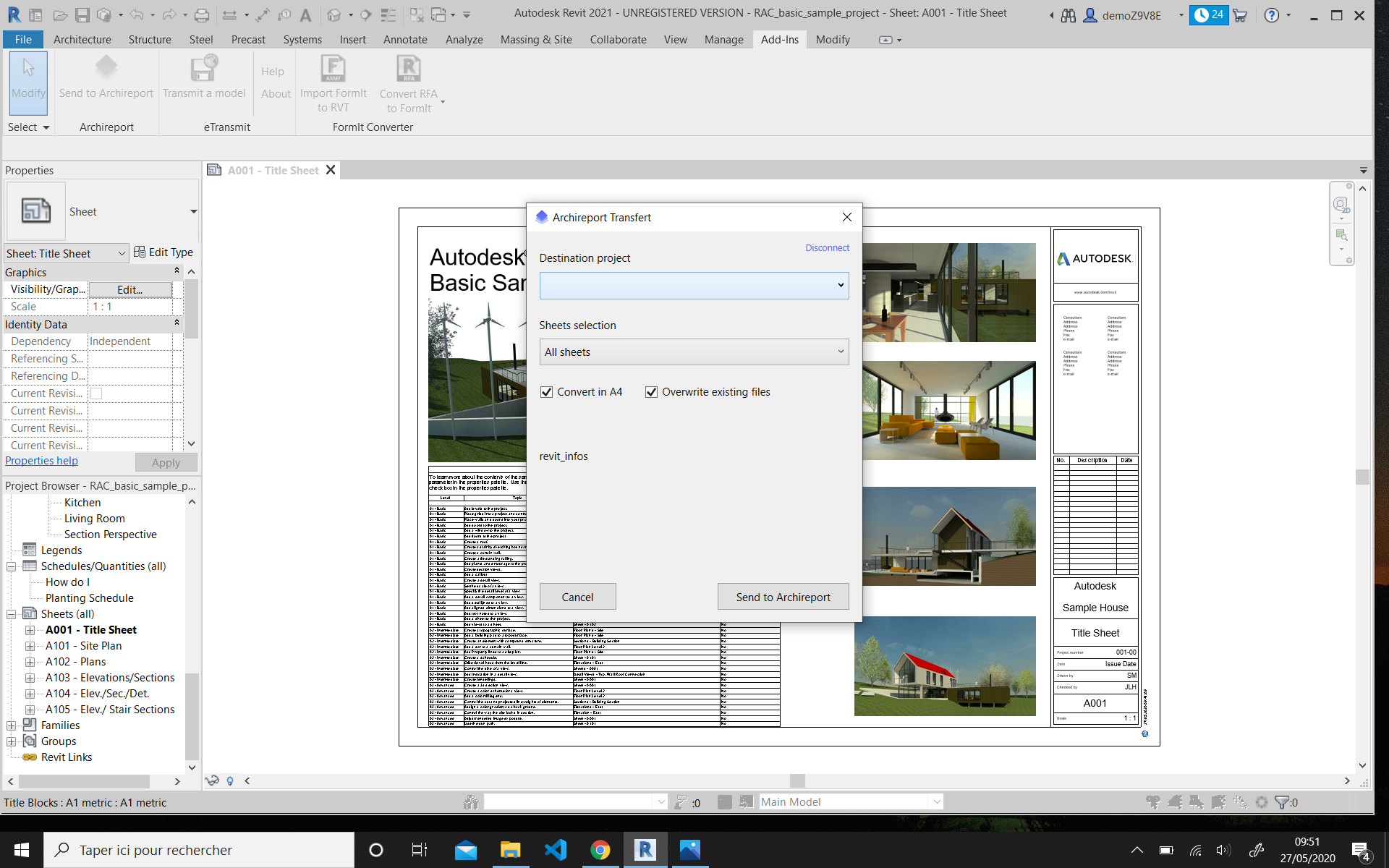

  9. Select the Archireport project you want to transfer the plans to
  10. Select the Sheets of the project to be exported
  11. Click on Send to Archireport
  12. Once the transfer has been completed, go into your Archireport account to see the plans in the Plans folder of the project selected




The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin.

You may need to restart the Autodesk product to activate the app/plug-in.

To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 7/8.1/10/11) and uninstall as you would any other application from your system.

Additional Information

Known Issues




Company Name: Archireport
Support Contact:

Author/Company Information


Support Information

If you have any questions about using the Archireport Transfer Plugin, you can email the Archireport team at or use the contact form on our website

Version History

Version Number Version Description


Plugin for transferring PDF plans to Archireport.


Plugin for transferring PDF plans to Archireport.


Plugin for transferring PDF plans to Archireport.
