Convert Wire Size (AWG to MM) _V_19,20

Convert Wire Size (AWG to MM) _V_19,20

Win64, English

BIM SOFT SOLUTIONS
This tool is designed to convert a wire size from American Wire Gauge to square millimeters.

General Usage Instructions

Work Flow:

1.When runing the tool it will create  the needed shared parameter " Wire_size_mm2" it is assigned to Electrical Circuits and it's instance and defined as text parameter othwerwise you can transfer the project parameters from under the following path. https://drive.google.com/folderview?id=0B5mtXR8YS1-9ZmlvTjJ0OWhjcTA&usp=sharing

Click the Convert Wire size command.

Click ok.

The parameter Wire_size_mm2 under circuit proprieties will be filled with the new value.

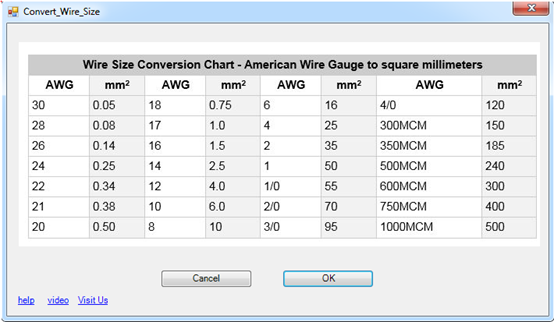

Screenshots

Commands

Installation/Uninstallation

The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin.

You may need to restart the Autodesk product to activate the app/plug-in.



To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 7/8.1/10) and uninstall as you would any other application from your system.

Additional Information

Known Issues

 2018

Contact

Company Name: BIM SOFT SOLUTIONS
Support Contact: bim_s_s@yahoo.com

Author/Company Information

BIM SOFT SOLUTIONS

Support Information

Support Contact: BIM_S_S@YAHOO.COM

Version History

Version Number Version Description

1.0.0

In-tail Release
