Bimsync for Autodesk® Revit®

Bimsync for Autodesk® Revit®

Win64, English

Catenda
Collaborate on BCF issues directly from within Revit.

General Usage Instructions

Getting started

Use your Bimsync account to log in to the add-in. After selecting your Bimsync project and issue board, the list of issues appears.

Issue List

In the issue list, you can filter and sort your issues and see basic information: Title, due to date, Assigned To, Requester, Labels, ... You can click on any issue to open the issue detail page.

Issue Details

In the issue detail page, you can edit any property of the issue: Title, description, the requester and assigned to, ...

You can also see existing comments and add a new one.

Every comment created in Revit will have their viewpoint uploaded to Bimsync.

Upload to Bimsync

You can upload your current Revit model directly to Bimsync as an IFC file.

After opening the upload page:

  • Select the Bimsync model where you will be creating a new revision
  • Type in a comment associated with the upload
  • Select an IFC configuration. A new configuration can be created in the IFC export menu in Revit. You can also select the <Bimsync setup> for an easy to use configuration well suited to Bimsync.
  • Click on Upload

Settings

The settings page allows you to change how the plugin will create a 3D view when using the Zoom function.

  • Keep the 3D view orthographic. This option will force the Revit 3D view to be orthographic even if the corresponding viewpoint has been created with a perspective view.
  • Create a new view of every issue. Instead of reusing the same 3D view each time you use the Zoom function, this option will create a new 3D view for every issue each time you use the zoom function.
  • 3D view name suffix. This text will be added to the name of the 3D view created when using the Zoom function.

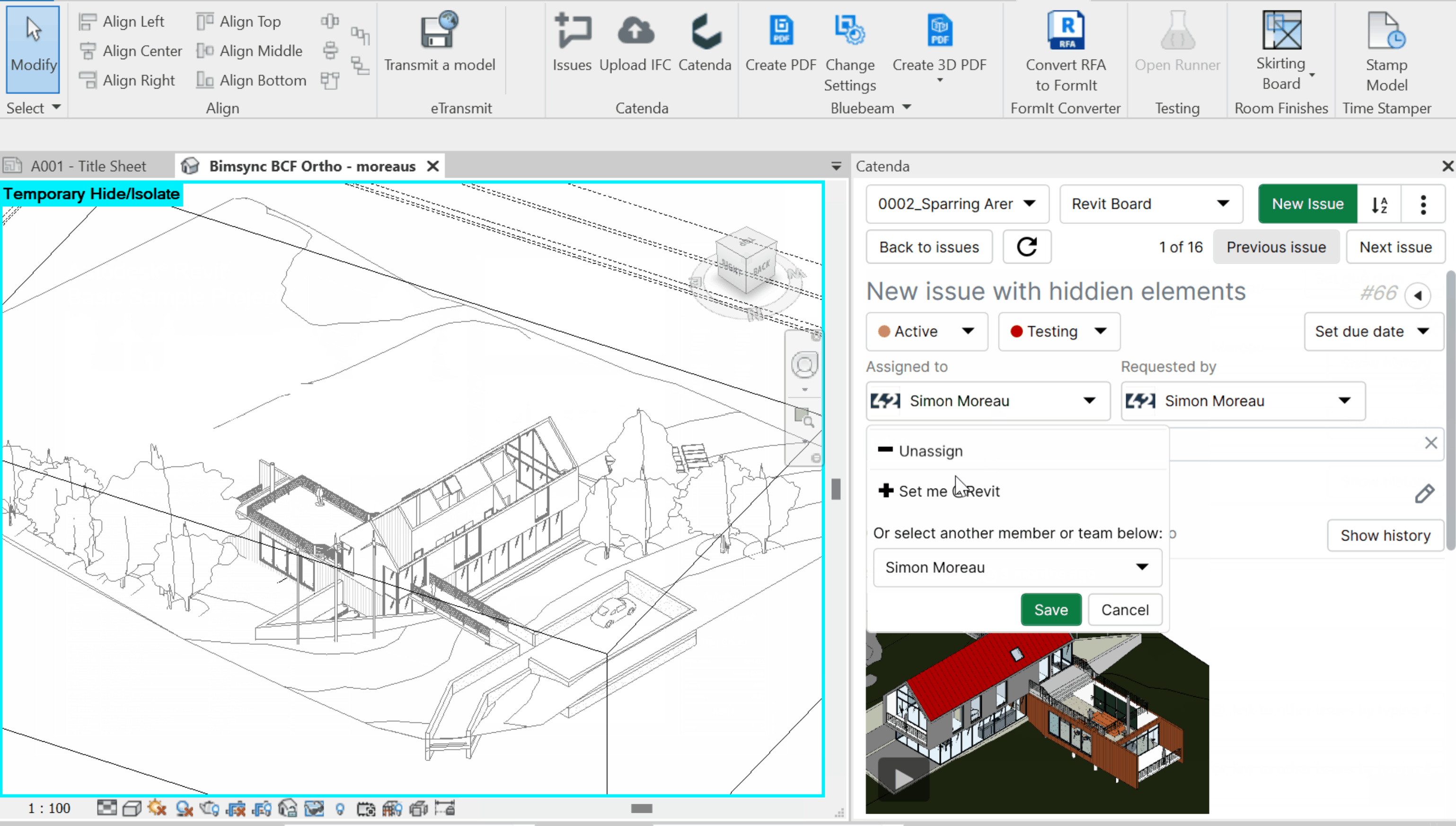

Screenshots

Commands

Installation/Uninstallation

The installer that ran when you downloaded this plug-in from Autodesk App Store will start installing the plug-in. OR, simply double-click the downloaded installer to install the plugin.
To uninstall this plug-in, exit Revit if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 7/8.1/10) and uninstall as you would any other application from your system.

Additional Information

Known Issues

Contact

Company Name: Catenda
Company URL: https://catenda.no/
Support Contact: support@catenda.no

Author/Company Information

Catenda

Support Information

You can submit a request at support.bimsync.com with any questions and feedback.

Version History

Version Number Version Description

1.0.4

Update for Revit 2022

1.0.3

Fix an issue with viewpoint containing related objects

1.0.2

Add the viewpoint transform setting

1.0.1

Fix filter UI, login page and add small UI improvement

1.0.0

The very first release of the Bimsync Revit add-in.
