For the app to work properly You have to follow the following steps:-

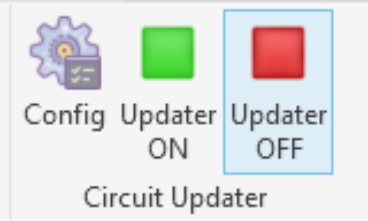

1 – You must enable the updater from the Green Radio Button, by default(at the start of the project it’s turned off).

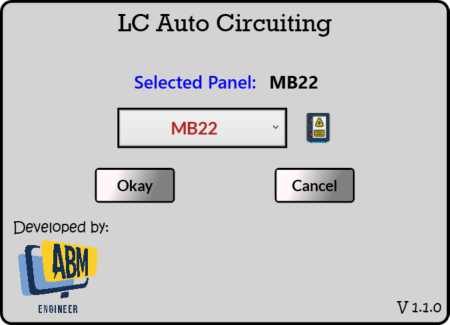

2 – You must select a panel from the “Config” button first, When pressing the button you can see a dropdown list for all panels existing in the active document, once you select a panel. The name of the panel will be displayed accordingly, and you can choose it directly from an active view via a small button adjacent to the dropdown list.

Once you fulfilled these steps above, Place a new element of the categories mentioned above. A new electrical circuit will be created and all added elements will be connected to the selected panel. along with a “HomeRun” Wire and the tag for that wire pointing to the panel.

Kindly, note for the wire tag, the default tag will be used.

And finally, you Stop the updater by pressing the red RadioButton.

The installer that ran when you downloaded this app/plug-in from the Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin.

To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 10/11) and uninstall as you would any other application from your system.

We plan to add additional functionality in the near future. Please feel free to email your suggestions to abdelrahmanmobarak96@gamil.com
