Legend Component Hidden Views - 2023

Legend Component Hidden Views - 2023

Win64, English

bimMajster
The app allows you to change the view direction for legend components. It gives you the possibility to also choose view types not accessible in the Autodesk® Revit® environment.

General Usage Instructions

In order to change the view direction of your legend component please select it and click on desired view type from bimMajster tab. Views are located in Legend Component Hidden Views section. If you clicked on desired view with no components selected, the select by rectangle command will be initiated. You can select now multiple elements from your Legend view. All selected legend components will be changed to the preferred view type.

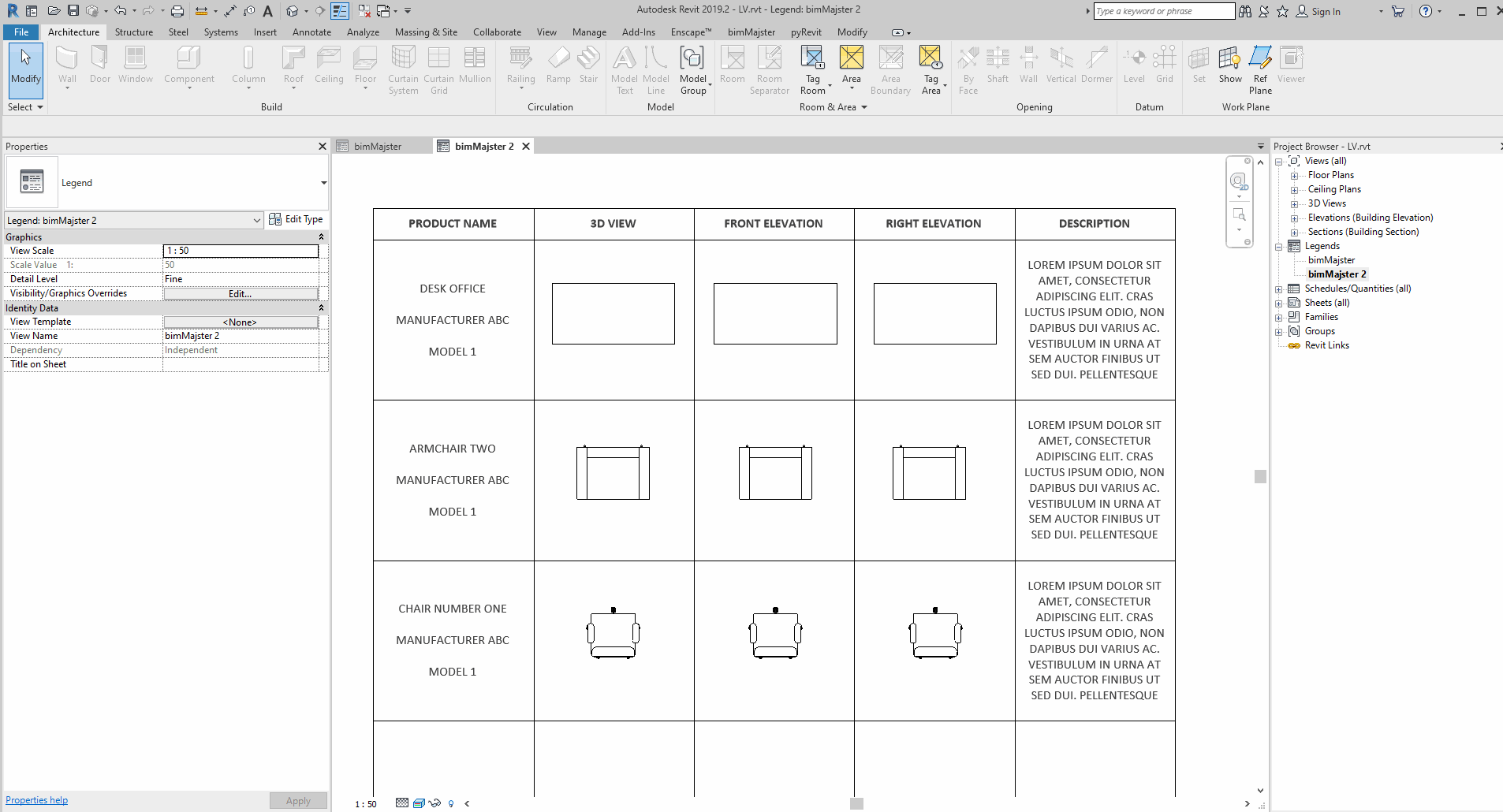

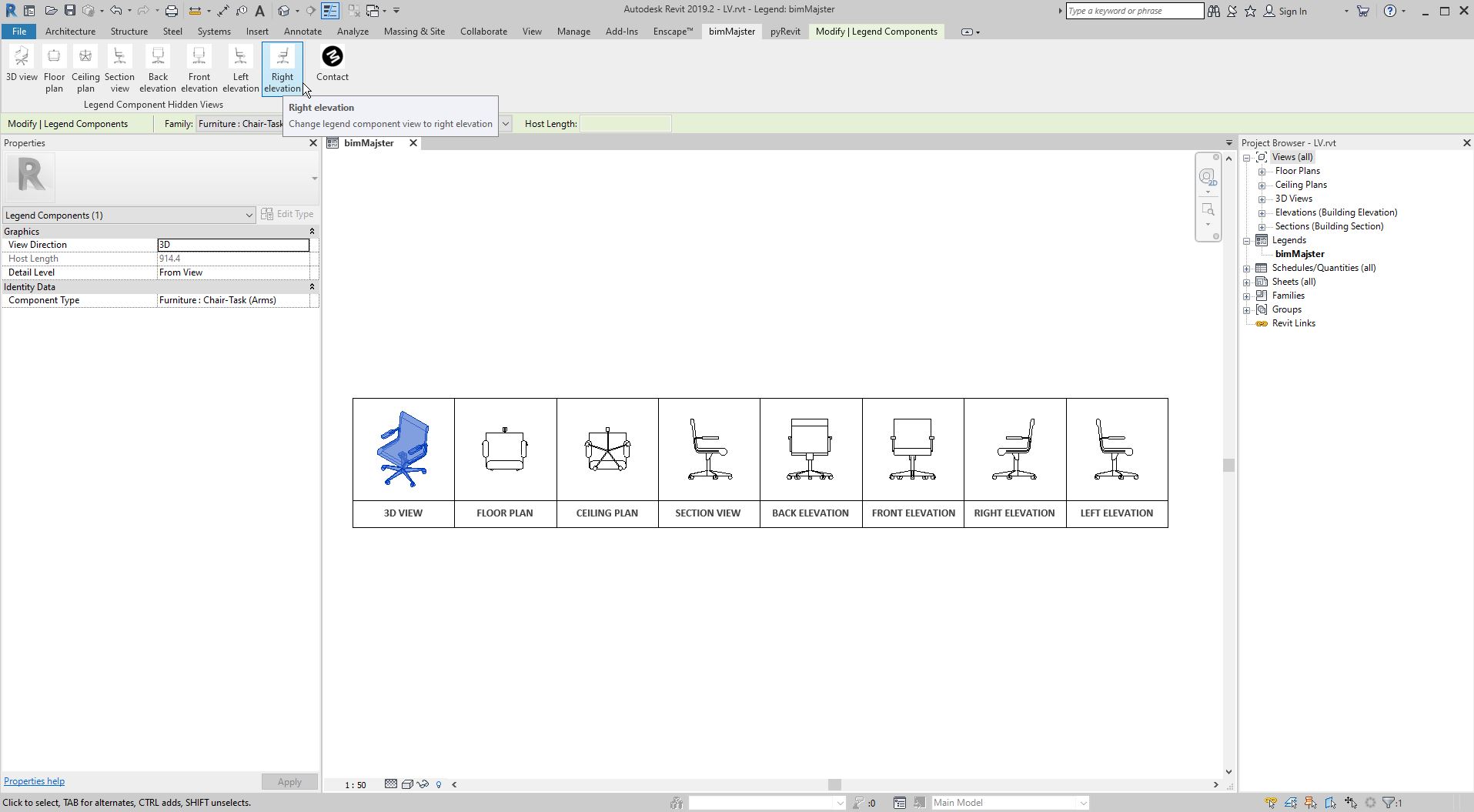

Screenshots

Commands

Installation/Uninstallation

The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin. You may need to restart the Autodesk product to activate the app/plug-in. To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 10/11) and uninstall as you would any other application from your system.

Additional Information

Known Issues

Contact

Author/Company Information

bimMajster

Support Information

In case you need any help please do not hesitate to contact us using the customer support email address.

Version History

Version Number Version Description

1.0.0

Initial Realease
