The add-in is executed using an external command. For this, a special panel is installed on the menu ribbon.

The panel contains two buttons.

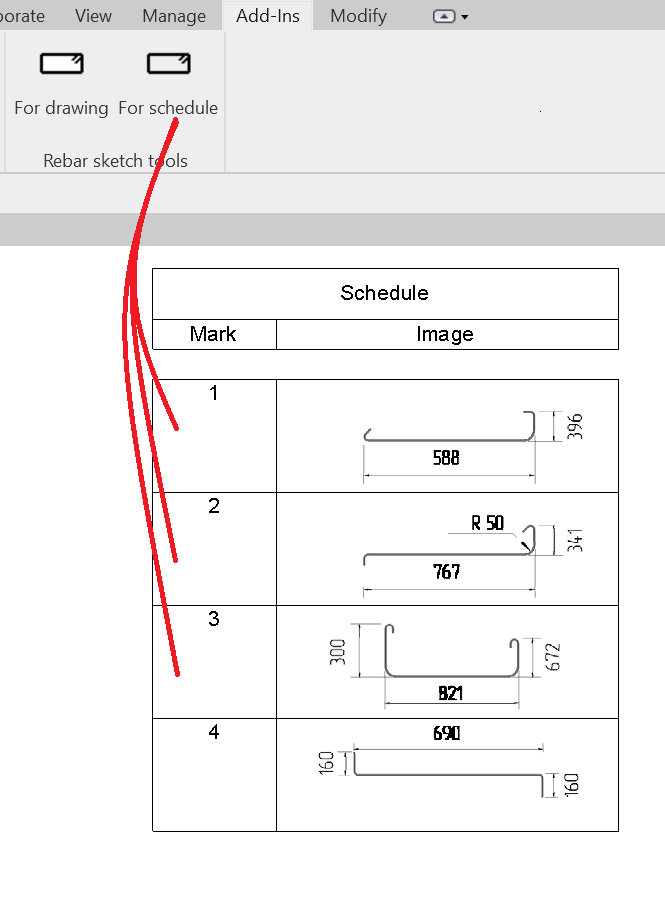

To get a sketch for the scheduler, you should:

• Click on the corresponding button
• select any reinforcement of the project
• go to the Properties window
• go to the Image parameter - the parameter value contains the name of the file with the reinforcement image

You can now use the Image parameter in the rebar schedule.

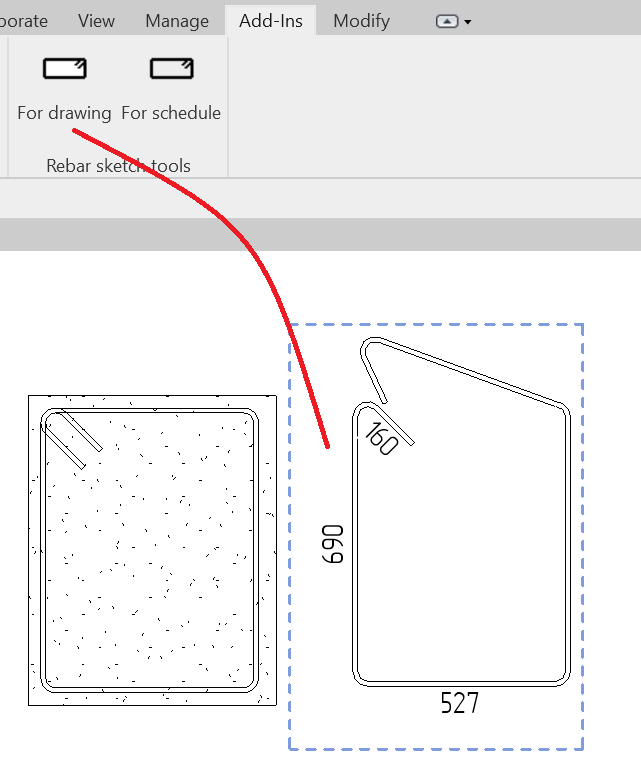

To get a sketch as a separate drawing, you should:

• Click on the corresponding button
• select any reinforcement of the project
• place a sketch drawing in the right place on the view

The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin.

You may need to restart the Autodesk product to activate the app/plug-in.

To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 7/8.1/10/11) and uninstall as you would any other application from your system.
