Autodesk Forma™ Add-In for Revit, Beta

Autodesk Forma™ Add-In for Revit, Beta

Win64, English

Autodesk, Inc.
Transfer your Autodesk Forma® proposals into Autodesk® Revit® projects and use Forma to analyze your Revit designs.

General Usage Instructions

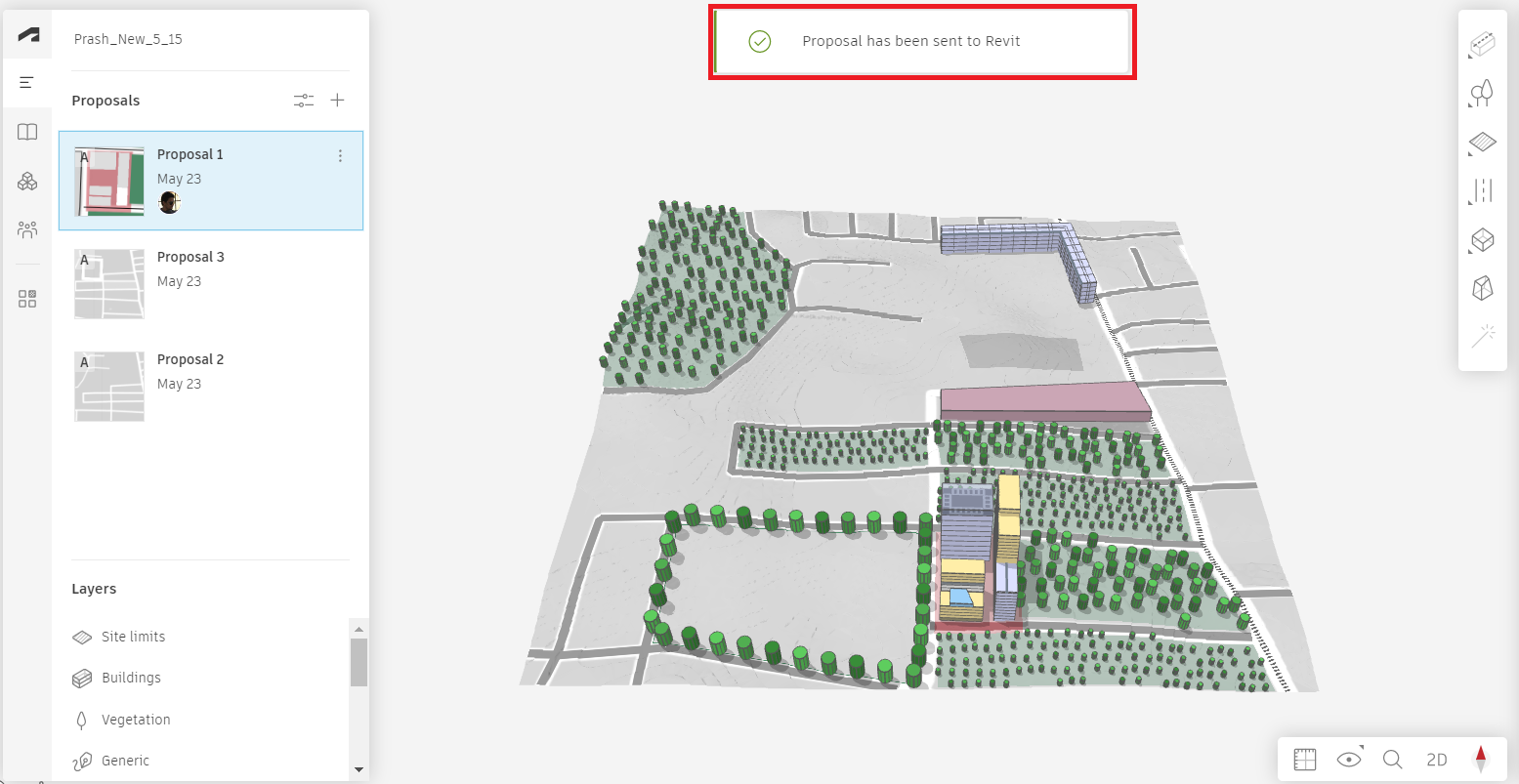

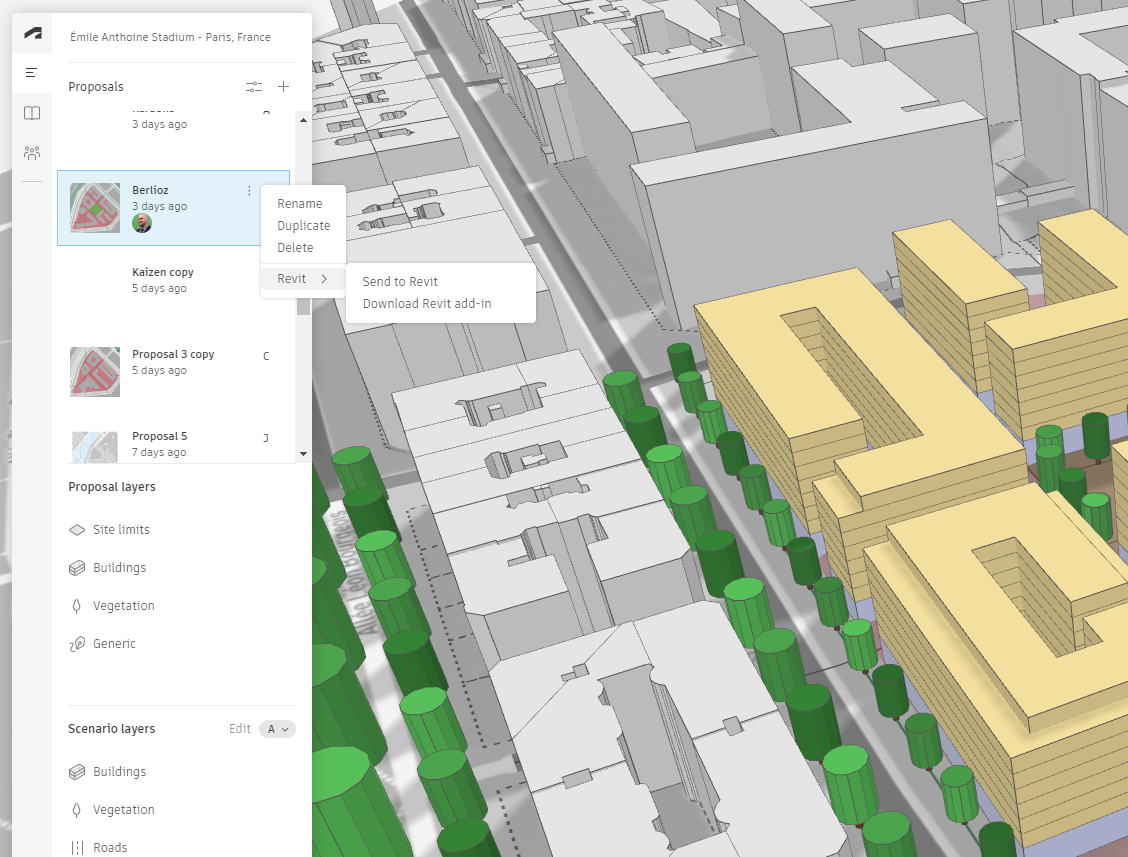

In Forma, from the list of your proposals in the left-side panel, left-click on the 3-dot menu of the proposal you'd like to work on and choose “Send to Revit” from the menu.

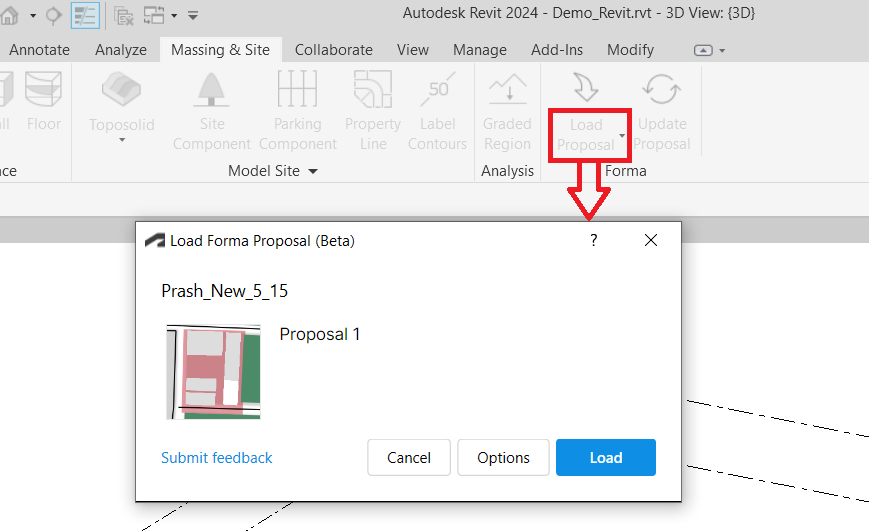

Open Revit and create a new project. In the Massing and Site tab, find the Load Proposal button. (Note, if you are loading a Forma proposal into an existing Revit project, the existing Revit location data will be overwritten by the GIS coordinate system used to locate the Forma project)

Note: while the add-in is regularly being improved, current conversions are

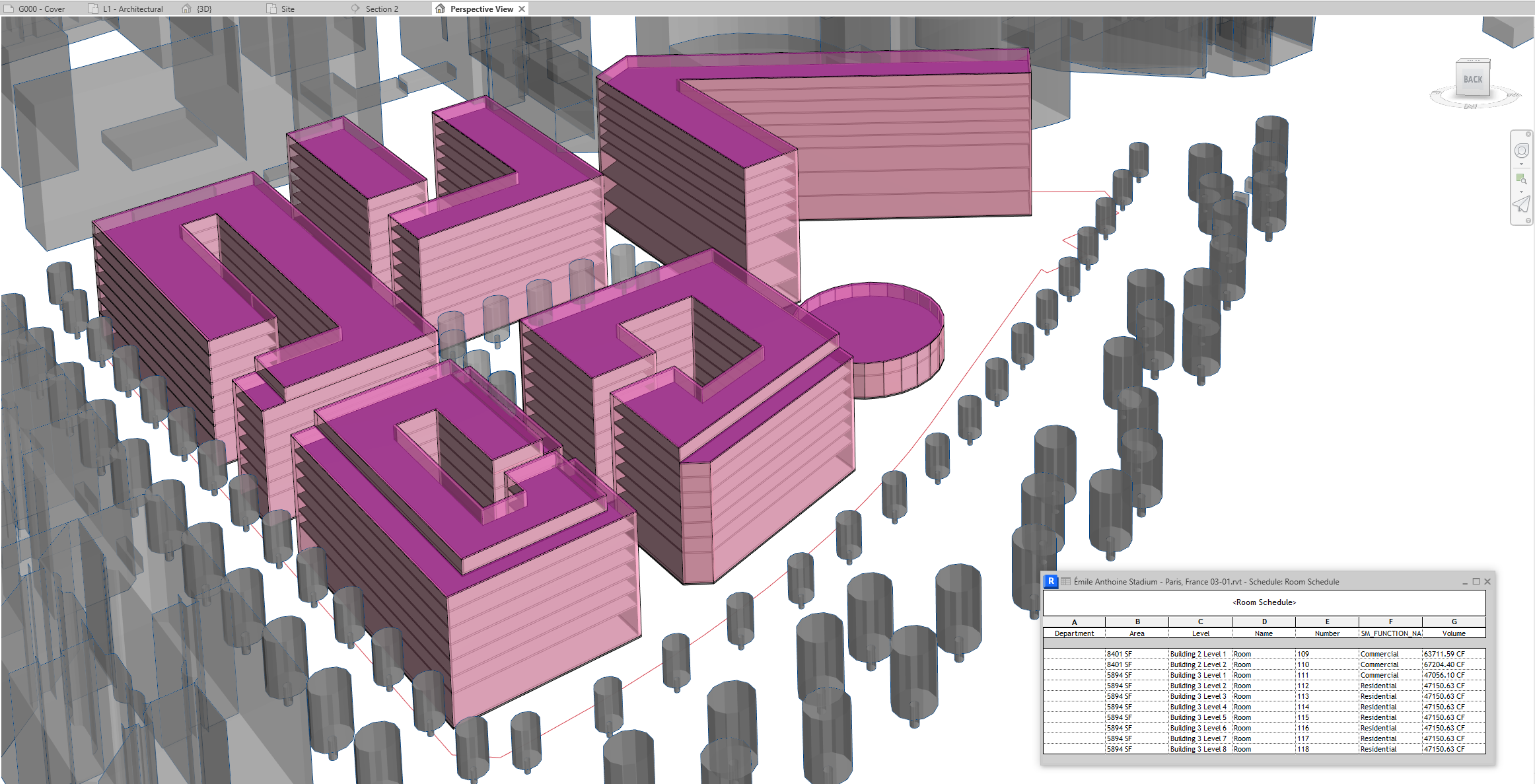

  • Basic Buildings and Released Line Buildings are converted to Walls, Floors, and Roofs
  • 3D Sketch Buildings are converted to loaded mass families with mass floors
  • Line Buildings, Vegetation, context buildings, and ShapeDiver elements are Converted to Generic Models (Direct Shapes)
  • Parking is converted to Parking Components (Testfit parking is currently not supported)
  • Terrain is converted to Toposolids in Revit 2024 (toposurface in previous versions)



For more details, see the Forma Revit Interoperability documentation.

Screenshots

Commands

Installation/Uninstallation

Installation

Run the included Windows Installer .msi installer.

Uninstallation

Windows Start > Settings > Apps and Features, search for Forma, select Forma Revit Add-In, and click Uninstall.

Additional Information

Known Issues

Contact

Company Name: Autodesk, Inc.

Author/Company Information

Autodesk, Inc.

Support Information

Version History

Version Number Version Description

0.9.8.0

August 2024 update. This is an optional update that contains fixes for issues with conceptual mass orientation, property boundaries, and level names.

0.9.7

August 2024 update. This is an optional update that contains fixes for issues with conceptual mass orientation, property boundaries, and level names.

0.9.5

June 2024 update. This optional update will become required on July 8, 2024.

0.9.3

April 2024 update.

0.9.2

March 2024 update.

0.9.0

February 2024 update.

0.8.16

January 2024 update.

0.8.12

December 2023 update.

0.8.11

November 2023 update.

0.8.4

Post-launch update with fixes for a number of issues.
