StrucCope

StrucCope

Win64, English

StrucSoft Solutions
Automatically copes many beams/columns at once.

General Usage Instructions

To apply coping to a beam,

  1. Select the beam and then execute the "Cope by intersecting beams/columns" command under the StrucCope menu in the Add-Ins tab.
  2. To apply coping to many beams, select a common intersecting beam and execute the "Cope all intersecting beams/columns" command.
  3. To remove all coping for a beam/column select the beam/column and execute the remove all copings.
  4. To remove all coping for many beams/columns, select the common intersecting beam/column and execute the same command.

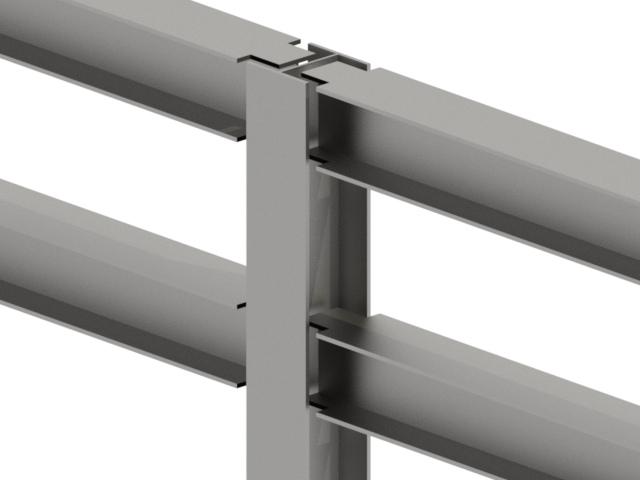

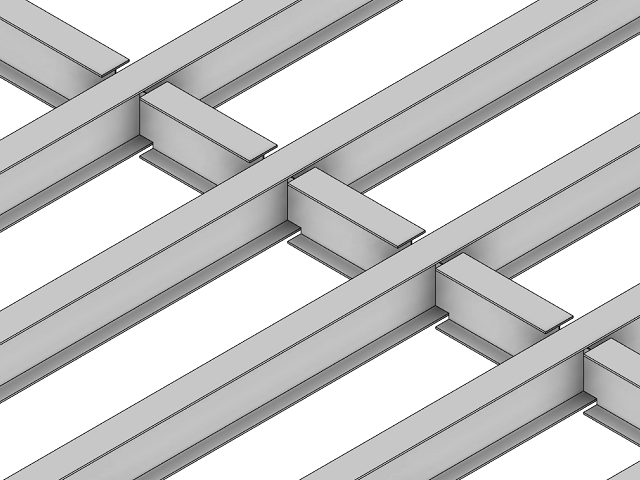

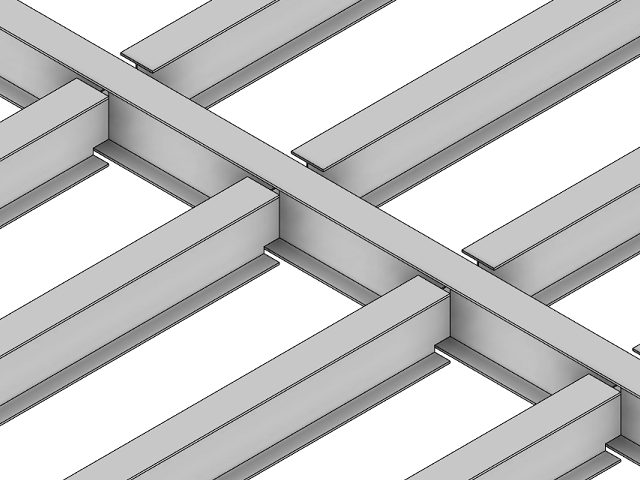

Screenshots

Commands

Installation/Uninstallation

The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin. You may need to restart the Autodesk product to activate the app/plug-in. To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 10/11) and uninstall as you would any other application from your system.

Additional Information

Known Issues

Contact

Company Name: StrucSoft Solutions

Author/Company Information

StrucSoft Solutions

Support Information

Support is readily available. User friendly and knowledgeable support technicians are available at appsupport@strucsoftsolutions.com

Version History

Version Number Version Description

1.0.6

Added support for Autodesk® Revit® 2025. Updated company logo in About command. Dropped Support for Revit 2019, 2020

1.0.5

Added support for Autodesk® Revit® 2023.

1.0.4

Added support for Autodesk® Revit® 2018
