OBJ Converter for Autodesk® Revit®
Win64, EnglishGeneral Usage Instructions
Steps:

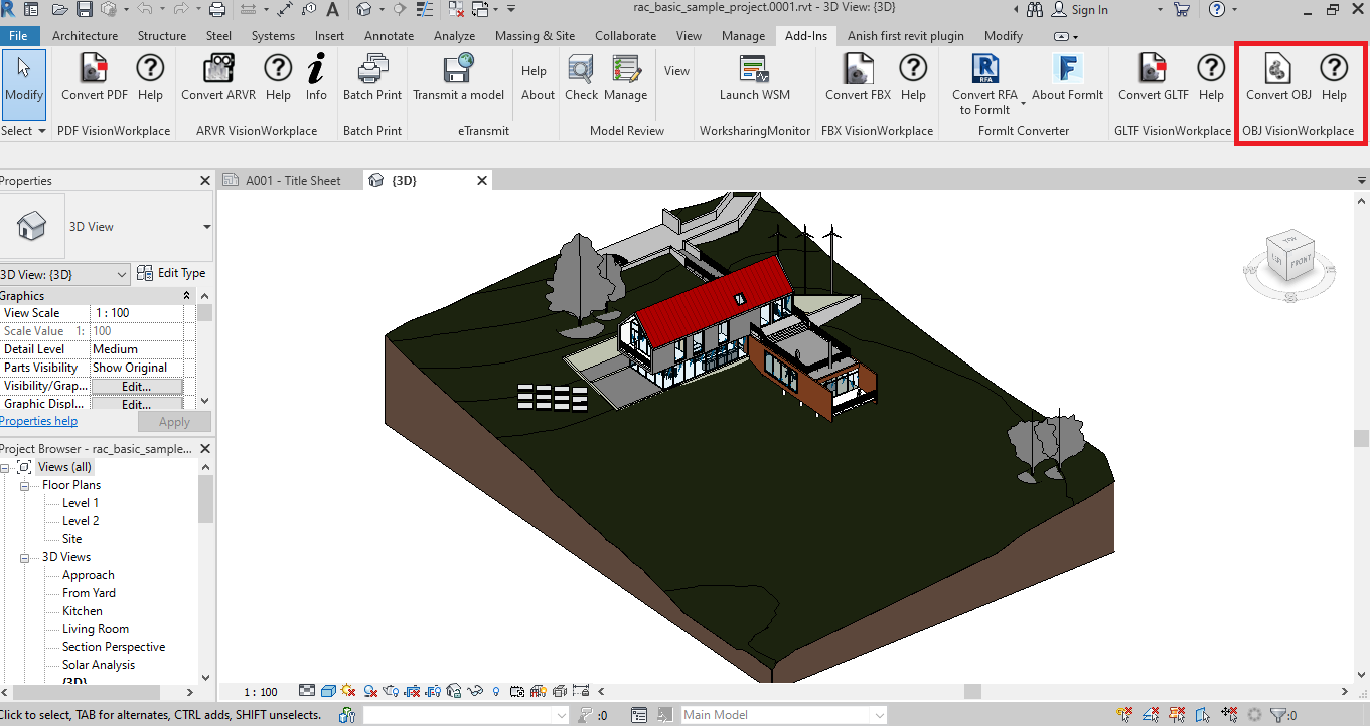

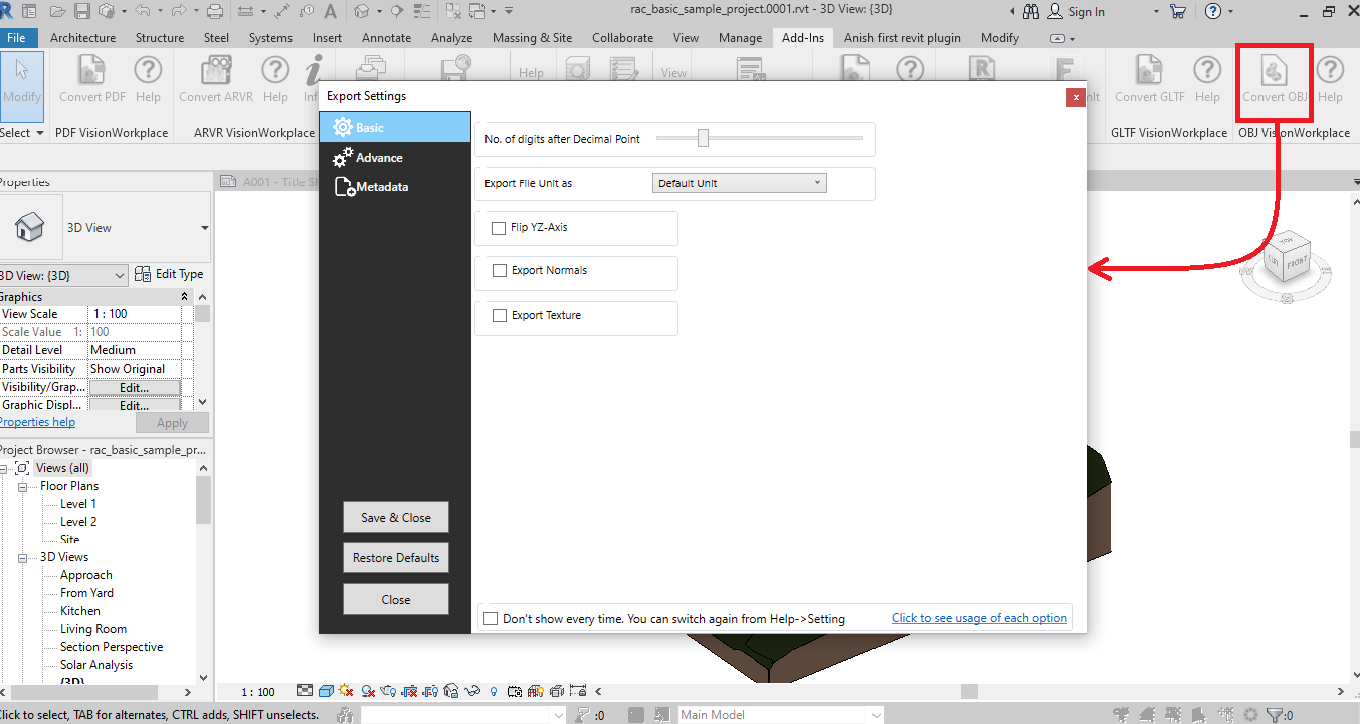

1. Click on convert to OBJ button from Ribbon
2. A regular save dialog will open
3. Specify the file name and location to save.

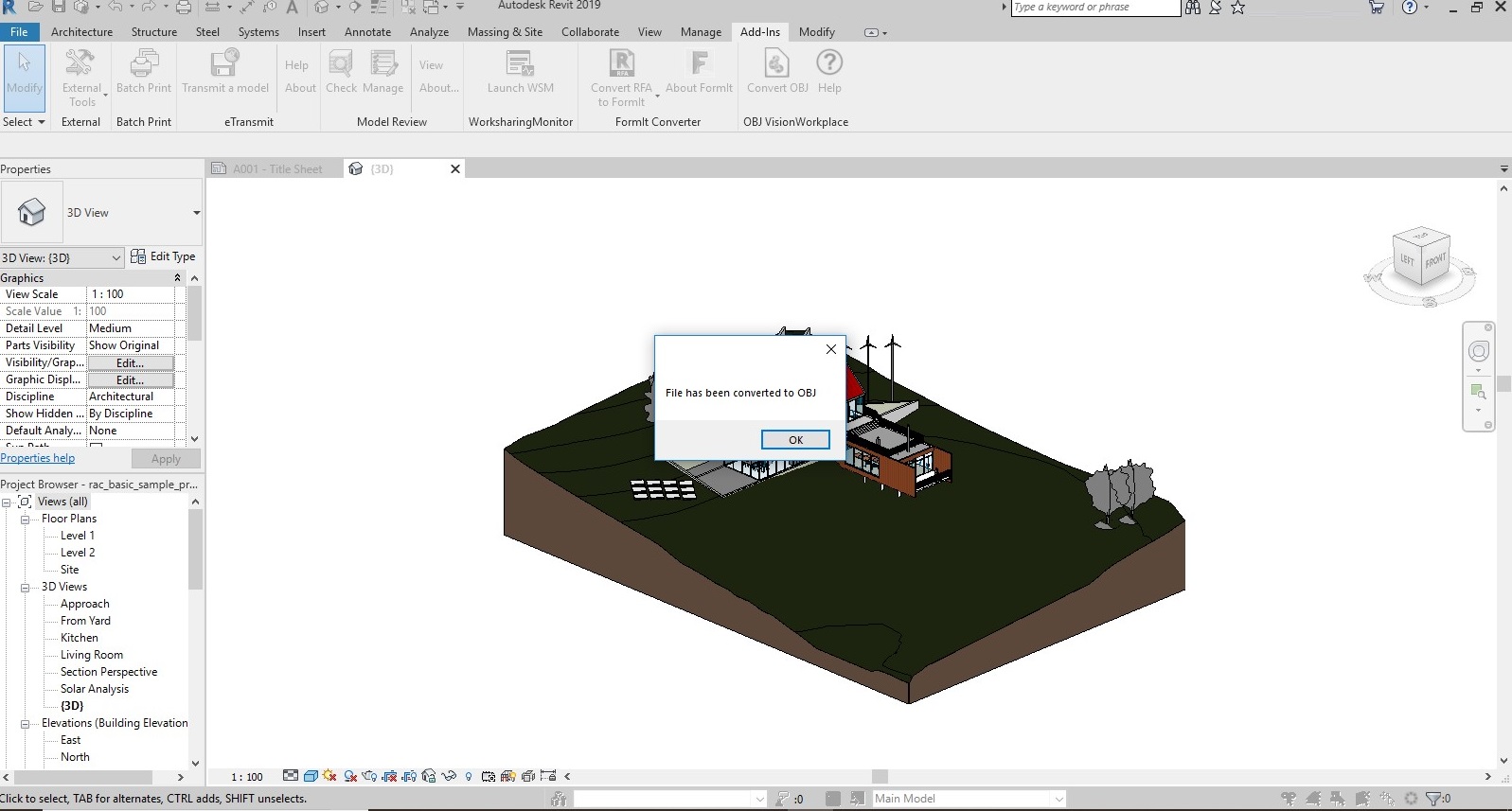

5. Click OK to save the dialog and view the file in the object file viewer.
Screenshots
Commands
Installation/Uninstallation
The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin. You may need to restart the Autodesk product to activate the app/plug-in. To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 7/8.1/10/11) and uninstall as you would any other application from your system.
Additional Information
Usually, the user will get the license key within 5 minutes of purchase. In case of any issue, the user will still be able to use the plugin for 15 days with full functionality. Meanwhile contact us at contact@visionworkplace.com to get a license key.
Known Issues
Contact
Author/Company Information
Support Information
Email: support@visionworkplace.com
Website : https://visionworkplace.com
Version History
| Version Number | Version Description |
|---|---|
|
24.23.3.0 |
1. Plugin is upgraded to Revit version 2024. 23.22.4.0 1. Plugin is upgraded to Revit version 2023. 22.5.0.0 1. Plugin is upgraded to Revit version 2022. |
|
23.22.4.0 |
1. Plugin is upgraded to Revit version 2023 22.5.0.0 1. Plugin is upgraded to Revit version 2022 |
|
22.5.0.0 |
1. Plugin is upgraded to Revit version 2022 |
|
8.0 |
What's New 1. Added new user interface. 2. Added support for Revit version 2021. |
|
7.0 |
What's New Issue solved related to texture. Previous Version Version 6.1 Minor license changes. Version 6.0 Added support to missing light entities. Version 5.0 Plugin is upgraded to Revit version 2020 Version 4.0 1. Support for NORMALS. This will make surfaces look smooth. 2. Now material information(Color and Texture) will be imported to Unity. |
|
6.1 |
What's New Minor license changes. Previous Version Version 6.0 Added support to missing light entities. Version 5.0 Plugin is upgraded to Revit version 2020 Version 4.0 1. Support for NORMALS. This will make surfaces look smooth. 2. Now material information(Color and Texture) will be imported to Unity. |
|
6.0 |
What's New Added support to missing light entities. Previous Version Version 4.0 1. Support for NORMALS. This will make surfaces look smooth. 2. Now material information(Color and Texture) will be imported to Unity. |
|
5.0 |
What's New Plugin is upgraded to Revit version 2020 Previous Version Version 4.0 1. Support for NORMALS. This will make surfaces look smooth. 2. Now material information(Color and Texture) will be imported to Unity. |
|
4.0 |
1. Support for NORMALS. This will make surfaces look smooth. 2. Now material information(Color and Texture) will be imported to Unity. |
|
3.0 |
Bug fixed related to Revit version 2016 and 2017. |
|
2.0 |
1. Support provided for controlling LOD, and so the size and quality 2. Export Property CSV file option added 3. Selected part can be converted 4. Linked entity can be converted now |
|
1.0 |
Convert Revit model to OBJ format with materials and textures. |
