Parameter String Search

Parameter String Search

Win64, English

Boost Your BIM LLC
Search Autodesk® Revit® elements and their parameter values for user-specified string values.

General Usage Instructions

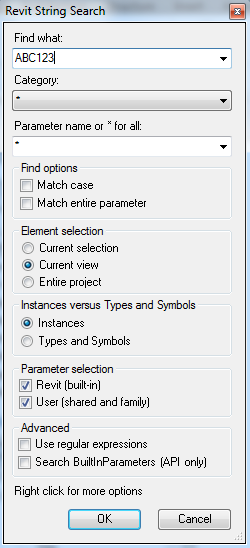

In Revit, click "Add-Ins" / "String Search" to launch the command. In the dialogue that appears, you can type in the search string in the 'Find what' text box. Click 'OK'.

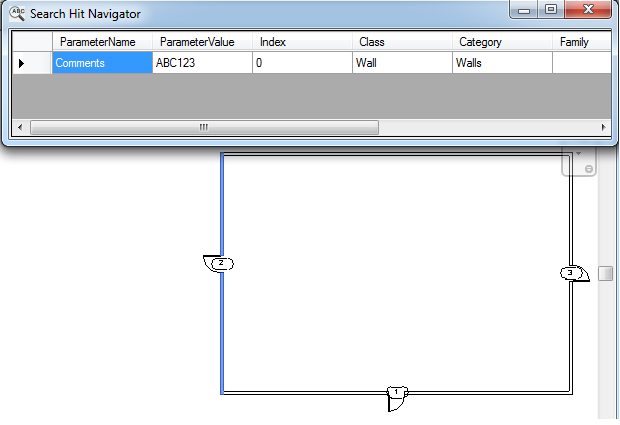

The command will search for the given string on all standard and user parameters of all elements in the current view. All occurrences of the search string are listed in a data grid view in a modeless navigator dialogue.

Double click on a row in the navigator to zoom to the element. A log file of the search operation and its results are created in your temporary directory. To view the log file, right-click on the search form and select 'Display Log File’.

The string matching options and the elements and parameters to search can be modified by specifying the category, parameter name, and other options described in the Help documentation.

Screenshots

Commands

Installation/Uninstallation

The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin.

You may need to restart the Autodesk product to activate the app/plug-in.

To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 7/8.1/10) and uninstall as you would any other application from your system.

Additional Information

Known Issues

Contact

Company Name: Boost Your BIM LLC
Support Contact: boostyourbim@gmail.com

Author/Company Information

Boost Your BIM LLC

Support Information

Version History

Version Number Version Description

2.1

Supports Revit 2018, 2019, 2020, 2021

2.0

Supports Revit 2019
