Glyph®

Win64, English

EvolveLAB

Glyph® is an Autodesk® Revit® plugin that automates and standardizes multiple documentation tasks like view and sheet creation, tagging, dimensioning, and sheet packing.

Version History

General Usage Instructions

To see this workflow with images, go here: https://forum.evolvelab.io/t/how-to-dimension-walls-doors-and-windows-in-active-view/407

Here's a minimal copy:

Select Active View
Select Categories to dimension
Define the Dimension Style
Define Wall Dimensioning settings
Define Door and Window dimensioning settings
Run the task

A similar workflow is available for other tasks. Check out our workflow posts to see how different tasks work: https://forum.evolvelab.io/tags/c/glyph/7/glyph-workflow

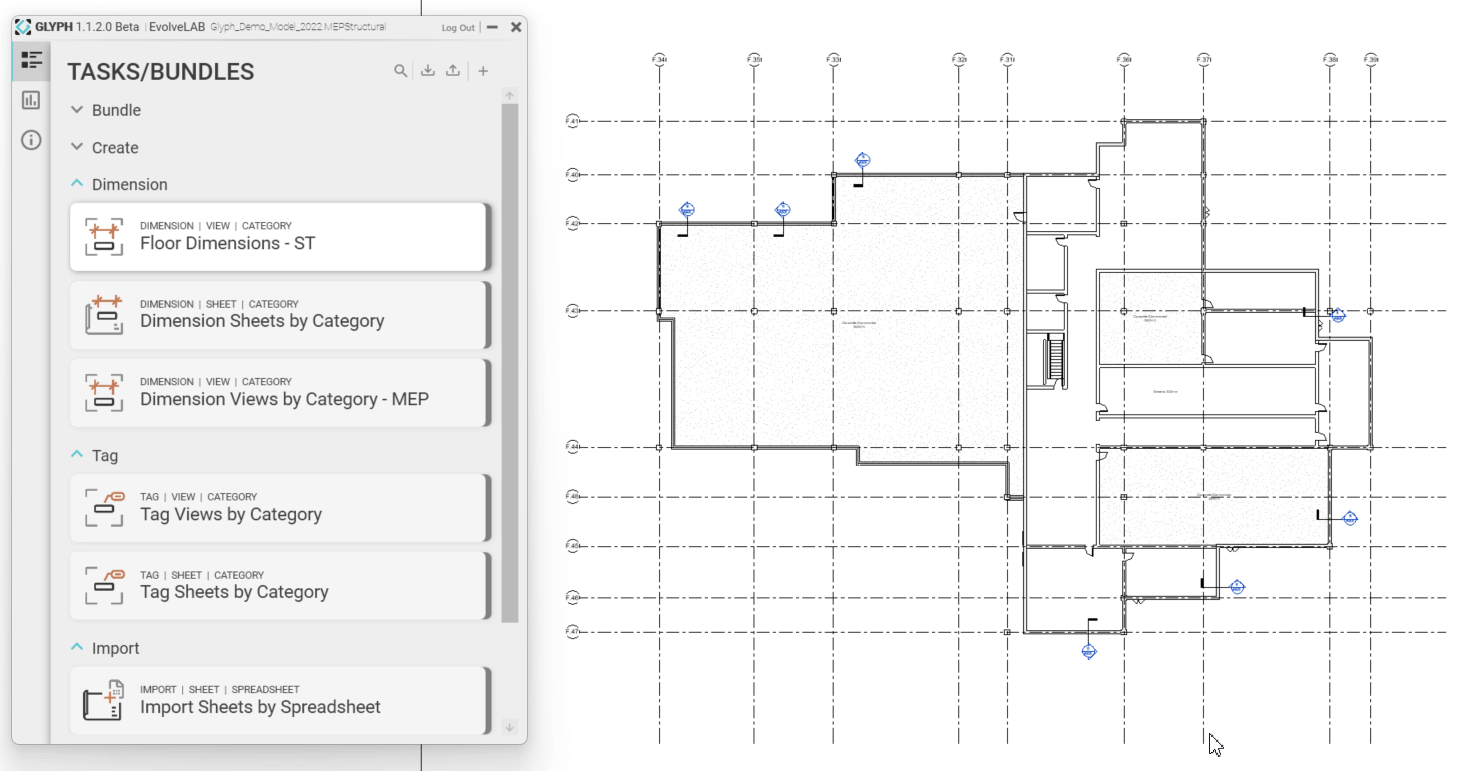

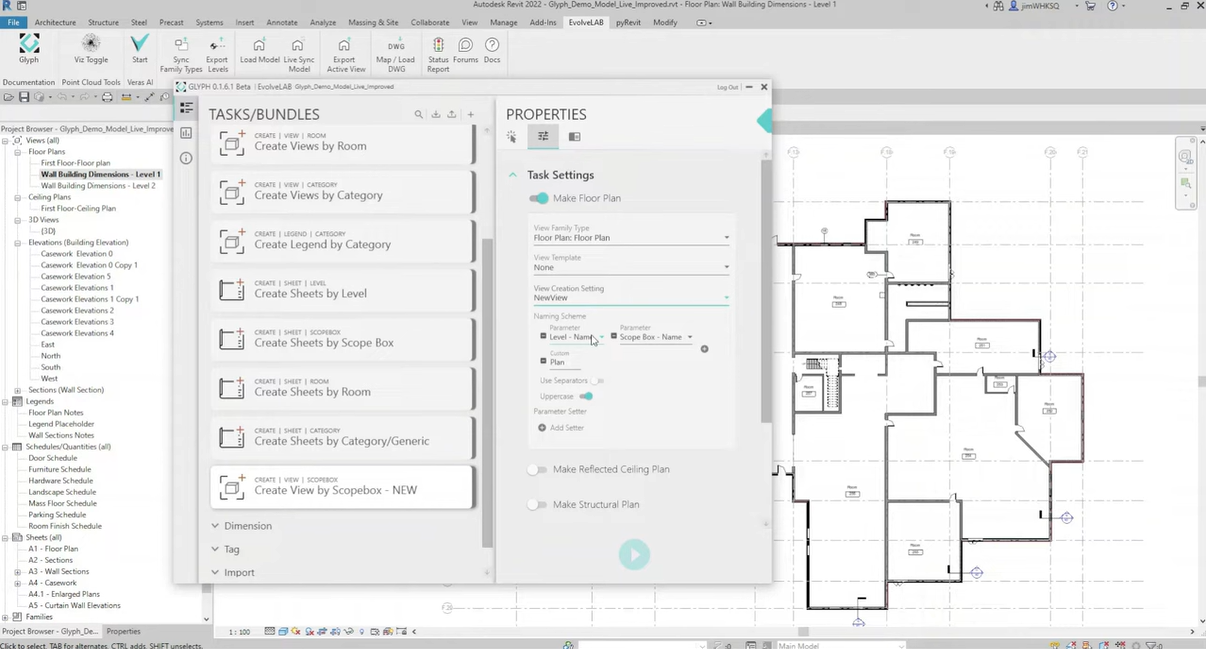

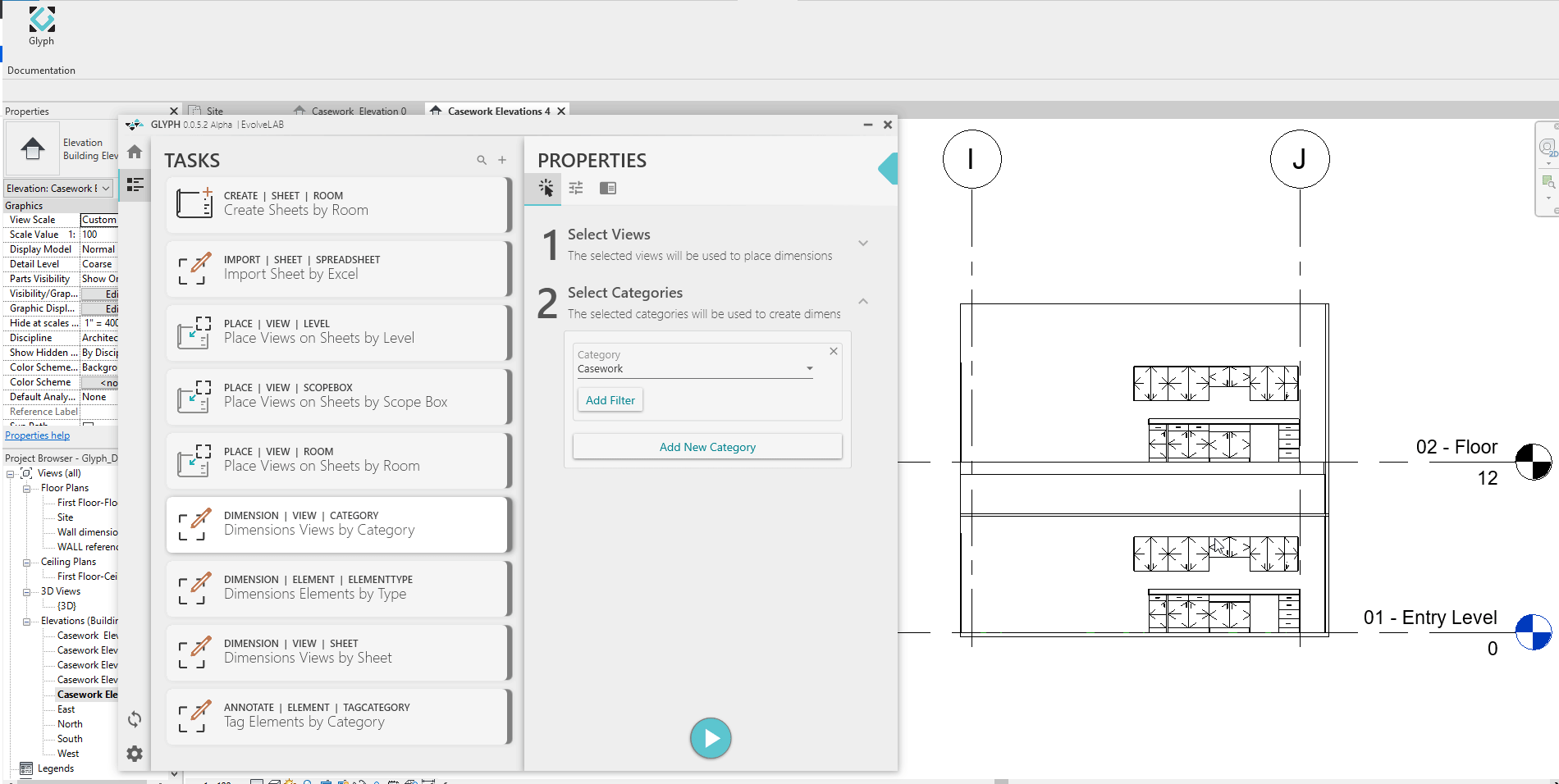

Screenshots

Commands

Installation/Uninstallation

Install

Run the downloaded 'EvolveLAB_Glyph_Setup.msi' file and continue with the instructions.

Uninstall

Go to program files
Select Glyph
Uninstall

Additional Information

Known Issues

Contact

Company Name: EvolveLAB

Company URL: http://www.evolvelab.io

Support Contact: support@evolvelab.io

Author/Company Information

EvolveLAB

Support Information

Please visit the Glyph forum for support: https://forum.evolvelab.io/tags/c/glyph/7/glyph-support

Version History

Version Number	Version Description
2.5.1.1	Revit 2026 suppport + New logos
2.5.1.0	Revit 2026 suppport + New logos
2.4.0.0	Features: - New dimension categories: Rooms, Air terminals, ducts, mechanical equipment, cable trays, electrical fixtures, electrical equipment, lighting fixtures, pipes, plumbing fixtures, plumbing equipment - Leader elbow setting Improvements - Glyph now saves tasks and bundles to the Revit project when switching between projects and Revit families. - Improved clarity in UI messages. - Improved consistency in elevation marker rotation, especially when working with angled rooms. - Enhanced filtering UI to display units where applicable. - Glyph copilot: 30% faster, 25% more reliable, more tasks added. Bugs Fixed - Fixed the exterior/interior “View Orientation” setting for walls. - Fixed annotation collision avoidance affecting tie conditions during dimensioning. - Fixed floor dimensions not capturing openings created “By Face.” - Fixed Revit 2025+ “pick elements” feature not working - Fixed a bug that occurred when creating elevations based on linked rooms. - Fixed an issue in Room Schedule filters where the evaluator and value were not correctly matched in the UI. - Fixed annotation collision offset for meter units in Revit models. - Fixed filtering elements not working properly in metric models - Fixed filters not working properly for double parameters (e.g., length). - Fixed a bug that occurred when the project elevation did not match the elevation value of a level. - Fixed an issue where Line Mode did not create perfectly straight dimensions when dimensioning walls that were not modeled perfectly straight. - Fixed an issue that occurred when creating room-based elevations with the height set to ‘Bottom of Floor/Roof’, but no floor or roof was found near the room.
2.2.0.5	Features: - Structural Framing Dimensions Bugs Fixed - Fixed center opening dimensions for dimension walls. - Fixed parameters that are not saving correctly when closing and reopening the UI. - Fixed elements not being tagged when a tag exists for another component inside the wall (e.g., window tags). - Fixed Discipline/read-only parameter not showing up in the parameter setter.
2.1.0.4	Features: - Linked File Support - You can create views, sheets, dimensions and tag linked Revit elements Improvements: - Added a parent view search ba Bugs: - Fixed an issue where the Clear button wasn’t working correctly in the sheet packing layout editor. - Fixed the Update Available message not displaying properly. - Fixed a bug where the Run button didn’t update instantly after importing sheets using the Import Sheets by Spreadsheet feature.
2.1.0.3	Features: - Linked File Support - You can create views, sheets, dimensions and tag linked Revit elements Improvements: - Added a parent view search ba Bugs: - Fixed an issue where the Clear button wasn’t working correctly in the sheet packing layout editor. - Fixed the Update Available message not displaying properly. - Fixed a bug where the Run button didn’t update instantly after importing sheets using the Import Sheets by Spreadsheet feature.
2.0.5.0	Initial Release
