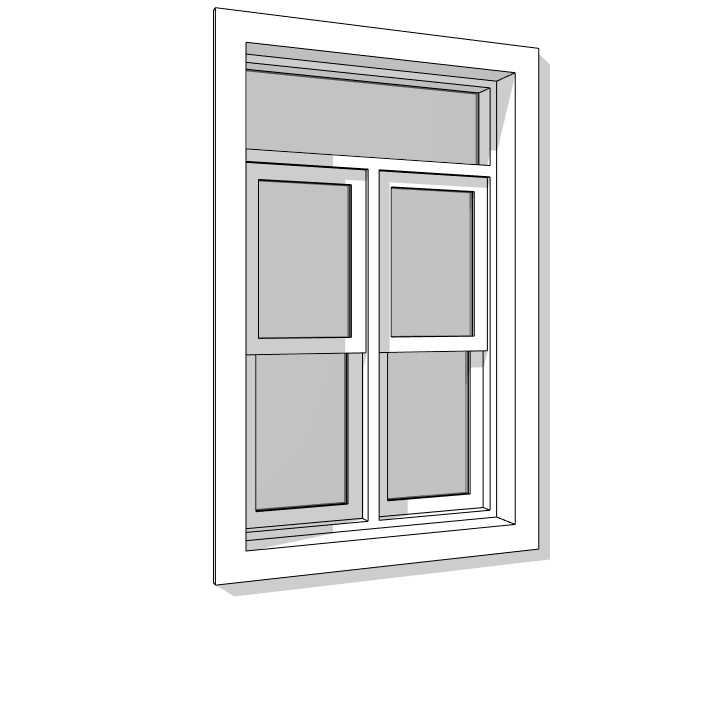

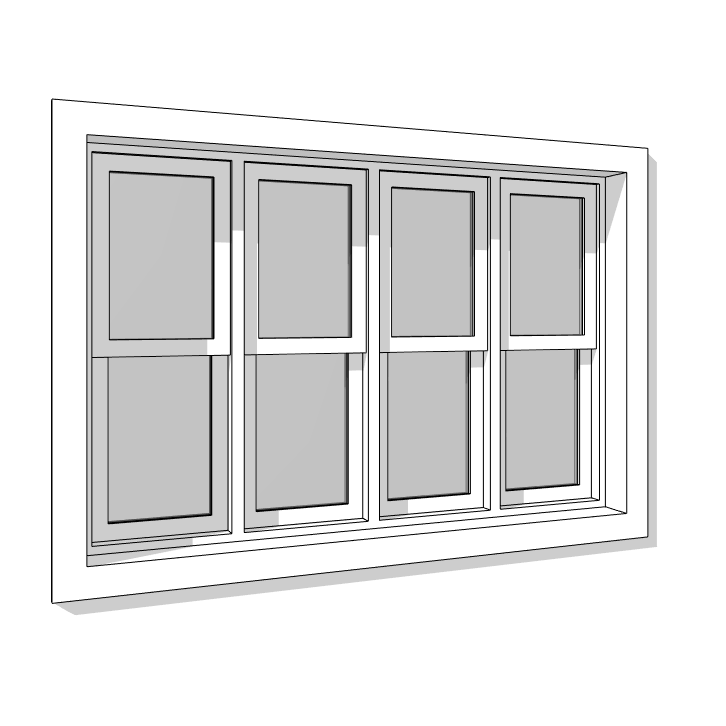

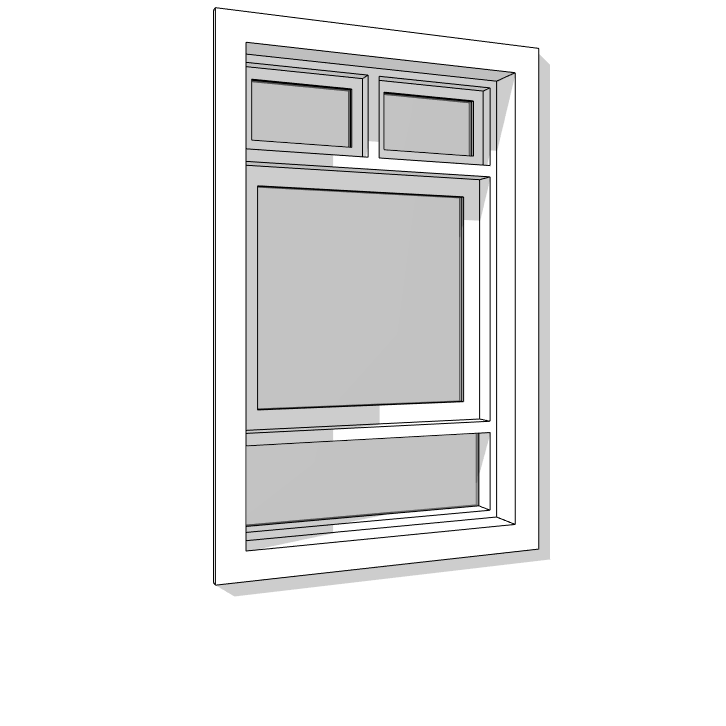

This add-in allows you, through a graphical interface, to create fully configurable parametric windows from more than ten preset types, add them to your project and modify them easily and quickly.

General Usage Instructions

 Create window

Go to the ribbon > tab "id:arq tools" > panel "id:window"  > button "Create" to start the command.

  1. Select the window type in the left panel.

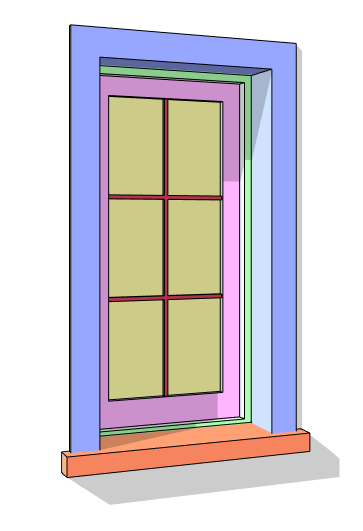

  2. Set the window parameters (Dimensions, Frame, Sash, Board, Sill, Trims, etc.)
  3. Press OK and place the window on a wall.



Modify window

Go to the ribbon > tab "id:arq tools" > panel "id:window"  > button "Modify" to start the command.

  1. Select a window in the project.
  2. Set the window parameters (Dimensions, Frame, Sash, Board, Sill, Trims, etc.)
  3. Press OK and the window will be modified.

Commands

Installation/Uninstallation

The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin.

To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 7/8.1/10/11) and uninstall as you would any other application from your system.

Additional Information

Trial version only has two types of windows.

Known Issues

Contact

Company Name: id:arq
Support Contact: support@idarqtools.com

Author/Company Information

id:arq

Support Information

Please send all support questions to: support@idarqtools.com
id:arq tools is an Argentina based company (local time GMT -3:00)



Version History

Version Number Version Description

2.0.2

Autodesk® Revit® 2024 Support Added.

2.0.1

Fixed grid problem in windows with two or more sashes.

2.0

6+ Window Types Added Autodesk® Revit® 2023 Support Added

1.0.0

Initial Release
