Line Cleaner - Quickly purge duplicates & convert!

Line Cleaner - Quickly purge duplicates & convert!

Win64, English

BIMIZE
Now you can easily delete duplicate and / or smaller lines in a view with a single click! Additionally convert model lines to symbolic/detail lines even faster than Autodesk® Revit®!

General Usage Instructions

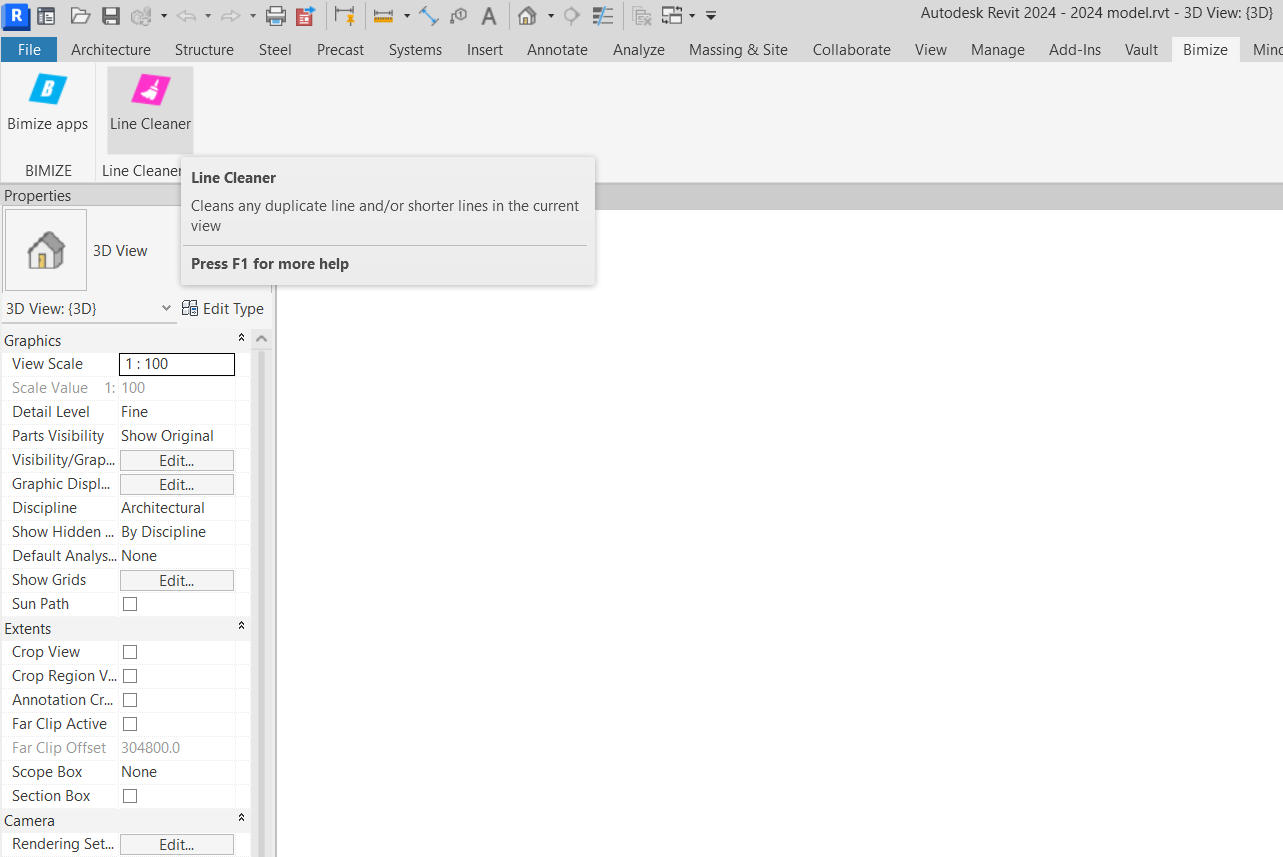

You will find your new app within the Bimize tab in the Revit ribbon even when no documents are open.

Please follow the instructions:

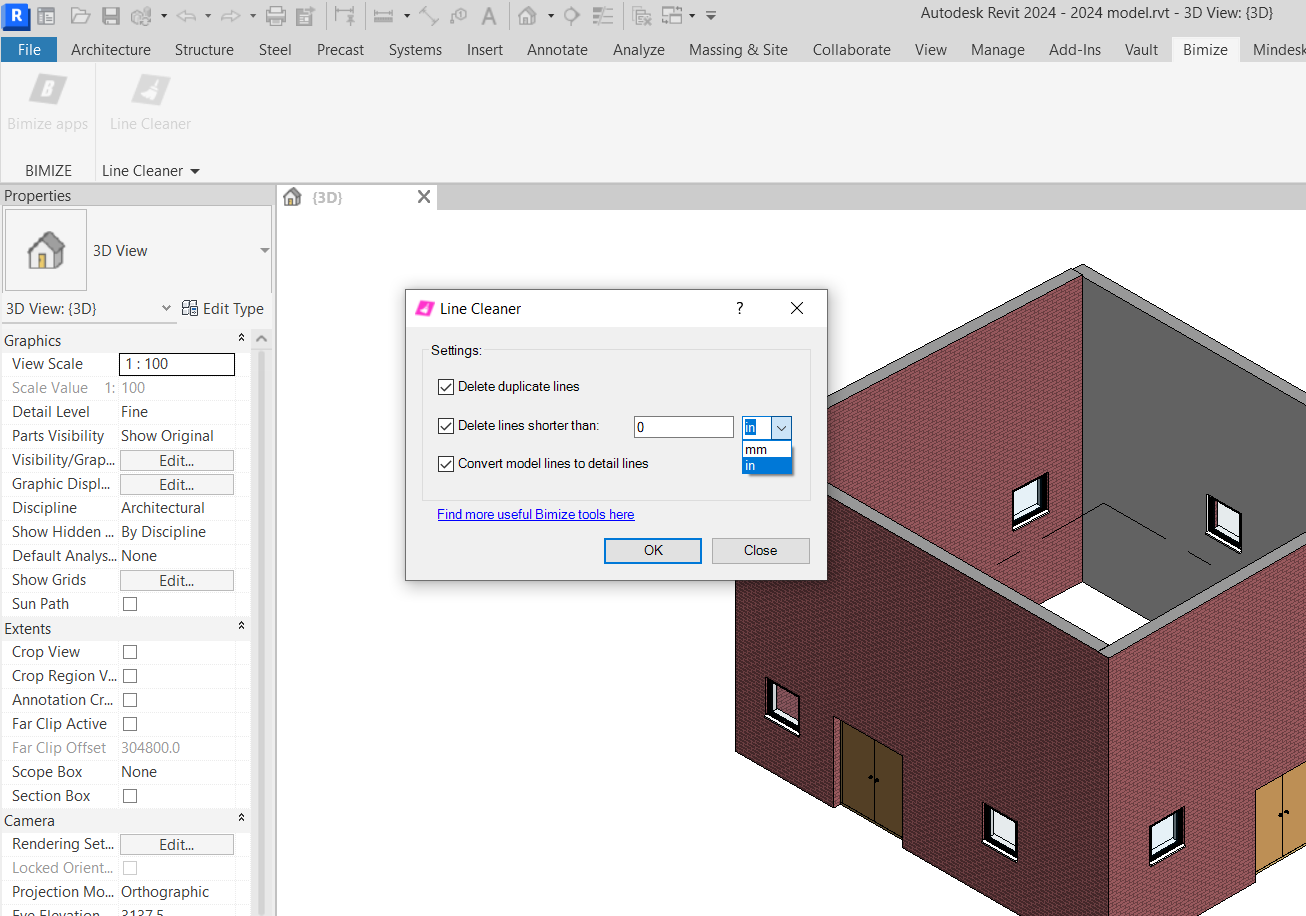

(1) Click on the check box "Delete duplicate lines" if you want to remove duplicate model and / or detail lines in the active view

(2) Click on the check box "Delete lines shorter than..." and type a length and choose units if you want to remove lines shorter than this amount in the active view.

(3) Click on the check box "Convert model lines to detail lines" to convert all lines in the same sketchplane of the current view faster than Revit conversion tool.

You can do all of these processes at the same time.

Click on the OK button to proceed. A message box will show you the results.

Screenshots

Commands

Installation/Uninstallation

The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin.

You may need to restart the Autodesk product to activate the app/plug-in.

To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 7/8/8.1/10) and uninstall as you would any other application from your system.

Additional Information

© Miguel Ángel Soler Ruiz 2018

Known Issues

Contact

Company Name: BIMIZE
Support Contact: support@bimize.com

Author/Company Information

BIMIZE

Support Information

You can contact support@bimize.com for any updates and product support.

Version History

Version Number Version Description

1.1.1

Latest Release.

1.0.1

Latest Release.
