Loose Elements

Loose Elements

Win64, English

BIMer #cod-n

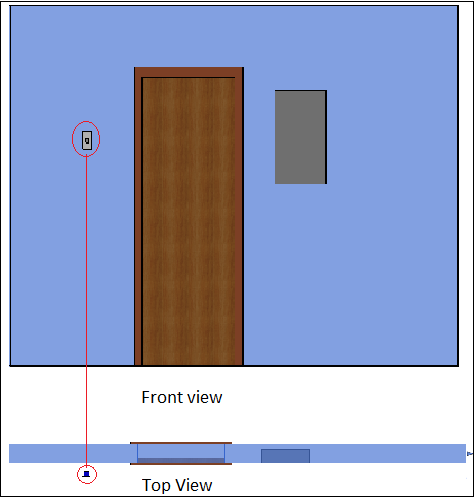

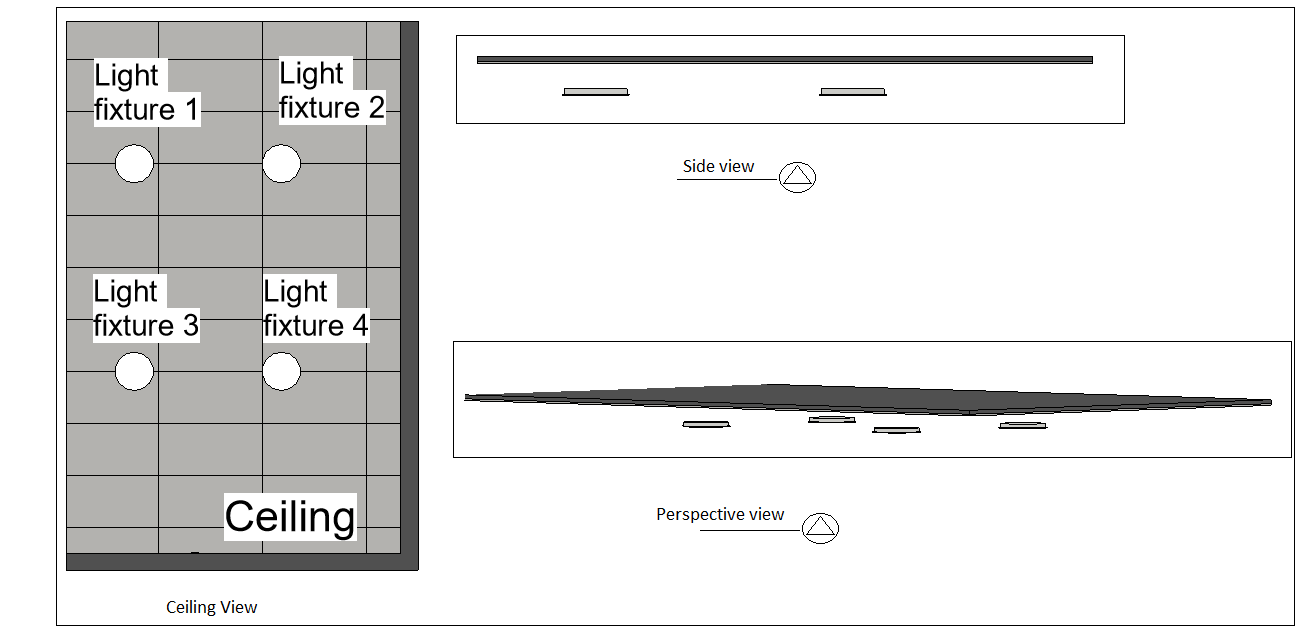

Loose or flying elements due to modelling mistake or miss-referencing always ruin the presentation of the model do you want to remove or relocate them?

General Usage Instructions

  1. Select the architectural/structural elements that contain the map or point-based elements.
  2. Select the elements that you want to get the distances from/to the architectural/structural elements.
  3. An Excel sheet will have all the distances and IDs/Category/Name from/to selected architectural/structural elements.

Screenshots

Commands

Installation/Uninstallation

The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin. You may need to restart the Autodesk product to activate the app/plug-in. To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 7/8.1/10) and uninstall as you would any other application from your system.

Additional Information

Known Issues

Contact

Author/Company Information

BIMer #cod-n

Support Information

Contact ahfingenieur@gmail.com for a free demonstration/chat and directives.

Version History

Version Number Version Description

1.0.0

Initial release
