General Usage Instructions

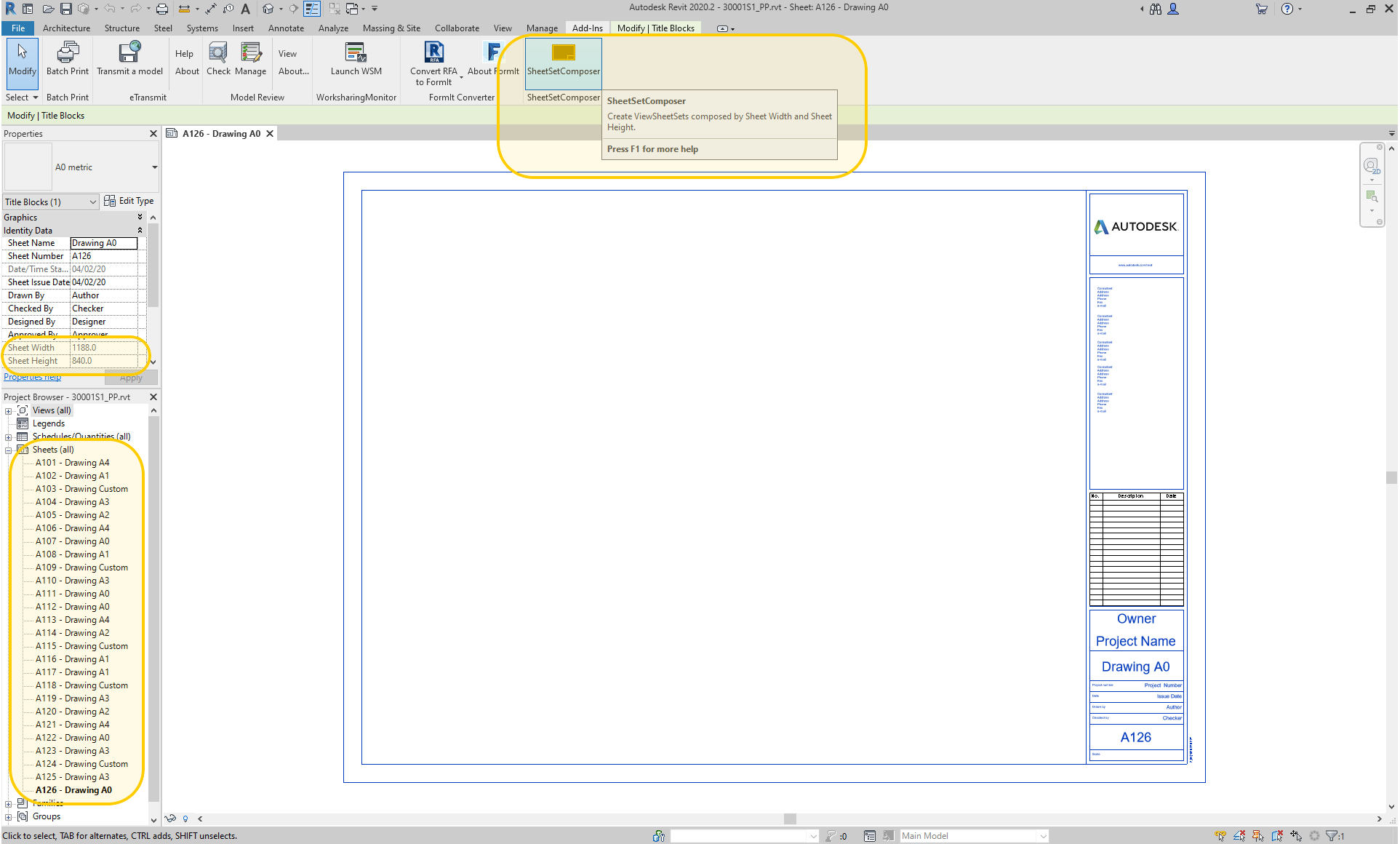

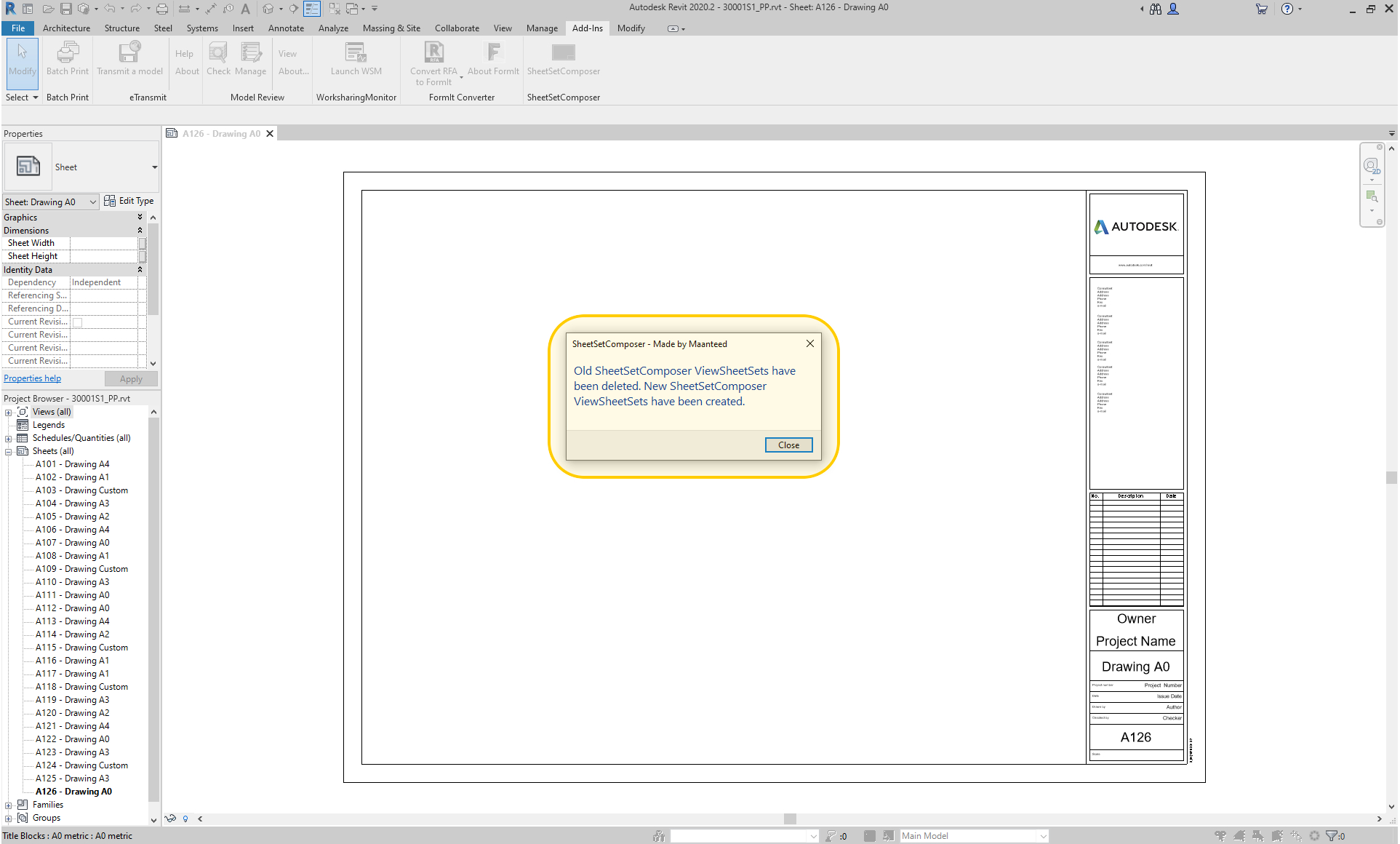

Using SheetSetComposer, you can create ViewSheetSets with one click. Each created ViewSheetSet holds all sheets with the same Sheet Width and Sheet Height (custom sizes are supported). Created SheetSets are named in a way that refers to the above-mentioned sheet measurement parameters and the SheetSetComposer Add-In.
The installer that ran when you downloaded this app/plug-in from Autodesk App Store will start installing the app/plug-in. OR, simply double-click the downloaded installer to install the app/plugin. You may need to restart the Autodesk product to activate the app/plug-in. To uninstall this plug-in, exit the Autodesk product if you are currently running it, simply rerun the installer, and select the "Uninstall" button. OR, click Control Panel > Programs > Programs and Features (Windows 7/8.1/10) and uninstall as you would any other application from your system.

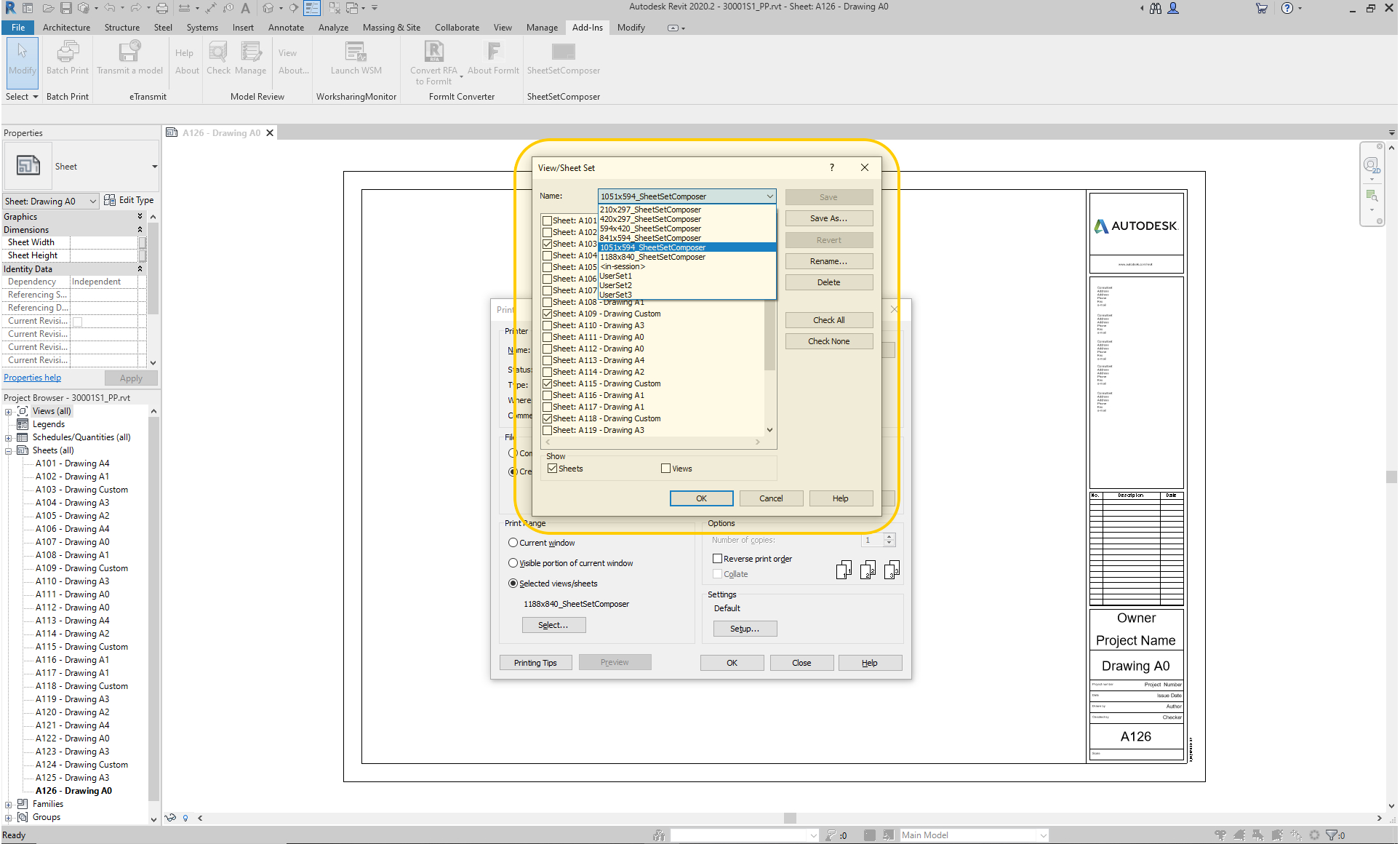

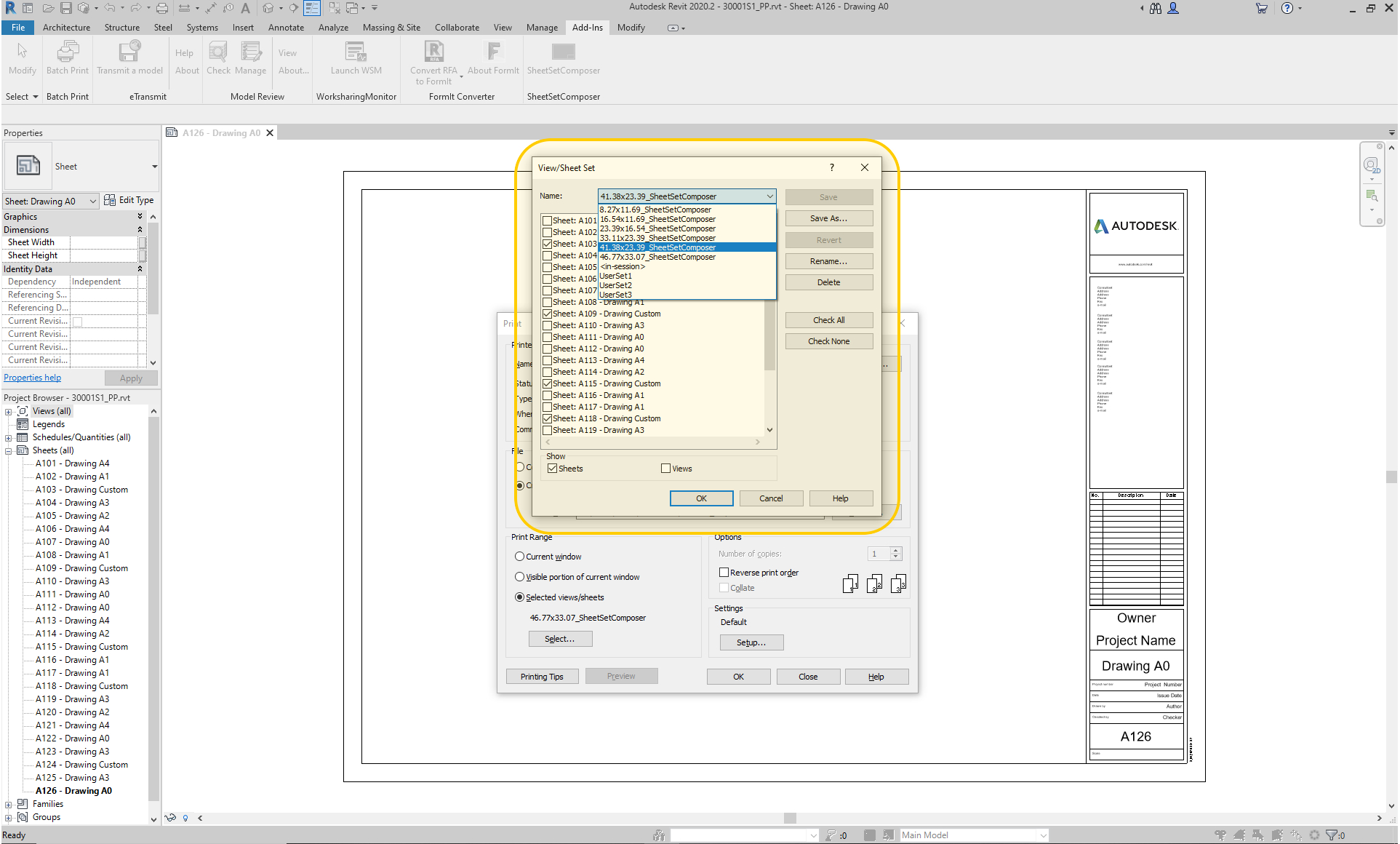

SheetSetComposer is suitable for both the Metric and Imperial Unit Systems. Sheets including only one TitleBlock are gathered into the ViewSheetSets. By Metric Unit System, the resolution of measurement parameters is 1 mm and the Name of the ViewSheetSet is e.g. 210x297_SheetSetComposer. By Imperial Unit System, the resolution of measurement parameters is 0.01 decimal inches and the Name of the ViewSheetSet is e.g. 8.27x11.69_SheetSetComposer.
SheetShetComposer Add-In loads into Autodesk® Revit® at startup if it is installed on the user's computer, the computer is connected to the internet, the user is logged in to Autodesk 360 and is entitled to use the Add-In. Otherwise, SheetSetComposer RibbonPanel and PushButton will not be shown in Revit and a MessageBox is prompted with appropriate information.
Revit version 2019, project length units are in meters, rounding 0 decimal places - sometimes two clicks on the SheetSetComposer button are needed to acieve the expected result.
If you do not find an answer/solution to your question/problem from SheetShetComposer help file then contact our support team via firstname.lastname@example.org.
