NonicaTab PRO. Advanced features.

NonicaTab PRO. Advanced features.

Win64, English

Nonica
NonicaTab PRO creates a new Autodesk® Revit® toolbar with advanced features easy to customize with your Dynamo scripts. NonicaTab PRO Add-In has been developed by Nonica.

General Usage Instructions

1. Dynamo Scripts. Run Revit and click on your new toolbar “Nonica”. Never open Dynamo? You will need to open it at least once to accept the terms and conditions. Then, click on the arrow below each button and select “Set up Script”. The name of your script will be the name of the button.

2. Make buttons look beautiful. (Optional) NonicaTab includes a set of 165 icons of different colours to make your buttons look beautiful. Click on the arrow below each button and select “Set up Icon”. The name of the PNG file will be the tooltip of the button.

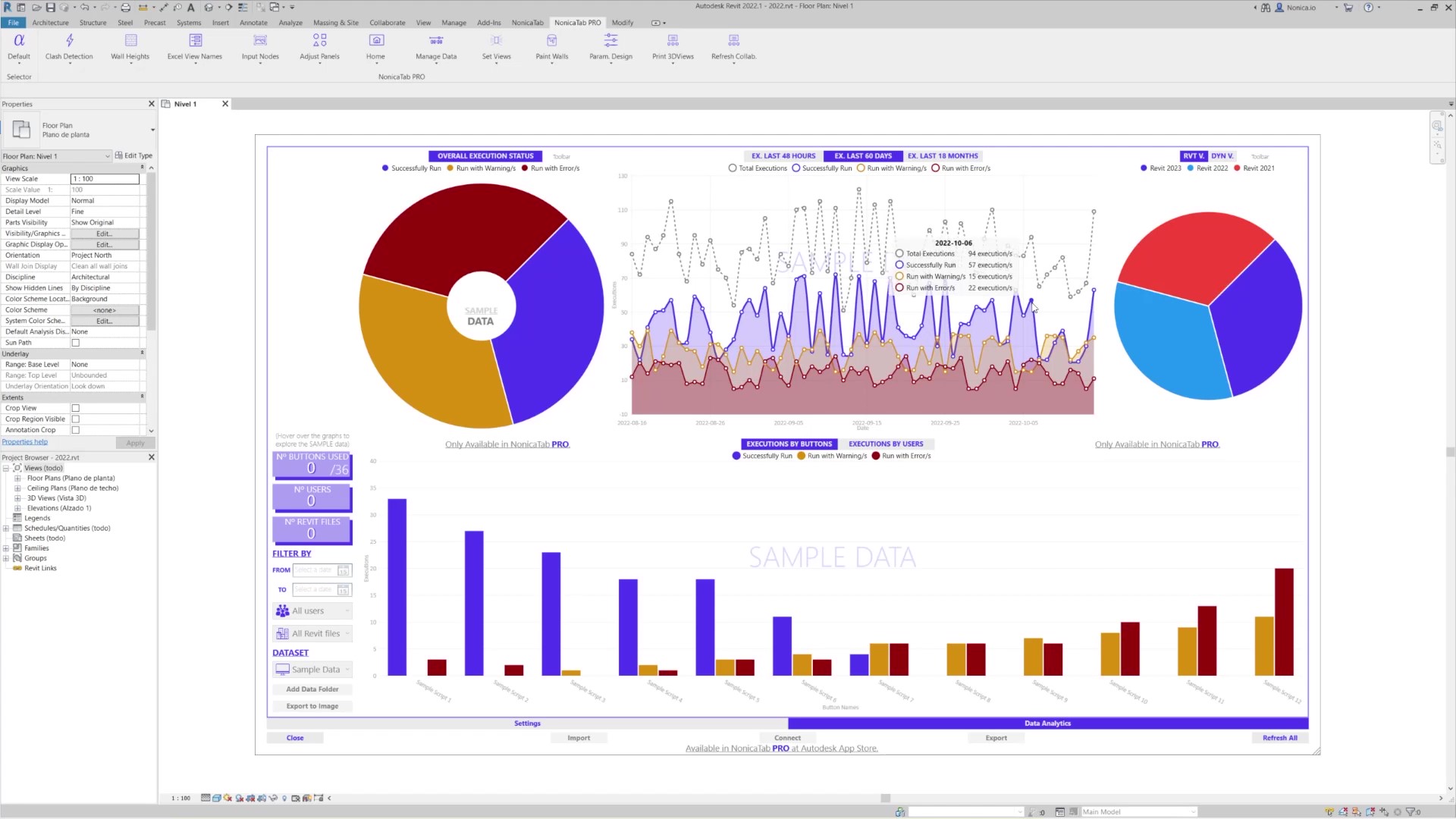

Screenshots

Commands

Ribbon/Toolbar Icon Command Command Description

No Script Detected

Click on Set up Script button to add command to this button.

Dynamo Script Detected

Click on this button to run your Dynamo script in the background.

Set up Script

This button will pop up a folder browser to select the Dynamo script to implement in the button.

Set up Icon

This button will pop up a folder browser to select the Icon to implement in the button. You can select one of 55 Nonica included icons or your own. File must be PNG or JPG of any size.

Default

This is your default startup toolbar. Select this button to set the Revit buttons on this toolbar.

Beta

Select this button to set the Revit buttons on Beta toolbar.

Gamma

Select this button to set the Revit buttons on Gamma toolbar.

Settings

Import, Export or Refresh your toolbars in one click. This will pop up the Settings panel for you to select.

Export

Click to export your NonicaTab PRO toolbars to a file (.nonica) to import in other computers with NonicaTab PRO.

Import

Click to import a file (.nonica) as your NonicaTab PRO toolbars from other computer.

Refresh All

Click to refresh all your NonicaTab buttons. Modified Dynamo scripts must be in the same folder and with the same name than the originally selected for buttons.

Installation/Uninstallation

Please close Revit. Download and Install NonicaTab PRO. The default installation folder would match your selected Revit version. C:/Users/User?/AppData/Roaming/Autodesk/Revit/Addins/2022 if you have Revit 2022.

The NonicaTab installer will create installation files in the following folders;

C:\Users\UserX\AppData\Roaming\Autodesk\Revit\Addins\2022 . This folder may change to match your selected Revit version.

C:\NONICAPRO. Related files for the proper execution of the Add-In.

If you would like to uninstall NonicaTab PRO, you only need to go to "Add and remove programs" in Windows and look for NonicaTab PRO. All toolbar scripts and icons set by the user will be lost during uninstallation.

Known Issues

No known issues.

Contact

Company Name: Nonica
Company URL: https://nonica.io/
Support Contact: hello@nonica.io

Author/Company Information

Nonica

Support Information

Please, contact us with suggestions for improvements or bugs at hello@nonica.io or via Linkedin at https://www.linkedin.com/company/nonicaio

Version History

Version Number Version Description

v2.5

- NEW: INPUTS DETECTOR. NonicaTab will detect when you mark a node as "Is Input" and you will be able to adjust values before running. More than 40 nodes compiled and more available upon request. - Import and Export of toolbars including Dynamo packages detection (Dynamo version later than v2.3). - Refresh commands to refresh button commands in one click (Modified Dynamo script must be in the same location with the same name). - 3 Profiles (Default, Beta and Gamma) and selector with 12 buttons each, 36 buttons in total. - Settings panel to show the status of Refresh Command. - Selection intelligence in setup dialogs. Remember your last selected folder when adding your Dynamo script to buttons. - JPG and PNG autoconversion to icon required format. - Dialogs to Dynamo loading progresses. - 55 Green icons and 55 blue icons. - Minor interface issue and title in input window. - Minor error in Select Model Element and BIM360-

v2.4

- NEW: INPUTS DETECTOR. NonicaTab will detect when you mark a node as "Is Input" and you will be able to adjust values before running. More than 40 nodes compiled and more available upon request. - Import and Export of toolbars including Dynamo packages detection (Dynamo version later than v2.3). - Refresh commands to refresh button commands in one click (Modified Dynamo script must be in the same location with the same name). - 3 Profiles (Default, Beta and Gamma) and selector with 12 buttons each, 36 buttons in total. - Settings panel to show the status of Refresh Command. - Selection intelligence in setup dialogs. Remember your last selected folder when adding your Dynamo script to buttons. - JPG and PNG autoconversion to icon required format. - Dialogs to Dynamo loading progresses. - 55 Green icons and 55 blue icons. - Minor interface issue and title in input window.

v2.3

- NEW: INPUTS DETECTOR. NonicaTab will detect when you mark a node as "Is Input" and you will be able to adjust values before running. More than 40 nodes compiled and more available upon request. - Import and Export of toolbars including Dynamo packages detection (Dynamo version later than v2.3). - Refresh commands to refresh button commands in one click (Modified Dynamo script must be in the same location with the same name). - 3 Profiles (Default, Beta and Gamma) and selector with 12 buttons each, 36 buttons in total. - Settings panel to show the status of Refresh Command. - Selection intelligence in setup dialogs. Remember your last selected folder when adding your Dynamo script to buttons. - JPG and PNG autoconversion to icon required format. - Dialogs to Dynamo loading progresses. - 55 Green icons and 55 blue icons. - Minor interface issue and title in input window.

v2.2

- NEW: INPUTS DETECTOR. NonicaTab will detect when you mark a node as "Is Input" and you will be able to adjust values before running. More than 40 nodes compiled and more available upon request. - Import and Export of toolbars including Dynamo packages detection (Dynamo version later than v2.3). - Refresh commands to refresh button commands in one click (Modified Dynamo script must be in the same location with the same name). - 3 Profiles (Default, Beta and Gamma) and selector with 12 buttons each, 36 buttons in total. - Settings panel to show the status of Refresh Command. - Selection intelligence in setup dialogs. Remember your last selected folder when adding your Dynamo script to buttons. - JPG and PNG autoconversion to icon required format. - Dialogs to Dynamo loading progresses. - 55 Green icons and 55 blue icons. - Minor interface issue and title in input window.

v2.1

- NEW: INPUTS DETECTOR. NonicaTab will detect when you mark a node as "Is Input" and you will be able to adjust values before running. More than 40 nodes compiled and more available upon request. - Import and Export of toolbars including Dynamo packages detection (Dynamo version later than v2.3). - Refresh commands to refresh button commands in one click (Modified Dynamo script must be in the same location with the same name). - 3 Profiles (Default, Beta and Gamma) and selector with 12 buttons each, 36 buttons in total. - Settings panel to show the status of Refresh Command. - Selection intelligence in setup dialogs. Remember your last selected folder when adding your Dynamo script to buttons. - JPG and PNG autoconversion to icon required format. - Dialogs to Dynamo loading progresses. - 55 Green icons and 55 blue icons. - Minor interface notification issue and title in input window.

v2.0

- NEW: INPUTS DETECTOR. NonicaTab will detect when you mark a node as "Is Input" and you will be able to adjust values before running. More than 40 nodes compiled and more available upon request. - Import and Export of toolbars including Dynamo packages detection (Dynamo version later than v2.3). - Refresh commands to refresh button commands in one click (Modified Dynamo script must be in the same location with the same name). - 3 Profiles (Default, Beta and Gamma) and selector with 12 buttons each, 36 buttons in total. - Settings panel to show the status of Refresh Command. - Selection intelligence in setup dialogs. Remember your last selected folder when adding your Dynamo script to buttons. - JPG and PNG autoconversion to icon required format. - Dialogs to Dynamo loading progresses. - 55 Green icons and 55 blue icons.

v1.0

- NEW: Import and Export of toolbars including Dynamo packages detection (Dynamo version later than v2.3). - NEW: Refresh commands to refresh button commands in one click (Modified Dynamo script must be in the same location with the same name). - NEW: 3 profiles (Default, Beta and Gamma) and selector with 12 buttons each, 36 buttons in total. - NEW: Settings panel to show the status of Refresh Command. - NEW: Selection intelligence in setup dialogs. Remember your last selected folder when adding your Dynamo script to buttons. - NEW: JPG and PNG autoconversion to icon required format. - NEW: dialogs to Dynamo loading progresses. - NEW: 55 green icons and 55 blue icons.
