Streamline Your Plumbing Design Workflow in Autodesk® Revit®

BIM9_Pipes is a powerful Revit Add-In designed to enhance and simplify the process of designing piping systems—especially plumbing networks. The tool provides a comprehensive set of features that help MEP professionals create, modify, and manage piping elements more efficiently within their Revit projects.

Create group

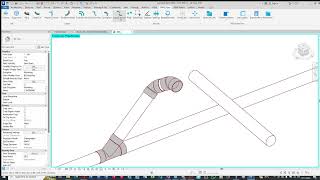

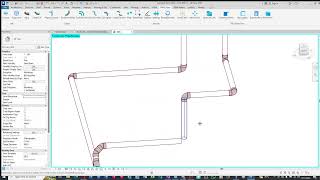

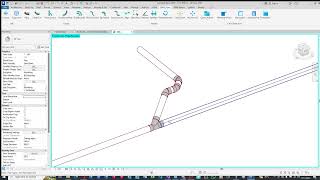

• 45Up – Creates a pipe segment angled upward at 45° from the selected pipe.
• PipeSiphon – Creates a siphon from the selected pipe, commonly used in drainage systems.
• PerpenConnect – Automatically connects two pipes at a 90° angle and a big difference in elevation.
• TwoElbows45Up – Creates an upward offset connection using two consecutive 45° elbows.
• TwoElbows45 – Create 2 elbows,s 45 degrees from one elbow,w 90 degrees
• ElbowConnect – Connects two pipes with a suitable elbow fitting in a 300mm range.
• SpringOut – Creates a pipe when picking a pipe fitting, plumbing fixtures, etc.

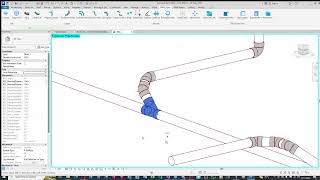

• SuperConnect – An intelligent connection that automatically connects all types of pipe and fittings, pipe and facilities.

Modify group

• Align – Aligns the branch pipe for able to connect with the main pipe.

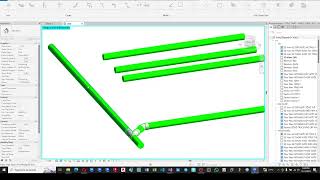

• SelectPipes – Selects pipes based on diameter or system type.
• SetSlope – Sets the slope of a pipe based on a chosen low point.
• SplitPipe – Splits a pipe segment with a specified distance.
• RotateElements – Rotates selected elements around a selected axis.
• CheckClash – Checks for clashes between selected elements.
• MoveAvoid – Moves elements to avoid detected clashes.

CAD-Sheet-View group

• OpenCADLink – Opens the linked CAD file in  Revit.
• HideCADLink – Hide all the linked CAD files in Revit.

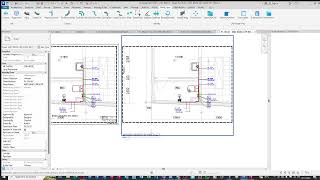

• SheetActiveView – Creates a sheet with the current active view.
• ViewPerSheet – Creates a sheet with the selected view on the project browser, each view per sheet
• MultiViewSheet – Create a sheet and put all selected views from the project browser.
• SetCropBox – Sets the crop box by dragging the mouse.
• DupViewPort – Duplicates the selected viewport on a sheet.

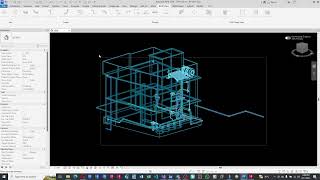

• ThreeDView – Creates a 3D view from the selected elements or view settings.

Note:  This app uses a custom installer (and not the standard App Store installer).
