3D Rooms Highlighter

3D Rooms Highlighter

Digitally signed app

Free 30-Day Trial, Y
OS:
Language:

Description

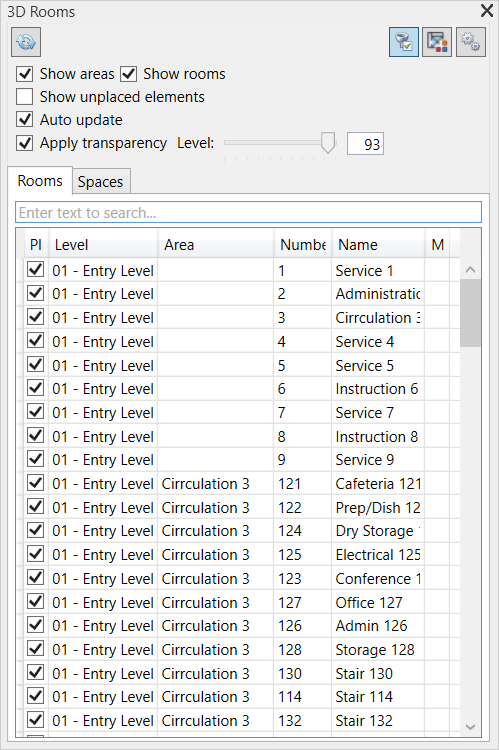

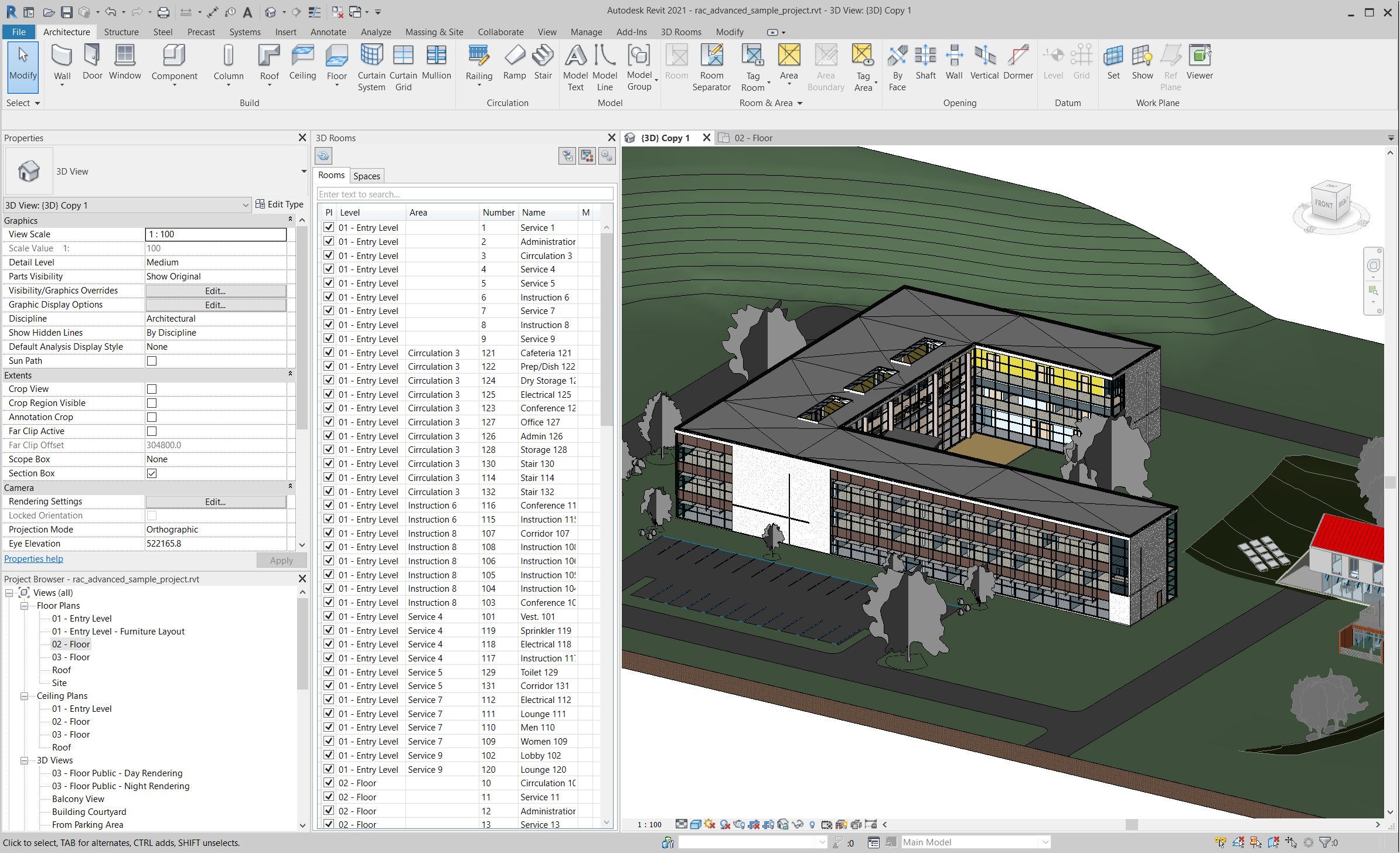

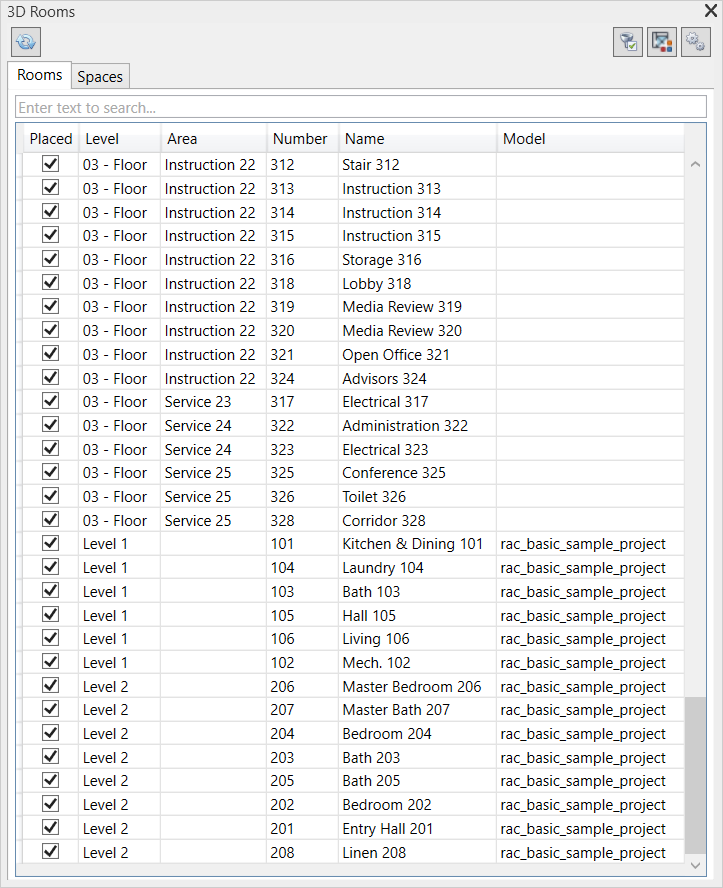

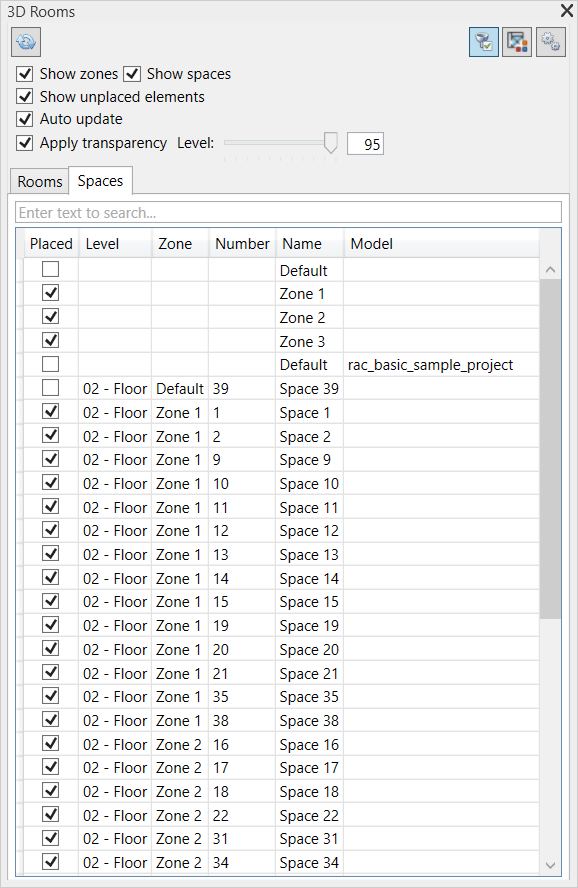

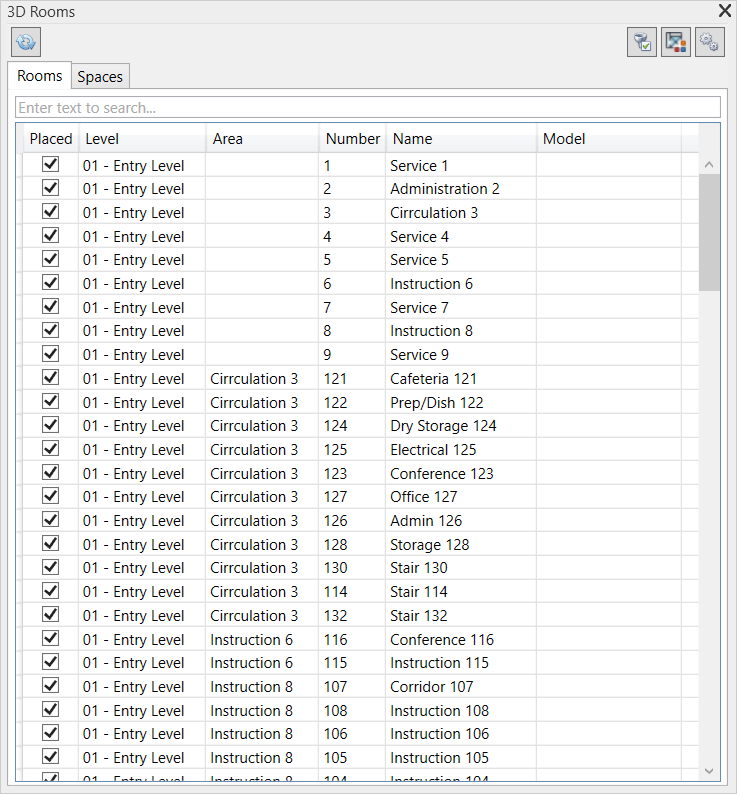

Lists all Rooms, Areas, Spaces, Zones and System-Zones. Highlights the selected spatial elements in 3D View. Generates Masses for the selected spatial elements.

Key features:

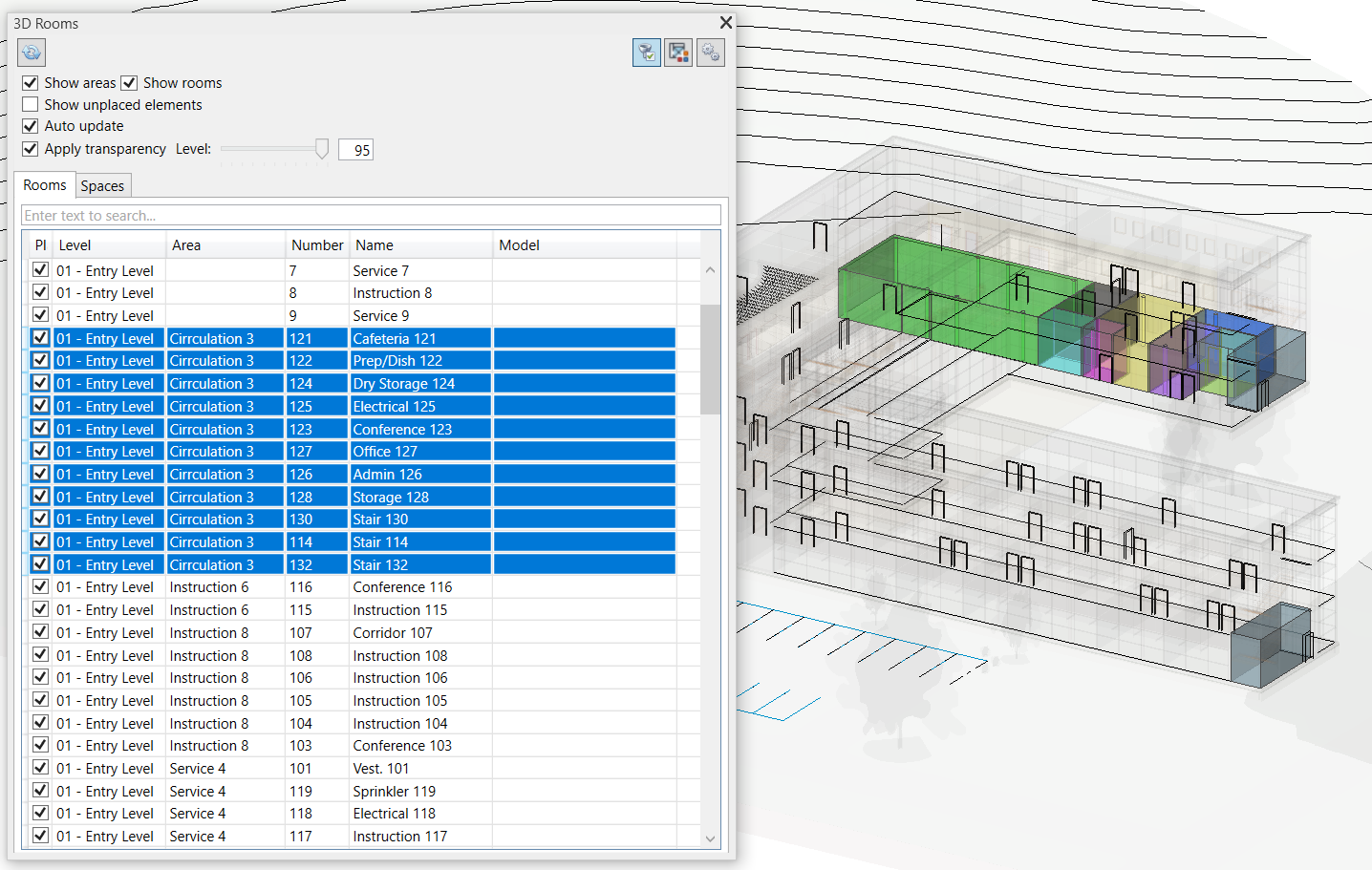

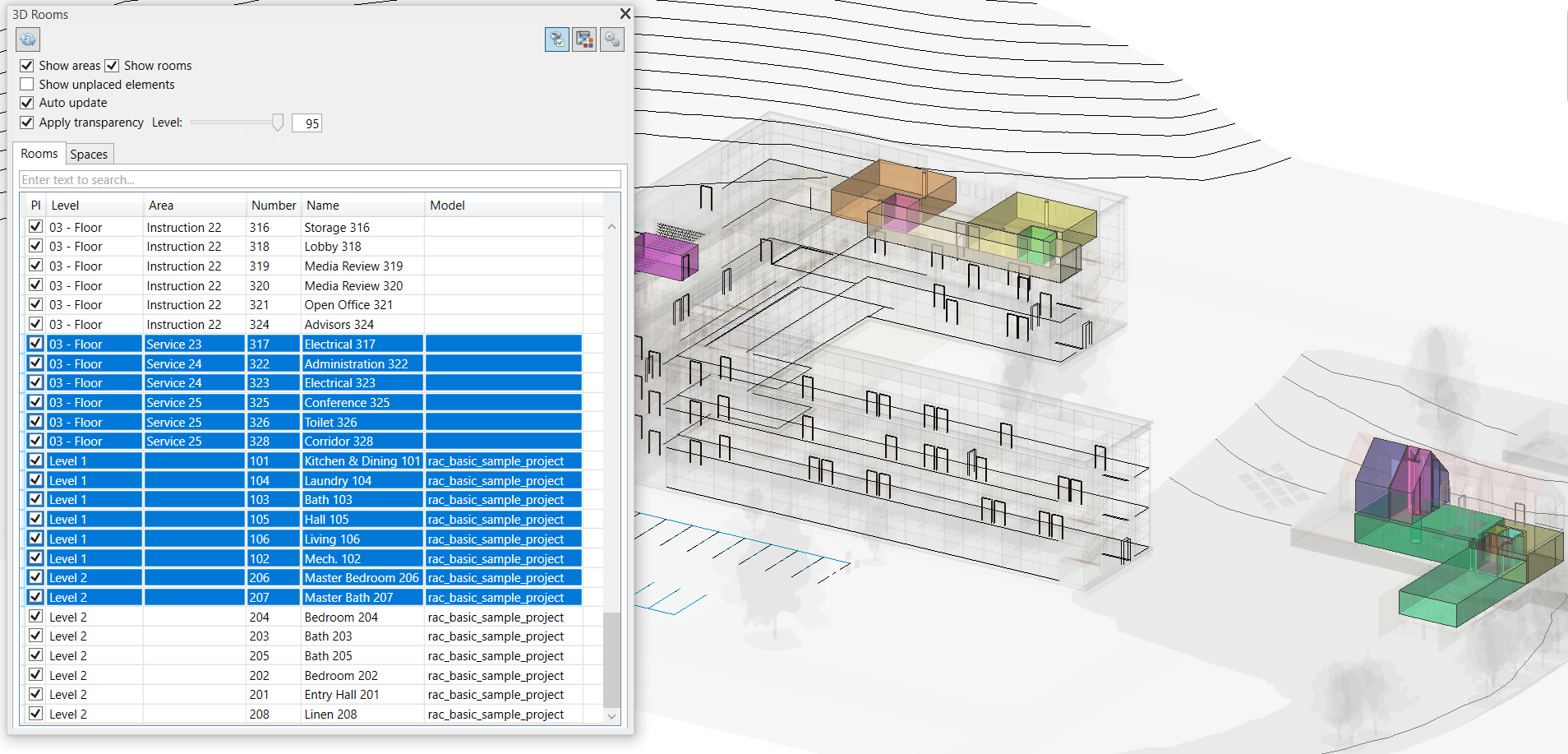

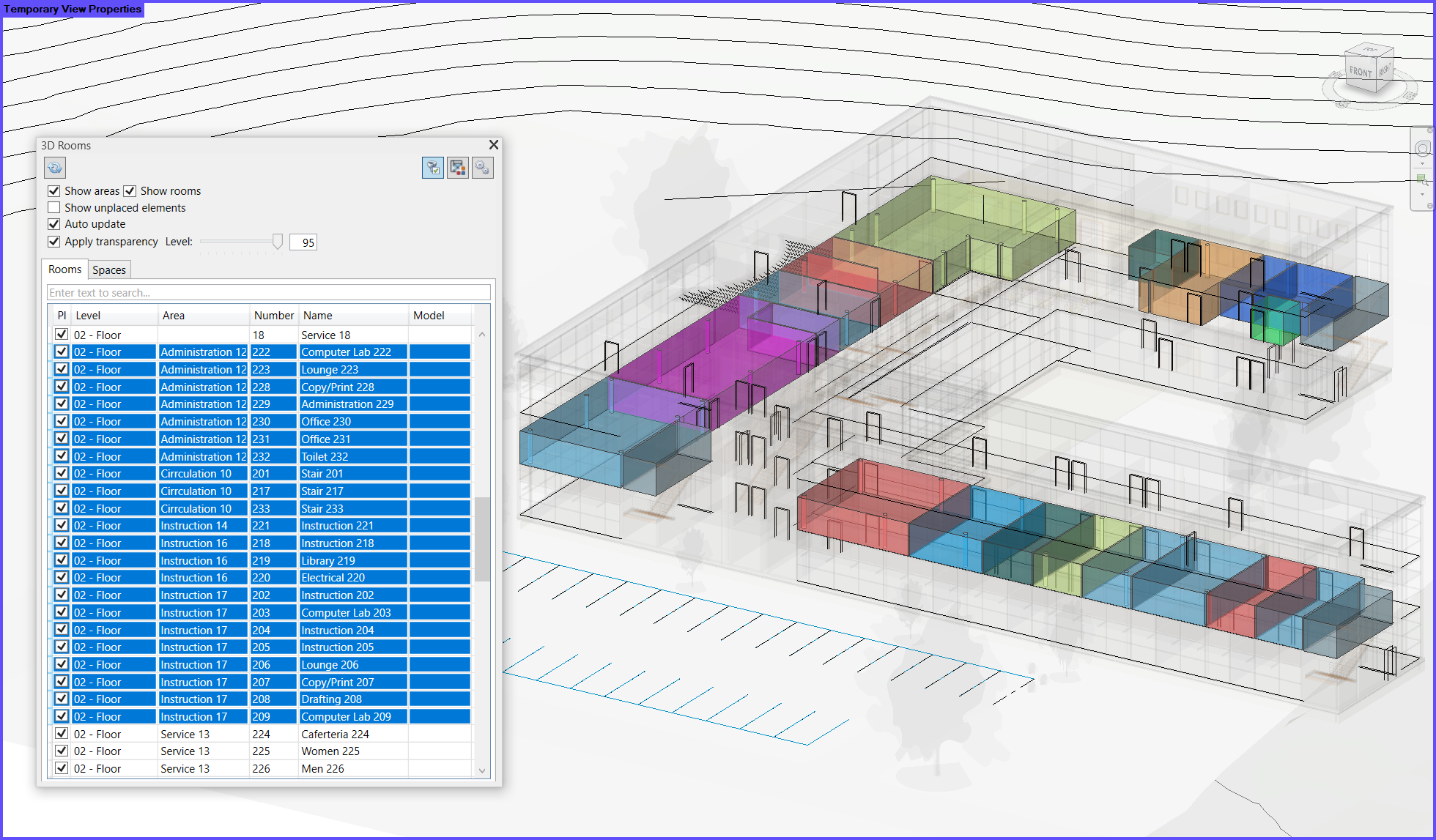

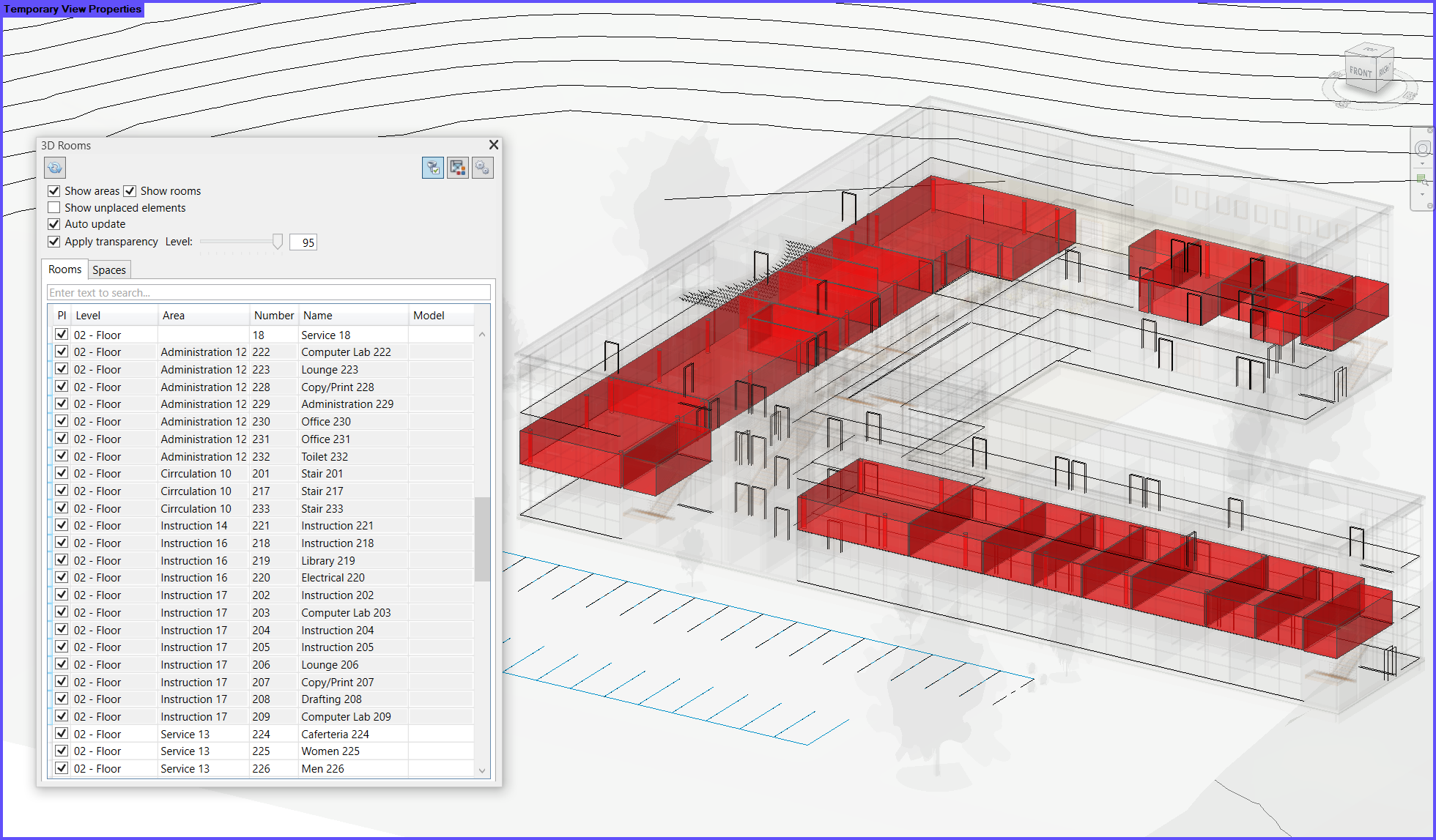

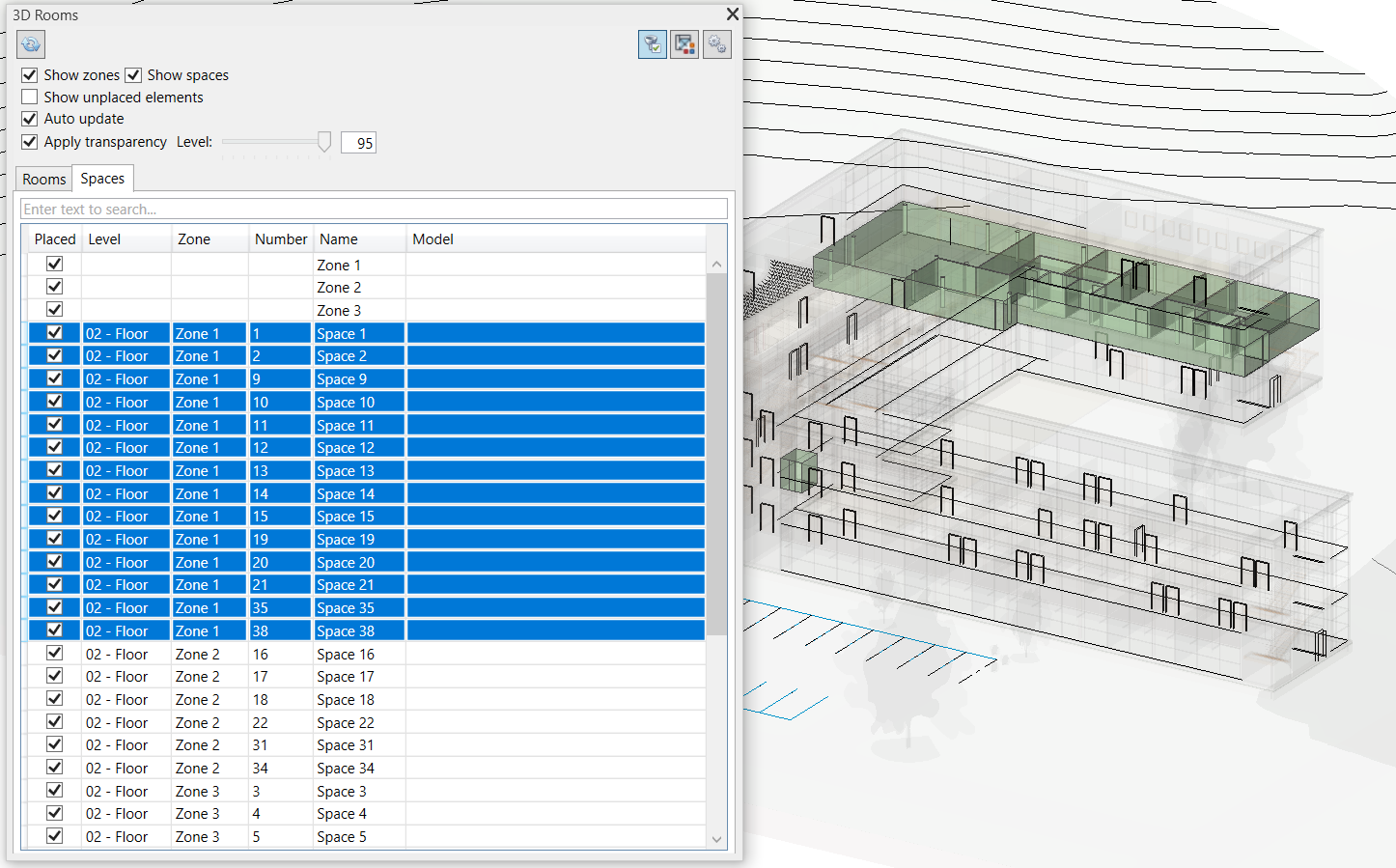

  • Highlights selected Rooms, Areas, Spaces, Zones and System-Zones in 3D.
  • Highlighting doesn't generate temporary elements in the model, so it's realtime even if hundreds of rooms are selected.

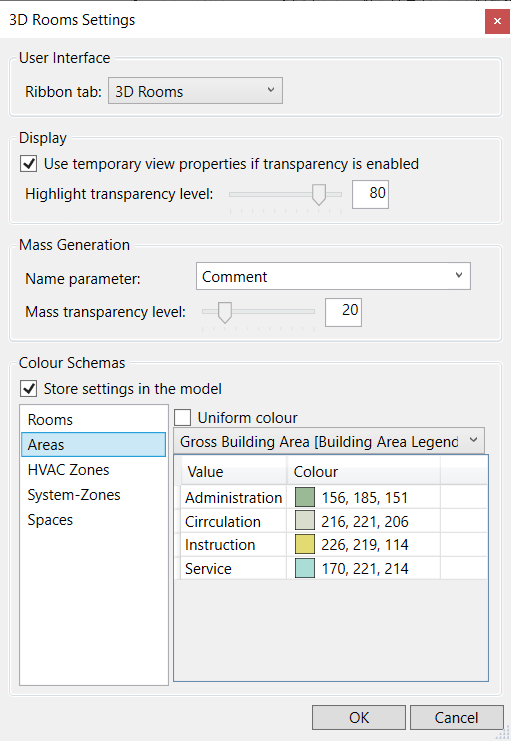

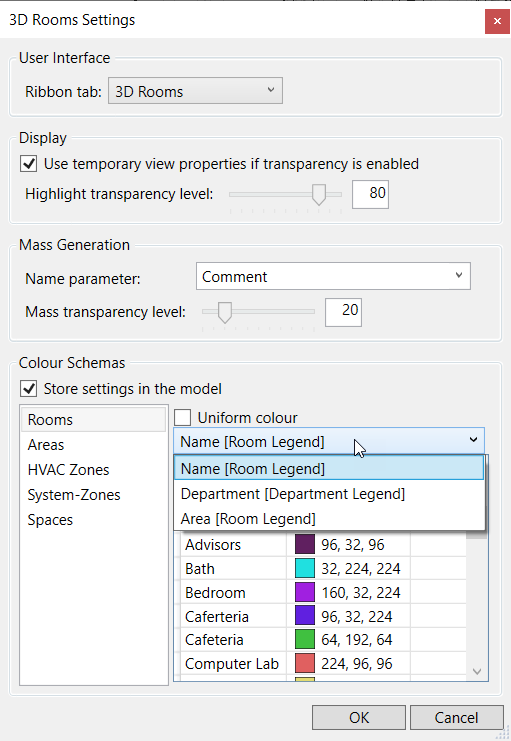

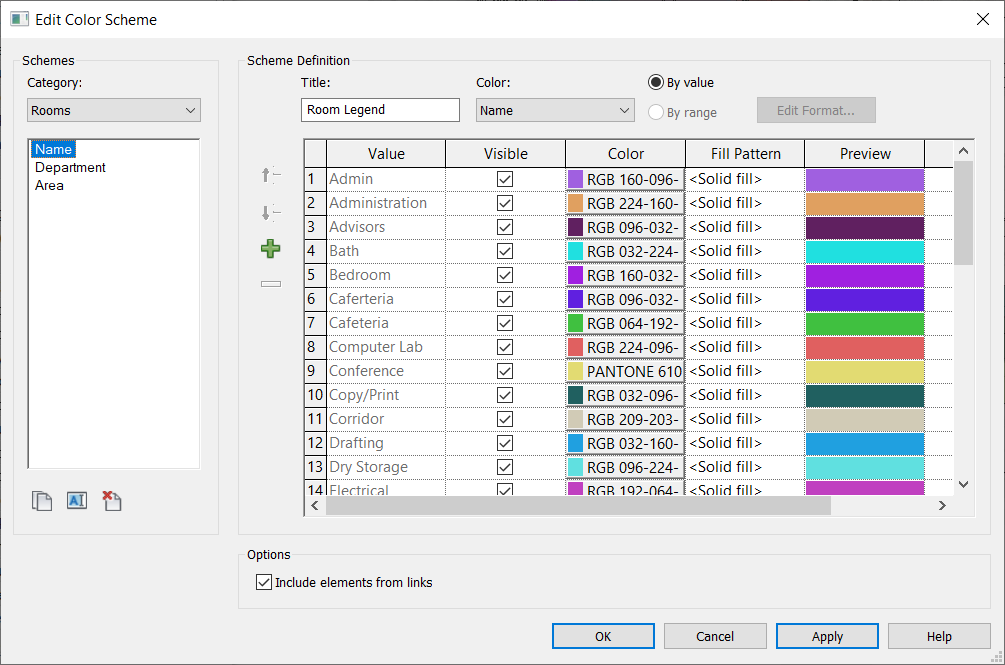

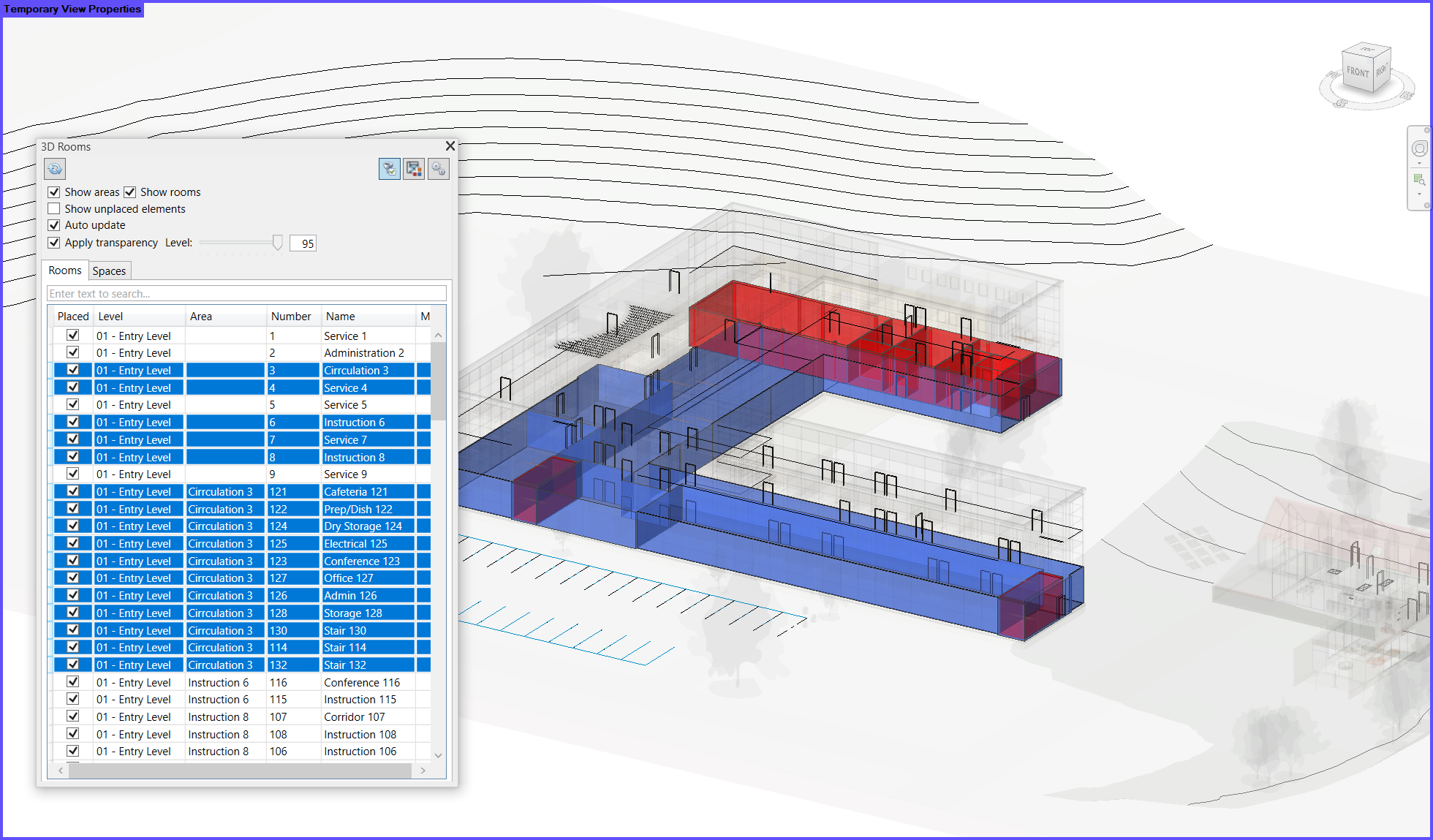

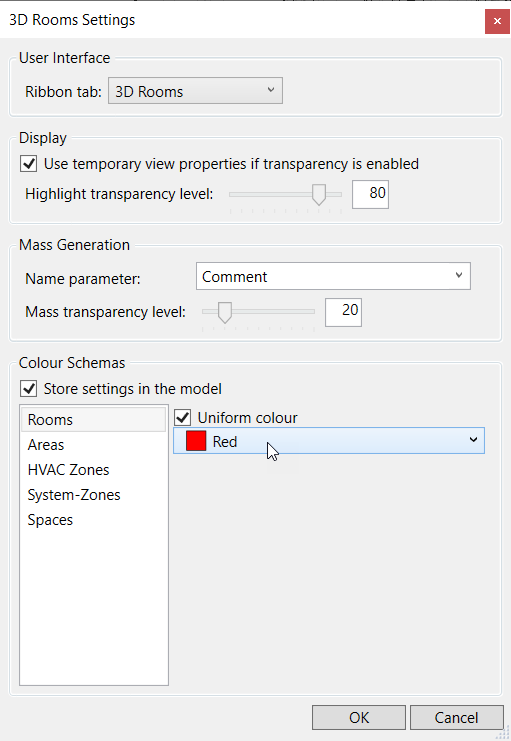

  • Uses uniform colors or Autodesk® Revit® color schemes (supported in 2021 only).
  • Temporarily fades the model to improve highlight visibility.
  • Automatically updates the displayed rooms list and the highlights when the user modifies the model (room geometry or parameters).

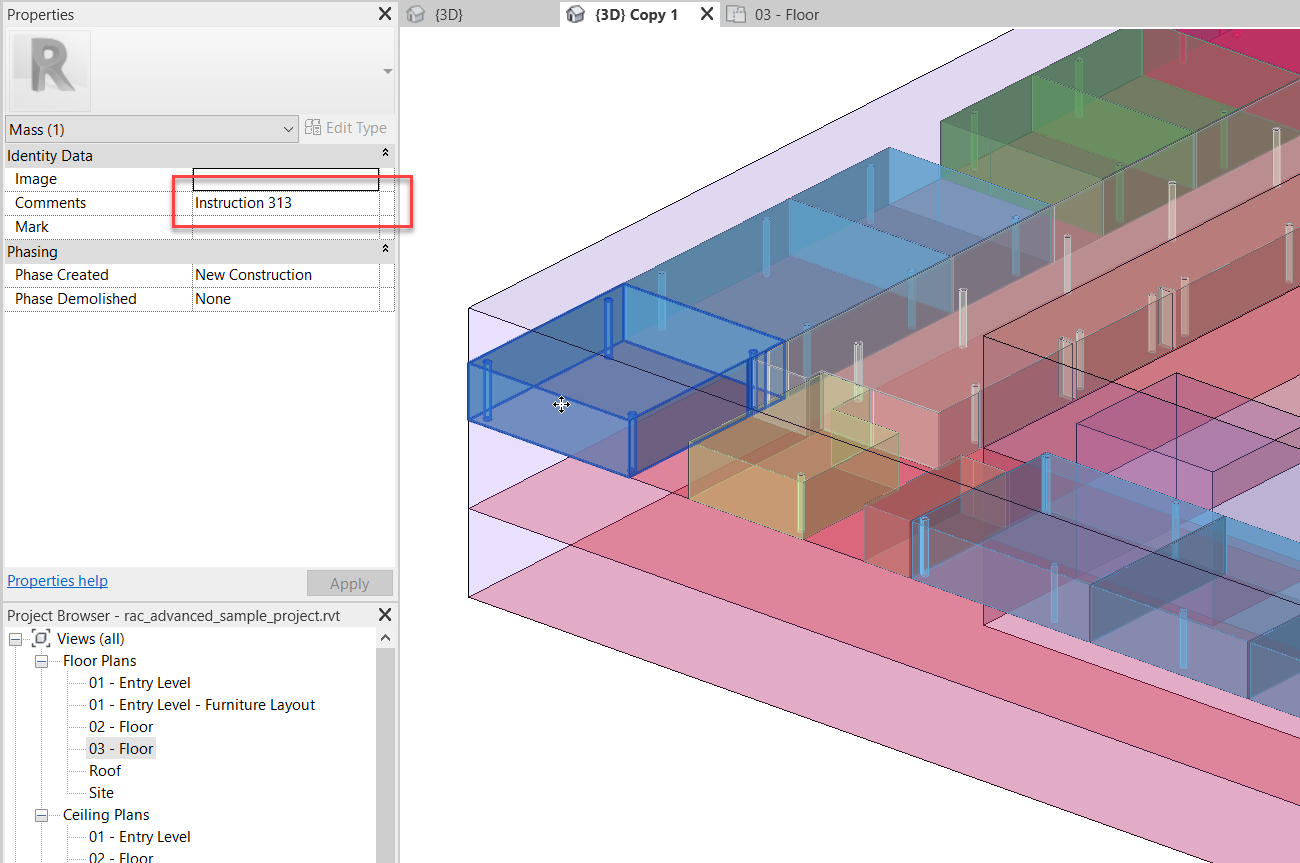

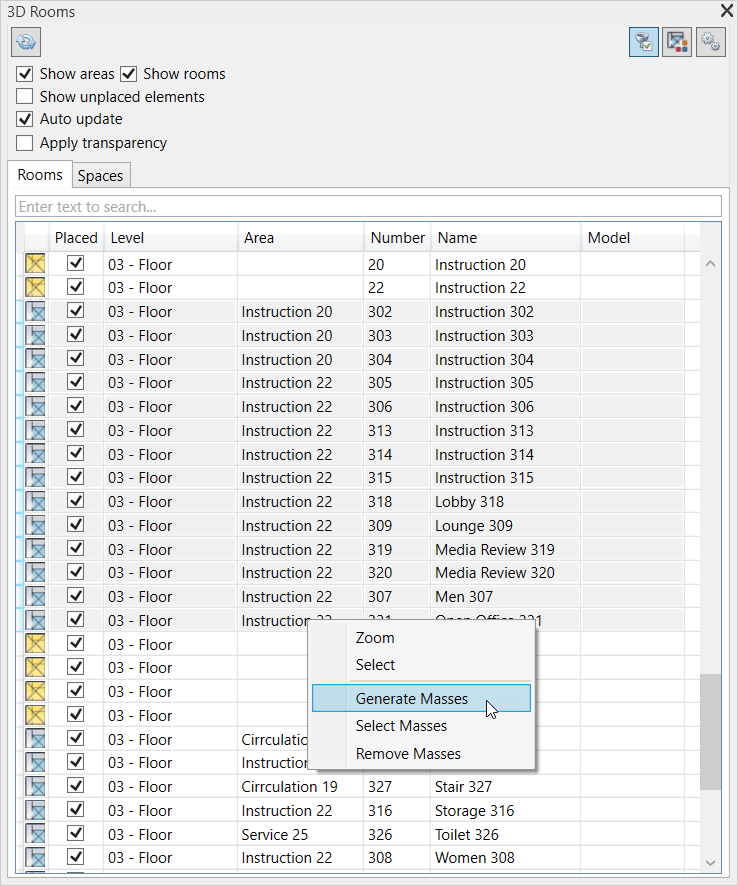

  • Generates Mass elements for the spatial elements, copies the room name to a custom parameter of the Mass.





About This Version

Version 1.0.4.0, 7/10/2023
Added Revit 2023 and 2024 support
