Convert To Acad-Point
説明
There is no way for Converting objects to Autodesk® AutoCAD® points. We have introduced the “Convert To Acad-Point” tool. This is a simple tool that helps users to convert objects to AutoCAD points using one click. It helps to convert four types of objects to points without a lot of steps.

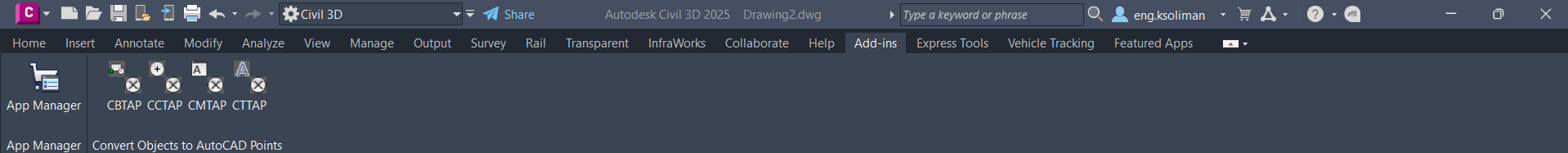

As shown in the screenshots below, after installing the add-in, a menu will appear in the Add-ins menu. It is called Convert Objects to AutoCAD Points. In each menu, there are four buttons for each object.

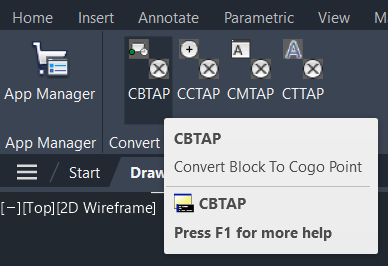

The first button/order is for converting Blocks to points. This order takes the location of the insertion point of each selected block, including the Z position, and converts it to a point.

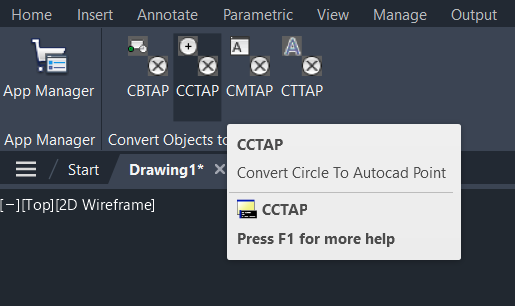

The second button/order is for converting Circles to points. This order takes the location of the center of each selected circle, including the Z position, and converts it to a point.

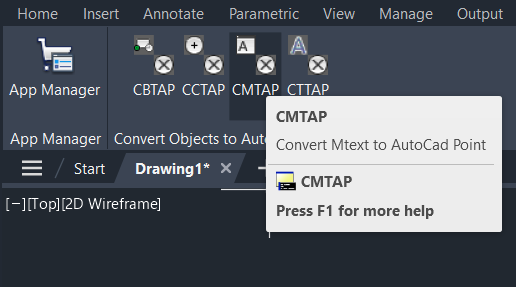

The third button/order is for converting MText to points. This order takes the location of the insertion point of each selected MText, including the Z position, and converts it to a point.

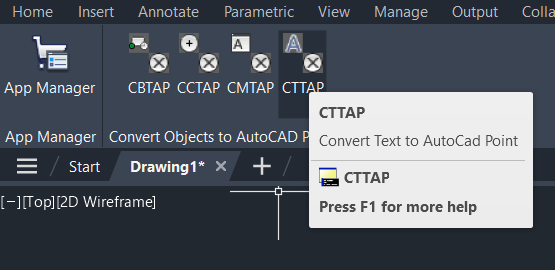

The fourth button/order is for converting Text to points. This order takes the location of the insertion point of each selected Text, including the Z position, and converts it to a point.
