AVC Kit

AVC Kit

A>V>C>
2 оценки
Платные
ОС:
Язык:

Описание

A small set of A>V>C> programs will radically accelerate the solid modeling of any product. But even those who still consider Autodesk® AutoCAD® to be an electronic drawing board will also find useful functions in the Kit. The Kit does not include commands for preparing contours for CNC and working with 2D contours, as well as commands for extracting data into tables.



List of commands included in A>V>C> Kit:



 Also included are additional bonus commands:

  • SumLen - calculates the sum of the lengths of all selected drawing objects: lines, arcs, and polylines
  • SumArea - calculates the sum of the areas of all selected drawing objects: closed polylines, circles, ellipses, and splines.
  • SolSize, SweepSize – solid measurement
  • SawRed - Coloring of solids depending on the manufacturing technology - details for the saw - red, for milling - green.

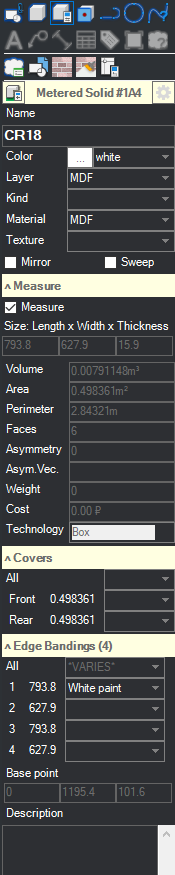

  • AvcUpdate - Updating the metric of solids. Colorizes solids and faces according to the color of the material. Update SmartLeaders.

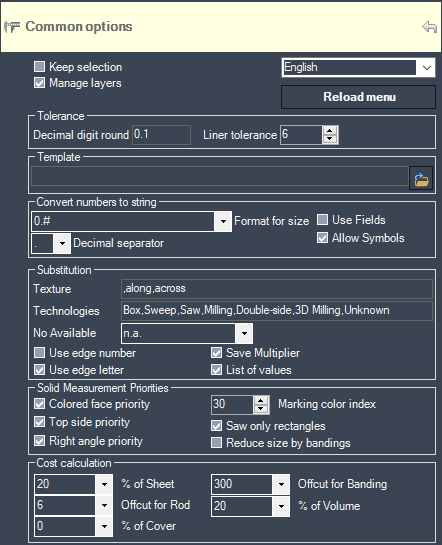

  • AvcOptions - Configuration palette for all A>V>C> commands.



All commands are fully translated into Italian, German, Russian, Chinese.

To run the plugin, you will have to register account and top up your account balance by making a donation or receiving bonuses.

Then you can activate one of the licenses:

Прочитать справку

Сведения об этой версии

Версия 2024.09.04, 25.11.2024
Solid metric: the procedure for reducing the size of a part by the thickness of the edge bandings now works not only with 4-sided parts. But only the thickness of the edges directed strictly along X and Y are still subtracted. AvcPalette: Added an option to disable all ordinary properties at once. It makes the palette as compact as possible. LAY & Solid Metric: Now works with round pipes if they are assigned a material of the "Rod" type. Solid Metric: The length of a round pipe bent along an arc is calculated as the length of the arc along the axis of the torus. And the width and thickness are the minor diameter of the torus. The Sweep property is automatically adjusted. Solid Metric: New technology names added: "Cut pipe", "Processed pipe". Fixture: New "Ignore UCS" option. SweepSize: Added options for the size of unfolded solids: Longer side, Center line, Longer Segments. LAY: New Flip option. Dark theme support: Dark background for form section headers.

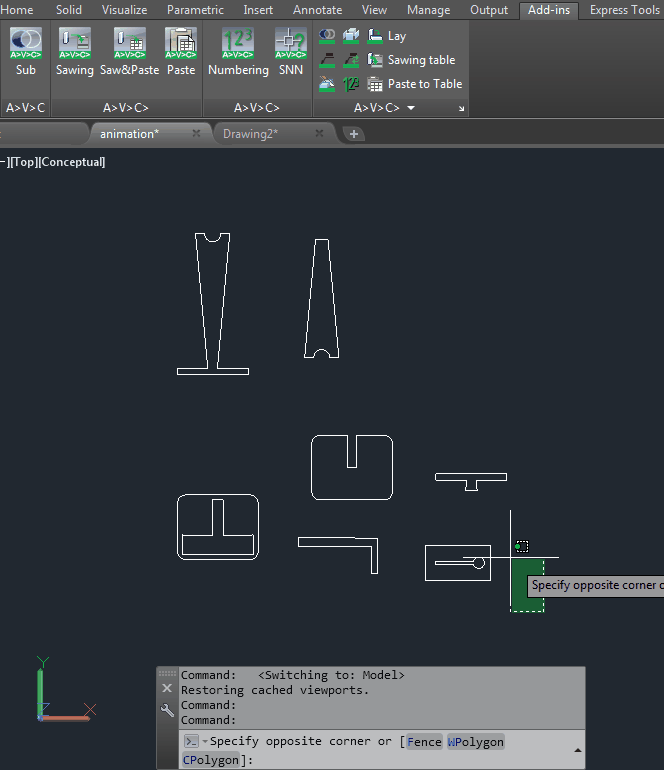

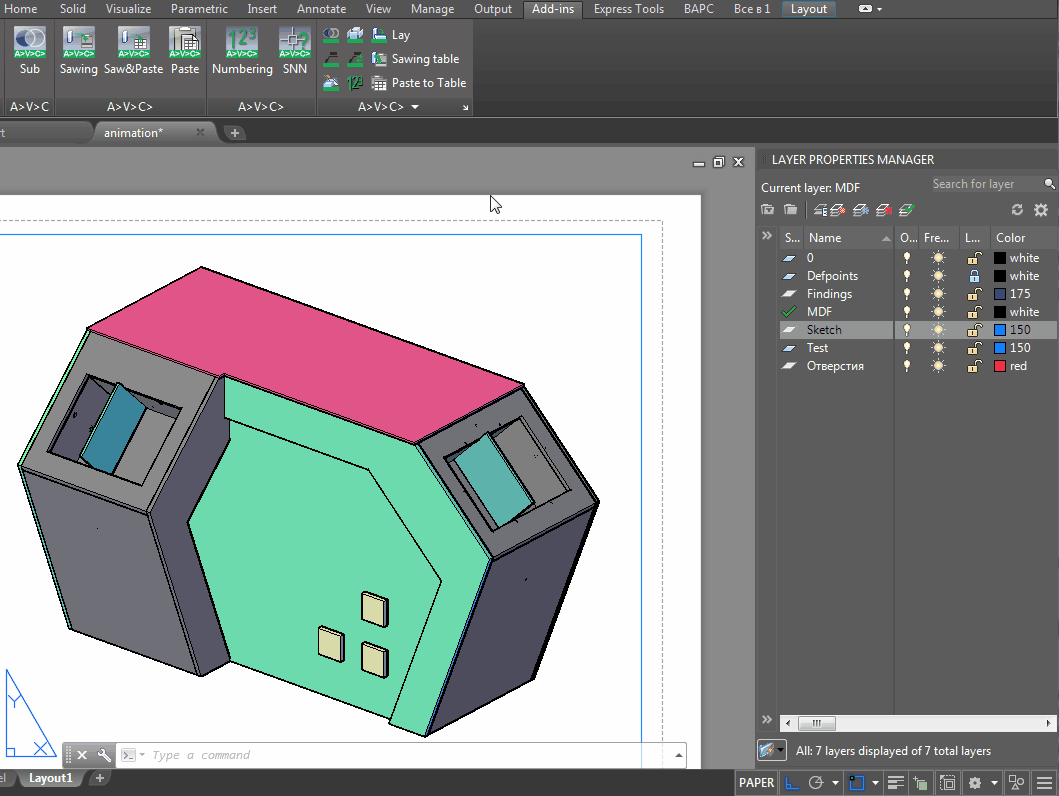

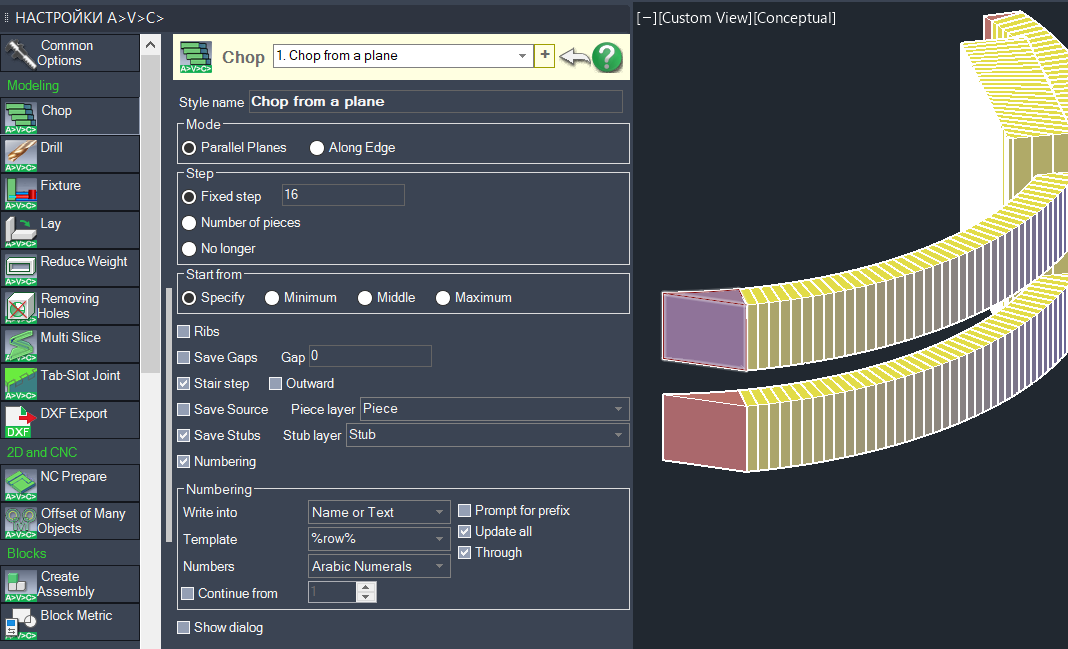

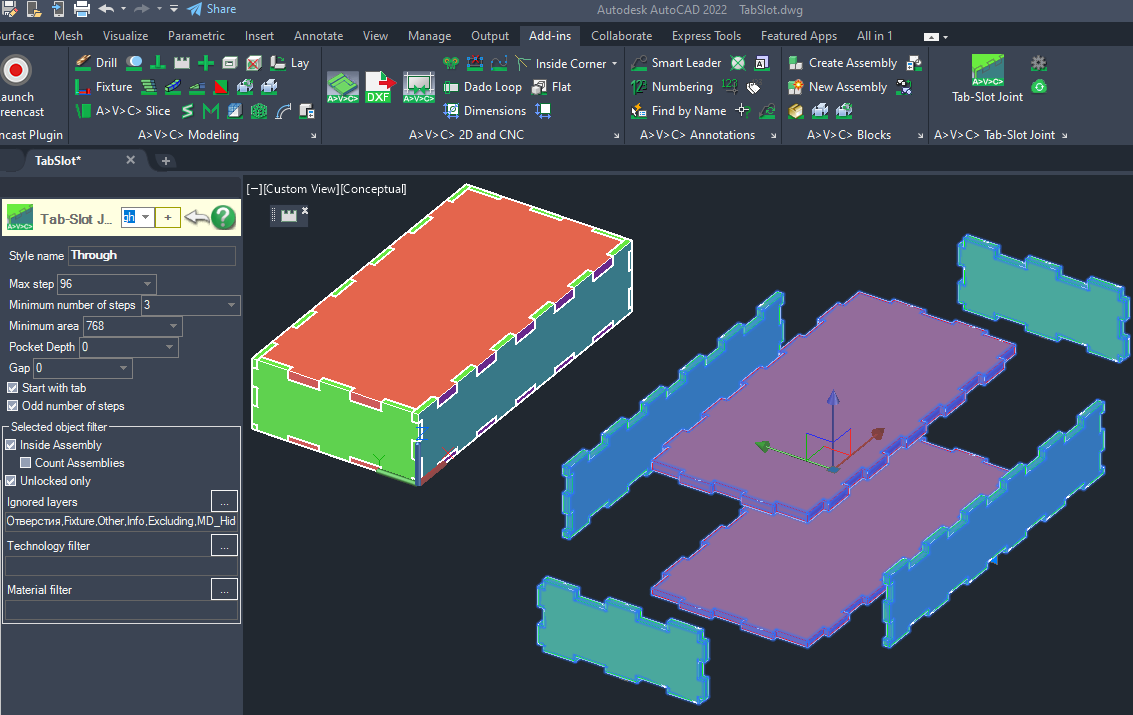

Скриншоты и видео


Рецензии клиентов

2 оценки
Техническая поддержка
  • You can't do without AVC!
    Uwe Grabner | марта 03, 2020 Проверенная загрузка (Что это такое?)

    All tools of the AVC series are a great addition to AutoCad. They are now my main tools in quite a few areas.
    At this point, I would like to thank AVC for the great and practical developer work!
    The recently introduced "MultiSlice" tool is exactly the tool I've been looking for.

  • Awesome Utilitys
    Lachlan Armstrong | мая 05, 2018

    We are a small commericail interior fitout company.



    I stumbled across this utility in my hunt for something to take the wierd and crazy designs we have to manufacture from time to time from shop drawings through to CNC machining and installation.

    The AVC Kit is excellent in aiding this Process. All the manual works i had previously done in Acad to get from 'Screen to CNC Machine' has been significantly reduced with the AVC Kit and AVC CNC Prepare utility's

    If you know your way around AutoCad's 3D Environment, then i highly recommend the AVC Add-ons - Excellent Value.

    On top of that, support is great too - Top Marks
