SoftDraft Stainless Steel Shapes 2DS
Digitally signed app
Г
ОС:
Язык:
Описание

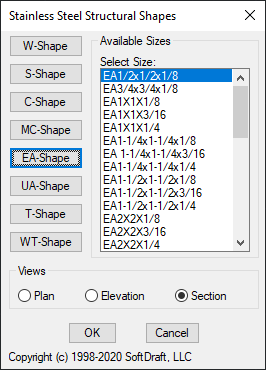

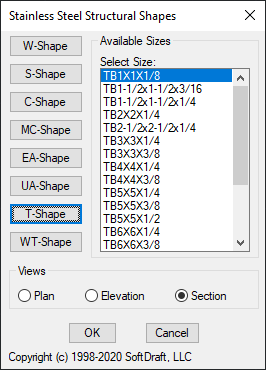

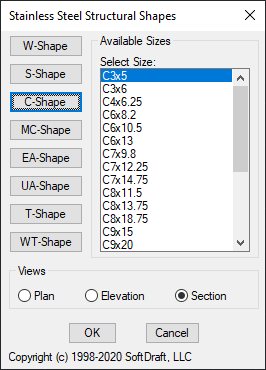

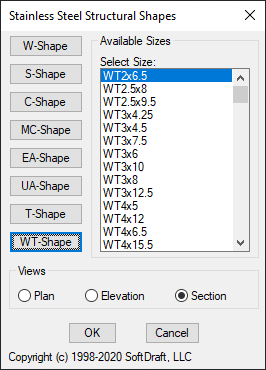

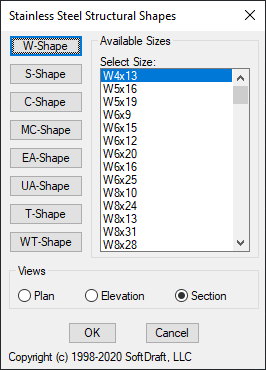

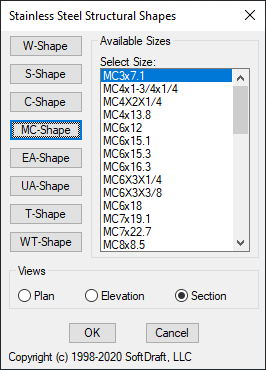

Stainless Steel Structural Shapes include W-Shapes, S-Shapes, Standard and Miscellaneous Channels, Equal and Unequal Leg Angles, T-Bars, and W-Tees. All shapes are created from a single polyline and made into an Autodesk® AutoCAD® block when inserted as section views. All shapes in the section view are parametrically drawn before placement and converted to a block for easy placement.
FEATURES:

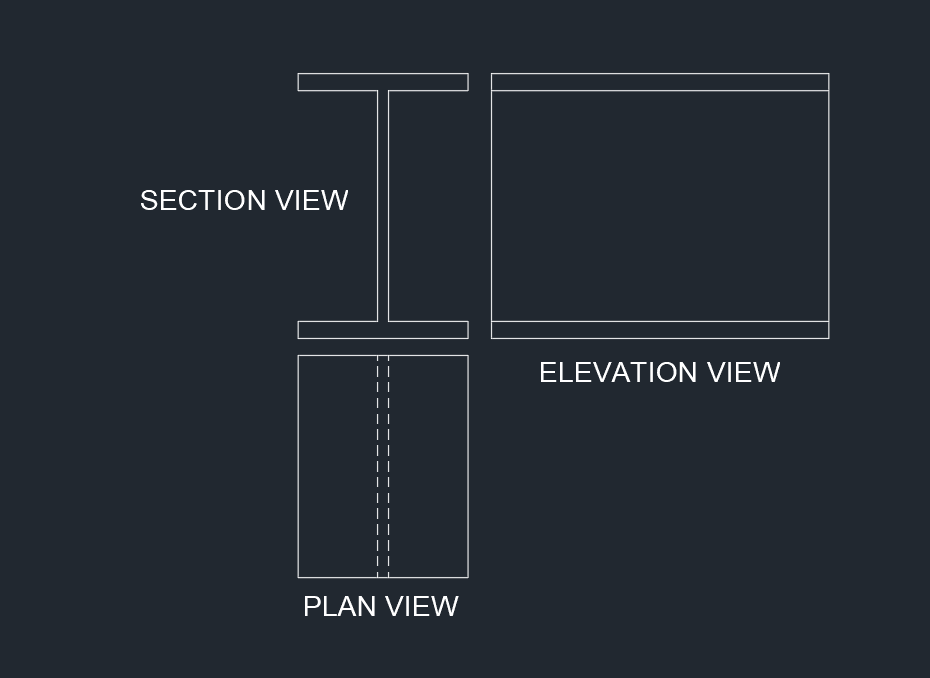

- Create shapes in plan, section, and elevation as required.
- Shapes in Section view are created as an AutoCAD block to keep file size minimized.
- All shapes are created parametrically on demand.
- Shapes are attached to the cursor based on the center insertion point and rotated after placement.
The installer is compatible with AutoCAD 2012 to 2025 (including other vertical products).
Сведения об этой версии
Версия 15.0.0, 27.03.2024
Update for subscription version.
