GeoRefImg

GeoRefImg

Arkance Systems (CAD Studio)
27 评论

Digitally signed app

免费
操作系统:
语言:

描述

GeoRefImg is a LISP utility for Autodesk® AutoCAD® 2012 - 2025 (plus Architecture, Mechanical, MEP) which can automatically reposition raster images used in a drawing to the position defined in the images “World files”.

World files define geo-position and other parameters of a raster image (TIF, CIT, JPG, PNG, GIF, BMP, ECW, SID...).

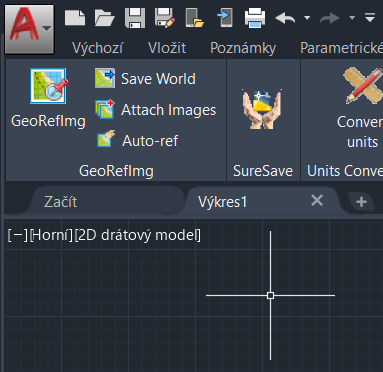

The GeoRefImg module contains several commands

GEOREFIMG

WorldOut

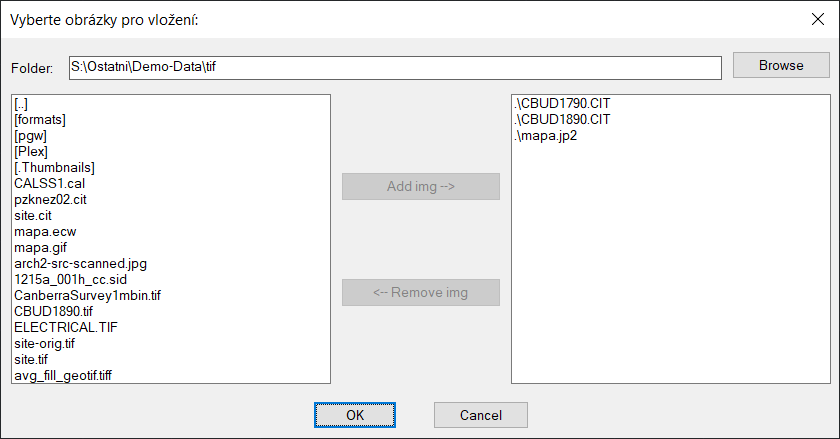

IMAGESATTACH

AGRI

See www.cadstudio.cz/georefimg

读取帮助文档

关于此版本

版本 3.3.0, 2024/5/20
ImagesAttach and AGRI commands added 2024/2025 support.

屏幕截图和视频


客户评论

27 评论
获取技术帮助
  • Perfect
    Jens Vancastell | 二月 03, 2023 验证的下载 (这是什么？)

    works like magic

  • this is title
    ai c | 九月 17, 2022

    this is content: very good.

  • فضل أداة
    adel HABESH HABESH | 八月 16, 2022 验证的下载 (这是什么？)



    ممتاز جداجداجدا

  • Automatic Positioning
    Xi Han | 四月 21, 2021

    How to position the image automatically when the image is loaded with a world file without typeing in "Georefimg"

    Vladimir Michl (发布者) | 四月 30, 2021

    Since version 3.2 there is a new command (reactor) AGRI which will enable automatic repositioning right on image attach - see www.cadstudio.cz/georefimg

  • Brilliant
    Caleb Misom | 三月 29, 2021 验证的下载 (这是什么？)

    Intuitive and worked perfectly!

  • How about for AutoCAD in a mac?
    Nikolas Rodrigues | 三月 25, 2021 验证的下载 (这是什么？)

    How about for AutoCAD in a mac? Is it possible do the same import process fot TIF images in an AutoCAD running on a MACBOOK pro?

    Vladimir Michl (发布者) | 四月 30, 2021

    there is a .FAS file for Mac in the GeoRefImg distribution archive on www.cadstudio.cz/freeware

    Jose Maria Roca | 二月 22, 2024

    Doesn't work on 2023 version, any clues how to get it up and running again?

  • Niiiice
    Luis Lillo | 十二月 30, 2020 验证的下载 (这是什么？)

    Good, the only problem is that need the World files

  • best tool
    Марат Гильязов | 一月 12, 2020 验证的下载 (这是什么？)

    best tool

  • best tool
    Марат Гильязов | 一月 12, 2020 验证的下载 (这是什么？)

    best tool

  • MrSID
    Jonas Zhang | 十一月 08, 2017 验证的下载 (这是什么？)

    How can I insert a georeferenced SID file with this lisp?

  • Perfect
    Luigi Ciampo | 三月 16, 2017 验证的下载 (这是什么？)

    A must have application

  • File not found
    Himanshu Nagrath | 十月 13, 2016 验证的下载 (这是什么？)

    I am using AutoCAD 2017 student version. I am trying to use georefimg for georeferencing tiff file. AutoCAD is showing >GeoRefImg:File not found. What is the solution for this.

  • Allows vanilla CAD users to import rectified imagery
    Scott Lawson | 八月 02, 2016 验证的下载 (这是什么？)

    As a Raster Design user I regularly get asked by co-workers to insert imagery for them since their vanilla CAD will not utilize world files. This command will allow others in my office to do this themselves without waiting on one person to help them out. Fantastic app. Thank you!

  • Recommended
    Zuzana Pankova | 六月 19, 2016 验证的下载 (这是什么？)

    works well

  • the best
    Eva Dorner | 三月 03, 2016 验证的下载 (这是什么？)

    Super app!

  • Výborné
    U. Cihlář | 六月 29, 2015 验证的下载 (这是什么？)

    Funguje bez problémů

  • Dankbarer Anwender
    Michael Heidel | 四月 08, 2015 验证的下载 (这是什么？)

    Wie von Geisterhand .... Danke

  • a must have
    Franz Gruber | 一月 02, 2015 验证的下载 (这是什么？)

    Perfect!

  • A real life saver application
    Jeff Wilkinson | 六月 16, 2014 验证的下载 (这是什么？)

    Can import GIS images in standard AutoCAD. New version won't display in the Add-ins menu. Exchange App manager says it loaded, just not icons.

  • Excellent
    Loay Al Khateeb | 四月 13, 2014 验证的下载 (这是什么？)

    Very useful and easy tool !!!!

  • very good!
    peter ulrich | 十月 29, 2013 验证的下载 (这是什么？)

    Very useful application, works perfectly.

  • great app!
    Peggy Lin | 五月 30, 2013 验证的下载 (这是什么？)

    Very useful and easy to use.

  • 很好
    道健 | 十二月 02, 2012 验证的下载 (这是什么？)

    Works well. Good application.

  • Great App
    Chris Wilson | 十月 05, 2012 验证的下载 (这是什么？)

    This saves so much time - nice one :)

  • Excellent tool
    Nicola Peddis | 六月 22, 2012 验证的下载 (这是什么？)

    I use this tool since the autocad 2006...!!!! Very usefull..!!!!!

  • Nice add-on
    Roman Malesi | 五月 10, 2012 验证的下载 (这是什么？)

    Works with every type of raster map image I have tried.

  • Best tool
    H. Wiesner | 五月 03, 2012 验证的下载 (这是什么？)

    So far the best tool for handling scanned maps with world files. Fully automatic operation.
