Import CSV Plugin

Import CSV Plugin

Digital Sculptors
2 recenzje

Digitally signed app

Bezpłatna
System operacyjny:
Język:

Opis

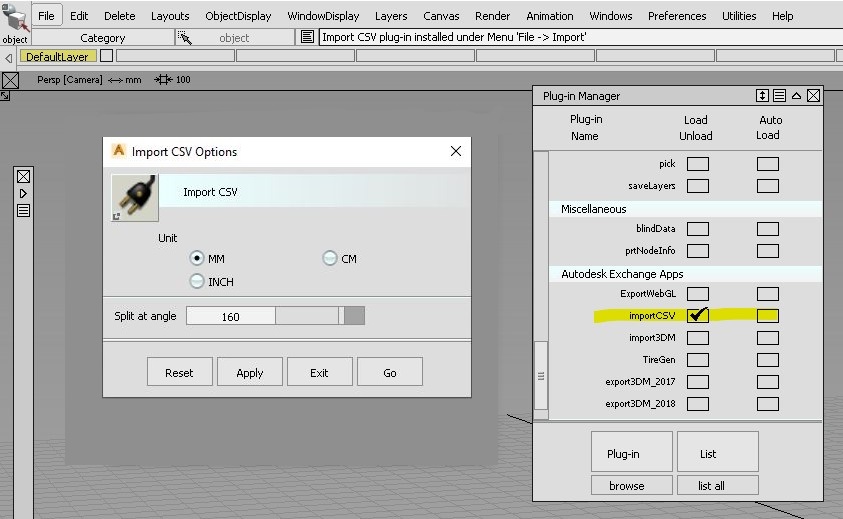

Autodesk® Alias® Plugin to import 3D Points in a CSV (Comma Separated Value) file.

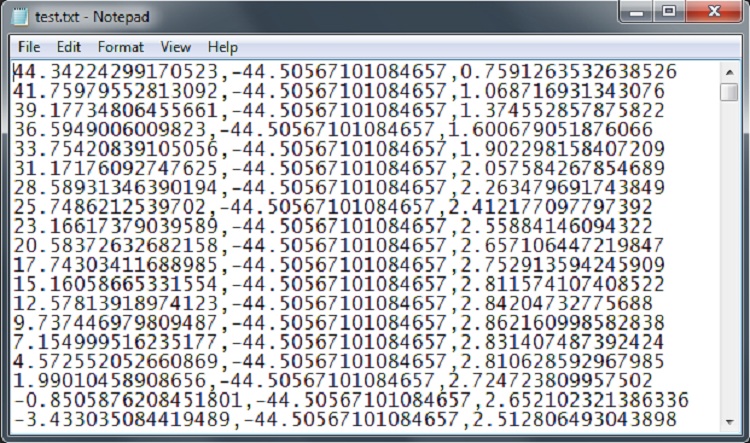

CMM (coordinate measuring machines) are used in many automotive studios, to make cross-section data of physical models. These are stored as raw x,y,z values and can be exported as a CSV file.

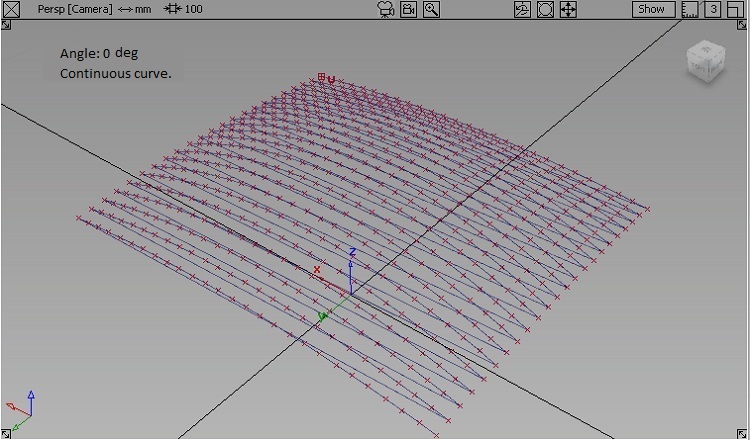

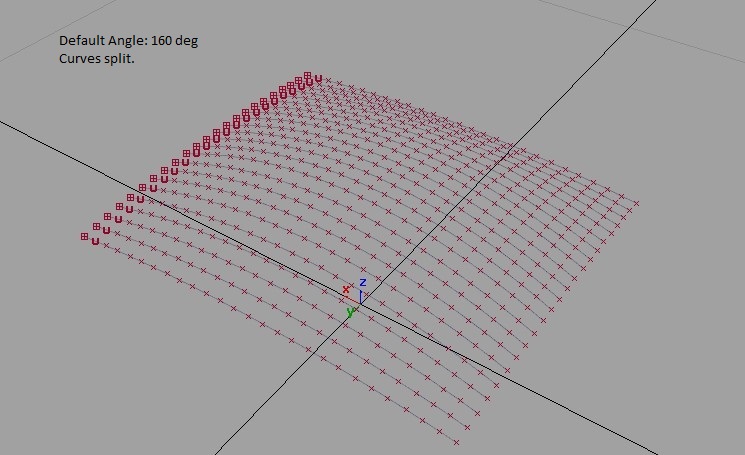

Currently, there is no easy method to transfer such data into Alias. Although Alias can import CSV file as a point cloud, it is not very easy to visualize sparse data. The plug-in will import the points and connect them using polylines. By choosing an angle , the resulting polylines can be broken at the retract steps or sudden change in curvature.

Przeczytaj dokument pomocy

Informacje na temat tej wersji

Wersja 4.1.0.0, 31.10.2023
Enhancement: Support for Alias 2024.1

Zrzuty ekranu i nagrania wideo


Recenzje klientów

2 recenzje
Pomoc techniczna
  • what do you do after installing?
    Ajnai Erdenee | lutego 03, 2021 Sprawdzone pobranie (Co to jest?)

    hello i need help with the installation and application

    Rajeev Nair (Wydawca) | lutego 13, 2021

    Are you able to install the plugin? Please let me know the problem. The utility can open comma separated values, say from a CMM machine or even a NC code.

  • nice
    Kavey Zhu | marca 07, 2013 Sprawdzone pobranie (Co to jest?)

    need more FUN
