JTB DimensionPatrol Trial
Digitally signed app
Popis

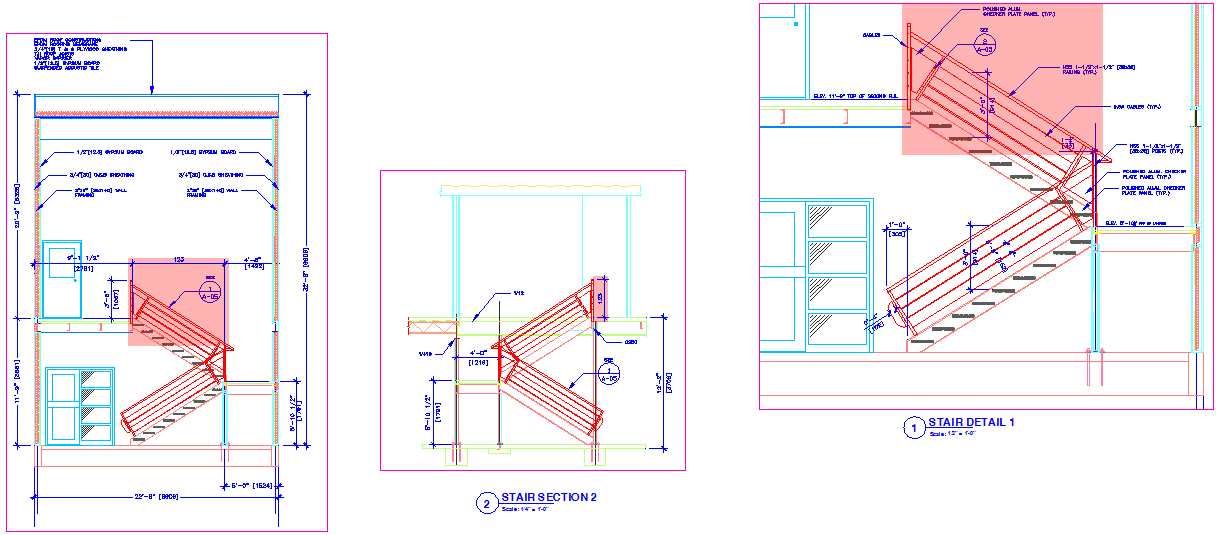

This app highlights dimensions in a drawing for which the user has customized the dimension text.
Once loaded, the DIMPATROL command can be used to turn on (and off) the highlighting of potentially problematic dimensions: dimensions whose text has been overridden and therefore may not match the actual dimension. To change the color used to highlight the dimension, use the DIMPATROLCOLOR command or for command-line usage -DIMPATROLCOLOR. To change the transparency used, use the DIMPATROLTRANSPARENCY command.
See also our app page at http://jtbworld.com/dimensionpatrol.
Note: This app uses a custom installer (and not the standard App Store installer).
Popis zkušební verze
30 day trial. When purchased it can be used without restrictions.
There is no policy that all plugins must be free.
This is a great little tool that enables you to interrogate your drawing to ensure someone has not manually altered the dimensions giving incorrect CAD data.
Why Trial version? All plugins must be free! This is AutoDesk's policy.
