Automation Ducts
J, M
Betriebssystem:
Sprache:
Beschreibung
Automation Ducts Create a 6-Way or 100-Way Duct Pipe in Autodesk® Civil 3D® without Using Part Builder from select feature lines and put all in one network
Creating ducts (duct banks or conduits) in Civil 3D is best achieved by defining a custom Pipe Network. You can create a custom Pipe Network part (rectangular or round) with any number of pipes by

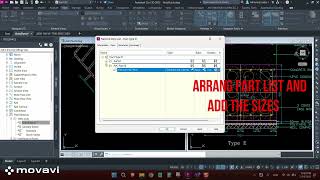

Define Part Size.

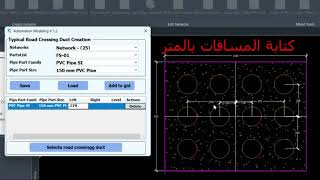

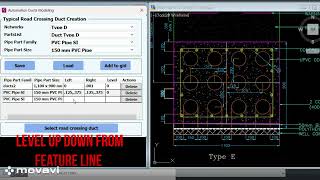

Assign Elevation and distances.

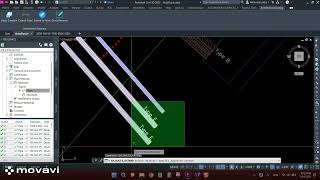

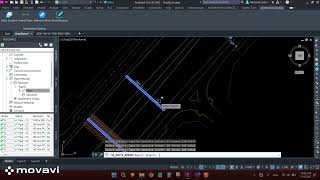

Select the feature lines that can extend the pipes (rectangular or round) with a spacing distance or pick point
Rename the ducts related to alignment.
Informationen zu dieser Version
Version 1.0.0, 25.03.2026
Initial release
