Multi helical gear trial
評価版
OS:
言語:
説明

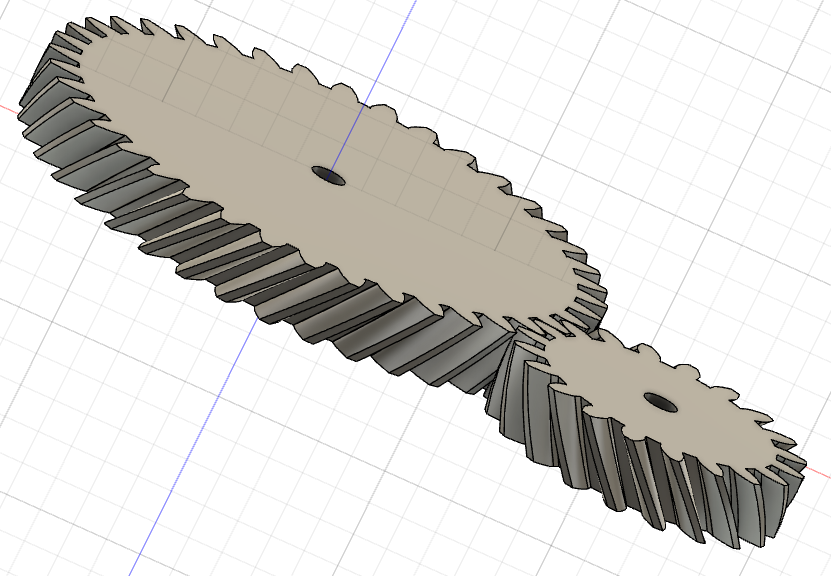

- Pitch circles in a meshing relationship cause the helical gears to be rotated and positioned at an angle of meshing.

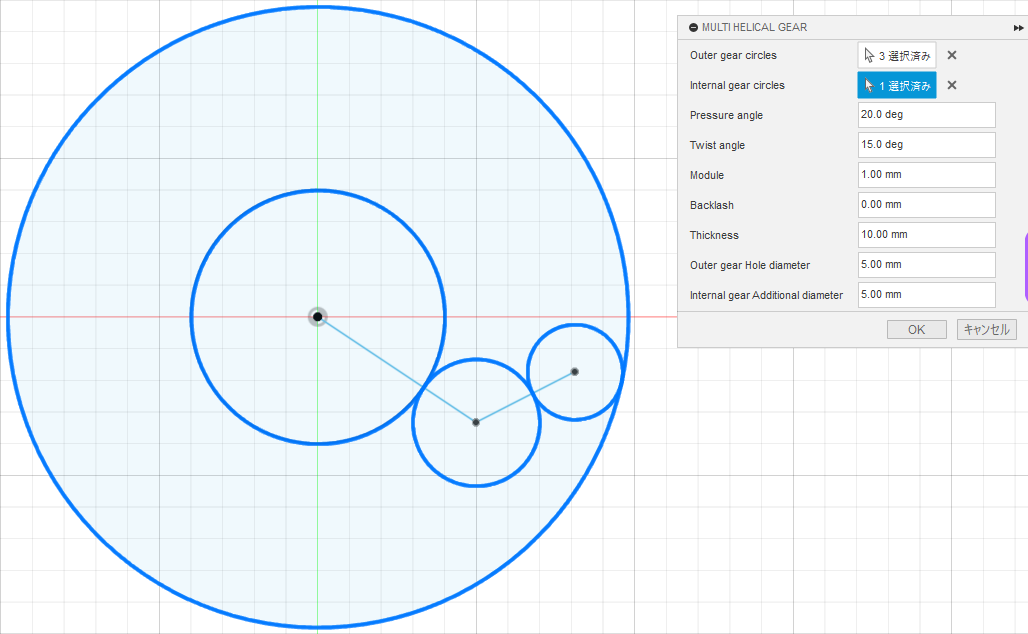

- Whenever there is a combination of pitch circles touching each other, multiple combinations can be converted to helical gears in a single operation.
- The sketch plane for drawing pitch circles is not limited to the XY plane. Pitch circles drawn on any plane can be converted.

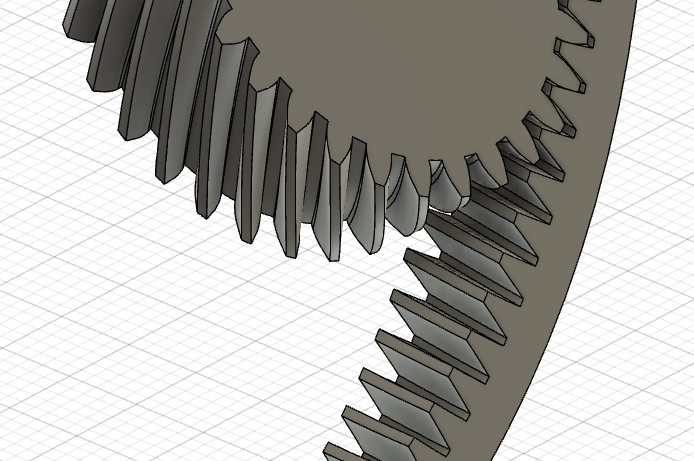

- Each helical gear is created as a separate component. Therefore, it is possible to set up motion links between helical gears.
体験版の説明
The trial version supports only two outer gear.
