Multi spur gear
付费应用
操作系统:
语言:
描述
This is an add-in for Autodesk® Fusion®. Selecting multiple pitch circles, it places spur gears at the location of those pitch circles. It also automatically meshes the spur gears together.

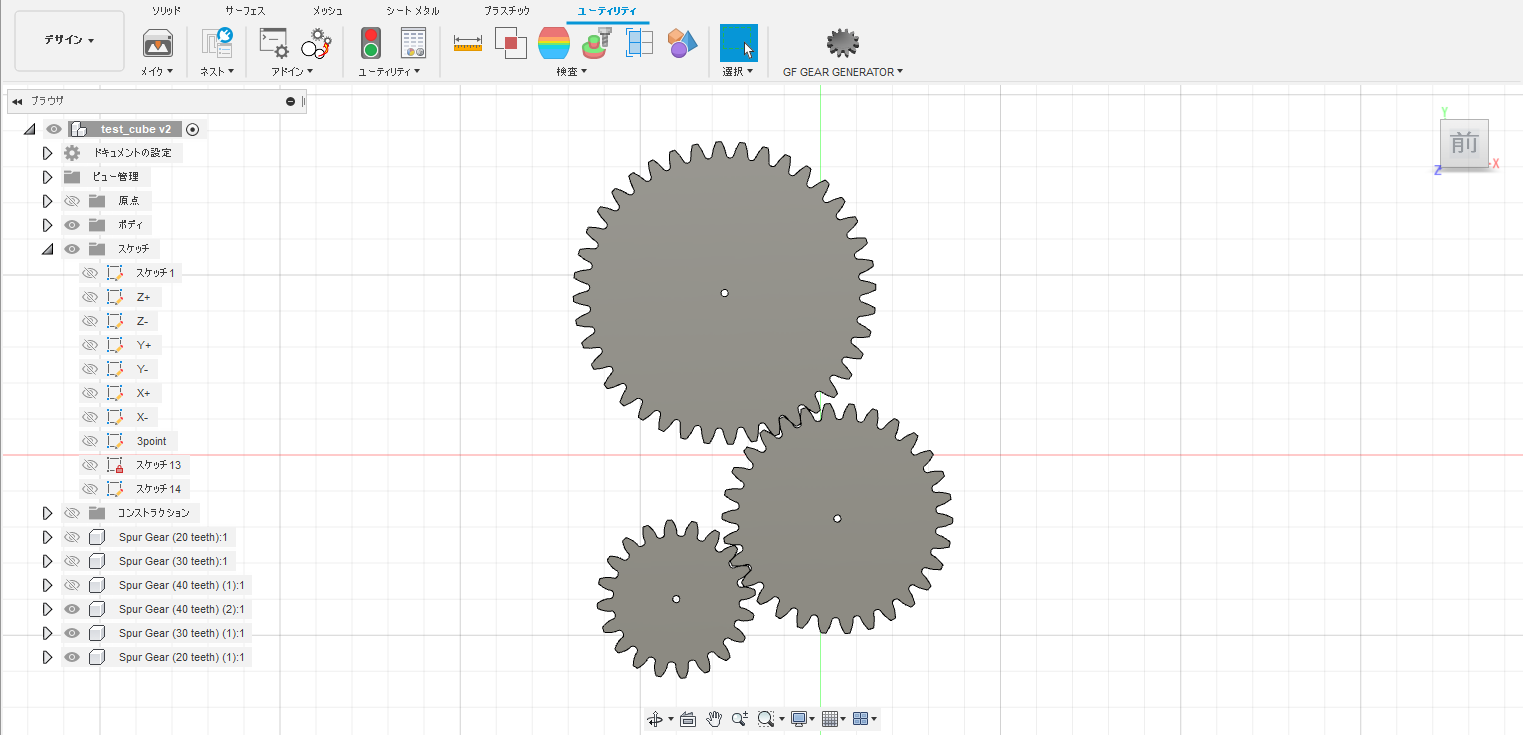

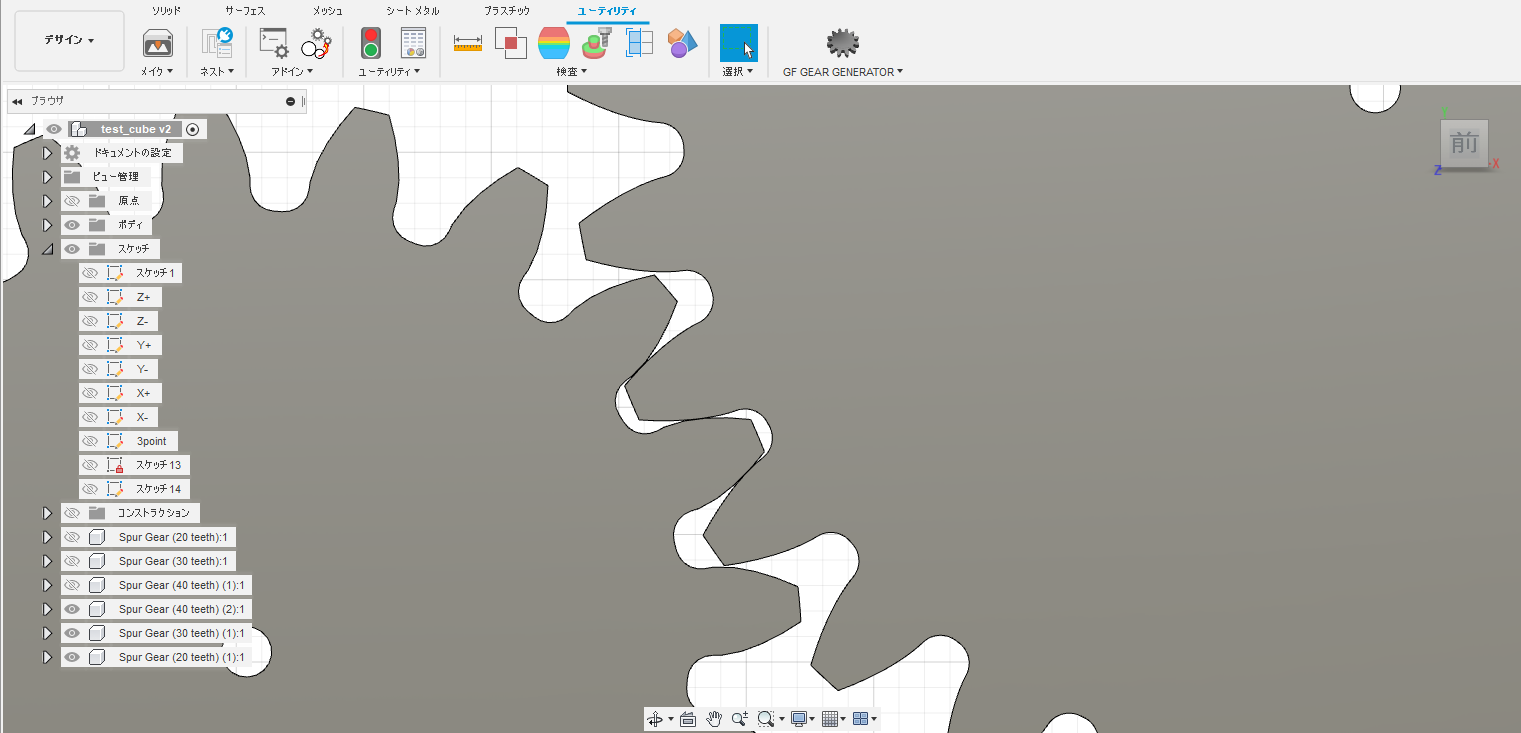

- Pitch circles in a meshing relationship cause the spur gears to be rotated and positioned at an angle of meshing.
- Whenever there is a combination of pitch circles touching each other, multiple combinations can be converted to spur gears in a single operation.

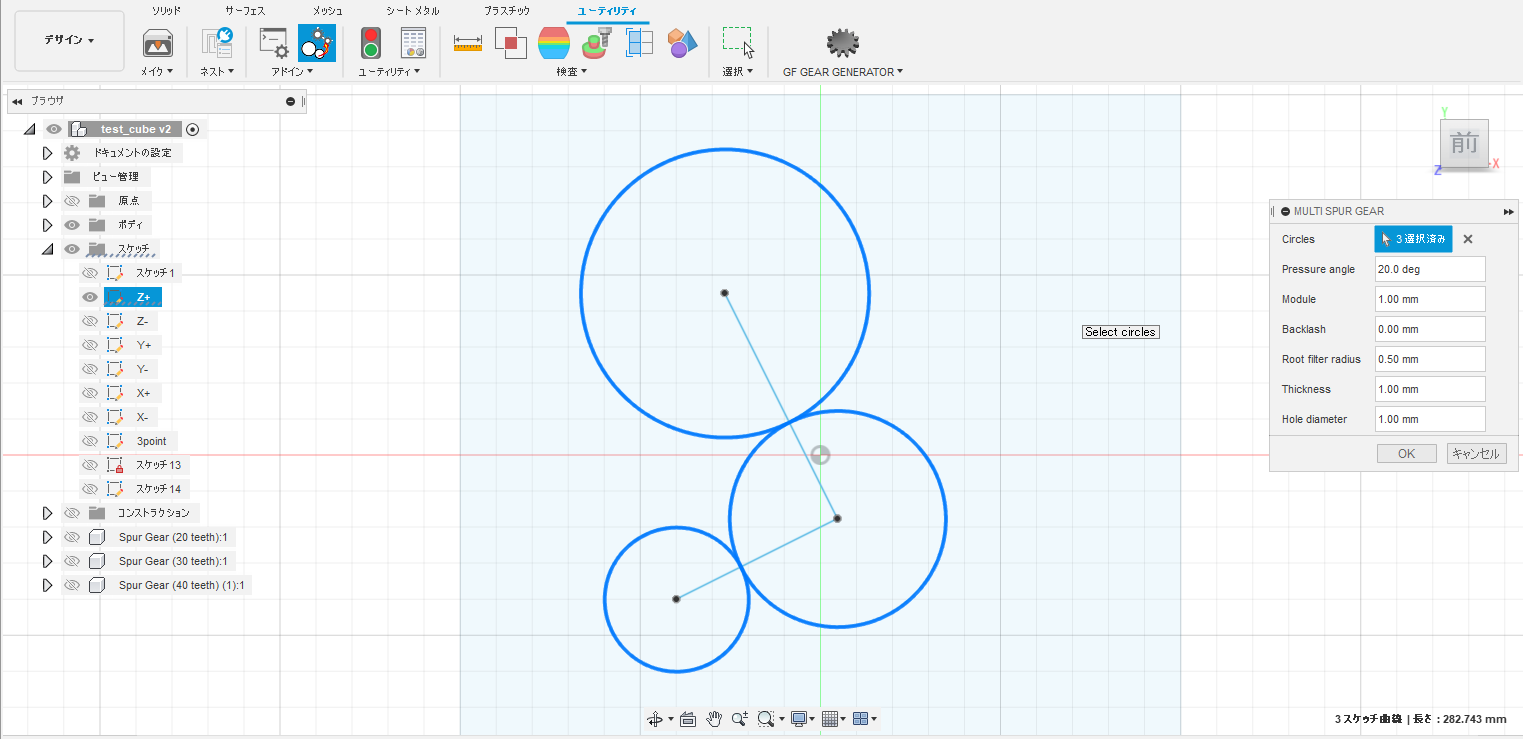

- The sketch plane for drawing pitch circles is not limited to the XY plane. Pitch circles drawn on any plane can be converted.
- Each spur gear is created as a separate component. Therefore, it is possible to set up motion links between spur gears.
- Gear trains can create external and internal gears.
