The "Tab and Slot" add-in allows for easy tab and slot creation on plate and tube models. It supports the Assembly and Multi-Body part environments.

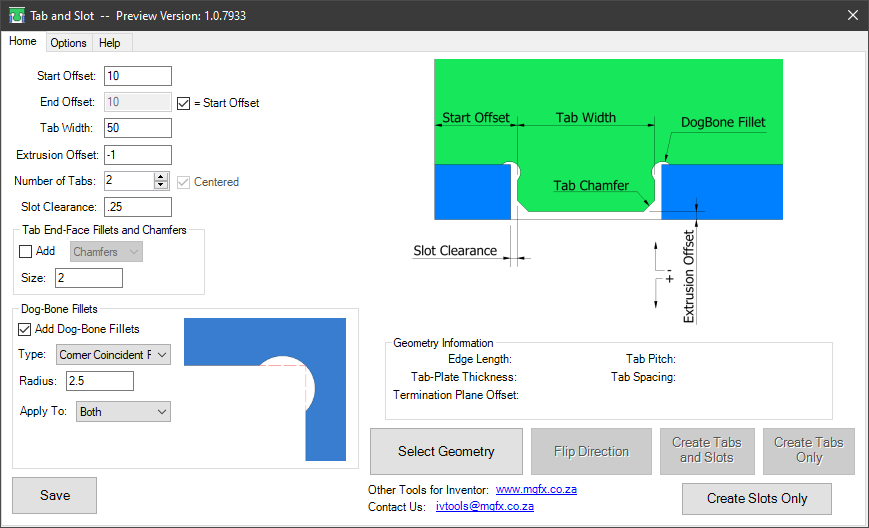

Any uniformly thick parts can be used to create tabs and slots. Further to that, "center drilled", "coincident", "Tangent" or "dog-bone" recess fillets can be added automatically to the Tabs or Slots or both.
The add-in supports Metric (mm) and Imperial (inch) units.
Note: This app uses a custom installer (and not the standard App Store installer).
Descripción de la versión de prueba
The app gives a 10-day trial after the first run.
A subscription can be purchased for $79USD per year.
Acerca de esta versión
Versión 3.0.1, 11/04/2023
<3.0.1>
- [New] Added an option to fillet sharp edges
- [Fixed] Bug fixes.
<3.0.0>
- [New] Added a Tangent Fillet option
-- Fillets can be added tangent to Short or Long side of slots or tangent to Plate or Tab edge of the tabs.
- [New] Added the ability to save your settings to file for easy recall. These setting presets makes it easy to configure many presets which can be recalled as needed.
<2.0.8362>
- [New] Added support for Multi-Body Parts.
-- The Tab and Slot app can now function when you have a Multi-Body part open with multiple solid bodies.
- [Fixed] Minor bug fixes.
<2.0.8270>
- [New] Tab and Slot has become a paid app. Thanks for everyone's feedback and contributions. We have a list of new features to add.
- [New] The price to subscribe to Tab and Slot is $79 per year.
-- Please email us for a quotation or invoice with payment details: ivtools@mgfx.co.za
<2.0.8234>
- [Fixed] Tab end-face fillets/chamfers did not compute in certain situations
<2.0.8216>
- [Improved] App Preview Expiry date was extended.
<2.0.8134>
- [Fixed] Slot extrusions have been set to "To Next" instead of Distance.
-- This has fixed tolerance issues on certain imperial part models
-- It also caters for if there are plate thickness changes that the slots and fillets will update accordingly
<2.0.8117>
- [New] Added support for Inventor 2023.
- [Fixed] Existing Slot features will now change size if plate thickness is changed when features are added adaptively.
<1.0.8075>
- [Fixed] Our Help Videos got a new home and we re-linked the video's on the Help tab to the new location.
<1.0.7964>
- [Improved] Better handling of imported tolerant models
-- Tolerant models are sometimes created when working with imported STEP, SAT etc. files which were generated by other CAD programs.
<1.0.7935>
- [Fixed] Better handling of assemblies with assembly features.
-- This includes Weldment assemblies with Machining and Weld Prep features.
- [Fixed] While selecting objects, the user can now press Escape and the selection process will end.
<1.0.7933>
- [New] Added support for Inventor 2020 and earlier.
-- We have tested the add-in with Inventor 2019 and 2020 for this build and it seems to work fine.
-- No testing was done for Inventor 2018 and earlier, but it should work. Please report any issues to us.
<1.0.0>
- [New] Initial release.
