Naca4CAD - Airfoil generator
M, R
System operacyjny:
Język:
Opis

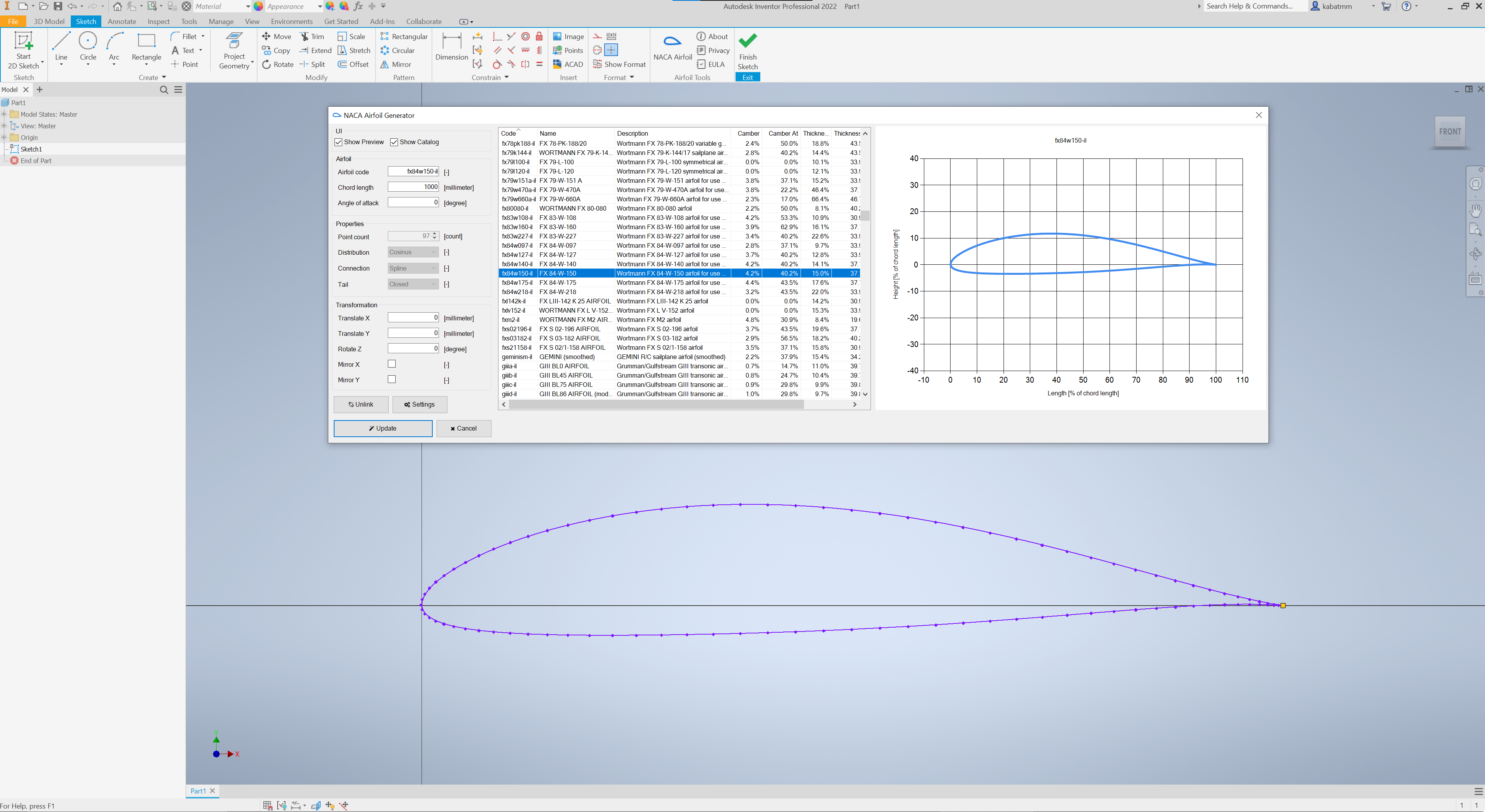

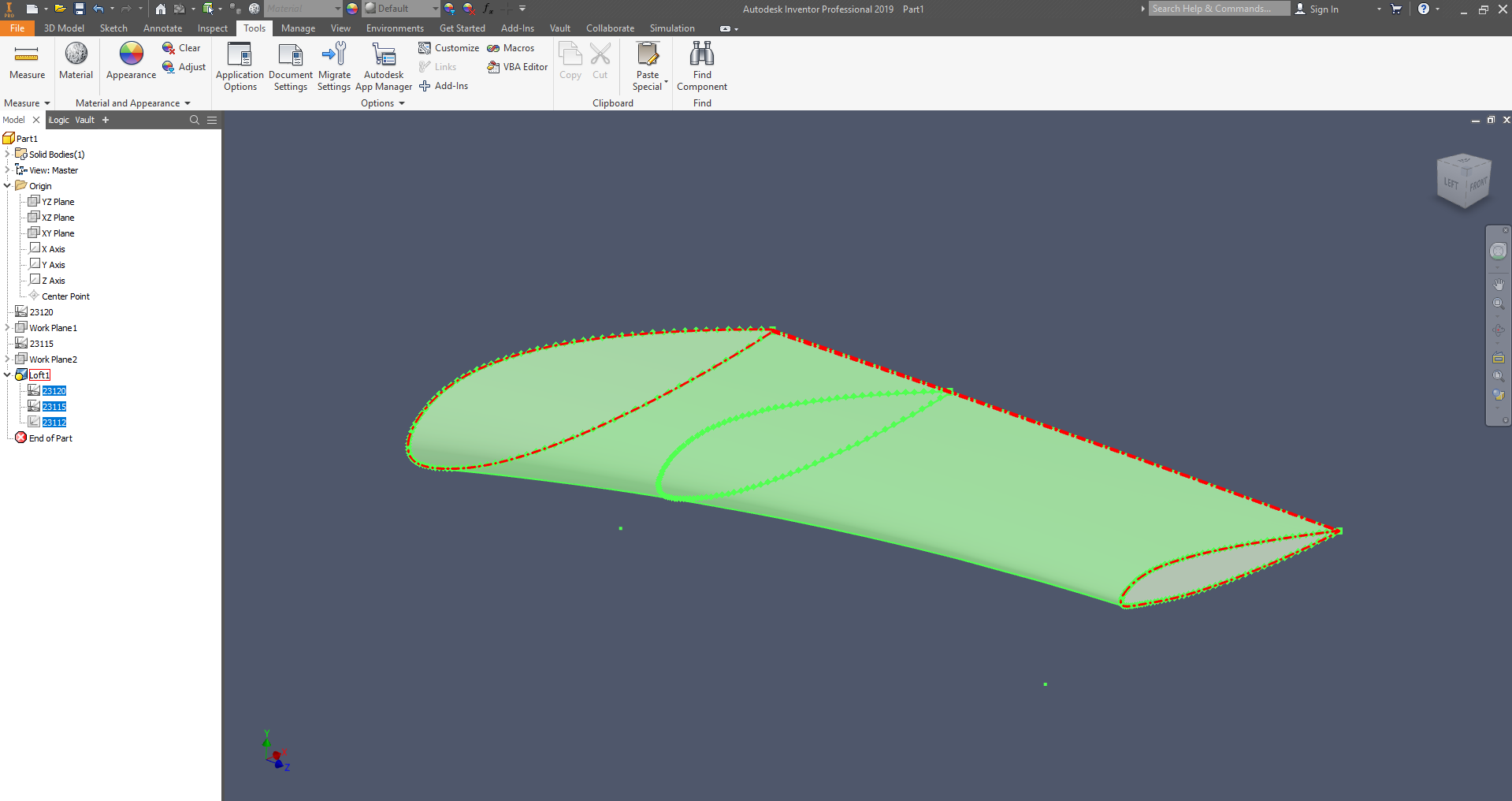

Airfoil Generator is an add-in for Autodesk® Inventor® which allows the user to generate Airfoil directly to the 2D Sketch and update the existing Airfoil.
Naca4CAD

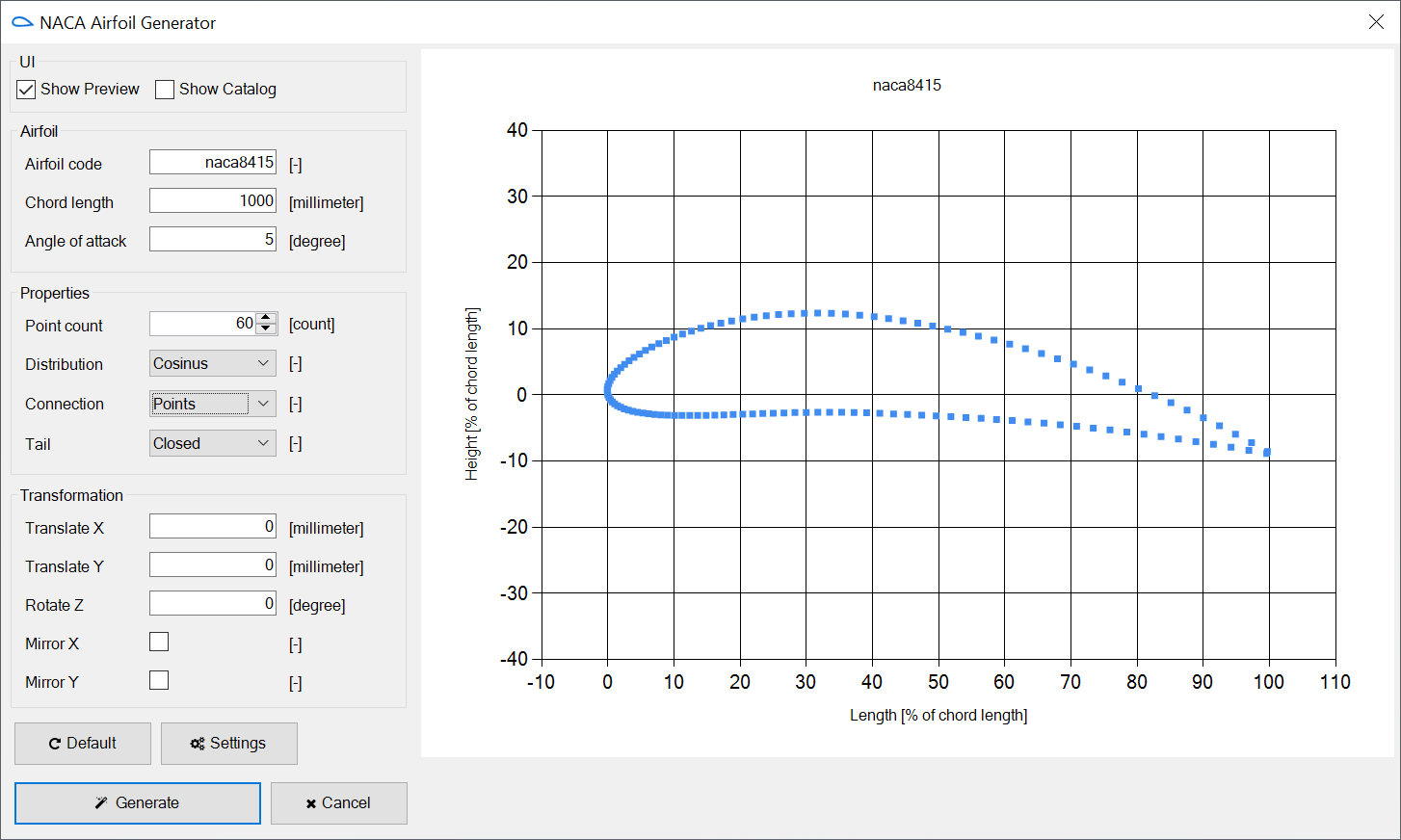

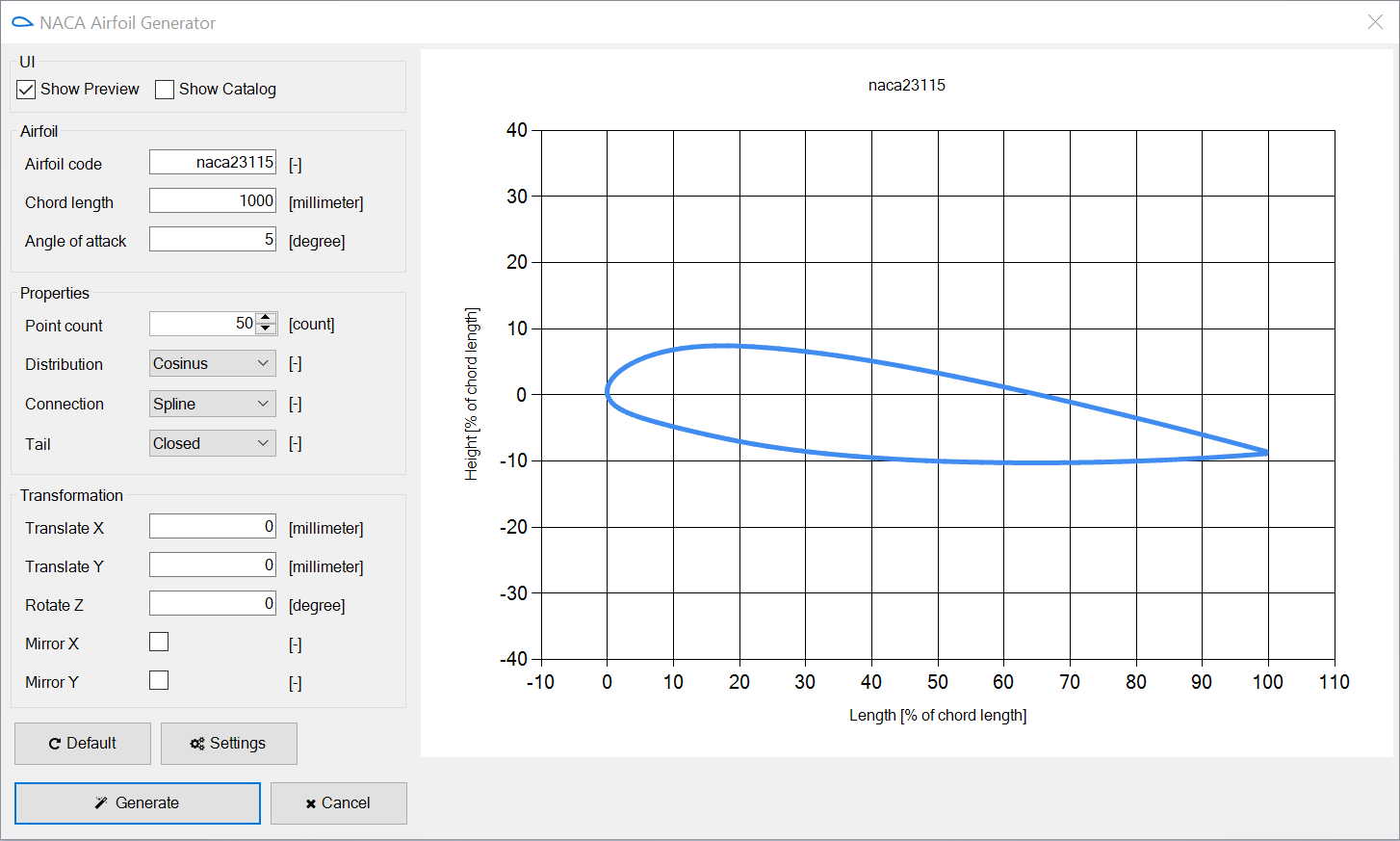

Generate 4 & 5 digit series of NACA
+

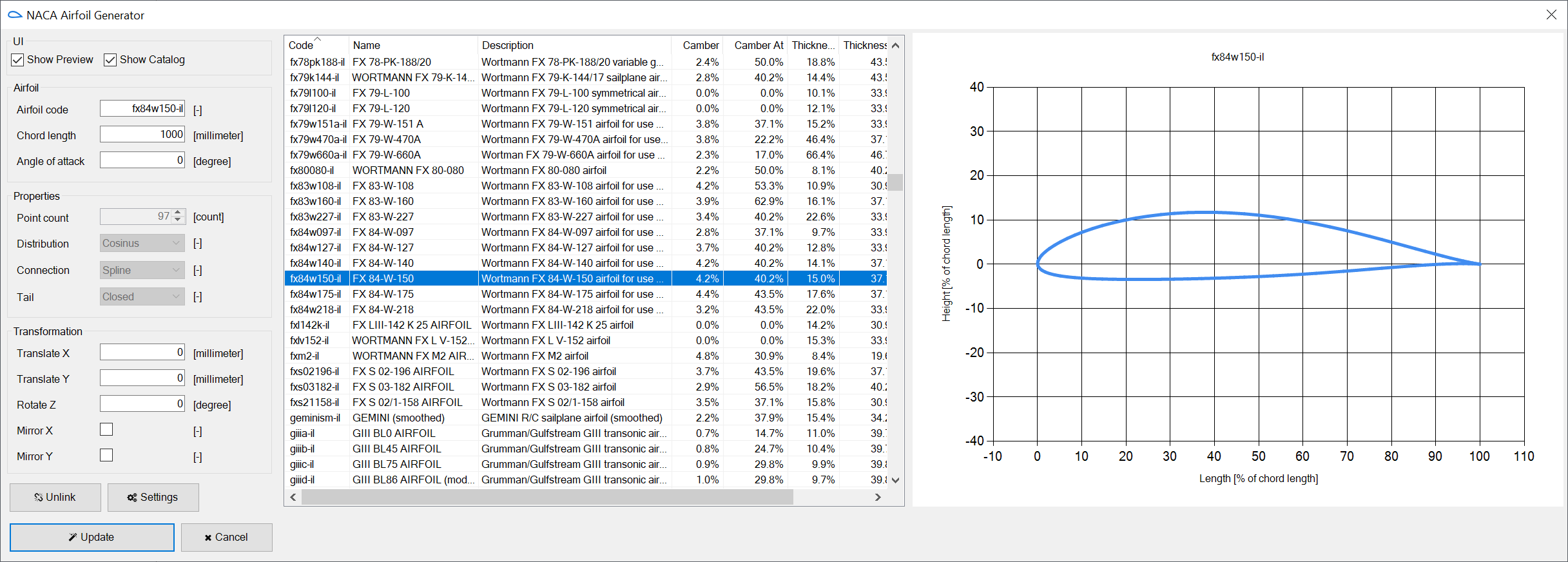

Use huge catalog with more like 1600 most popular Airfoils with predefined points
This add-in saves tons of time in:

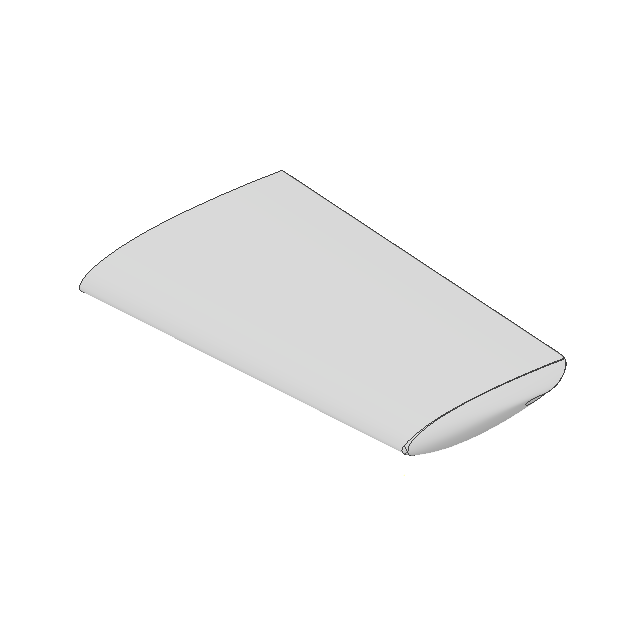

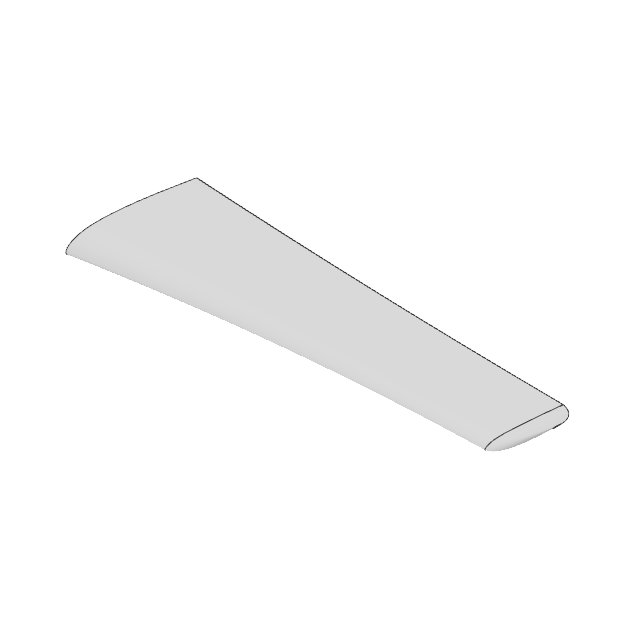

- generating wings, ailerons

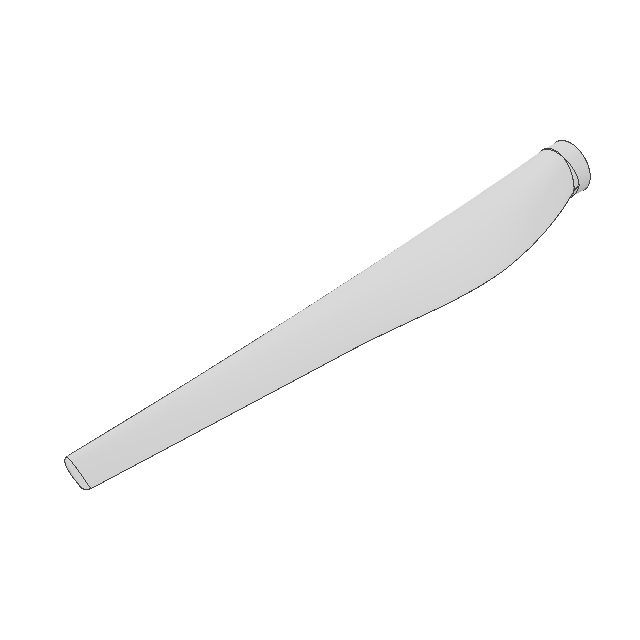

- modeling aircraft propellers and wind turbines
- optimizing water pump, fans and turbines blades
- reducing the pressure drop
- eliminating Karman vortex street behind objects in tubes and pipes
If you have problems with installation or any questions about the add-in, don't be worried contact us, we can remotely help you:
www.naca4cad.com
hello@naca4cad.com
+420 607 624 470
Informacje na temat tej wersji
Wersja 3.2.2, 01.09.2023
Added: Support for Inventor 2024 (v29)
Being able to quickly generate AND update (new feature) NACA profiles within Inventor is well worth the investment.
