The "Tab and Slot" add-in allows for easy tab and slot creation on plate and tube models. It supports the Assembly and Multi-Body part environments.

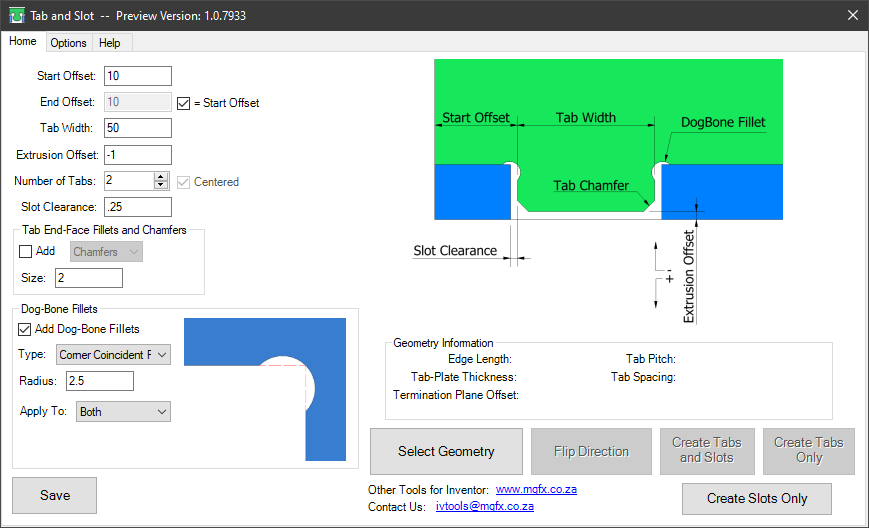

Any uniformly thick parts can be used to create tabs and slots. Further to that, "center drilled", "coincident", "Tangent" or "dog-bone" recess fillets can be added automatically to the Tabs or Slots or both.

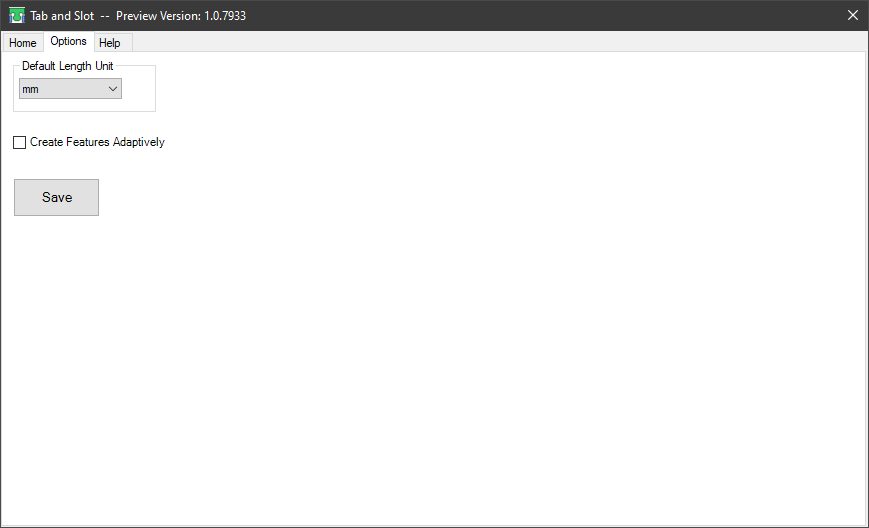

The add-in supports Metric (mm) and Imperial (inch) units.
Note: This app uses a custom installer (and not the standard App Store installer).
試用版描述
The app gives a 10-day trial after the first run.
A subscription can be purchased for $79 USD per year.
關於此版本
版本 3.0.5, 2025/4/23
<3.0.5>
- [New] Added support for Inventor 2026.
- [New] Added Slot from Face command.
-- This can be used to create slots from tabs not created by Tab and Slot.
-- See video for details.
Currently i have installed but nothing is working.
Hi it is available for Inventor 2025. Please contact me using the email provided in the app, on the Help tab, and I will help you from there.
This tool is very handy when it comes to designing and fabricationg frames.
I will say that a good improvement would be the option to adjust the slot clearance independently as a Top & Bottom and Left & right sides rather than having the slot clearance remain the same all the way around the tab.
This added flexibility would be a great improvement.
Thanks for the feedback. I presume you would want the width clearance set independently to the length clearance. Email me through the app so we can talk details.
It would be great to have app also for Inventor 2025 , when we should expect it ?
There is already a 2025 version.
I would not do with out it but ther are a 2 things that would be nice
1. it would be nice if the tabs would chaing whith the part wen you chaing the size and spacing of the part, or then if you cold some how update old tabes insted of deleting them and then making them agen .
2.would ther be a way if ther are mutipel instences of the same part in the assemble to make it put the slots in for all the parts at the same time
other wis the works great
Thanks for the review and recommendations. We are looking at incorporating point 1 already. For point 2 there is a workflow to add slots only if you have a part that already has slots added. In the demo video we show that.
