説明

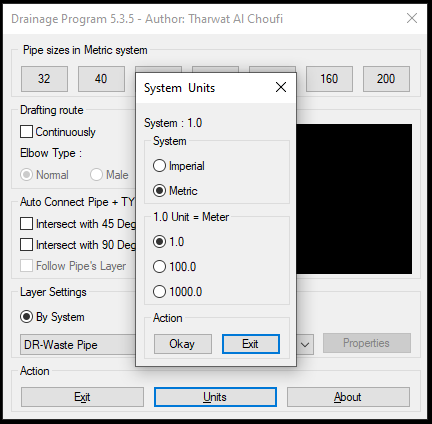

Using this app, you can draft the Drainage System professionally, using the two systems - Inch and Metric. In metric, two scales are provided, 1.0 and 1000.0. The 1.0 scale means 1.0 unit is equal to one meter in the drawing and the 1.000.0 scale means 1000.0 unit is equal to one meter. You can choose which one you prefer as per your drawing settings/units but currently with Trial version you can use just one scale which is 1.0 and once you purchase your full and permanent copy of the program then you can enjoy the entire fore-said scales.

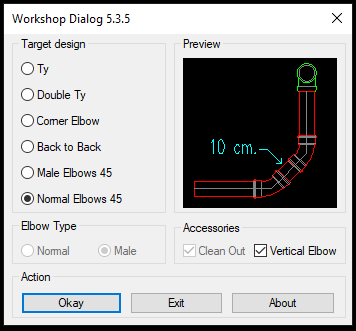

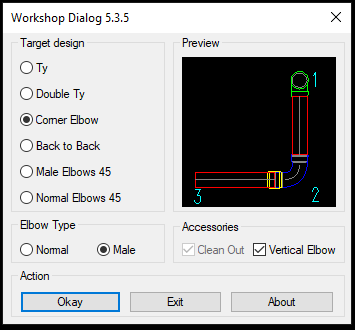

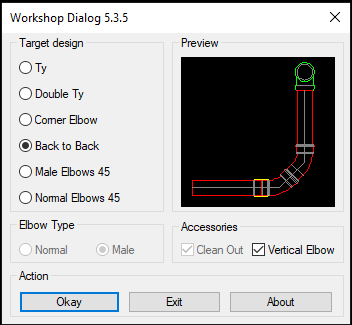

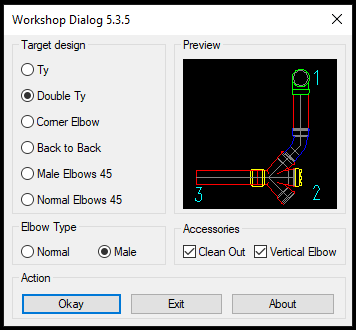

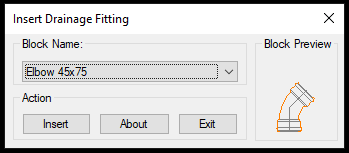

With this release 5.3.5 of the Drainage program is now having more Drainage fittings added to the program with more options to preview the presentation of the outcome before implementation with a bit different dialog forms for inserting fittings based on the desire of the user along with many options added via specifying two clicks only to get the job done based on your go.

体験版の説明

You can run this program for 15 days before the program expires.

このバージョンについて

バージョン 5.3.5, 2024/04/08
Added 2025 support

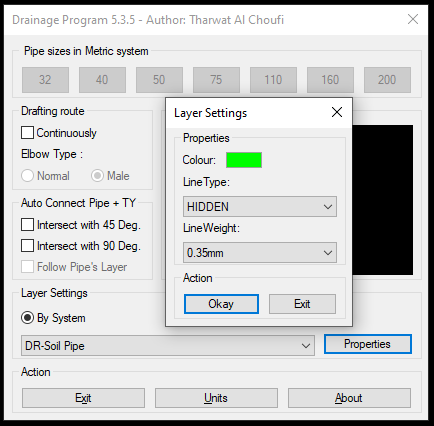

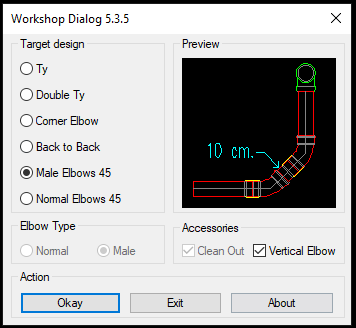

スクリーンショットとビデオ


カスタマ レビュー

5 件のレビュー
テクニカル ヘルプを表示
  • Unit Problem
    Agung Kartika | 10月 11, 2024 確認済みダウンロード (これは何ですか?)

    the unit cannot be changed, please help

    Tharwat Al Shoufi (公開元) | 10月 14, 2024

    You need to press the button 'units' from main dialogue.


  • Drainage
    ilhan özdemir | 3月 30, 2024 確認済みダウンロード (これは何ですか?)

    It's a good program. But it would be better if there was video training.

    Tharwat Al Shoufi (公開元) | 4月 07, 2024

    Thank you for your valuable note. The link is already there as in my all application on Autodesk Apps. Store but it seems that the link is broken so here you go: https://youtu.be/dU5a-D-wrvs

    Tharwat Al Shoufi (公開元) | 4月 07, 2024

    Thank you for your valuable note, the link is already there but it seems broken.! You can find the latest version on my website along with the video link. https://autolispprograms.wordpress.com/one/drainage-pipe/


  • great work
    Pedro Torres Garcia | 7月 05, 2021

    por favor envíame un correo con los costos de tus apps versión final y futuras versiones...

    saludos, gran trabajo



    Tharwat Al Shoufi (公開元) | 7月 06, 2021

    Hola pedro Necesitas enviarme un correo electrónico a: tharwat313@yahoo.com entonces puedo enviarte los costos que quieras. Puede encontrar mi sitio web y mi correo electrónico en la parte superior derecha de esta página.


  • Arquitecto
    David Tixi | 12月 25, 2019 確認済みダウンロード (これは何ですか?)

    Muy buena

    Tharwat Al Shoufi (公開元) | 12月 27, 2019

    Gracias y me alegra escuchar eso. Ya he actualizado este programa a la versión 4.5.0 pero aún no lo he actualizado aquí en Autodesk Apps. Tienda. para obtener la última versión al ordenar la programación con seguridad. Tharwat


  • Great program
    John Rocks | 8月 29, 2018

    Thank you Tharwat for this wonderful program, it is working like a charm with powerful options & teqhniques.

    5 Stars program.

    Tharwat Al Shoufi (公開元) | 8月 30, 2018

    Glad to hear that and thank you for your feedback.
