Swagelok Fittings Content Pack 2026
支払済
OS:
言語:
説明
This catalog includes stainless steel block-based tubes and fittings designed according to the Swagelok
standard for high-performance and precision applications.

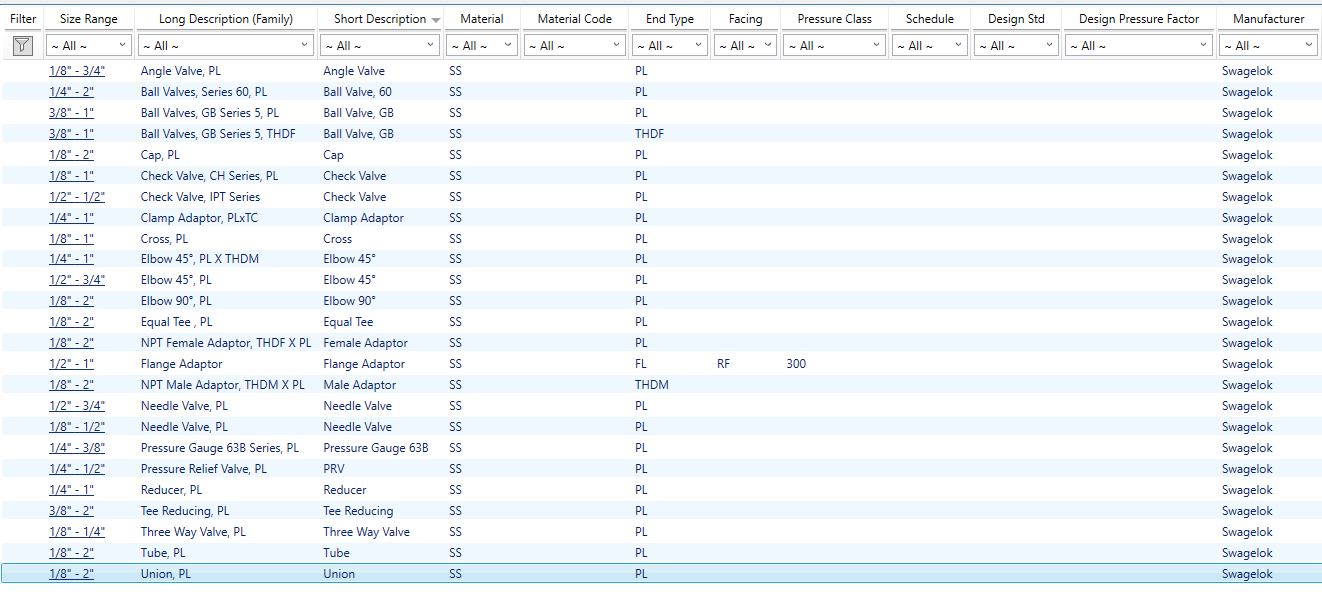

| Minimum Size | To | Maximum Size | Long Description |
| -------------------------------------------------- Cap ---------------------------------------------- | |||
| 1/8" | to | 2" | Cap, PL |
| -------------------------------------------------- Coupling ----------------------------------------- | |||
| 1/4" | to | 1" | Clamp Adaptor, PLxTC |
| 1/8" | to | 2" | NPT Female Adaptor, THDF X PL |
| 1/8" | to | 2" | NPT Male Adaptor, THDM X PL |
| 1/4" | to | 1" | Reducer, PL |
| 1/8" | to | 2" | Union, PL |
| -------------------------------------------------- Cross -------------------------------------------- | |||
| 1/8" | to | 1" | Cross, PL |
| -------------------------------------------------- Elbow -------------------------------------------- | |||
| 1/2" | to | 3/4" | Elbow 45°, PL |
| 1/4" | to | 1" | Elbow 45°, PL X THDM |
| 1/8" | to | 2" | Elbow 90°, PL |
| 1/2" | to | 1" | Flange Adaptor |
| -------------------------------------------------- Instrument --------------------------------------- | |||
| 1/4" | to | 3/8" | Pressure Gauge 63B Series, PL |
| -------------------------------------------------- Pipe --------------------------------------------- | |||
| 1/8" | to | 2" | Tube, PL |
| -------------------------------------------------- Tee ---------------------------------------------- | |||
| 1/8" | to | 2" | Equal Tee, PL |
| 3/8" | to | 2" | Tee Reducing, PL |
| -------------------------------------------------- Valve -------------------------------------------- | |||
| 1/8" | to | 3/4" | Angle Valve, PL |
| 3/8" | to | 1" | Ball Valves, GB Series 5, PL |
| 3/8" | to | 1" | Ball Valves, GB Series 5, THDF |
| 1/4" | to | 2" | Ball Valves, Series 60, PL |
| 1/8" | to | 1" | Check Valve, CH Series, PL |
| 1/2" | to | 1/2" | Check Valve, IPT Series |
| 1/2" | to | 3/4" | Needle Valve, PL |
| 1/8" | to | 1/2" | Needle Valve, PL |
| 1/4" | to | 1/2" | Pressure Relief Valve, PL |
| 1/8" | to | 1/4" | Three Way Valve, PL |
Es fehlen zu viele Größen. Rausgeschmiessenes Geld. Wenn ich 50% selber erstellen muss dann kann ich auch alles machen
Hi, thanks for feedback. we have covered the Widley used Standard fittings and sizes as mentioned in the app description. If you would like to add any other fittings, please let us know. We will add you free of cost.
Very Limited sizes and fittings
Hi, Thanks for feedback, we have added the missing components and sizes in the App Store latest version.
I was hopefully that this had must of the fittings in it, only to find out that it was very basic. So I was very disappointed in the limited sizes and how many different common compontents were missing.
Hi, Thanks for feedback, we have added the missing components and sizes in the App Store latest version.
THE SPEC IS USEFUL , BUT MISSING OTHER SIZES OF VALVES AND CHECK VALVES.
HOPE IT WILL BE ADDED IN THE NEXT UPDATES
Hi, Thanks for feedback, we have added the missing components and sizes in the App Store latest version.
Very useful in Penumatic piping design
Thank you.
