DIN 11850 fittings valves Python catalog - Metric
Opis

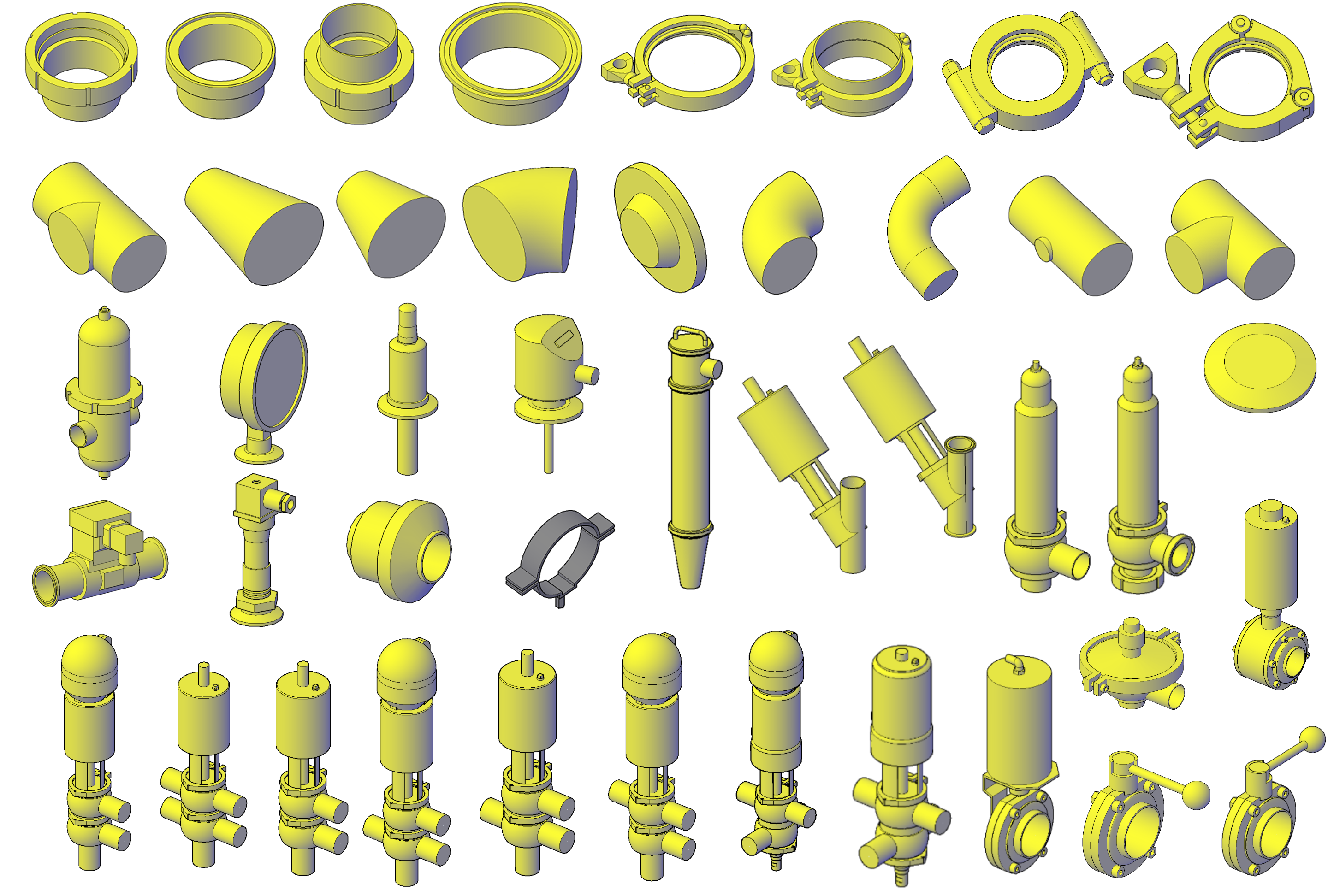

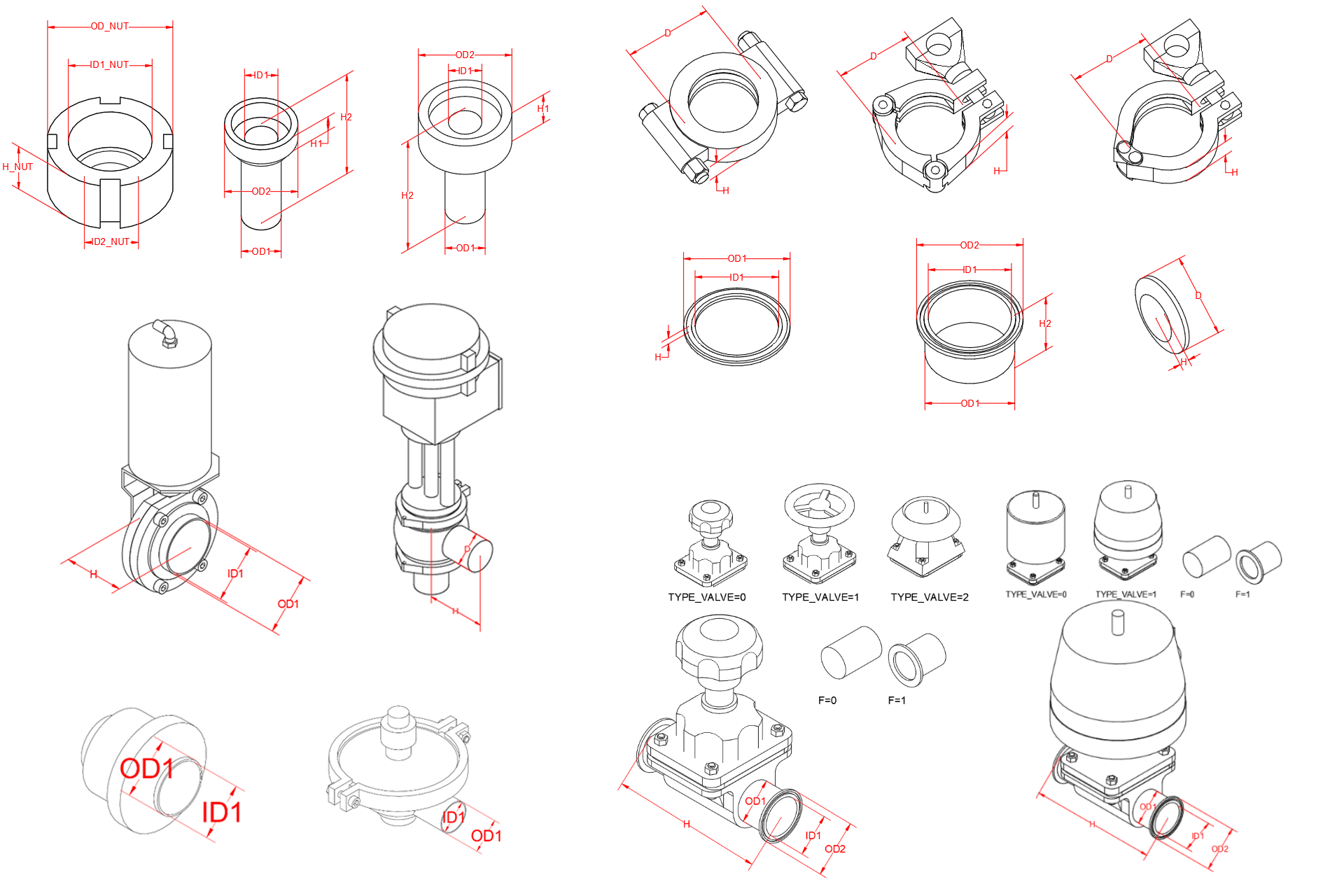

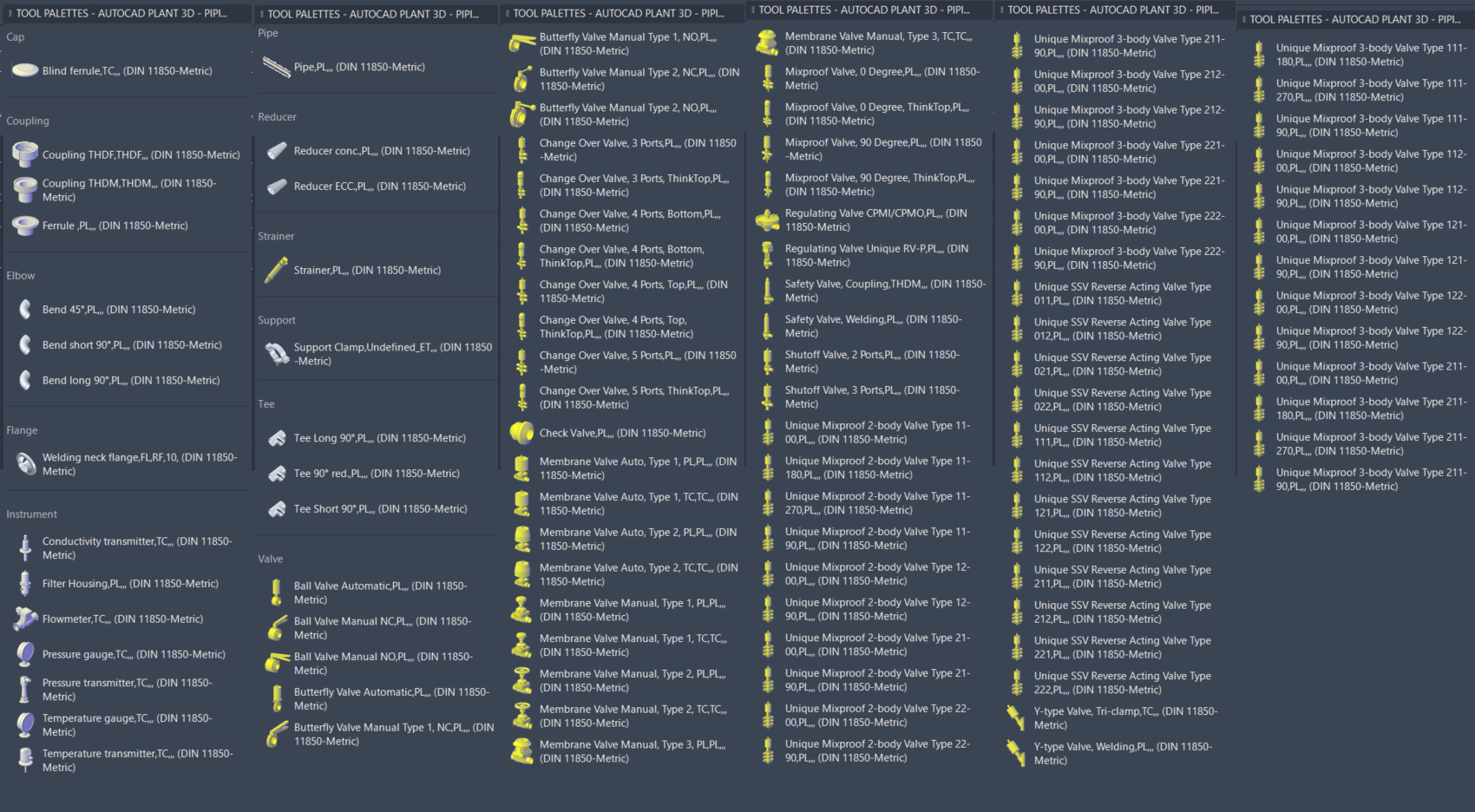

This package includes custom Python scripts for use in modeling DIN 11850 (EN 10357) piping in Autodesk® AutoCAD® Plant 3D. The catalog fully supports the export of Isometric drawings including a Mixproof 4-way valve, Change over valve, and shutoff valve. List of components see the Screenshot for more details.
Pipe: DIN 11850 series 2 (pipe OD 13 19 23 29 35 41 53 70 85 104 129 154 204mm). Long Description (Size) is from DN10 to DN200
Cap
Blind ferrule
Clamp
3 Segments Clamp
Clamp High Pressure
Tri Clamp 13MHHM
Coupling
Coupling THDF DIN 11851
Coupling THDM DIN 11851
Ferrule DIN 32676
Elbow
Bend 45 DIN 11852
Bend 90 DIN 11852
Bend Long 90 DIN 11852
Flange
Flange FF DIN 118642
Gasket
Gasket Triclamp EPDM
Gasket Triclamp PTFE

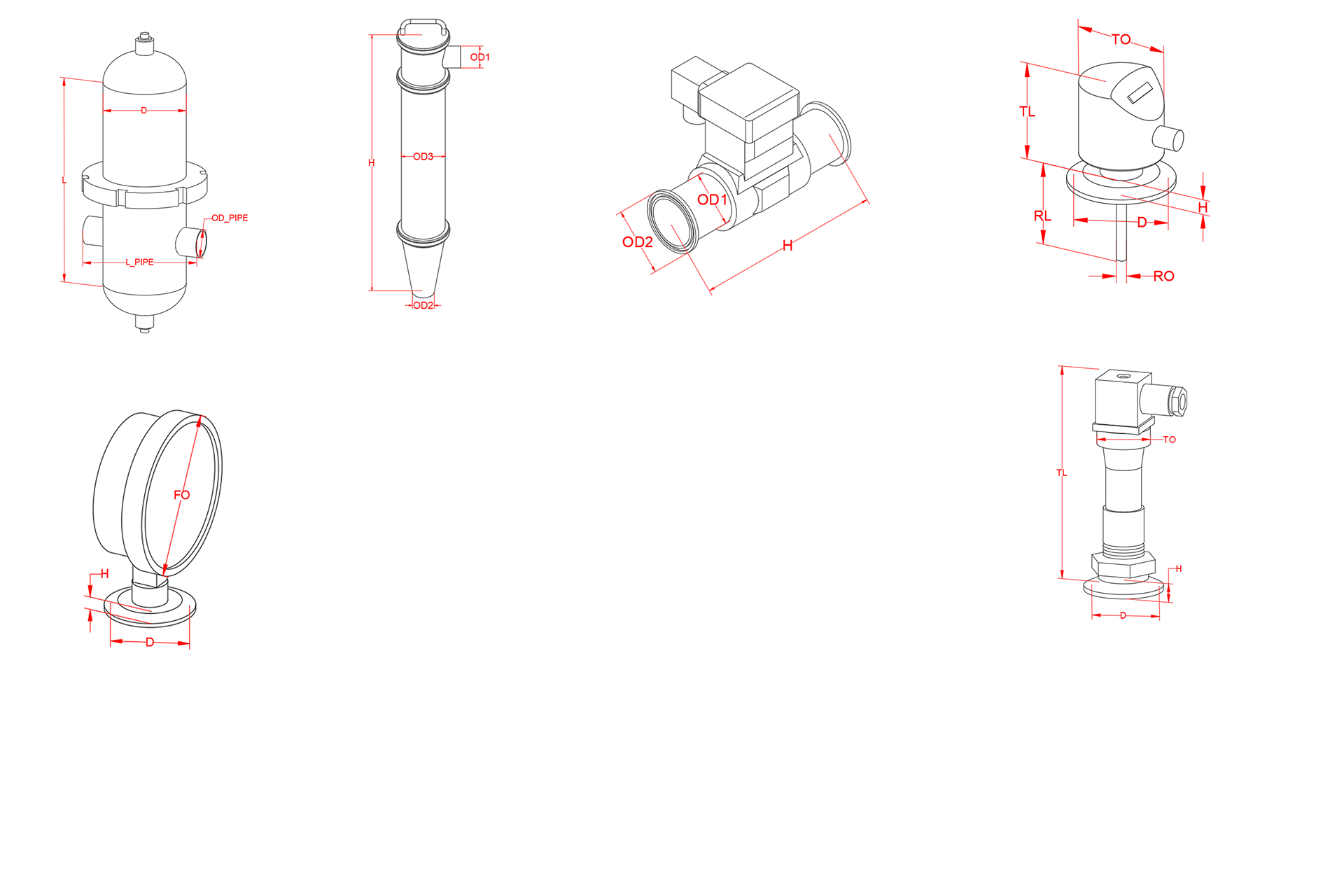

Instrument
Conductivity transmitter
Filter Housing
Flowmeter
Pressure gauge
Pressure transmitter
Temperature gauge
Temperature transmitter
Pipe
Pipe DIN 11850
Reducer
Reducer DIN 11852
Reducer ECC DIN 11852
Strainer
Strainer
Support
Support Clamp
Tee
Tee long DIN 11852
Tee Reducer DIN 11852
Tee Short DIN 11852

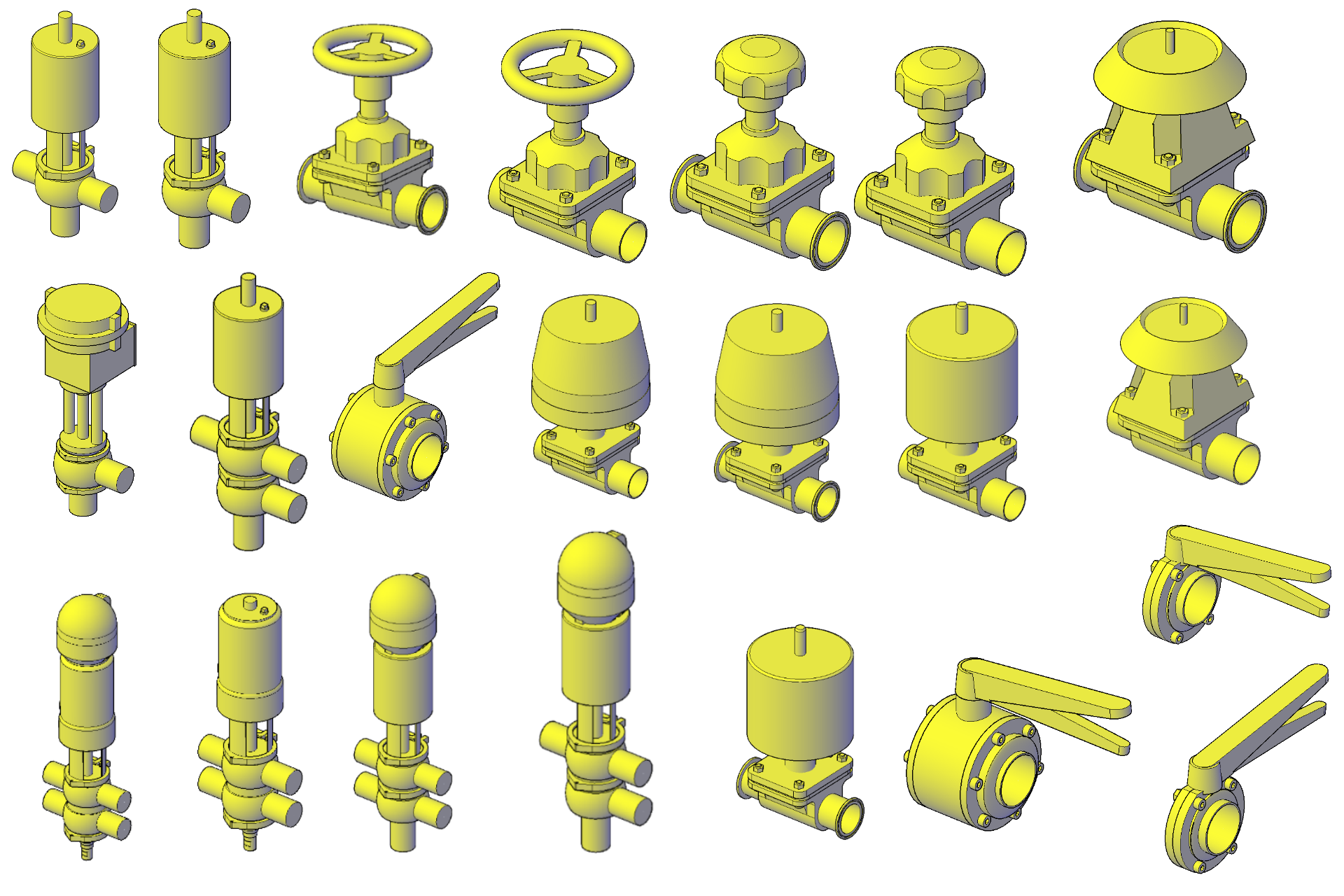

Valve
Ball Valve Automatic
Ball Valve Manual NC
Ball Valve Manual NO
Butterfly Valve Automatic
Butterfly Valve Manual Type 1, NC
Butterfly Valve Manual Type 1, NO
Butterfly Valve Manual Type 2, NC
Butterfly Valve Manual Type 2, NO
Change Over Valve, 3 Ports
Change Over Valve, 3 Ports, ThinkTop
Change Over Valve, 4 Ports, Bottom
Change Over Valve, 4 Ports, Bottom, ThinkTop
Change Over Valve, 4 Ports, Top
Change Over Valve, 4 Ports, Top, ThinkTop
Change Over Valve, 5 Ports
Change Over Valve, 5 Ports, ThinkTop
Check Valve
Membrane Valve Auto, Type 1, PL
Membrane Valve Auto, Type 1, TC
Membrane Valve Auto, Type 2, PL
Membrane Valve Auto, Type 2, TC
Membrane Valve Manual, Type 1, PL
Membrane Valve Manual, Type 1, TC
Membrane Valve Manual, Type 2, PL
Membrane Valve Manual, Type 2, TC
Membrane Valve Manual, Type 3, PL
Membrane Valve Manual, Type 3, TC
Mixproof Valve, 0 Degree
Mixproof Valve, 0 Degree, ThinkTop
Mixproof Valve, 90 Degree
Mixproof Valve, 90 Degree, ThinkTop
Regulating Valve CPMI/CPMO
Regulating Valve Unique RVP
Safety Valve, Coupling
Safety Valve, Welding
Shutoff Valve, 2 Ports
Shutoff Valve, 3 Ports

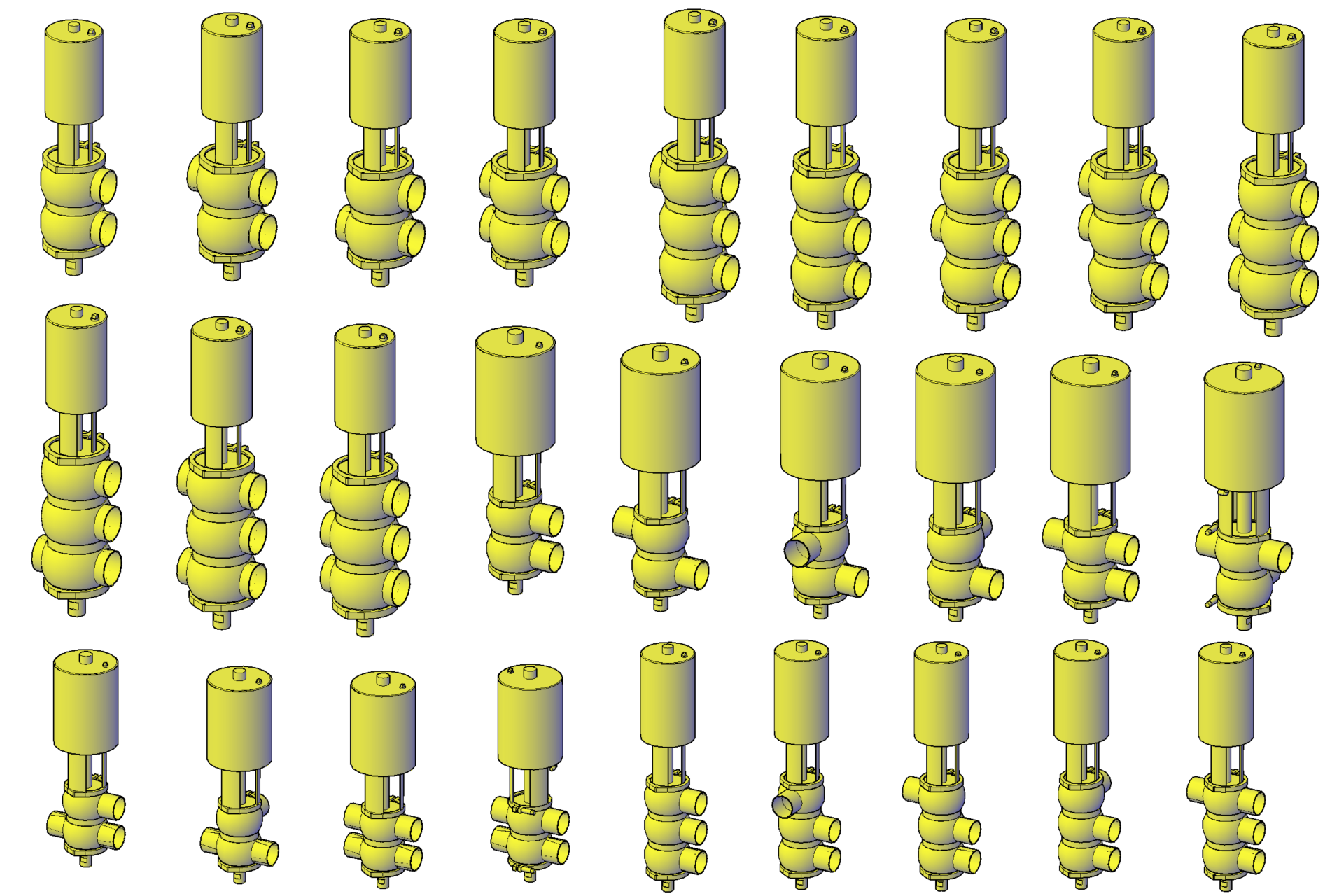

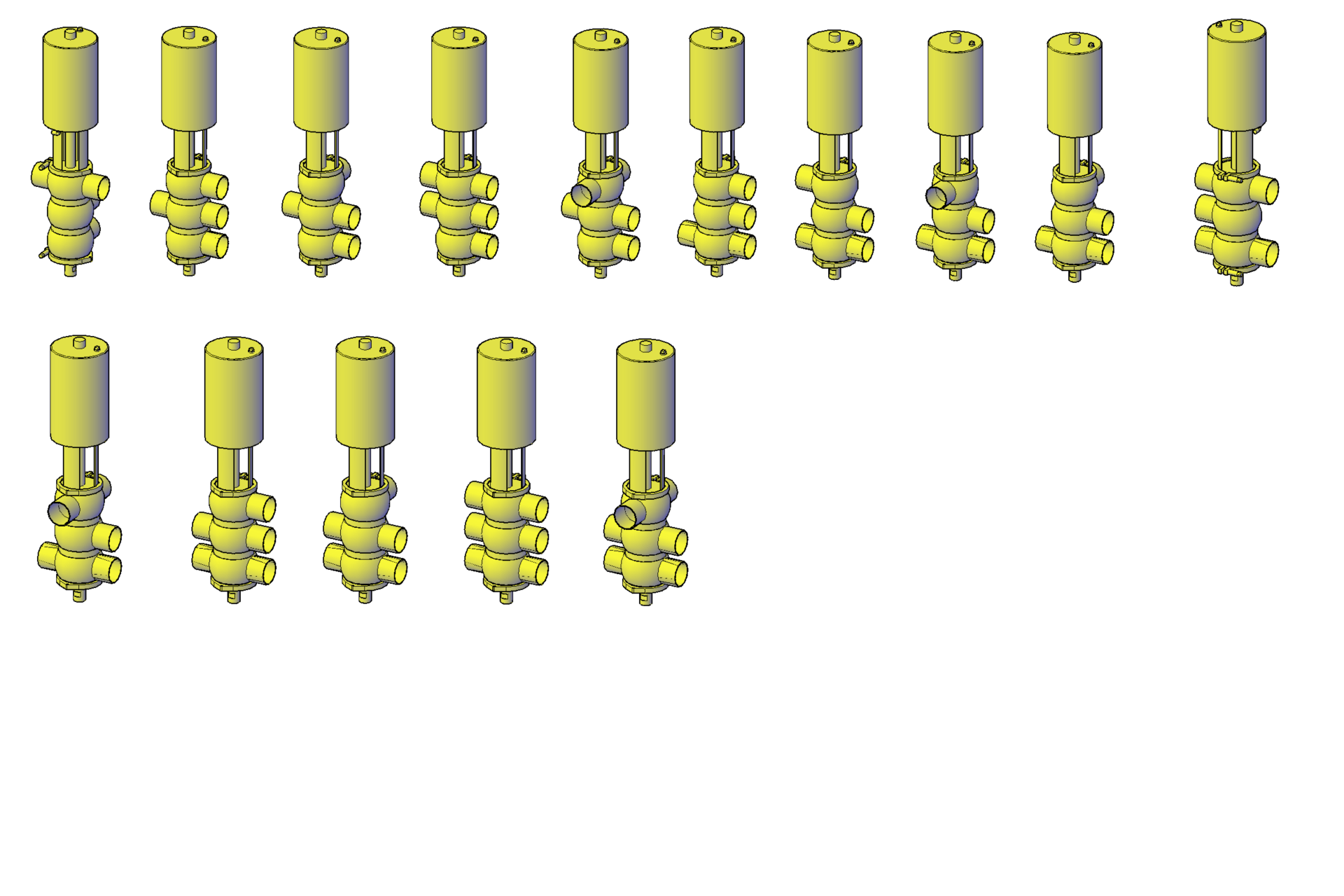

Unique Mixproof 2body Valve Type 1100
Unique Mixproof 2body Valve Type 11180
Unique Mixproof 2body Valve Type 11270
Unique Mixproof 2body Valve Type 1190
Unique Mixproof 2body Valve Type 1200
Unique Mixproof 2body Valve Type 1290
Unique Mixproof 2body Valve Type 2100
Unique Mixproof 2body Valve Type 2190
Unique Mixproof 2body Valve Type 2200
Unique Mixproof 2body Valve Type 2290
Unique Mixproof 3body Valve Type 11100
Unique Mixproof 3body Valve Type 111180
Unique Mixproof 3body Valve Type 111270
Unique Mixproof 3body Valve Type 11190
Unique Mixproof 3body Valve Type 11200
Unique Mixproof 3body Valve Type 11290
Unique Mixproof 3body Valve Type 12100
Unique Mixproof 3body Valve Type 12190
Unique Mixproof 3body Valve Type 12200
Unique Mixproof 3body Valve Type 12290
Unique Mixproof 3body Valve Type 21100
Unique Mixproof 3body Valve Type 211180
Unique Mixproof 3body Valve Type 211270
Unique Mixproof 3body Valve Type 21190
Unique Mixproof 3body Valve Type 21200
Unique Mixproof 3body Valve Type 21290
Unique Mixproof 3body Valve Type 22100
Unique Mixproof 3body Valve Type 22190
Unique Mixproof 3body Valve Type 22200
Unique Mixproof 3body Valve Type 22290
Unique SSV Reverse Acting Valve Type 011
Unique SSV Reverse Acting Valve Type 012
Unique SSV Reverse Acting Valve Type 021
Unique SSV Reverse Acting Valve Type 022
Unique SSV Reverse Acting Valve Type 111
Unique SSV Reverse Acting Valve Type 112
Unique SSV Reverse Acting Valve Type 121
Unique SSV Reverse Acting Valve Type 122
Unique SSV Reverse Acting Valve Type 211
Unique SSV Reverse Acting Valve Type 212
Unique SSV Reverse Acting Valve Type 221
Unique SSV Reverse Acting Valve Type 222
Ytype Valve, Triclamp
Ytype Valve, Welding

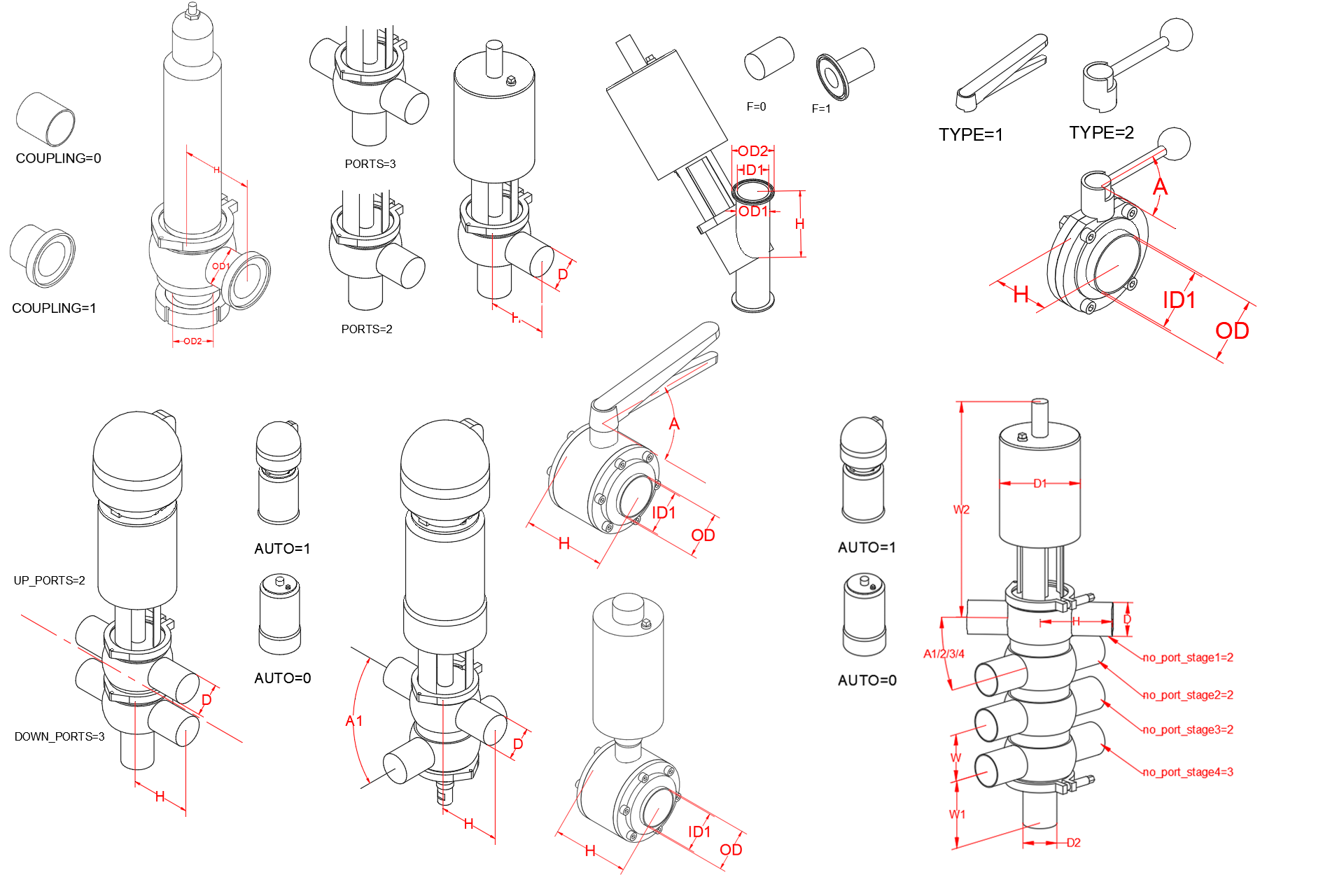

All components are custom Python scripts, so you can change the length pipe, number of ports, head automation, type of connection (plain, ferrule, or coupling), etc. DIRECTLY IN THE DRAWING
Note: This app uses a custom installer (and not the standard App Store installer).
regards
i'm trying to install it but required key. i look for it in the email but i dont get see it. please, i need solve as soon as possible
thanks
Problem solved. If anyone have same issue, please kindly check your spam folder email as well. Thank you.
All products are always a luxury! Thank you for your work
Good catalog, hope that you shall publish more catalog for Plant 3D next time,
All valves & piping are really good. It went smoothly while I was working on the line in 3D.
The communication was excellent when I had a minor issue.
Thanks

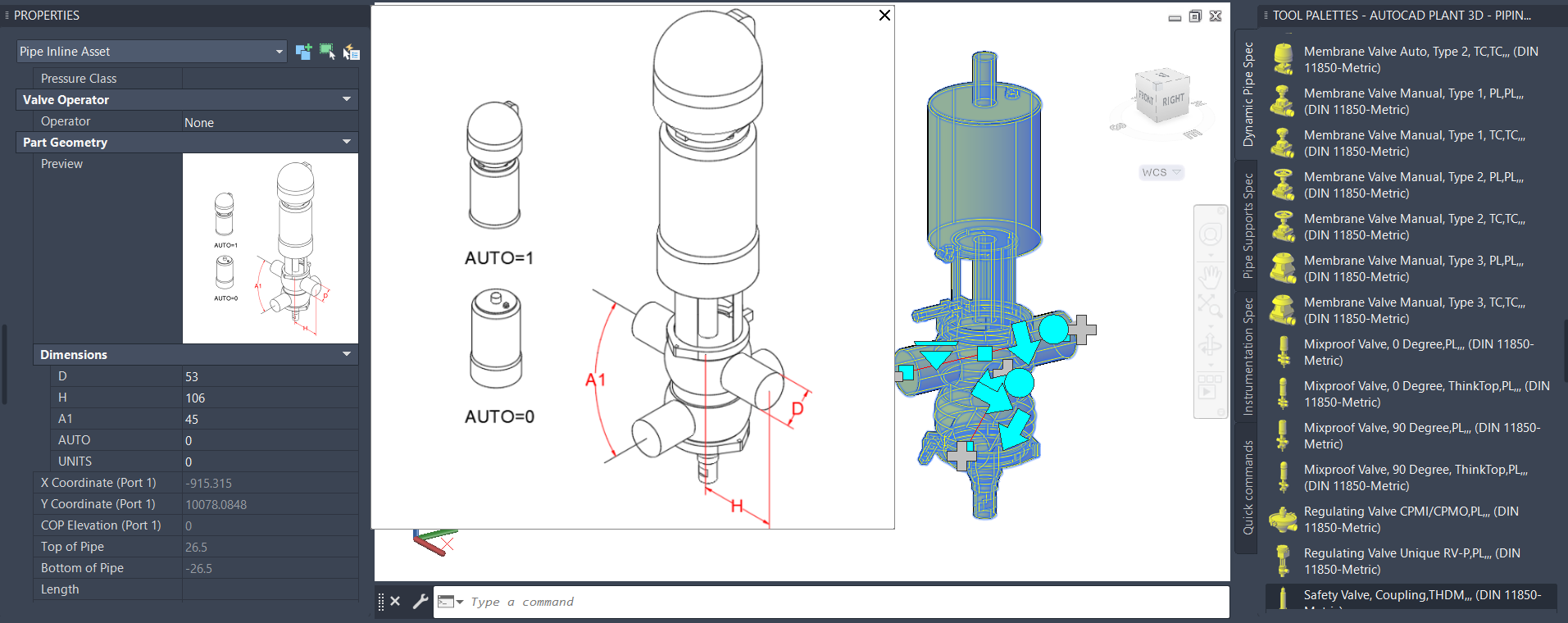

Hi please change the parameter A1 for the angle, you can check how it work at this video: https://youtu.be/JMwn81Ltw6A?t=562 ;
Use of catalog is great, keep up the work!
A very interesting catalog but do you support trial version before I can make a purchase?
Hi Aawejkhan, unfortunately because this type of installer will deploy all resources on user's machine and for now we dont have a way for controlling it, beside that we want to maximum user's experience so we aslo dont want to limit the components in a catalog. The good news is if after purchasing you dont satisfy with the app we will refund to you, that's our policy. Thank you.
Finally I can export Isometric for mixproof valves, great work!! keep it up guys.
Thank Michael. The Isometric symbol for multiway valves and the function that allow user to change component's parameter in the drawing is the two important upgrades of this catalog.
