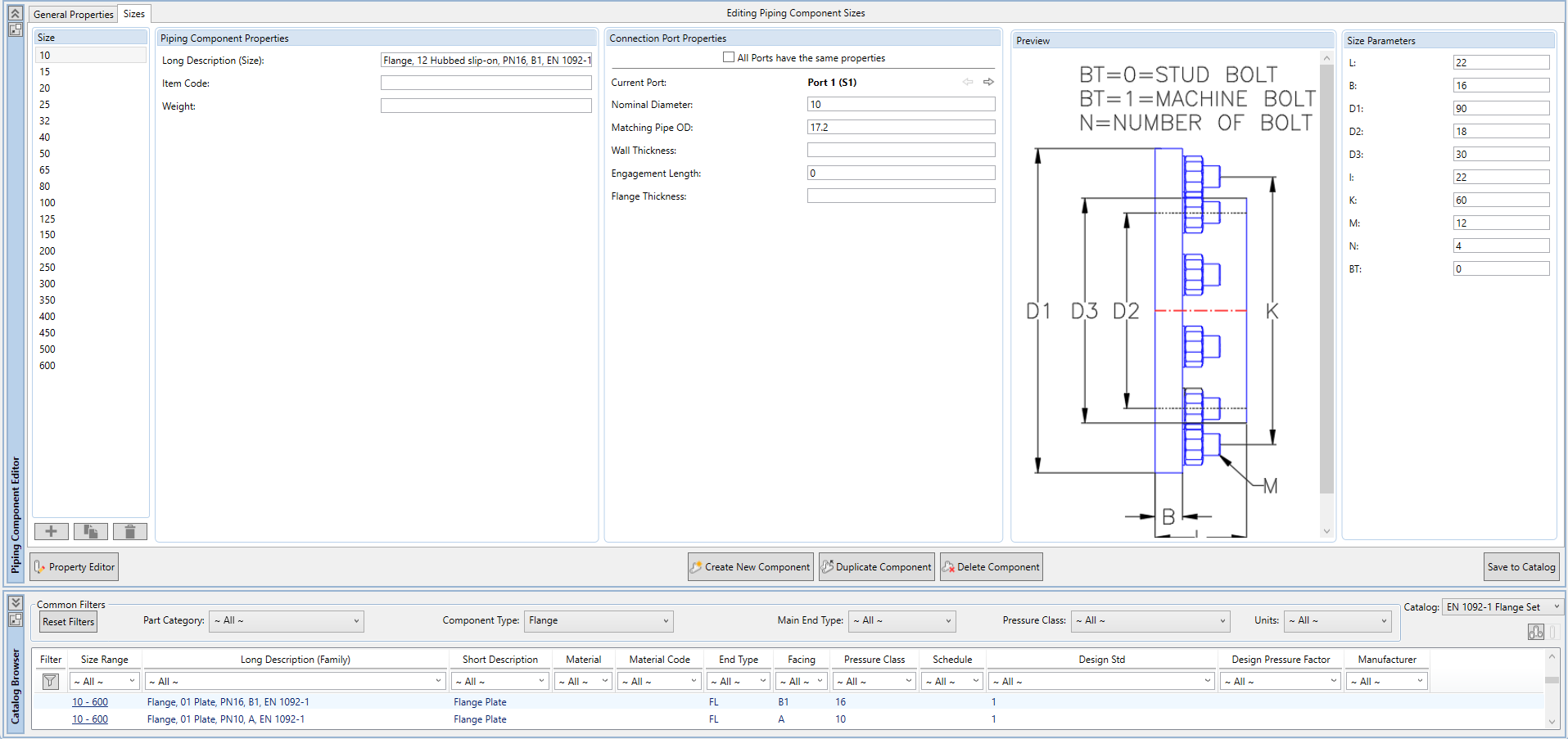

This catalog includes SS Circular flanges for pipes, valves, fittings, and accessories for different PN Ratings along with gasket and bolts.The below mentioned fittings are added based on the various standard.

·         Flanges as per EN 1092-1

1.    Plate flange for welding

2.    Loose plate flange for Types 32-37

3.    Loose plate flange for Type 34

4.    Blind flange

5.    Weld-neck flange

6.    Hubbed slip-on flange for welding

7.    Hubbed threaded flange.

8.    Weld-on plate collar

9.    Lapped end pipe collar

10.Weld-neck collar

11.Weldring neck collar

12.Weld-on plate collar

13.Pressed collar with long neck

14.Pressed collar

·         Gasket as per EN 1514-1,2,3, 4,6,7 & 8

1.    Part 1: Non-metallic flat gaskets with or without inserts English version of DIN EN 1514-1

2.    Part 2: Spiral wound gaskets for use with steel flanges; English version EN 1514-2:2014

3.    Part 3: Non-metallic PTFE envelope gaskets English version of DIN EN 1514-3

4.    Corrugated, flat or grooved metallic and filled metallic gaskets for use with steel flanges English version of DIN EN 1514-4

5.    Covered serrated metal gaskets for use with steel flanges English version of DIN EN 1514-6

6.    Part 7: Covered metal jacketed gaskets for use with steel flanges English version of DIN EN 1514-7

7.    Part 8: Polymeric O-Ring gaskets for grooved flanges English version of DIN EN 1514-8

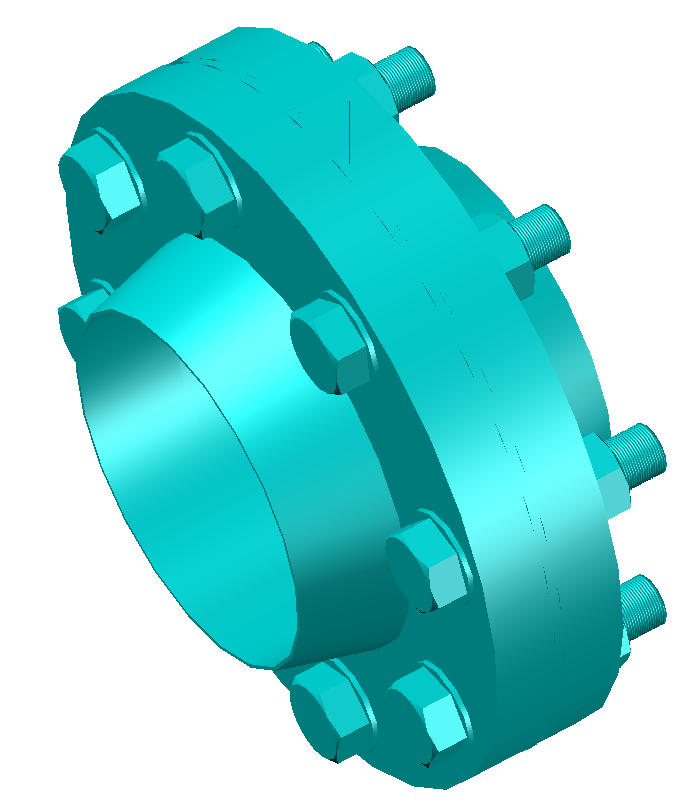

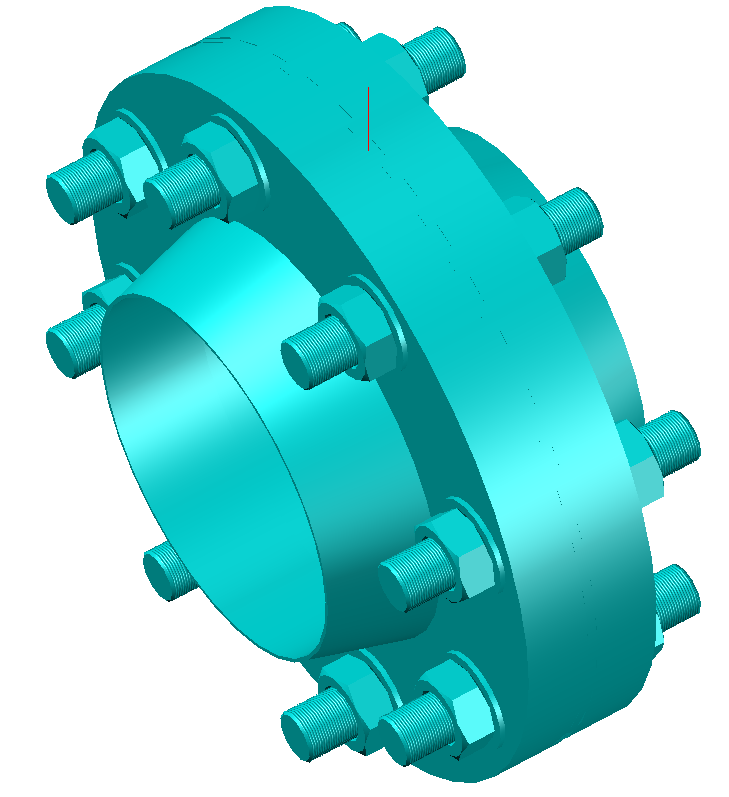

Bolts as per ISO 4014
