Cable tray - ladder - trunking Python Catalog
Описание

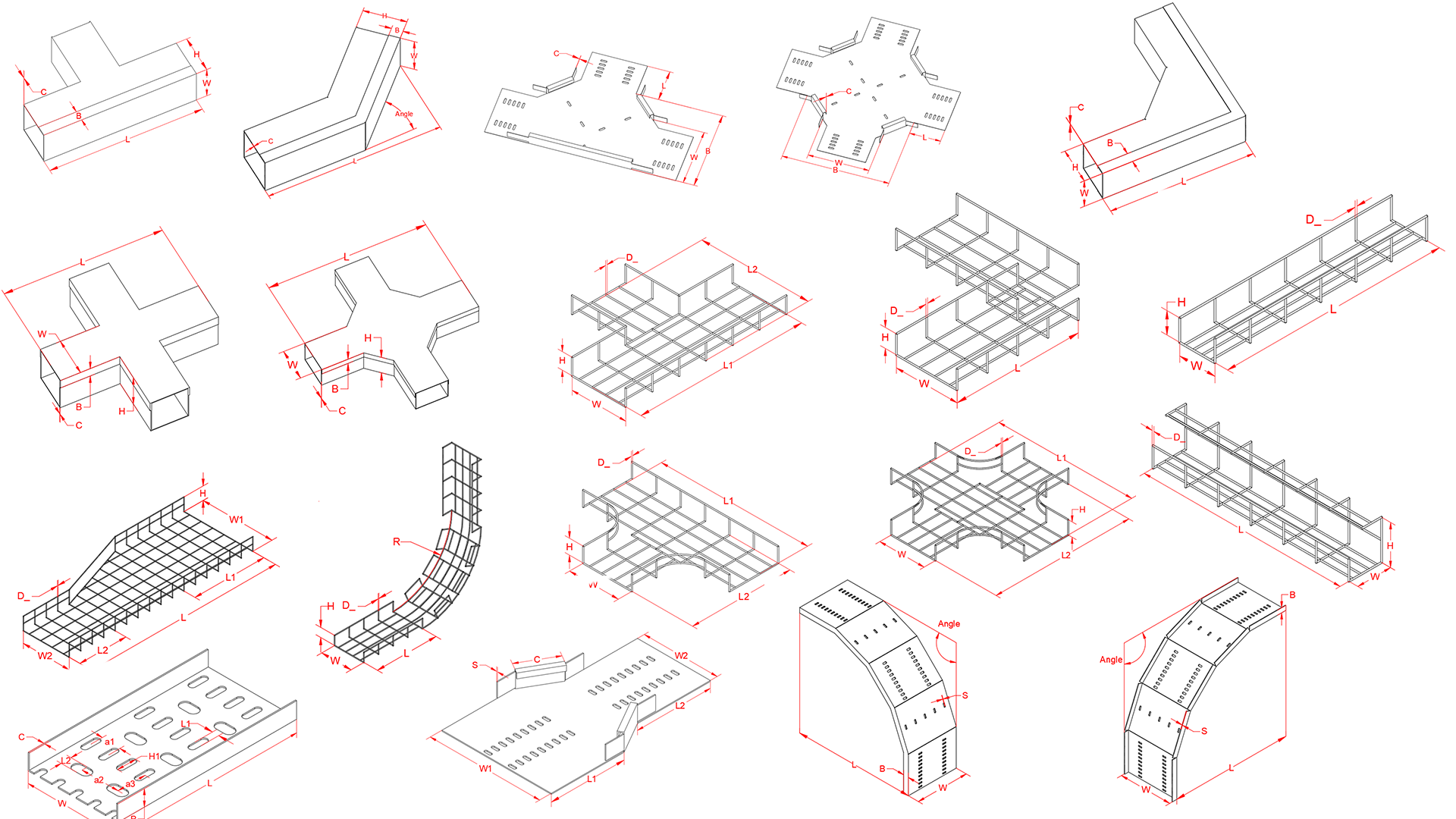

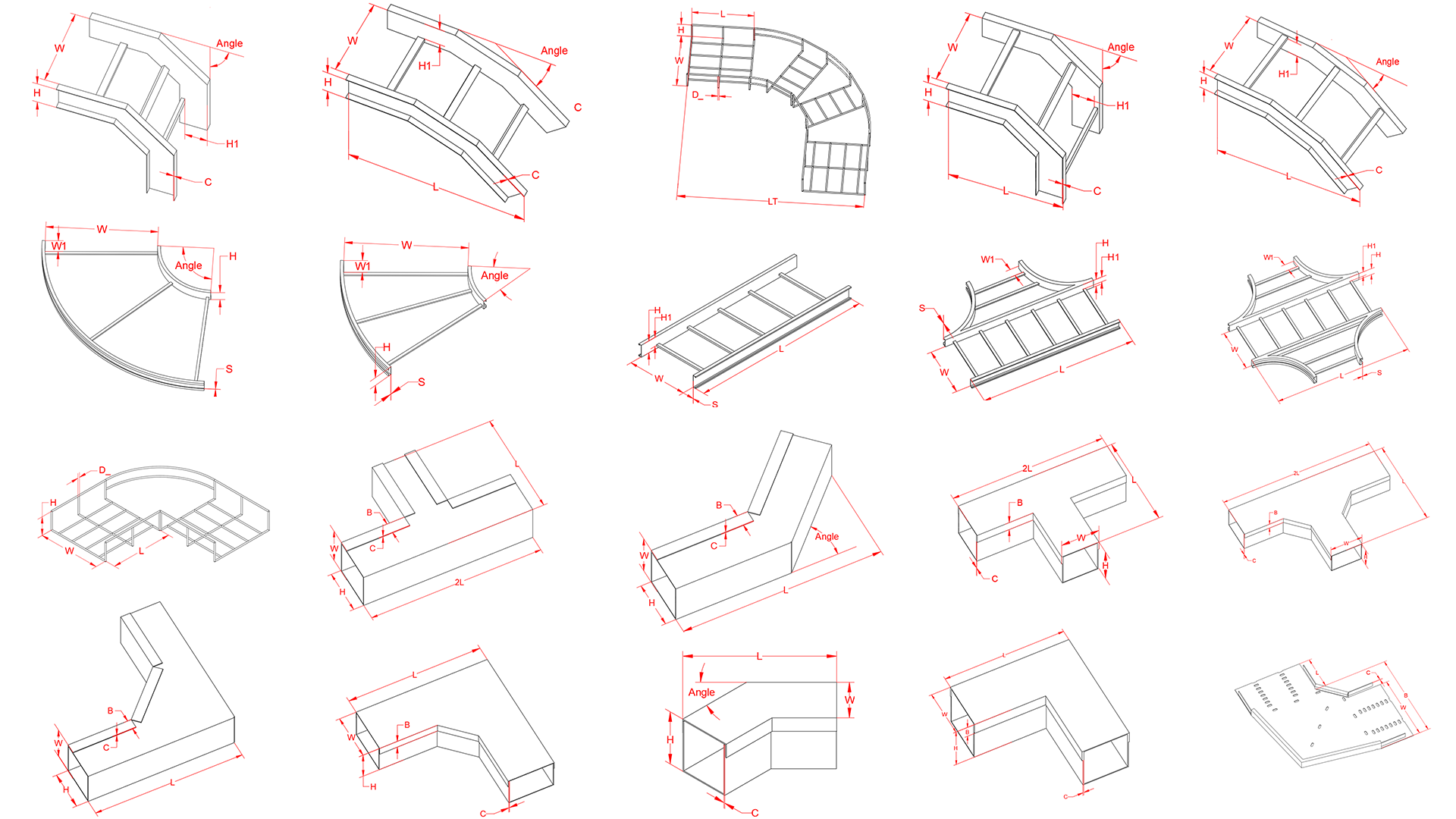

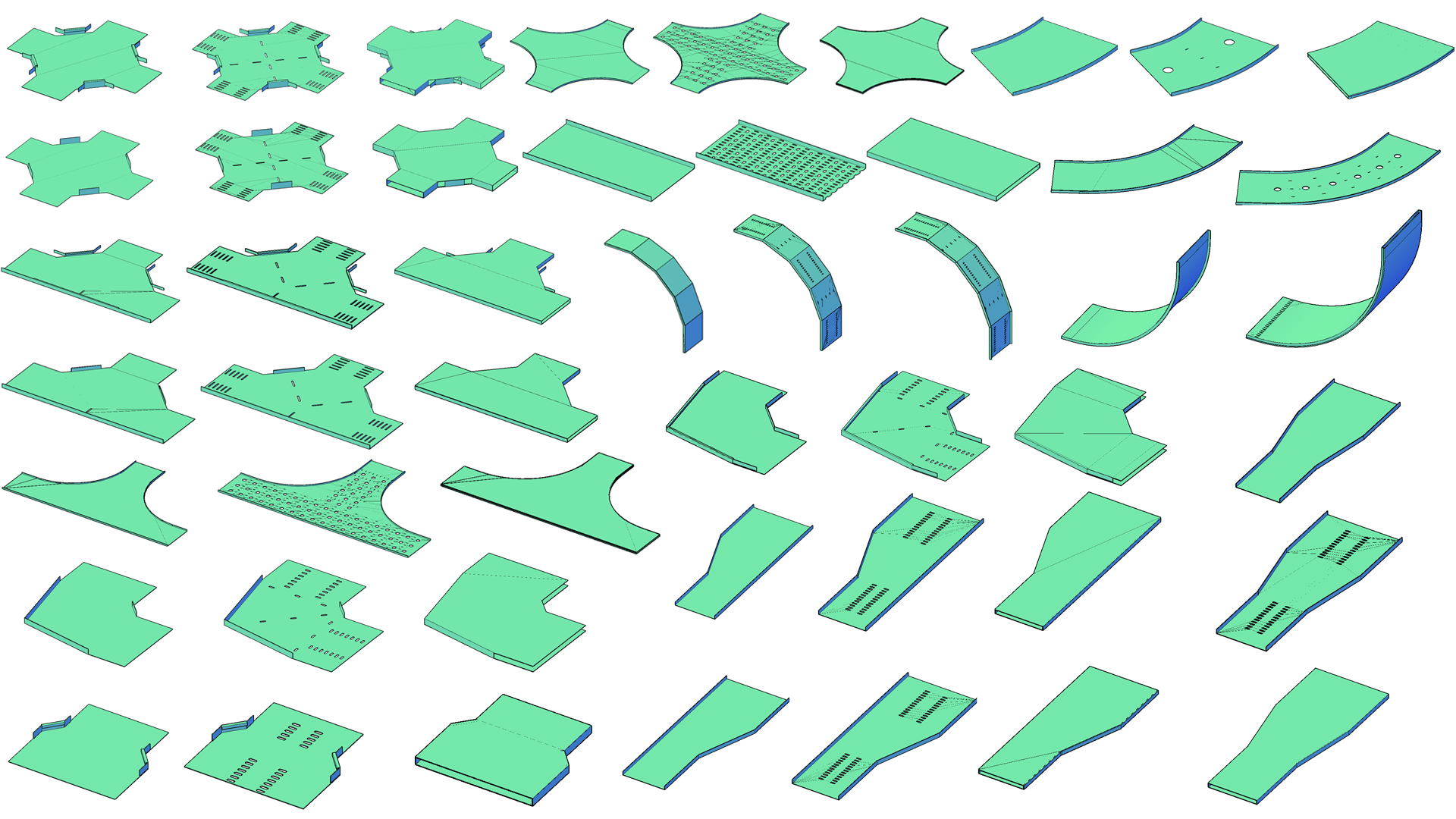

The catalog includes 994 items which fall into 4 types of cable which are:
- Cable tray
- Cable ladder

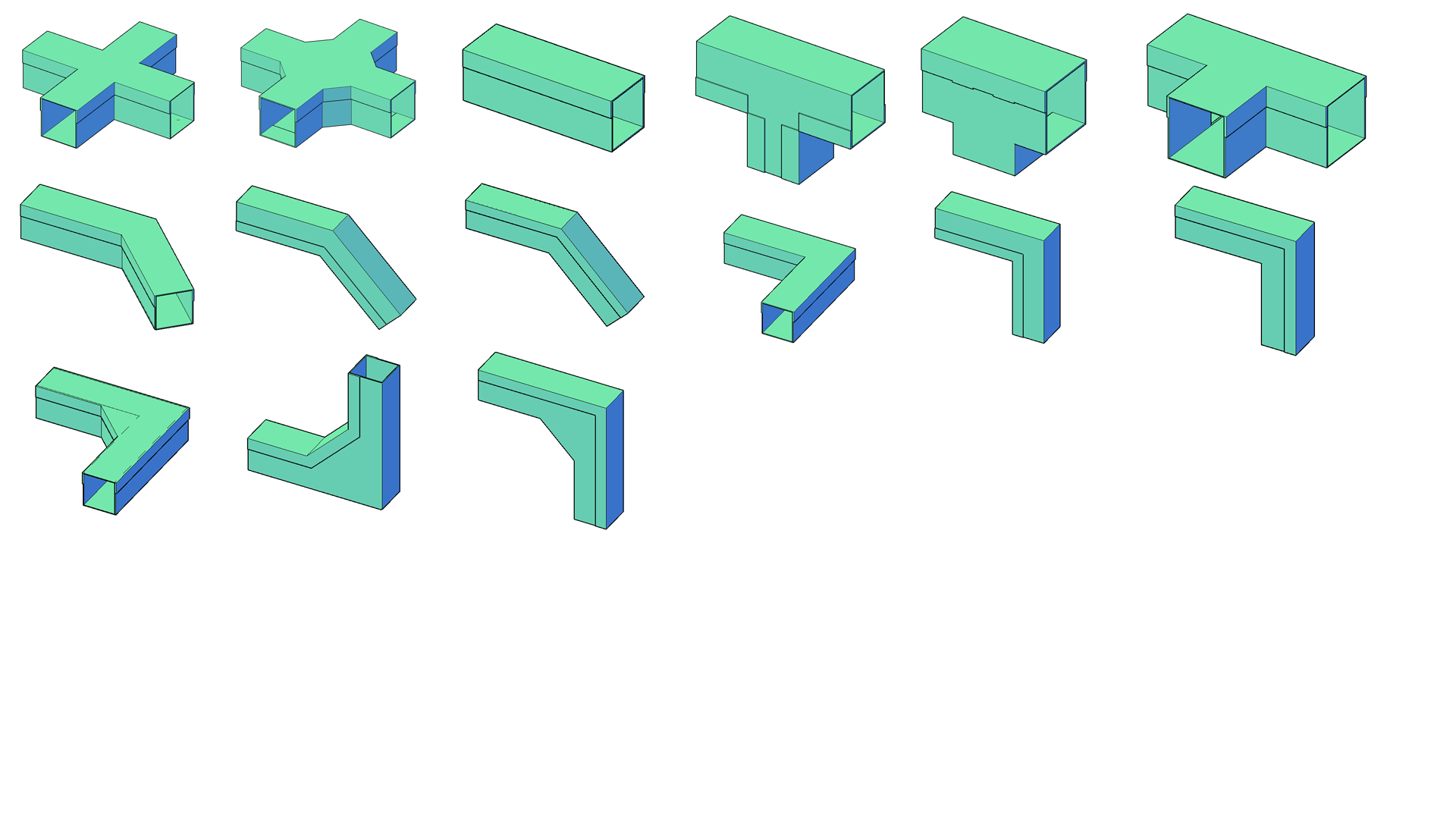

- Trunking
- Steel wire
Size range: 50 - 75 - 100 - 150 - 200 - 225 - 300 - 400 - 450 - 500 - 600 - 700 - 800 - 900 - 1000mm
Advantages:

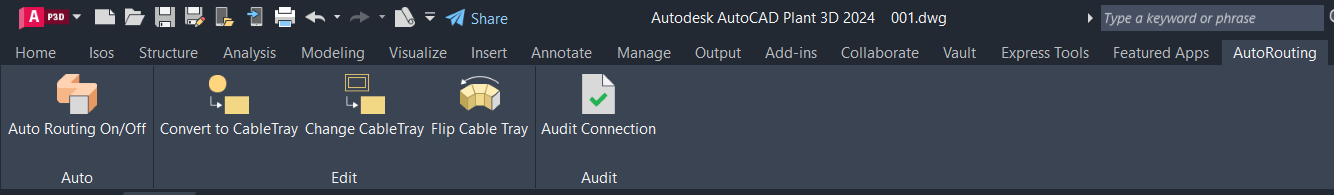

- Including a plugin that makes Automatically routing possible similar to piping
- Straight cable tray, ladder, etc. Will have the correct length filling automatically so gives you the correct BOM
- 100% Python part
- Detail and lightweight
- Built-in catalog which is ready to use
- Parametric ready to make your own custom catalog
Components whose manufacturer = Unitrust are made based on the Unitrust (Atkore) catalog, the other parts are common items added by the user request.

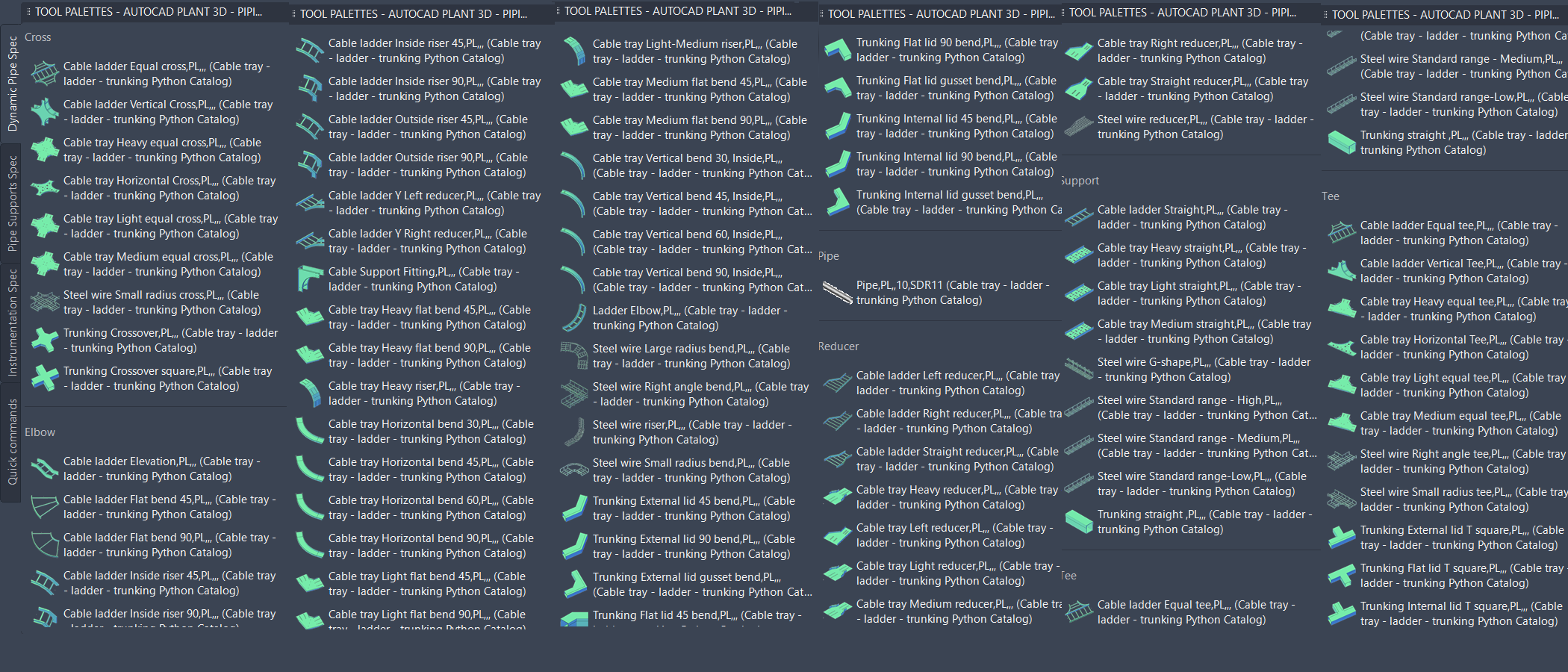

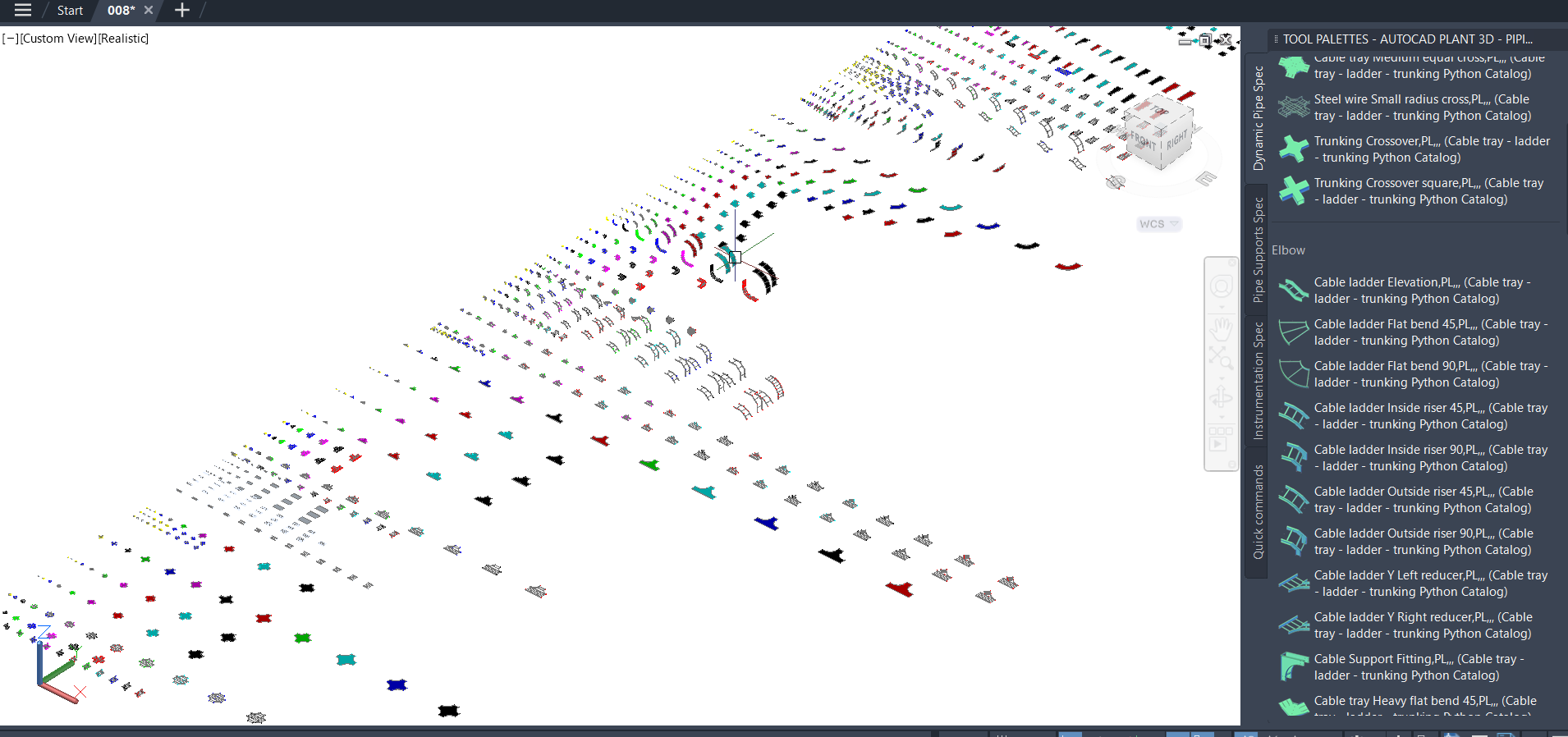

Check out the Screenshot for available components.
Note: This app uses a custom installer (and not the standard App Store installer).
I contacted them to have their trial version and then decided to buy it. This app covers various type of cable trays, trunking and also including auto routing tool which I can use with my own items.
Many types of detailed Cable tray, Ladder and Trunking in one app only, which I don't need to purchase more to have a completed design. Highly recommended!
Easy to use and modify with python items. Especially the auto routing feature make this app standing out from others. Totally worth the price!
Great tool for visual representation of cable trays and BOM generation. Very efficient technical support.
The additional tool allow auto routing really make this catalog stand out from others.
This app has been useful to me since I always have to draw cable tray. The customer service has been top notch and I recommend anyone designing or routing cable tray to purchase this app. It is worth the price paid.
i test this cpack and i should say, it is very easy to use, very complete the catalog and there are a lot of options. Is a great solutions for cable trays for plant 3D!!!
When problems accure Khailongtech respons is fast and helpfull
Totaly worth the price
Thank you Simon.
Hi, If the straight ladder is reverse please press the arrow button so it returns to the correct direction (it is mentioned in the manual). The length of straight ladder is another topic we will cover in next release. Thank you.
Incredible like all the products they offer, the service is great, they keep working so what they do is excellent. Thank you!
Nice application that can be used for visual represenation of cable ladders and trays.
This one covers a wide range of cable trays, some of which I may need in the future, highly recommended.
