Auto. dimensions for MEP fixtures at ceiling
A, Versión de prueba gratuita de 30 días de duración, M
SO:
Idioma:
Descripción
This tool is designed to create automatic dimensions for MEP fixtures located in a ceiling.
This will save you a lot of time usually spent on this task.
NOTE: The tool will work for 30 days until activation.
Activation steps:
1. The user has to send us the license code which is shown in the app license dialog box when the app is launched and with the payment receipt to the email "bim_s_s@yahoo.com"
2. We will send the activation code to the user's email within 24 hours.
3. Click on "activate" in the license dialog box, enter the code received, and hit OK to activate the app.
Acerca de esta versión
Versión 1.1.0, 24/05/2024

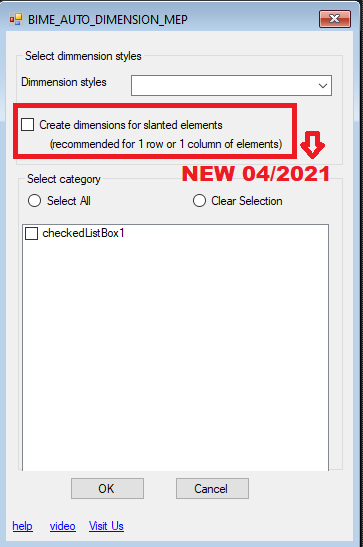

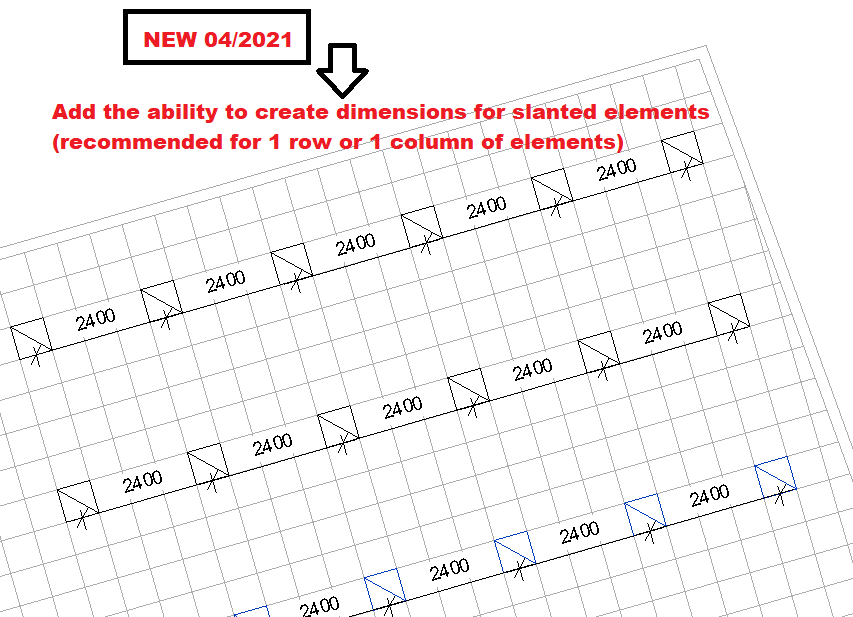

Add the ability to create dimensions for slanted elements (recommended for 1 row or 1 column of elements)
您好，产品很棒!我有个需求想问问是否可以实现。我想在族内添加好尺寸标注，之后载入项目文件中可以根据需要让标注显示，请关注，谢谢。
This is the English translation for your comments : Hello, the product is great! I have a need to ask if it can be realized. I want to add dimensions to the family, and then load the project file to display the annotations as needed. Please pay attention, thank you. My reply. This tool measure the distance between families , We will study creating a new tool to measure the families dimensions and in the model.
